Liebherr LTM 1045-3.1 Z53447 Electric and Hydraulic Diagrams EN

Data Size: 41.49 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1045-3.1 Z53447 Crane
(LTM1045-3.1, LTM/1045-3.1, LTM_1045-3.1, LTM-1045-3.1, LTM-1045/3.1)

List Contents:

Bulkhead Plate Complete 983870108_999_EN.pdf (3 Pages)
Control Hydraulics Compressed-Air System 984195908_999_EN.pdf (14 Pages)
Electric Diagram 983602208_999_EN.pdf (88 Pages)

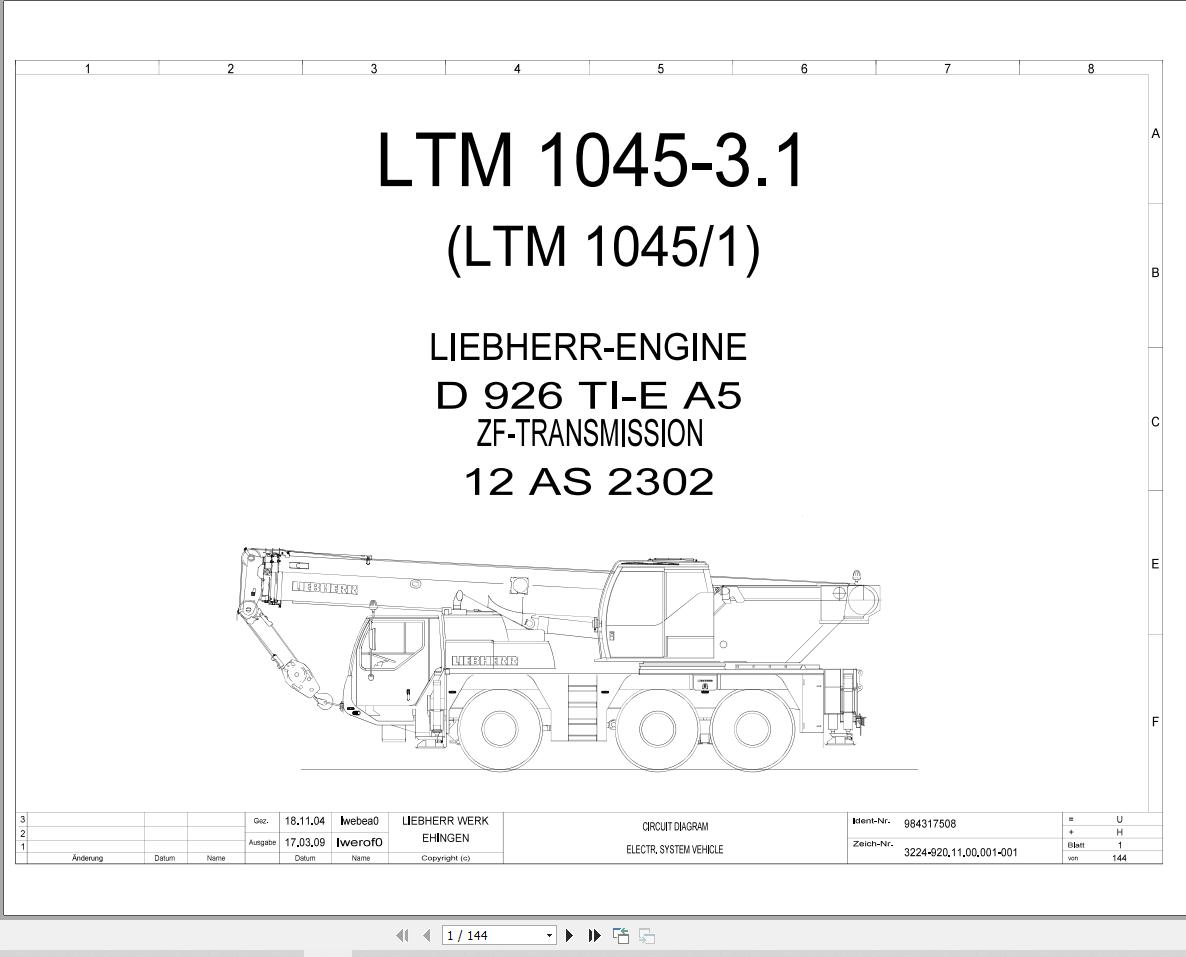

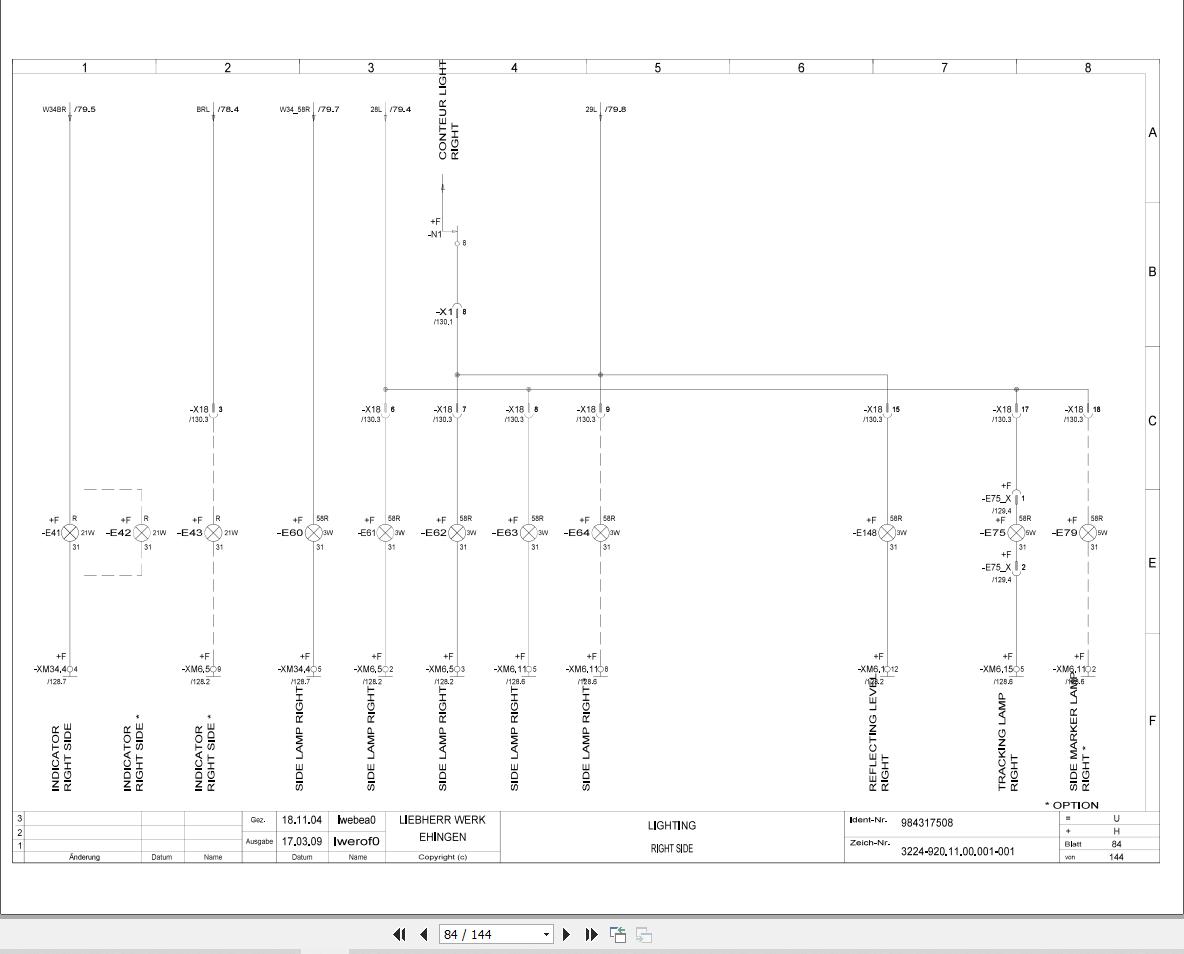

Electric Diagram 984317508_999_EN.pdf (144 Pages)
Hydraulics Outriggers Pipework 983838408_999_EN.pdf (6 Pages)
Hydraulics Superstructure General Layout 983622108_999_EN.pdf (8 Pages)
Pneumatic Cabin 983015908_999_EN.pdf (4 Pages)
Steering Hydraulics Pipework 983838008_999_EN.pdf (5 Pages)
Suspension Pipework 984198308_999_EN.pdf (4 Pages)
