Liebherr LTM 1055-3.1 Z84528 Electric and Hydraulic Diagrams EN

Data Size: 58.49 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1055-3.1 Z84528 Crane
(LTM1055-3.1, LTM/1055-3.1, LTM_1055-3.1, LTM-1055-3.1, LTM-1055/3.1)

List Contents:

Bulkhead Plate Complete 983870108_999_EN.pdf (3 Pages)
Control Hydraulics Compressed-Air System 985473108_999_EN.pdf (12 Pages)

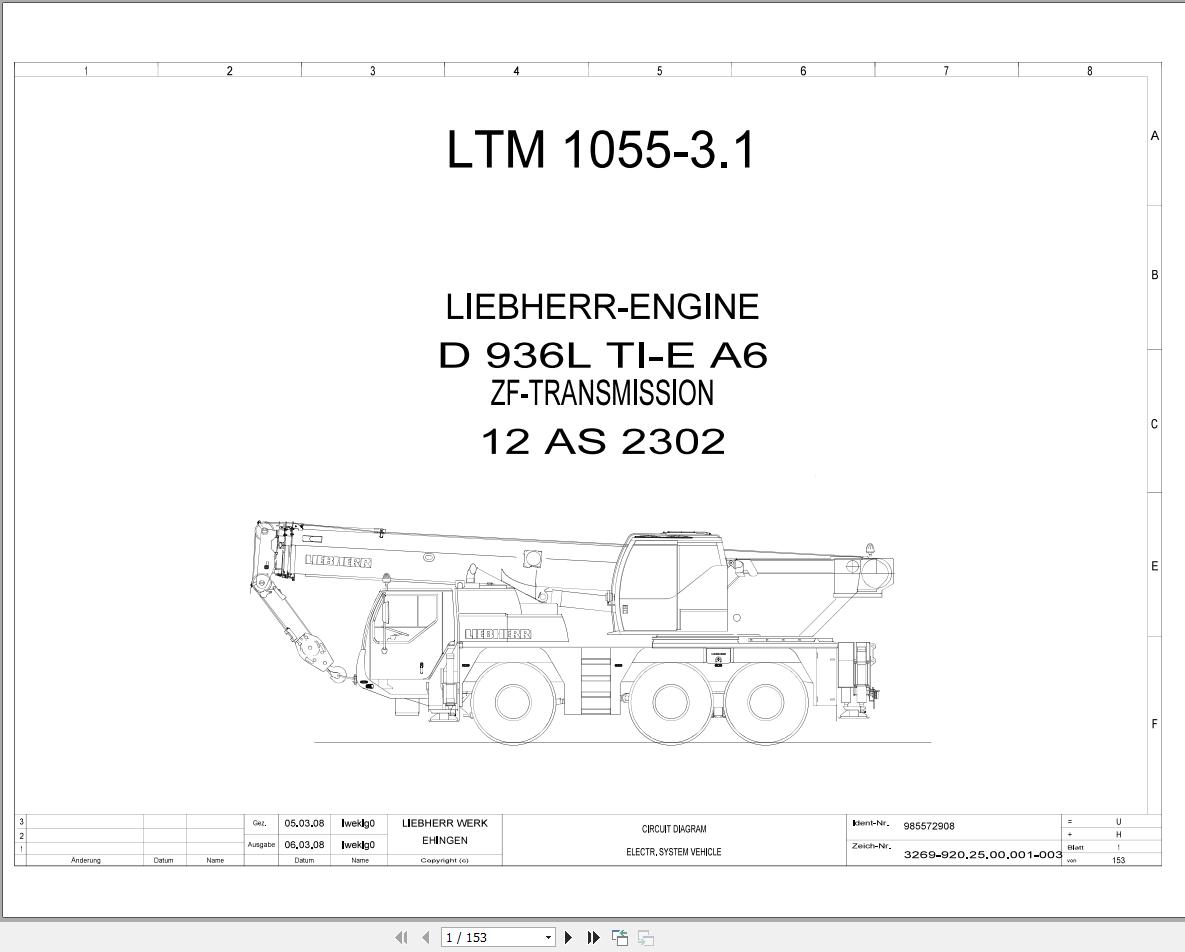

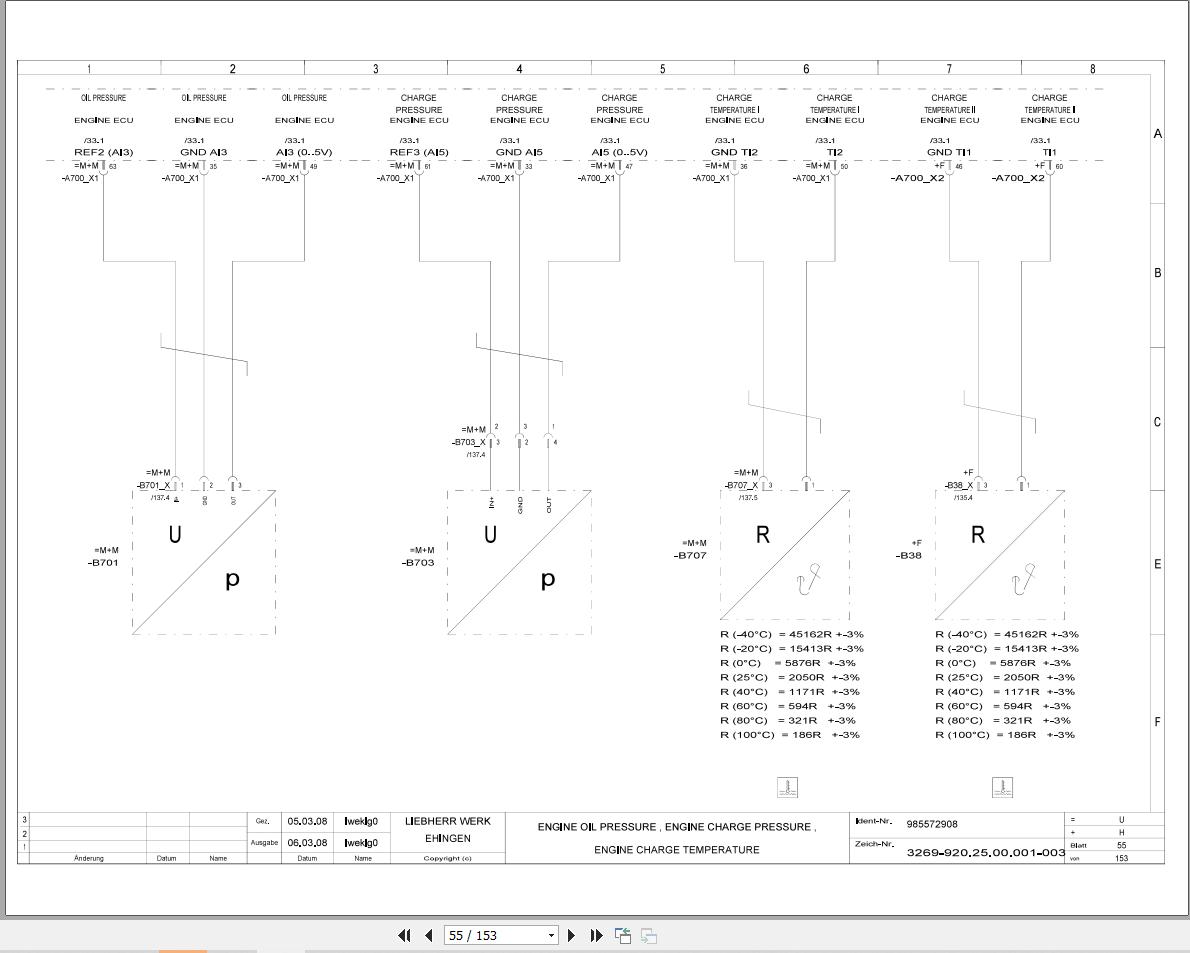

Electric Diagram 985572908_999_EN.pdf (153 Pages)
Emergency Operation Crane Hydraulics Superstructure Pipework 983434108_999_EN.pdf (4 Pages)
Hydraulics Superstructure General Layout With Emergency Lowering 985334208_999_EN.pdf (12 Pages)
Pneumatic Cabin 983860108_999_EN.pdf (3 Pages)
Pneumatic Trailer Coupling 981152308_999_EN.pdf (4 Pages)
Pneumatic Trailer Coupling 986876908_999_EN.pdf (4 Pages)
Steering Hydraulics Diagram 984822808_999_EN.pdf (3 Pages)
Suspension Pipework 984737808_999_EN.pdf (4 Pages)
Wiring Diagram 985536508_999_EN.pdf (153 Pages)
