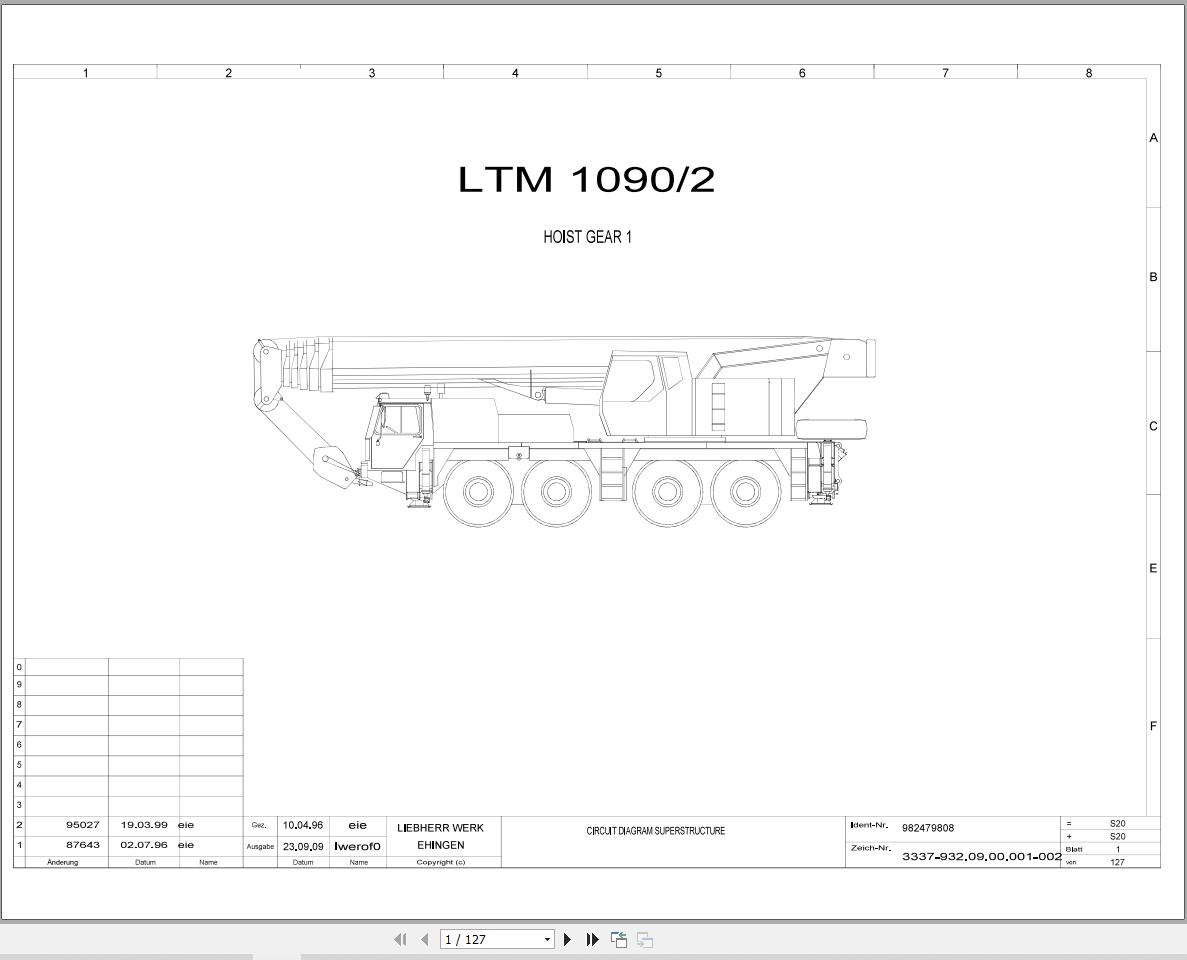

Liebherr LTM 1090-2 Z23053 Electric and Hydraulic Diagrams EN

Data Size: 32.02 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1090-2 Z23053 Crane
(LTM1090-2, LTM/1090-2, LTM_1090-2, LTM-1090-2, LTM-1090/2)

List Contents:

Compressed-Air System 982412408_999_EN.pdf (9 Pages)
Compressed-Air System Superstructure 982478408_999_EN.pdf (2 Pages)
Electric Diagram 982397208_999_EN.pdf (68 Pages)

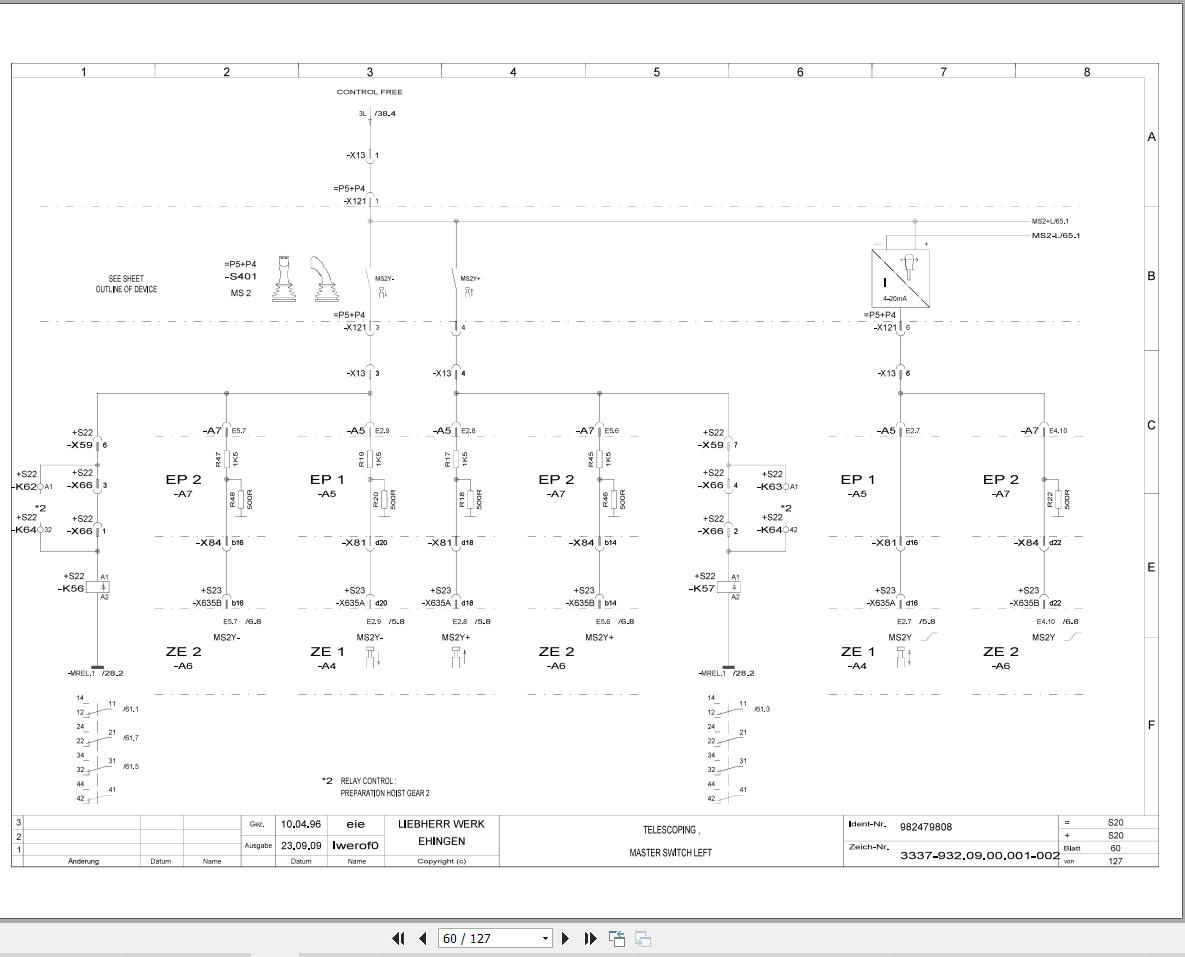

Electric Diagram 982479808_999_EN.pdf (127 Pages)
Hydraulic Diagram 982415208_999_EN.pdf (7 Pages)
