Liebherr LTM 1100-5.1 Z65530 Electric and Hydraulic Diagrams ES

Data Size: 68.59 MB
File Type: PDF
Language: Spanish
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1100-5.1 Z65530 Crane
(LTM1100-5.1, LTM/1100-5.1, LTM_1100-5.1, LTM-1100-5.1, LTM-1100/5.1)

List Contents:

Electric Diagram 983583208_999_ES.pdf (166 Pages)

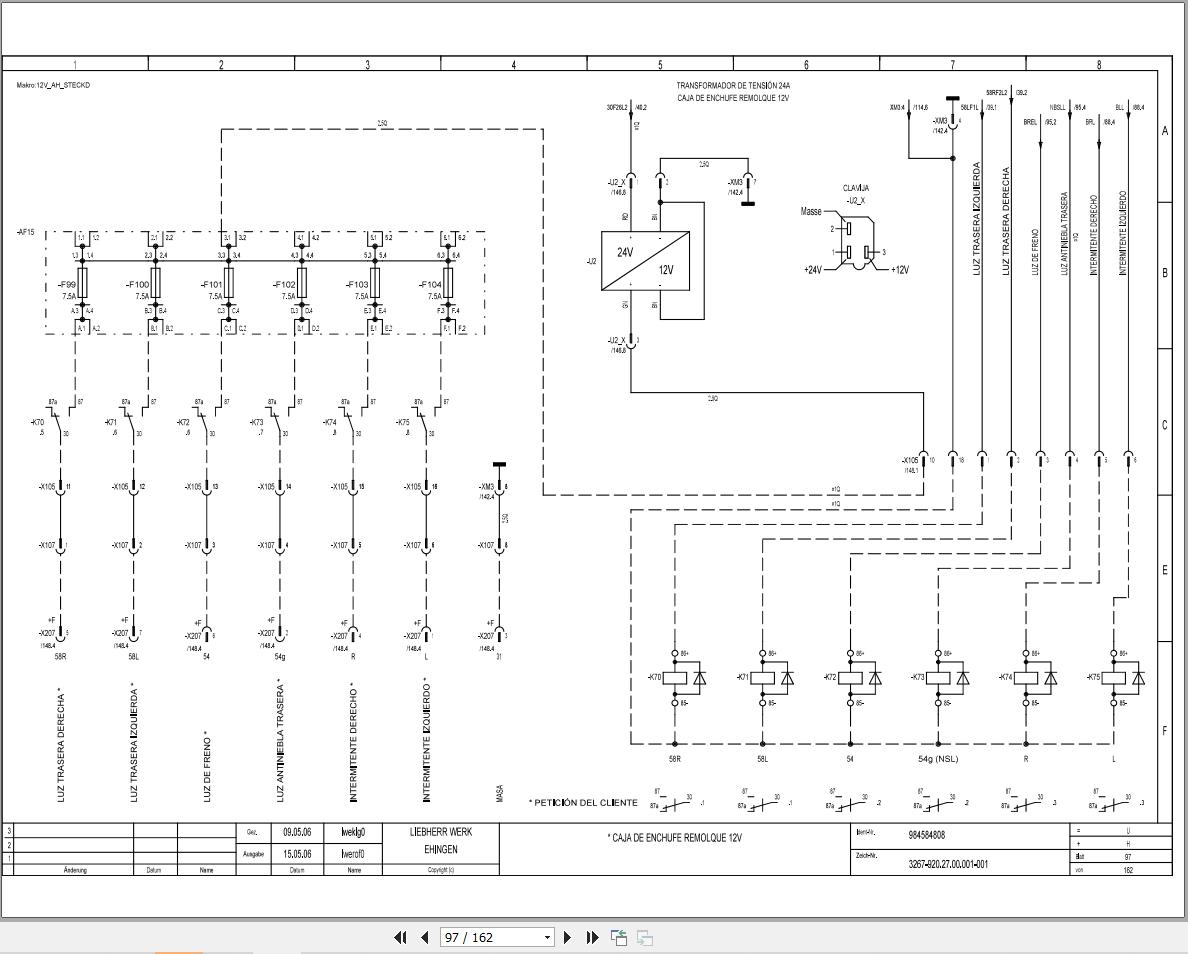

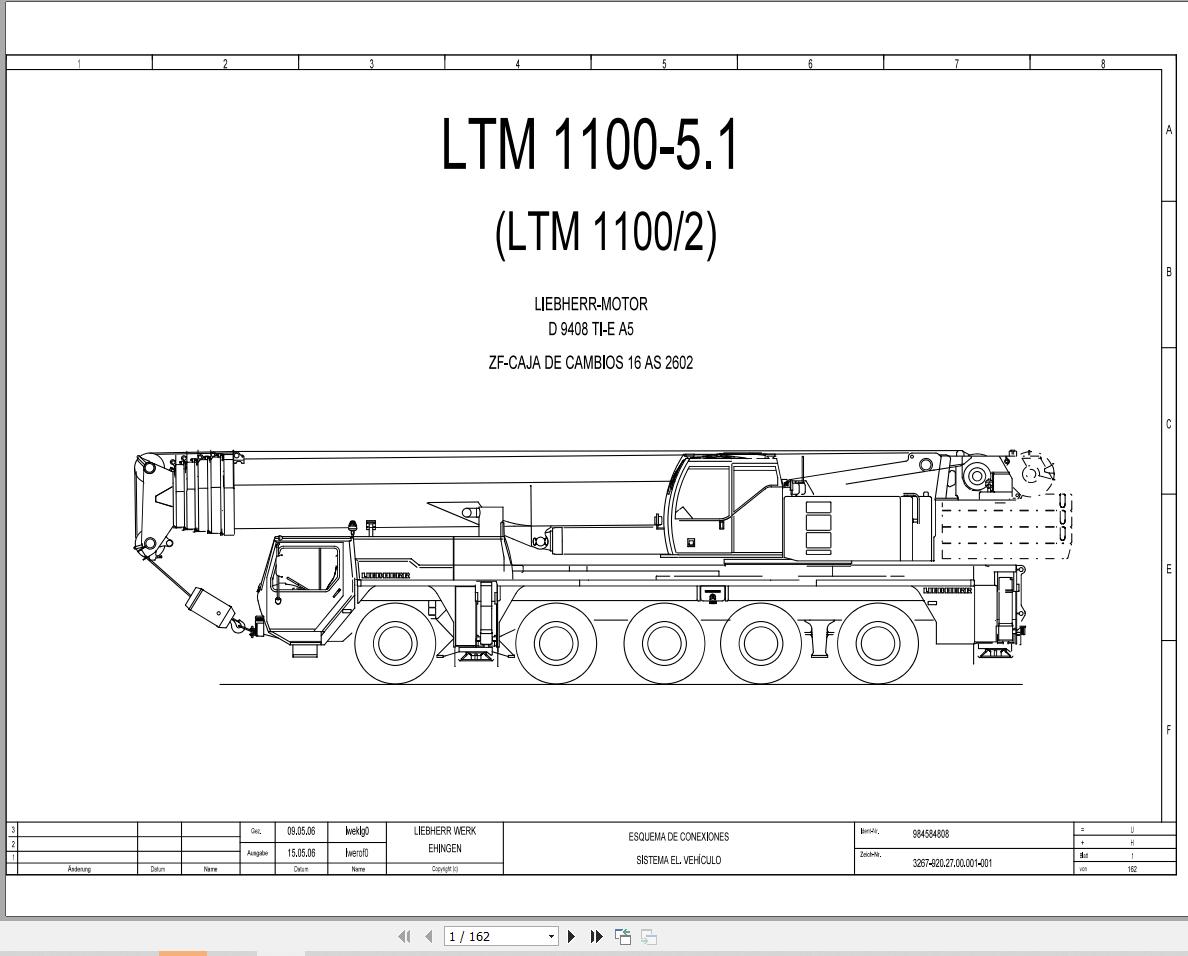

Electric Diagram 984584808_999_ES.pdf (162 Pages)
Hydraulics Hoist Gear II Pipework 983992808_999_ES.pdf (3 Pages)
Hydraulics Outriggers Pipework 983988708_999_ES.pdf (6 Pages)
Hydraulics Superstructure LTM 1100-5.1 General Layout 984458308_999_ES.pdf (12 Pages)
LTM 1100-5.1 Control Hydraulics Compressed-Air System 983984708_999_ES.pdf (15 Pages)
Pneumatic Operators Cab 983726408_999_ES.pdf (3 Pages)
Pneumatic Trailer Coupling 986876908_999_ES.pdf (4 Pages)
Pre-Assembley Bulkhead Plate 983990908_999_ES.pdf (3 Pages)
Wiring Diagram Pneumatic Trailer Coupling Cert KBA 982973508_999_ES.pdf (2 Pages)
