Liebherr LTM 1100 Z22541 Electric and Hydraulic Diagrams ES

Data Size: 19.94 MB
File Type: PDF
Language: Spanish
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1100 Z22541 Crane
(LTM1100, LTM/1100, LTM_1100, LTM-1100)

List Contents:

Electric Diagram 982135708_999_ES.pdf (61 Pages)

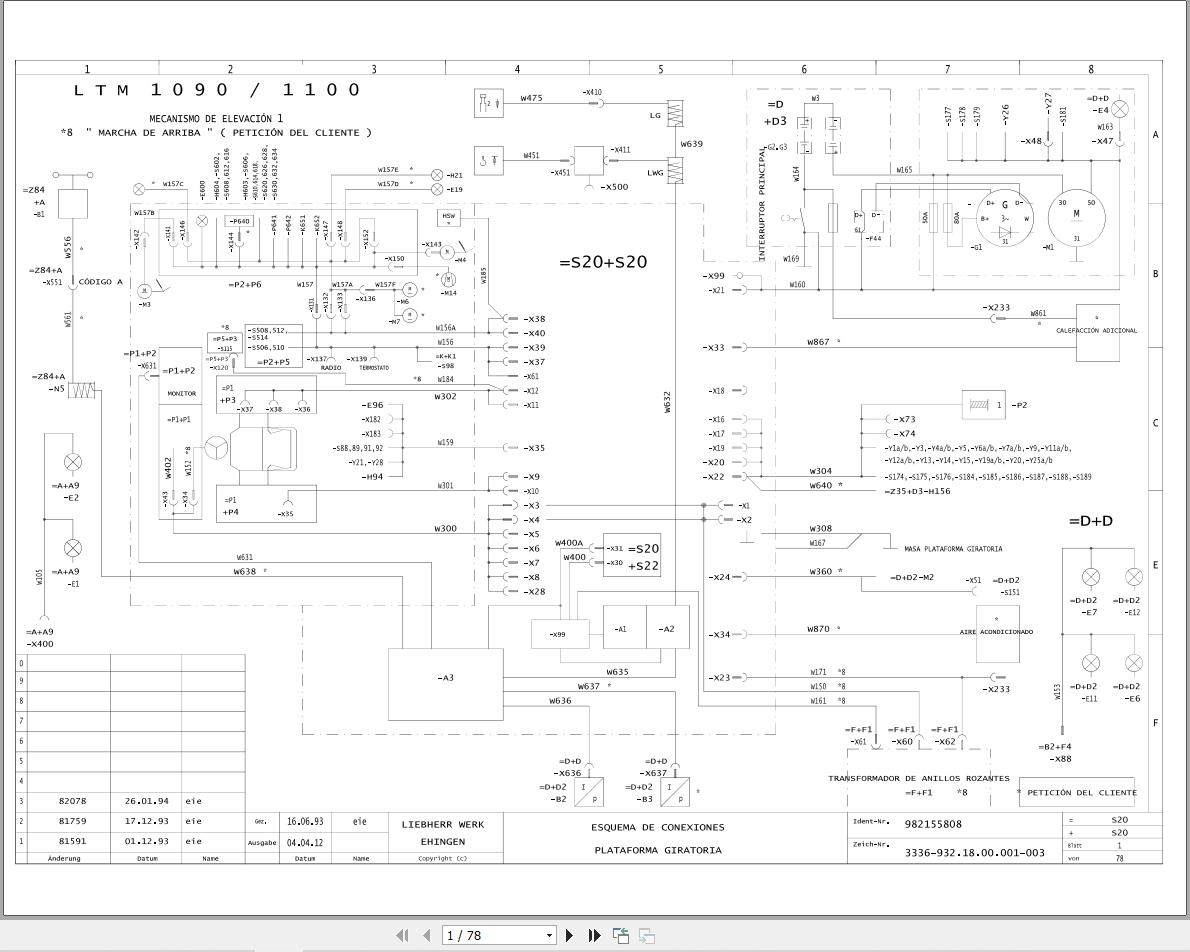

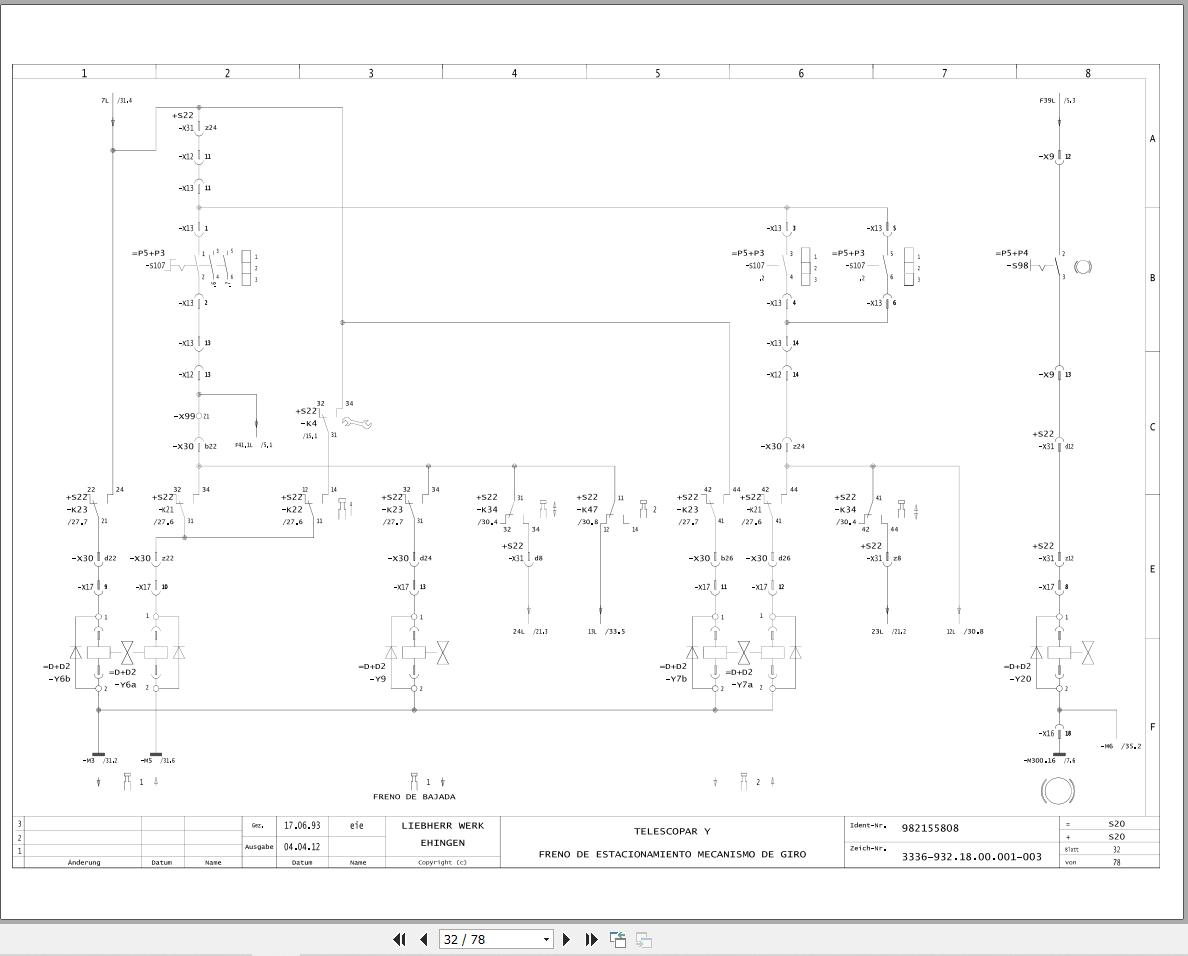

Electric Diagram 982155808_999_ES.pdf (78 Pages)
Hydraulic Diagram 982155408_999_ES.pdf (3 Pages)
