Liebherr LTM 1100 Z22541 Electric and Hydraulic Diagrams RU

Data Size: 19.80 MB
File Type: PDF
Language: Russian
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1100 Z22541 Crane
(LTM1100, LTM/1100, LTM_1100, LTM-1100)

List Contents:

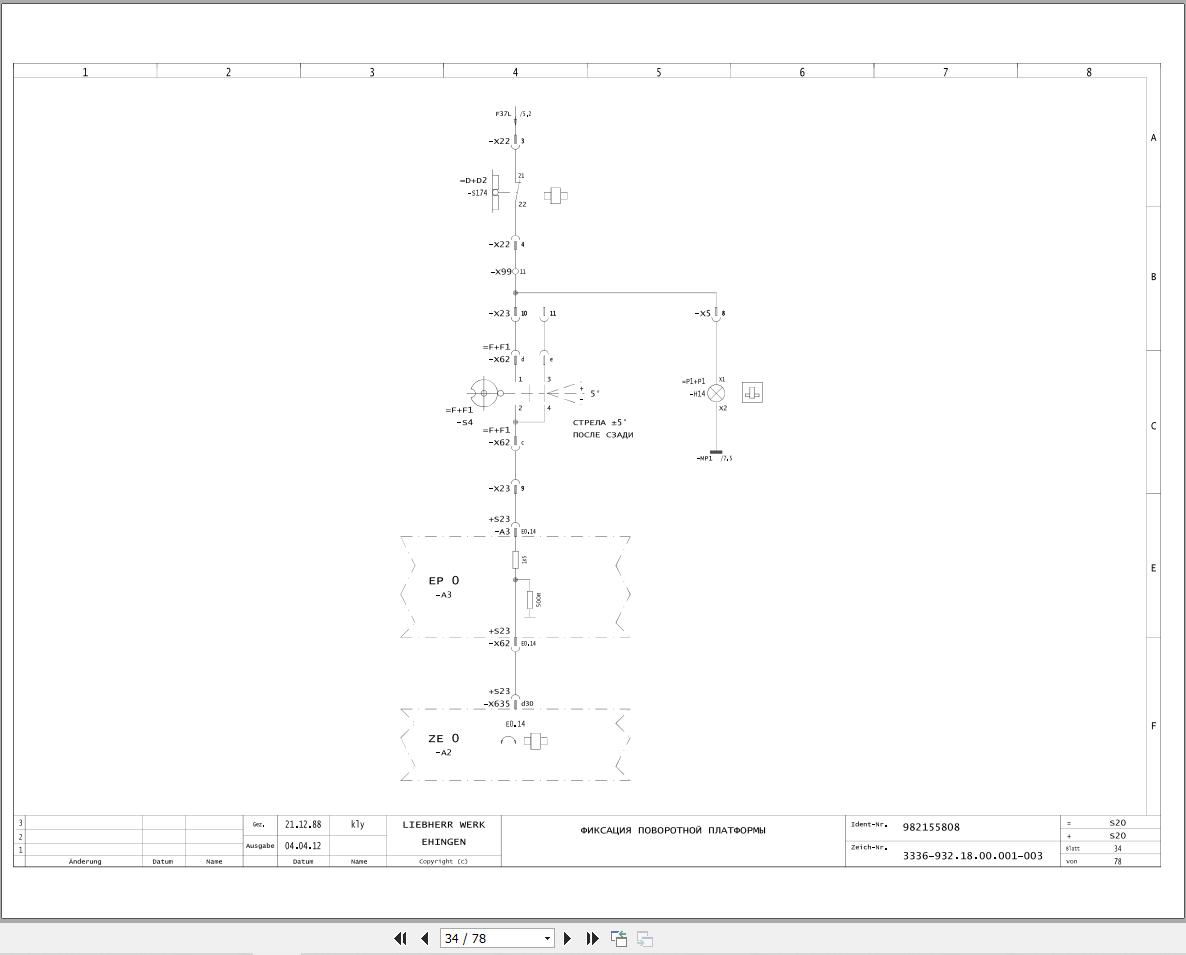

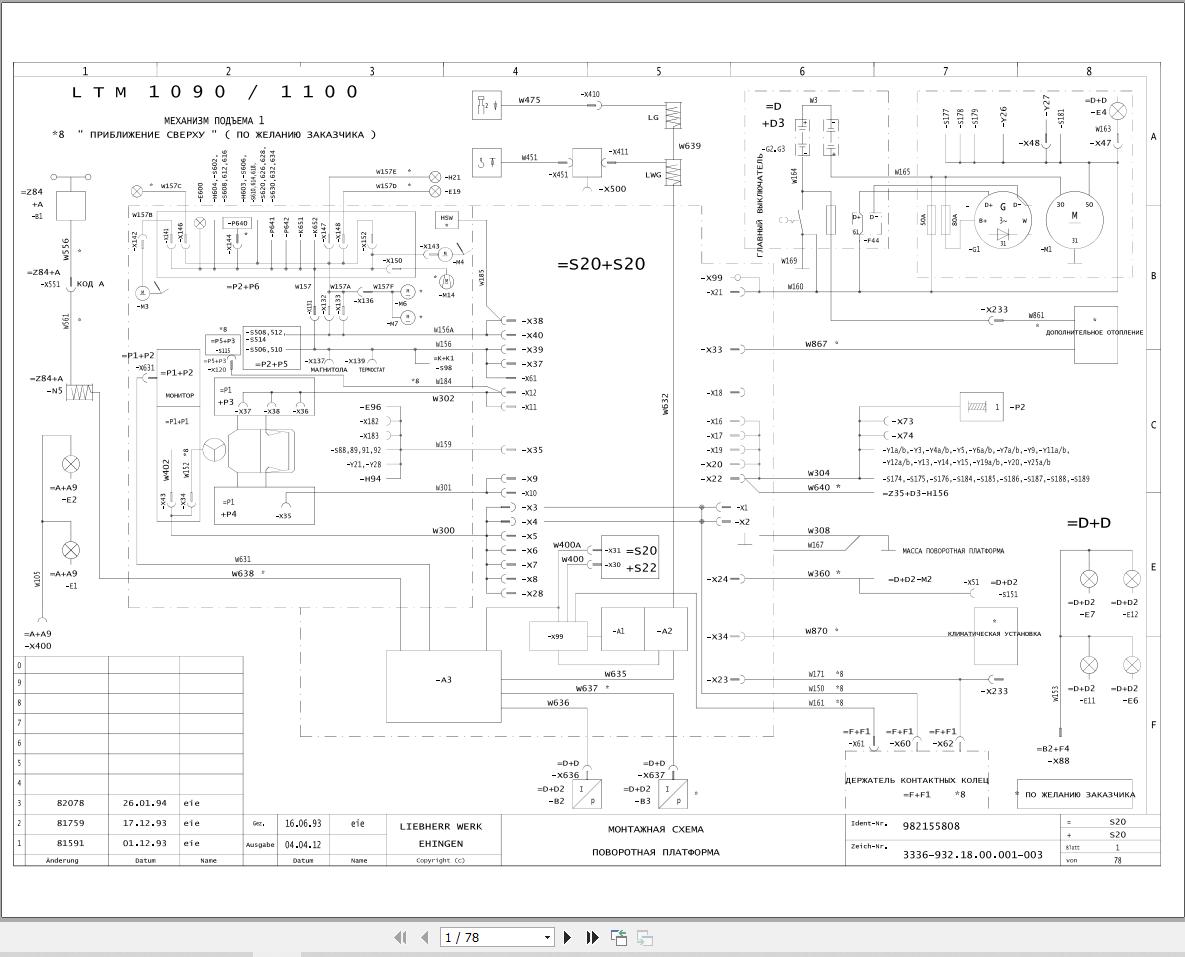

Electric Diagram 982135708_999_RU.pdf (61 Pages)
Electric Diagram 982155808_999_RU.pdf (78 Pages)
Hydraulic Diagram 982155408_999_RU.pdf (3 Pages)
