Liebherr LTM 1120-1 Z23314 Electric and Hydraulic Diagrams FR

Data Size: 32.02 MB
File Type: PDF
Language: French
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1120-1 Z23314 Crane
(LTM1120-1, LTM/1120-1, LTM_1120-1, LTM-1120-1, LTM-1120/1)

List Contents:

Compressed-Air System 982480808_999_FR.pdf (9 Pages)

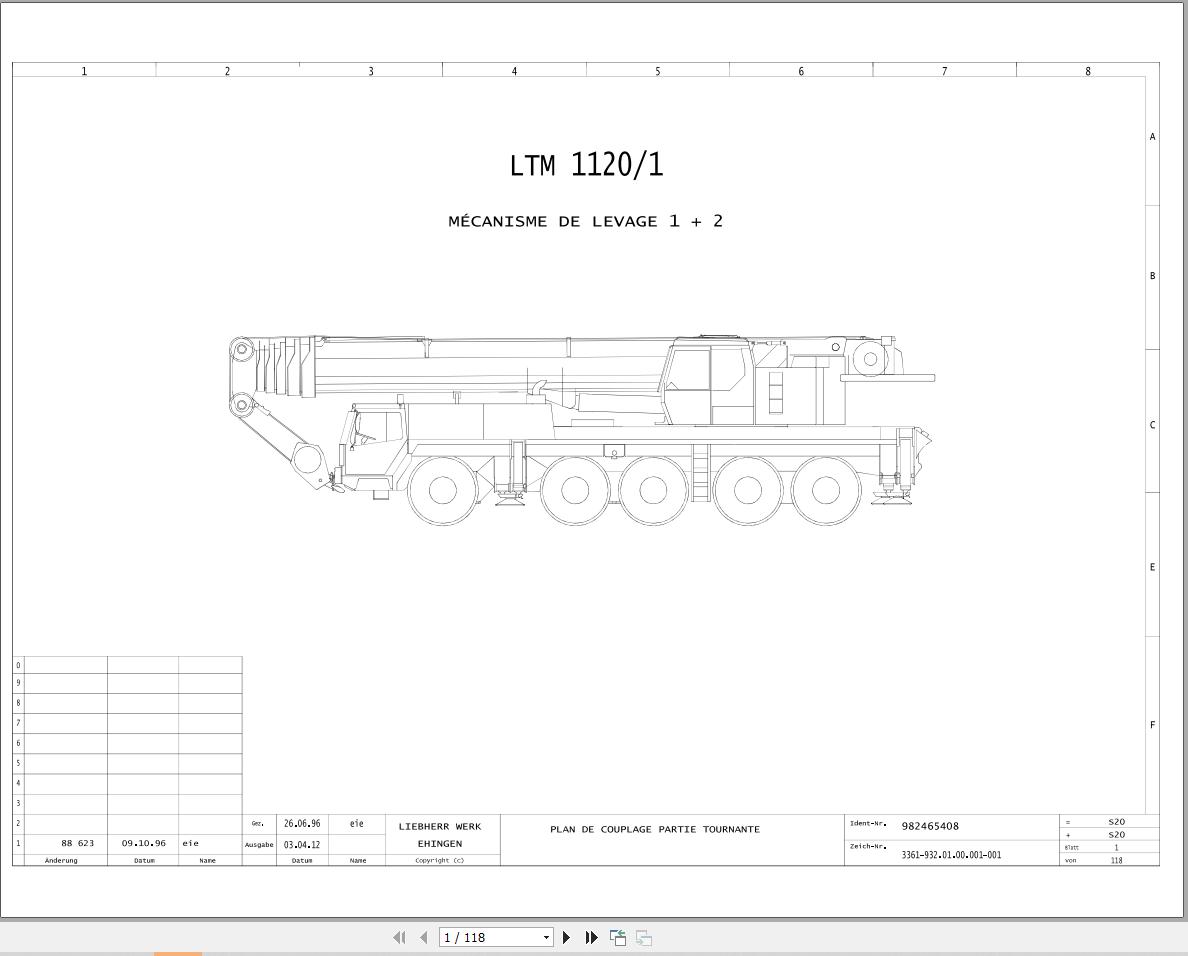

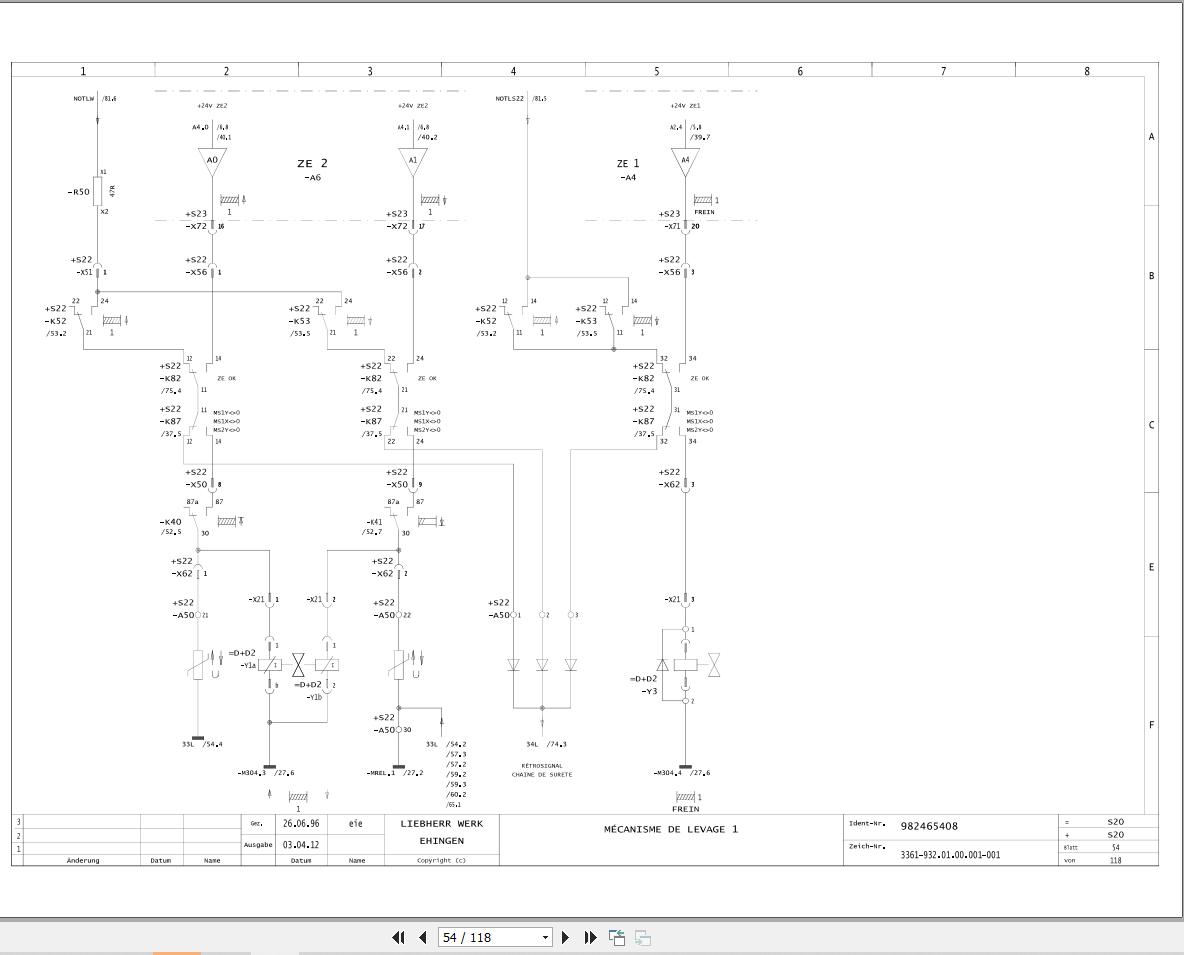

Electric Diagram 982465408_999_FR.pdf (118 Pages)
Hydraulics Outriggers LTM 1120-1 982482608_999_FR.pdf (9 Pages)
LTM 1120-1 Compressed-Air System Superstructure 982481808_999_FR.pdf (4 Pages)
LTM 1120-1 Electric Diagram 982467908_999_FR.pdf (78 Pages)
LTM 1120-1 Hydraulic Diagram 982479008_999_FR.pdf (11 Pages)
LTM 1120-1 Hydraulic Diagram 982483208_999_FR.pdf (2 Pages)
LTM 1120-1 Steering Hydraulics 982477308_999_FR.pdf (5 Pages)
