Liebherr LTM 11200-9.1 Z73400 Electric and Hydraulic Diagrams FR

Data Size: 96.97 MB
File Type: PDF
Language: French
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 11200-9.1 Z73400 Crane
(LTM11200-9.1, LTM/11200-9.1, LTM_11200-9.1, LTM-11200-9.1, LTM-11200/9.1)

List Contents:

Circuit Diagram Control FMEA 985498808_999_FR.pdf (7 Pages)
Control Hydraulics Compressed-Air System With Dolly Operation 985223308_999_FR.pdf (19 Pages)

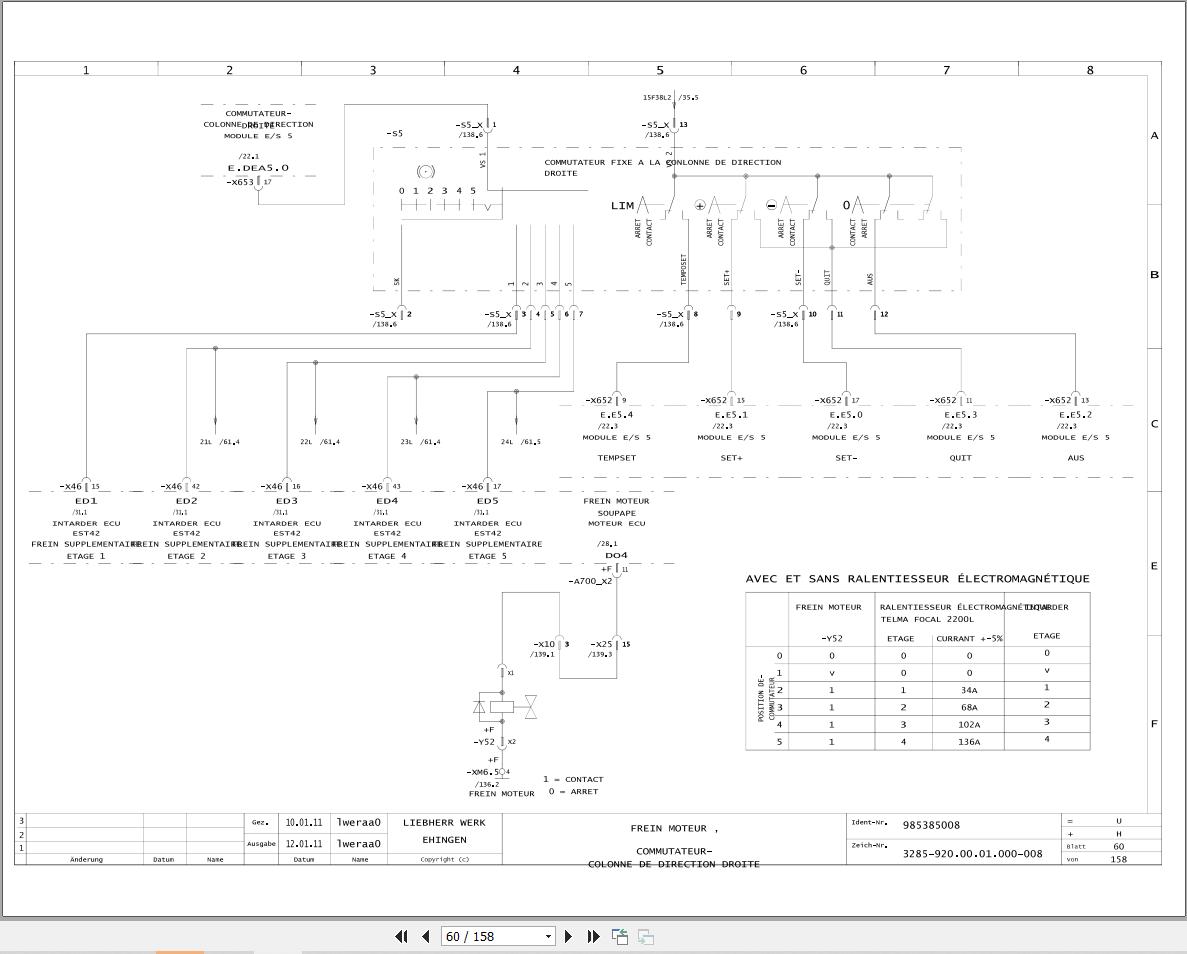

Electric Diagrams 985385008_999_FR.pdf (158 Pages)
