Liebherr LTM 1150-5.1 Z67197 Electric and Hydraulic Diagrams EN

Data Size: 43.19 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1150-5.1 Z67197 Crane
(LTM1150-5.1, LTM/1150-5.1, LTM_1150-5.1, LTM-1150-5.1, LTM-1150/5.1)

List Contents:

Compressed Air System LTM 1150-1 982942008_999_EN.pdf (9 Pages)
Compressed-Air System Superstructure 982324608_999_EN.pdf (4 Pages)

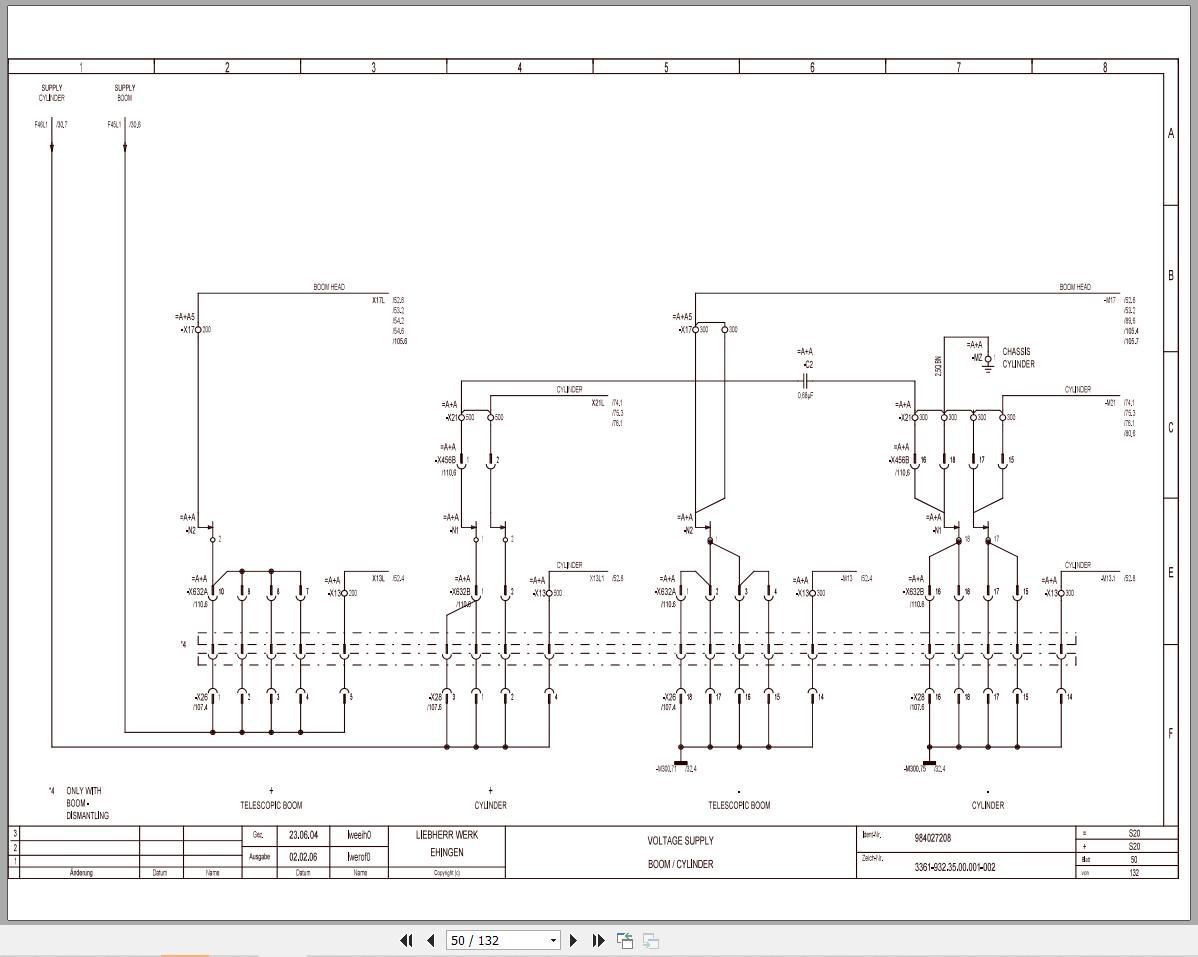

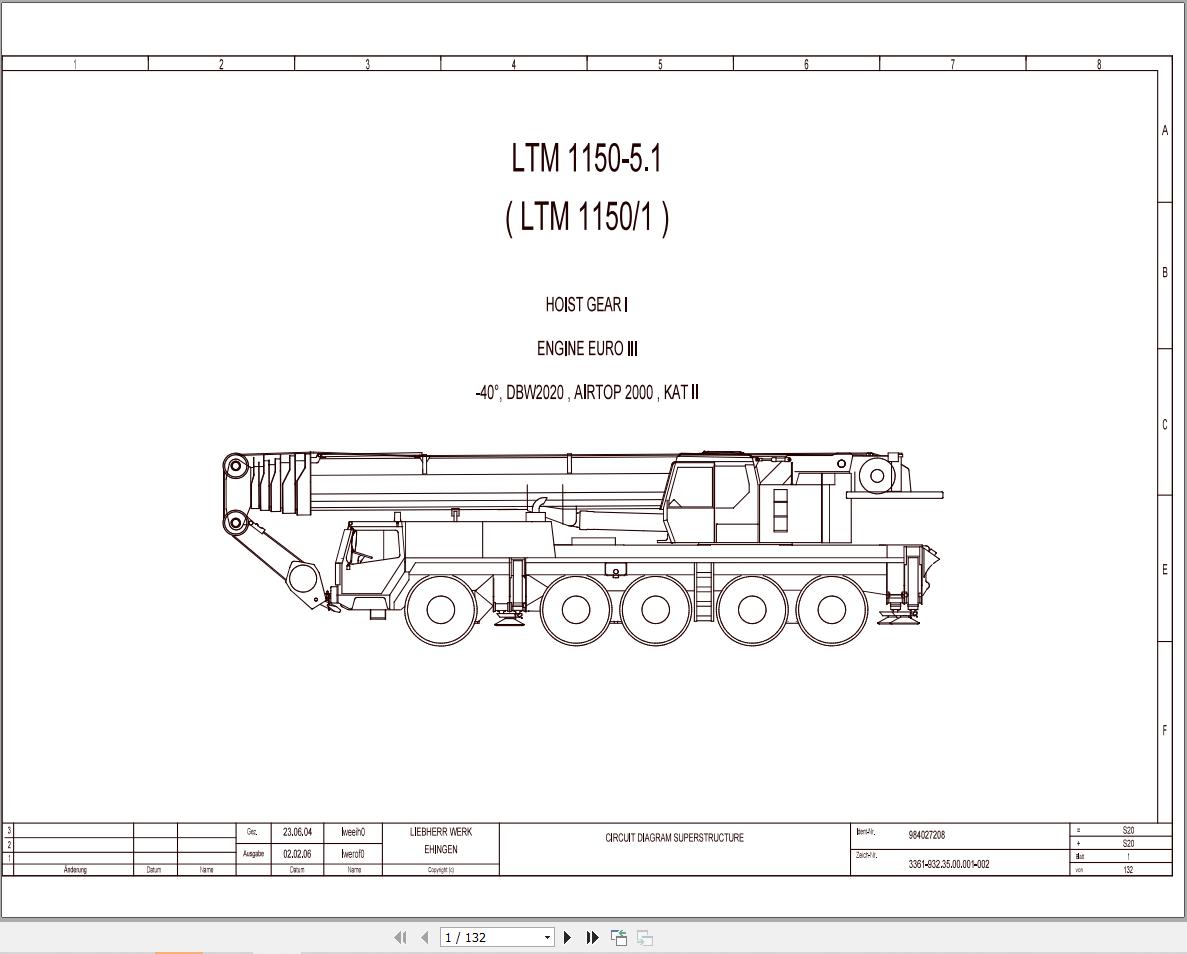

Electric Diagram 984027208_999_EN.pdf (132 Pages)
Hydraulic Diagram 984255108_999_EN.pdf (12 Pages)
Hydraulics Outriggers 980141108_999_EN.pdf (9 Pages)
Steering Hydraulics 982477308_999_EN.pdf (5 Pages)
Wiring Diagram 983187008_999_EN.pdf (94 Pages)
