Liebherr LTM 1160-5.2 Z68626 Electric and Hydraulic Diagrams RU

Data Size: 125.97 MB
File Type: PDF
Language: Russian
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1160-5.2 Z68626 Crane
(LTM1160-5.2, LTM/1160-5.2, LTM_1160-5.2, LTM-1160-5.2, LTM-1160/5.2)

List Contents:

Compressed-Air System Tubing Diagram 98021216_999_RU.pdf (4 Pages)
Control Hydraulics Compressed-Air System 98021215_999_RU.pdf (18 Pages)
Drivers Cab 2,70m Without Driving Off Operators Cab Tubing Diagram 98005774_999_RU.pdf (4 Pages)

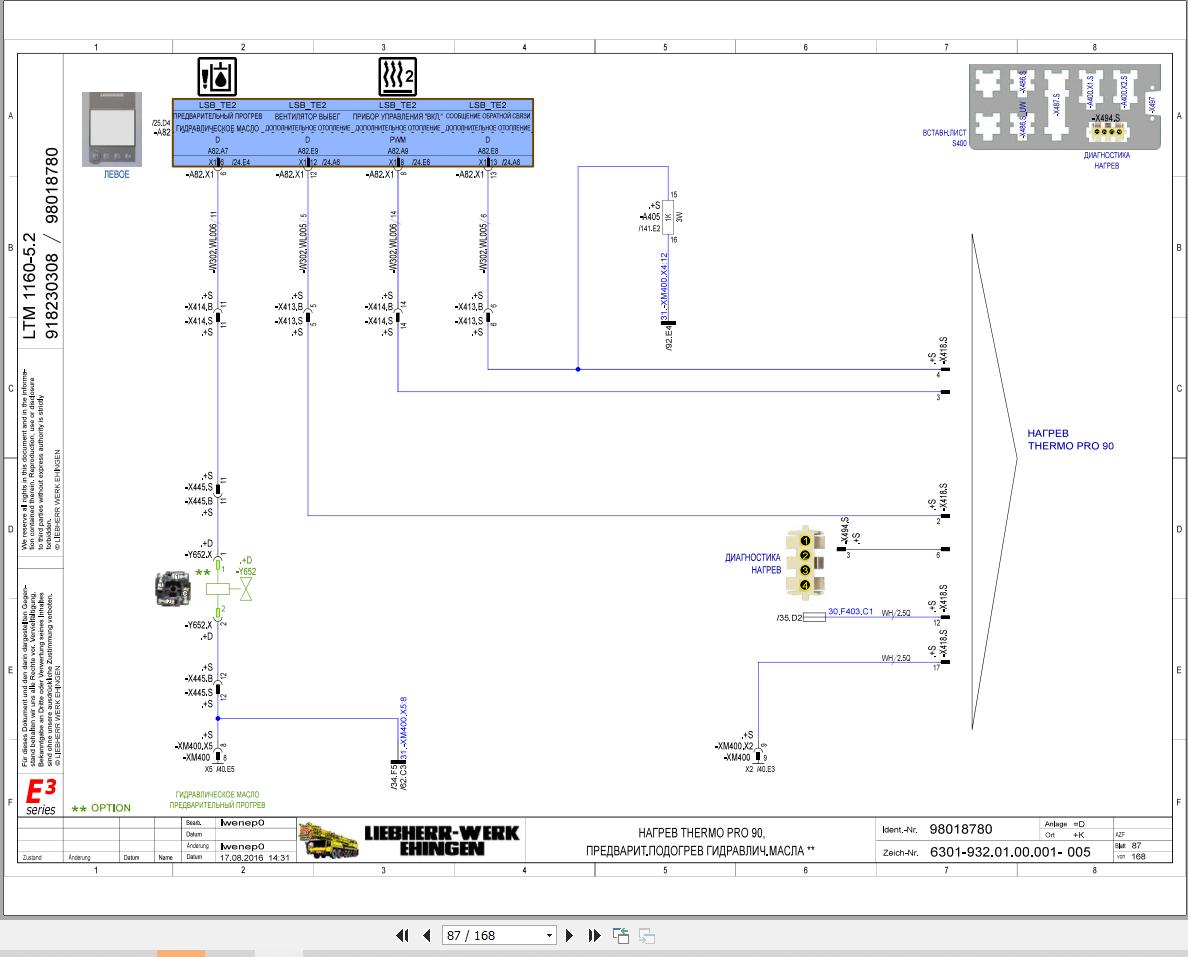

Electric Diagram 98006761_999_RU.pdf (169 Pages)
Electric Diagram 98018780_999_RU.pdf (168 Pages)
Hydraulics Hoist Gear II Preparation Pipework 98022479_999_RU.pdf (3 Pages)
Hydraulics Hoist Gear II Winch Pipework 98018840_999_RU.pdf (3 Pages)
Hydraulics Outriggers Tubing Diagram 98007649_999_RU.pdf (3 Pages)
Hydraulics Steering Tubing Diagram 98020142_999_RU.pdf (4 Pages)
Hydraulics Superstructure General Layout Emergency Operation 98017988_999_RU.pdf (20 Pages)
Hydraulics Superstructure Pipework 98017987_999_RU.pdf (8 Pages)
Hydraulics Suspension Tubing Diagram 98021224_999_RU.pdf (3 Pages)
Pneumatic Trailer Coupling 98005958_999_RU.pdf (4 Pages)
