Liebherr LTM 1200-1 Z70130 Electric and Hydraulic Diagrams EN

Data Size: 59.36 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1200-1 Z70130 Crane
(LTM1200-1, LTM/1200-1, LTM_1200-1, LTM-1200-1, LTM-1200/1)

List Contents:

Compressed-Air System OW Pipework 980619708_999_EN.pdf (3 Pages)
Control Hydraulics Compressed-Air System Brake Force Reduction 982984008_999_EN.pdf (17 Pages)
Electric Diagram 983204908_999_EN.pdf (137 Pages)

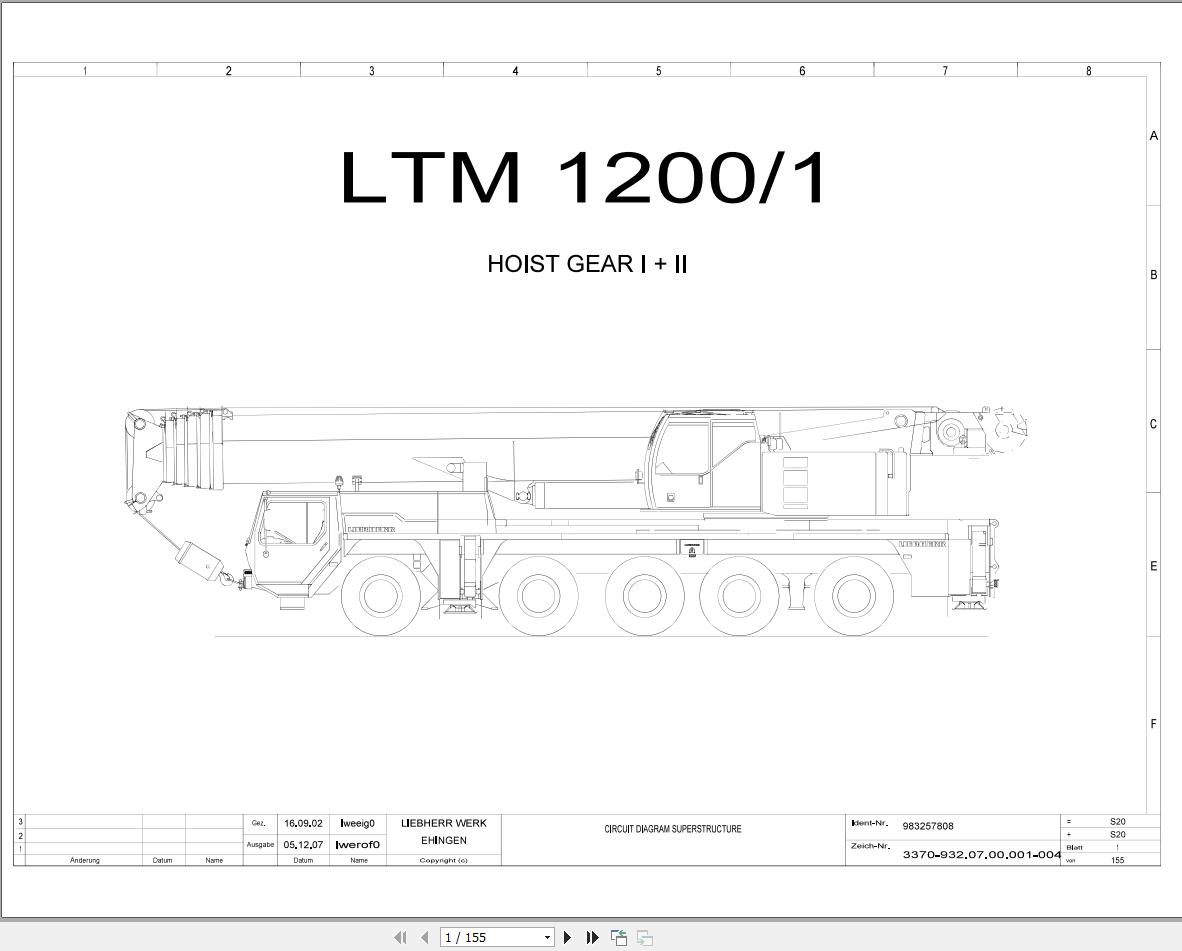

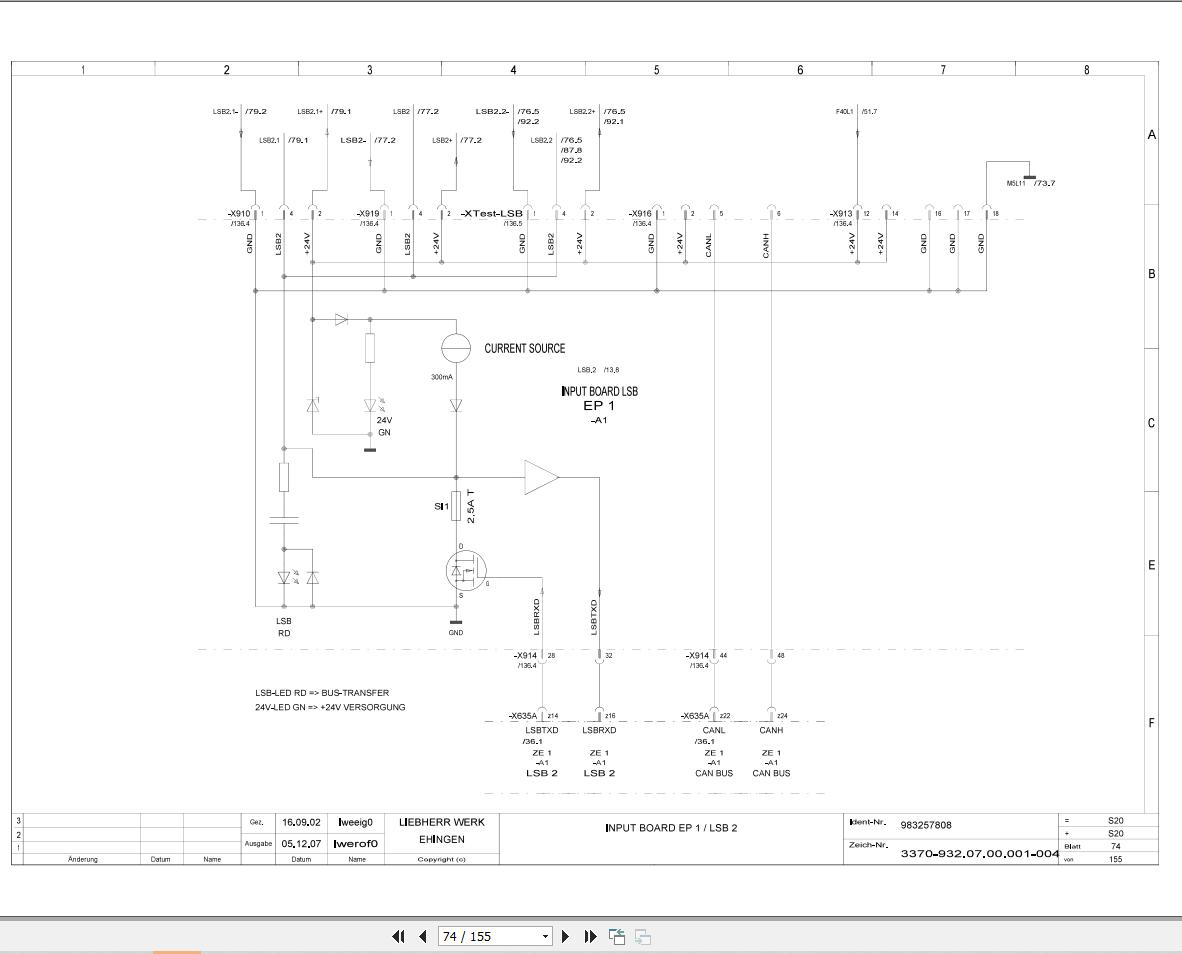

Electric Diagram 983257808_999_EN.pdf (155 Pages)
Hydraulics Hoist Gear II Pipework 981254408_999_EN.pdf (3 Pages)
Hydraulics Outriggers Pipework 981362808_999_EN.pdf (5 Pages)
Hydraulics Superstructure General Layout 983227708_999_EN.pdf (11 Pages)
Hydraulics Suspension Pipework 982839908_999_EN.pdf (9 Pages)
Pneumatic Trailer Coupling 986876908_999_EN.pdf (4 Pages)
Steering Hydraulics Pipework 981394808_999_EN.pdf (5 Pages)
