Liebherr LTM 1250-1 Z70500 Electric and Hydraulic Diagrams FR

Data Size: 62.55 MB
File Type: PDF
Language: French
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1250-1 Z70500 Crane
(LTM1250-1, LTM/1250-1, LTM_1250-1, LTM-1250-1, LTM-1250/1)

List Contents:

Compressed-Air System 982656608_999_FR.pdf (12 Pages)
Compressed-Air System OW Pipework 982510508_999_FR.pdf (2 Pages)
Electric Diagram 982006408_999_FR.pdf (126 Pages)

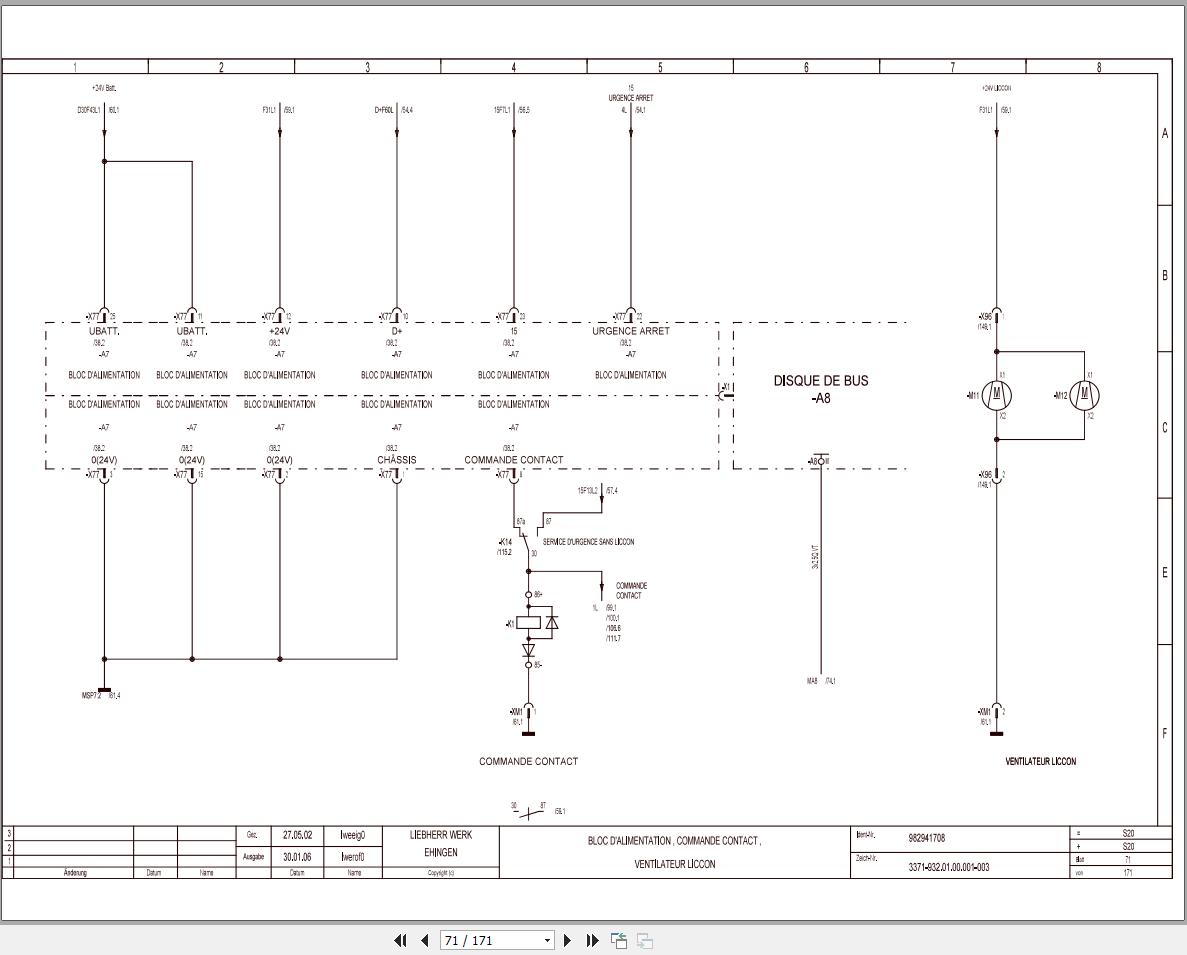

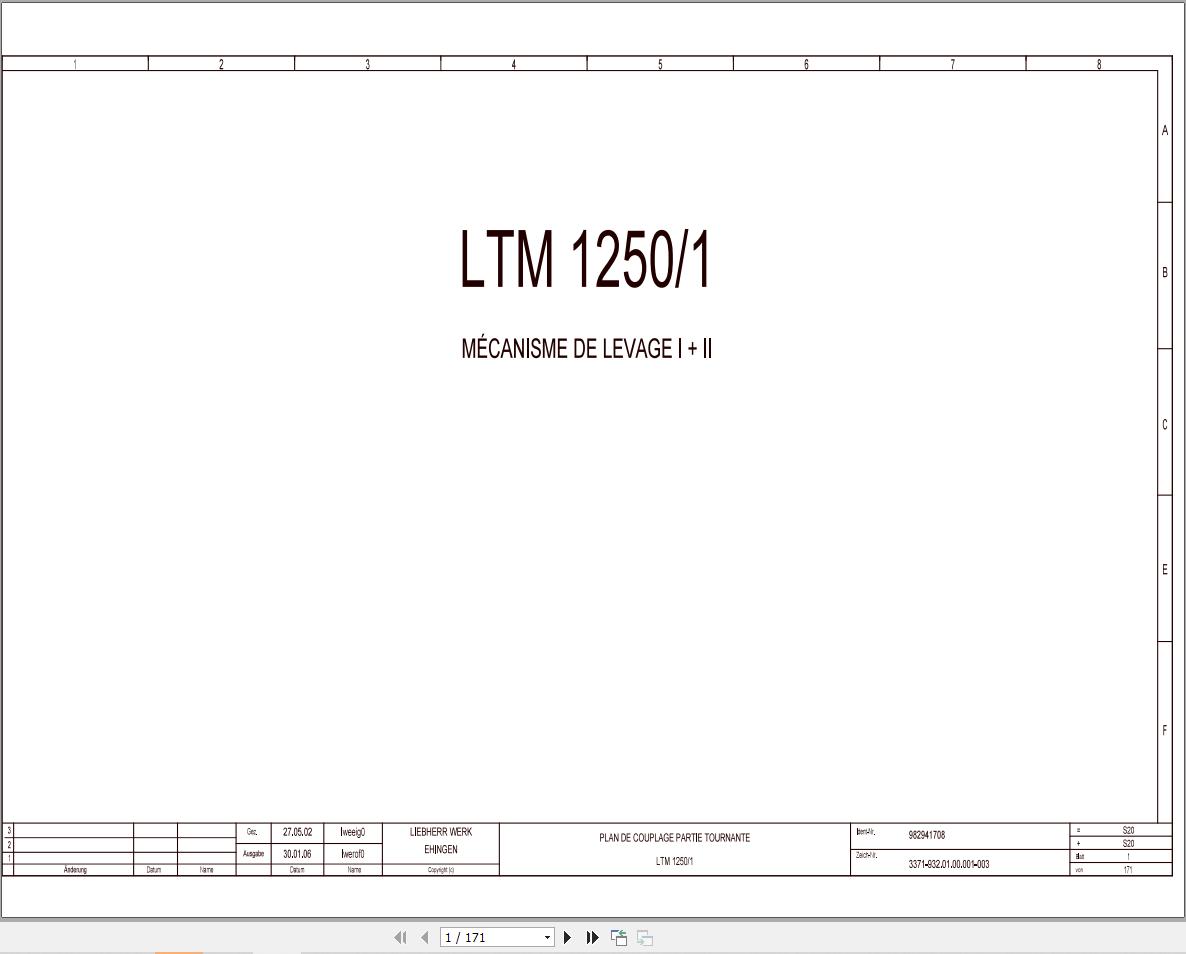

Electric Diagram 982941708_999_FR.pdf (171 Pages)
Emergency Operation Crane Hydraulics Superstructure 983071308_999_FR.pdf (5 Pages)
Hydraulics Hoist Gear II Pipework 982567508_999_FR.pdf (3 Pages)
Hydraulics Outriggers 982836508_999_FR.pdf (9 Pages)
Hydraulics Superstructure General Layout With Emergency Lowering 982581408_999_FR.pdf (13 Pages)
Steering Hydraulic Diagram 982789908_999_FR.pdf (8 Pages)
Valves - Steering Pre-Assembled 982686308_999_FR.pdf (3 Pages)
