Liebherr LTM 1250-6.1 Z70720 Electric and Hydraulic Diagrams EN

Data Size: 74.92 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1250-6.1 Z70720 Crane
(LTM1250-6.1, LTM/1250-6.1, LTM_1250-6.1, LTM-1250-6.1, LTM-1250/6.1)

List Contents:

Compressed Air System 984505308_999_EN.pdf (15 Pages)
Compressed-Air System OW Pipework 984519508_999_EN.pdf (2 Pages)
Electric Diagram 984481008_999_EN.pdf (195 Pages)

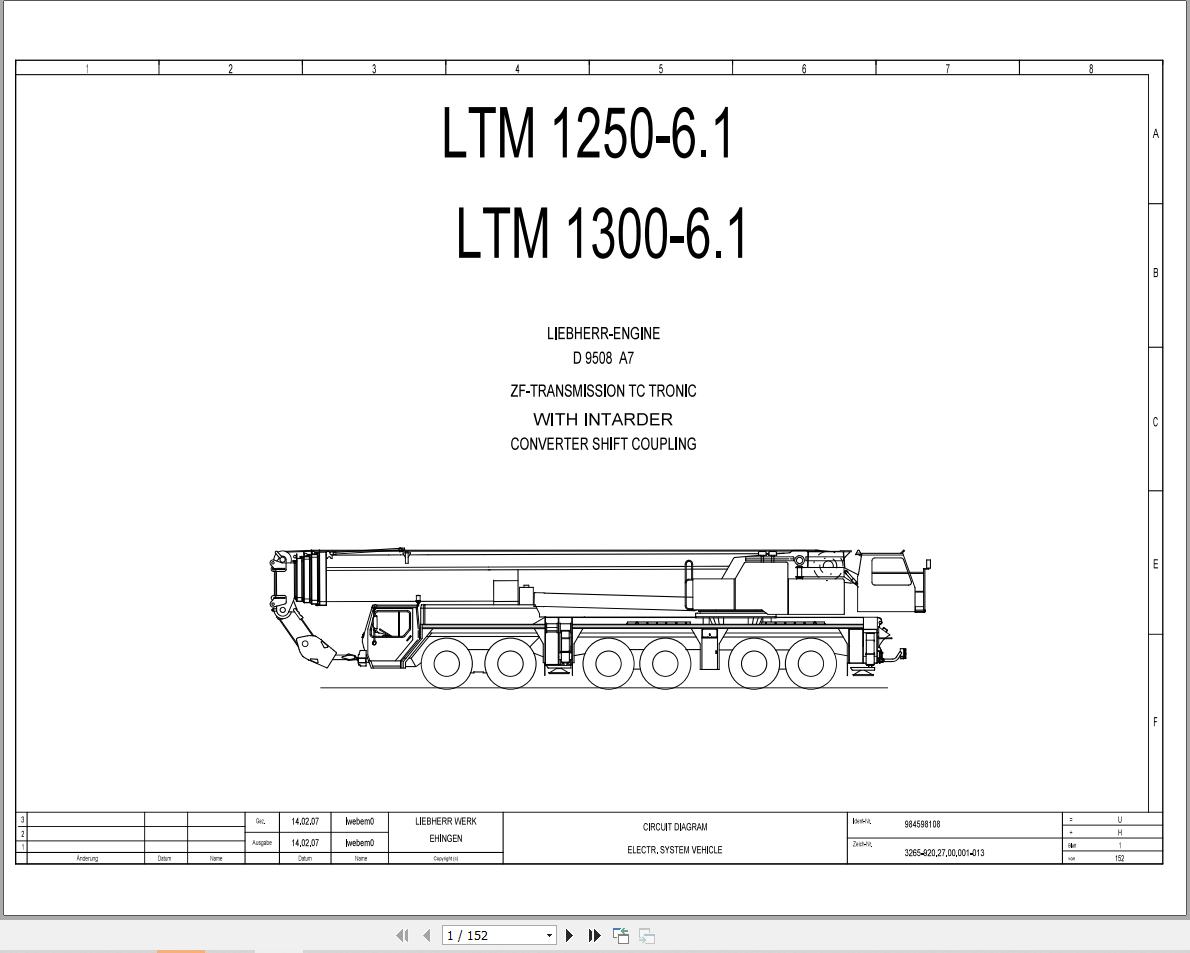

Electric Diagram 984598108_999_EN.pdf (152 Pages)
Hydraulics Outriggers 984639808_999_EN.pdf (4 Pages)
Hydraulics Preparation Hoist Gear II Pipework 984723908_999_EN.pdf (3 Pages)
Hydraulics Superstructure General Layout 984568508_999_EN.pdf (13 Pages)
Hydraulics Suspension 984744508_999_EN.pdf (5 Pages)
Pneumatic Drivers Cab Tubing Diagram 983517508_999_EN.pdf (4 Pages)
Pneumatic Operators Cab 983858108_999_EN.pdf (3 Pages)
Pre-Assembley Bulkhead Plate 983517908_999_EN.pdf (3 Pages)
Steering Hydraulics 984752508_999_EN.pdf (6 Pages)
Valves - Steering Pre-Assembled 982686308_999_EN.pdf (3 Pages)
