Liebherr LTM 1300-6.1 Z71181 Electric and Hydraulic Diagrams EN

Data Size: 65.68 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1300-6.1 Z71181 Crane
(LTM1300-6.1, LTM/1300-6.1, LTM_1300-6.1, LTM-1300-6.1, LTM-1300/6.1)

List Contents:

Additional Hydraulics Winch III 982787908_999_EN.pdf (3 Pages)
Compressed Air System 984505308_999_EN.pdf (15 Pages)
Electric Diagram 985574008_999_EN.pdf (151 Pages)

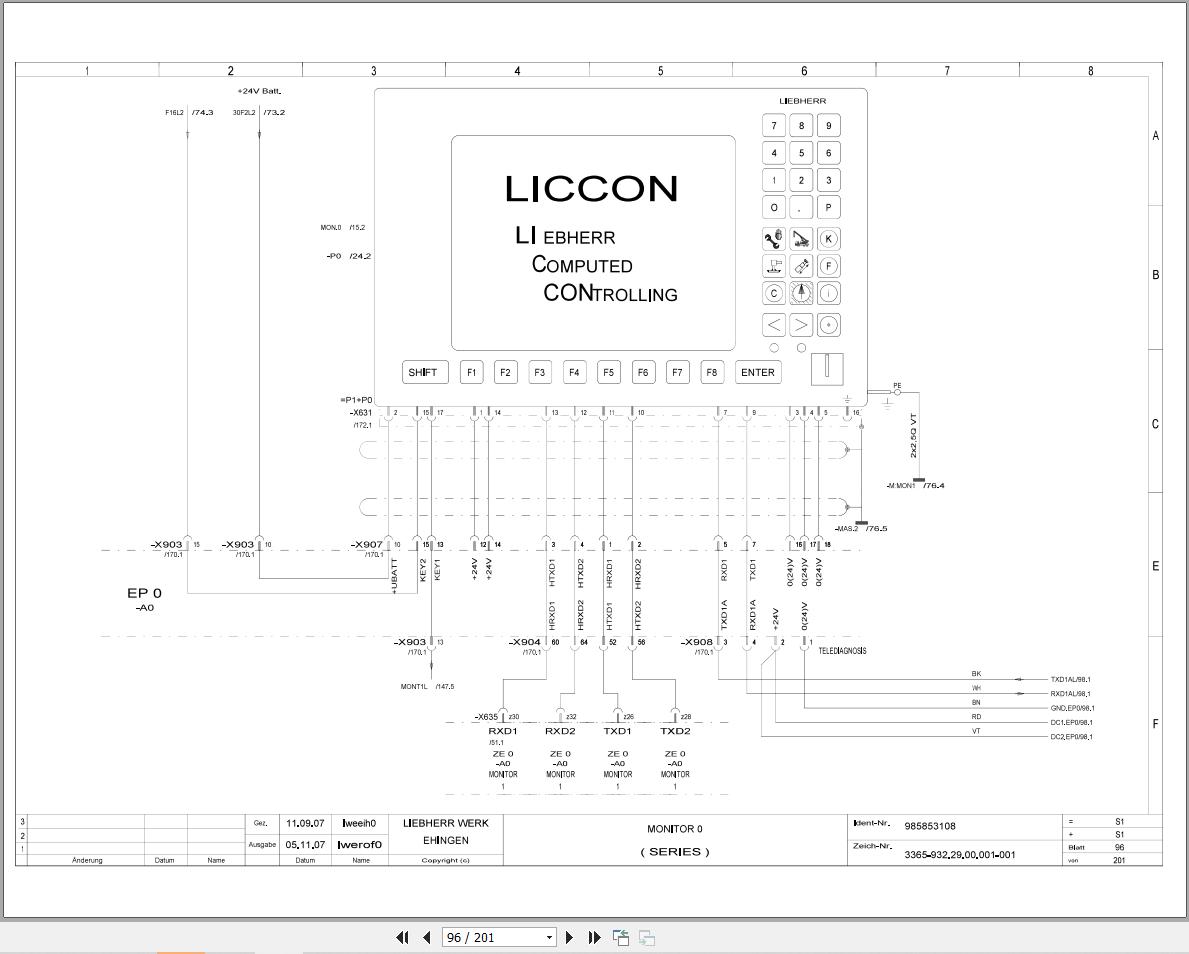

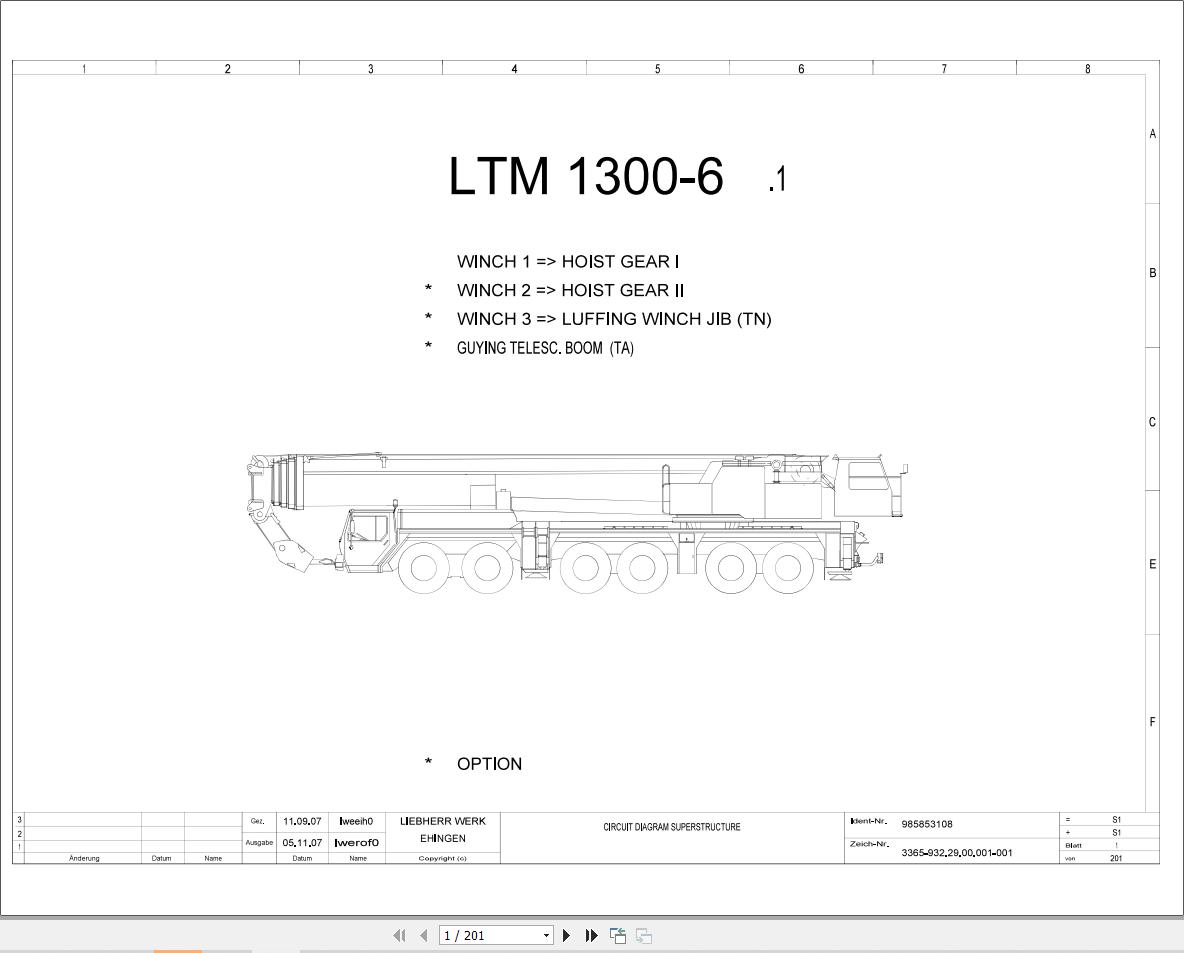

Electric Diagram 985853108_999_EN.pdf (201 Pages)
Emergency Operation Crane Hydraulics Superstructure 985841908_999_EN.pdf (11 Pages)
Hydraulic Diagram 985838608_999_EN.pdf (21 Pages)
Hydraulic Suspension 986157408_999_EN.pdf (5 Pages)
Hydraulics Outriggers 984642208_999_EN.pdf (4 Pages)
Pneumatic Drivers Cab Tubing Diagram 983517508_999_EN.pdf (4 Pages)
Pre-Assembley Bulkhead Plate 983517908_999_EN.pdf (3 Pages)
Steering Hydraulics 984752508_999_EN.pdf (6 Pages)
Valves - Steering Pre-Assembled 982686308_999_EN.pdf (3 Pages)
