Liebherr LTM 1300 Z16788 Electric Diagrams ES

Data Size: 23.52 MB
File Type: PDF
Language: Spanish
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric Diagrams
Machine Model: Liebherr LTM 1300 Z16788 Crane
(LTM1300, LTM/1300, LTM_1300, LTM-1300)

List Contents:

Circuit diagram compressed air system 982672408_999_ES.pdf (2 Pages)

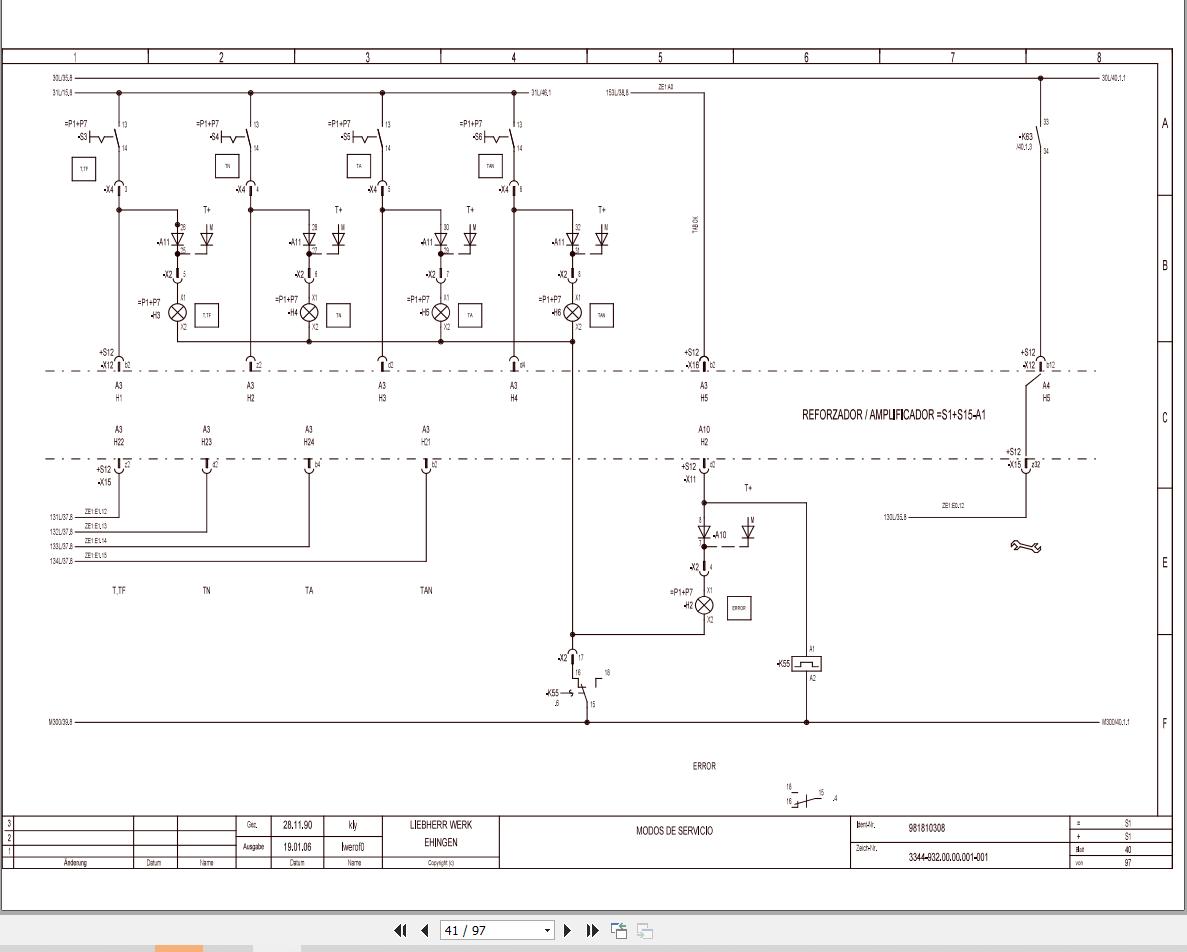

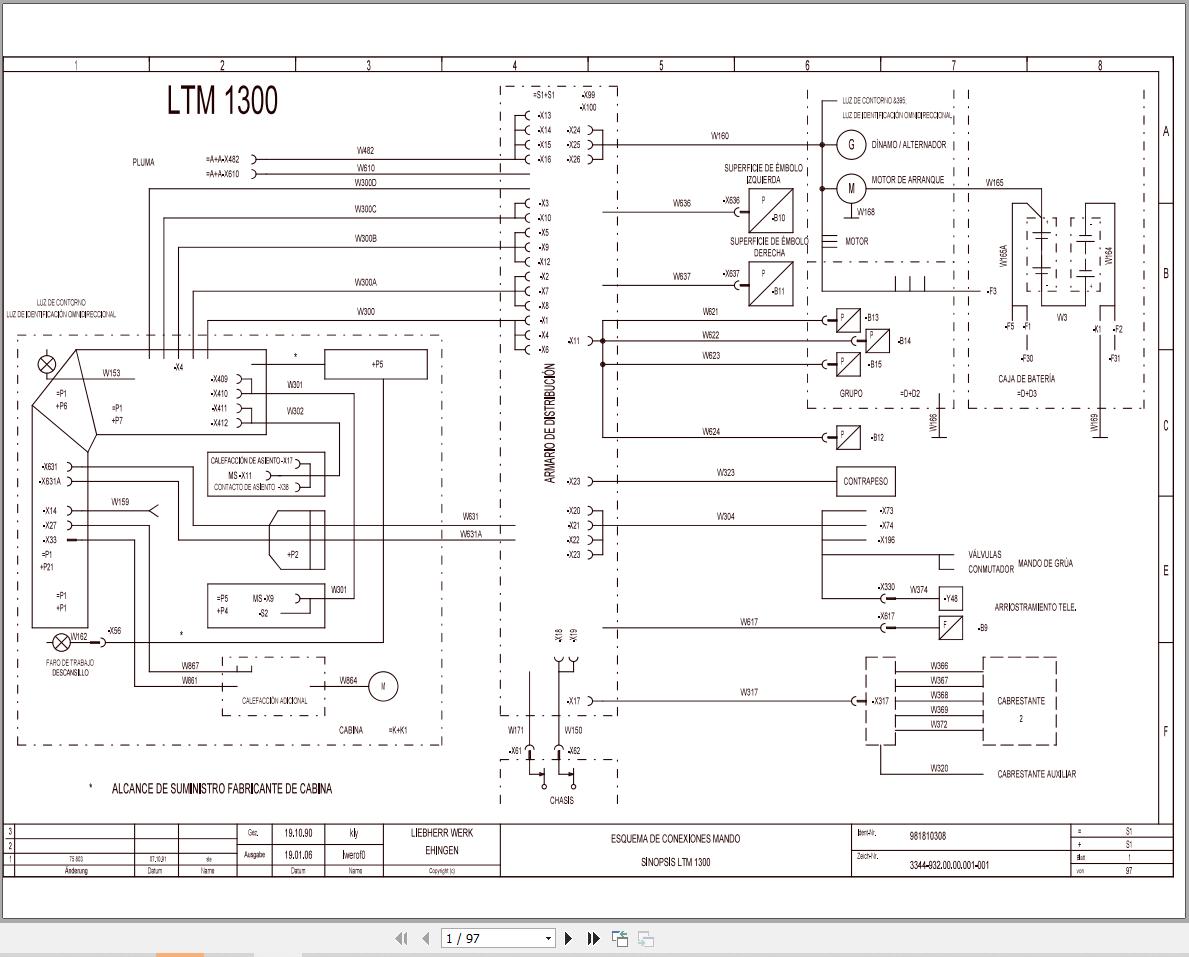

Electric Diagram 981458808_999_ES.pdf (63 Pages)
Electric Diagram 981810308_999_ES.pdf (97 Pages)
Pneumatic Trailer Coupling 982455208_999_ES.pdf (2 Pages)
