Liebherr LTM 1500-8.1 Z73185 Electric and Hydraulic Diagrams EN

Data Size: 67.31 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1500-8.1 Z73185 Crane
(LTM1500-8.1, LTM/1500-8.1, LTM_1500-8.1, LTM-1500-8.1, LTM-1500/8.1)

List Contents:

Additional Hydraulics Winch III 984907708_999_EN.pdf (4 Pages)
Control Hydraulics Compressed-Air System 984666208_999_EN.pdf (15 Pages)
Electric Diagram 986302708_999_EN.pdf (220 Pages)

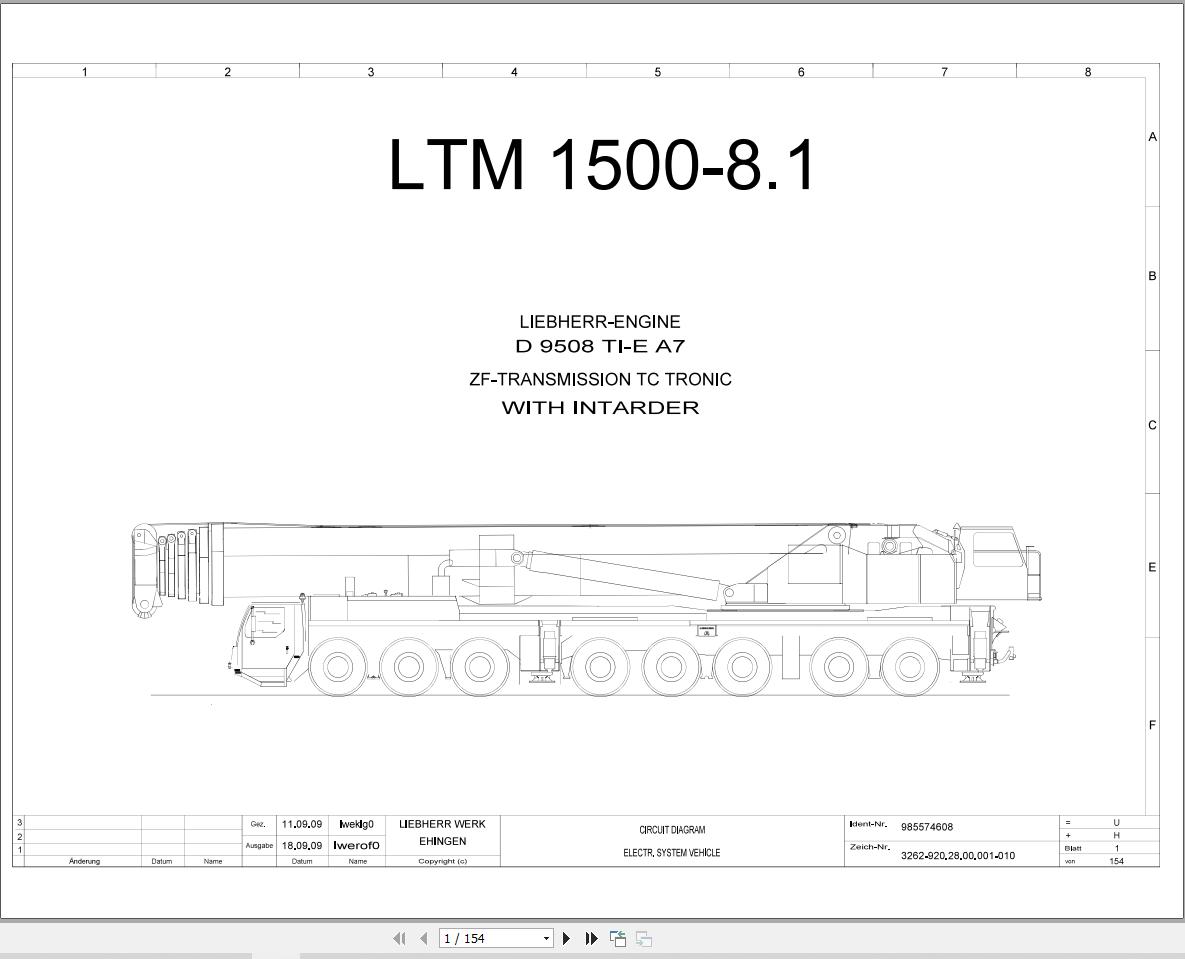

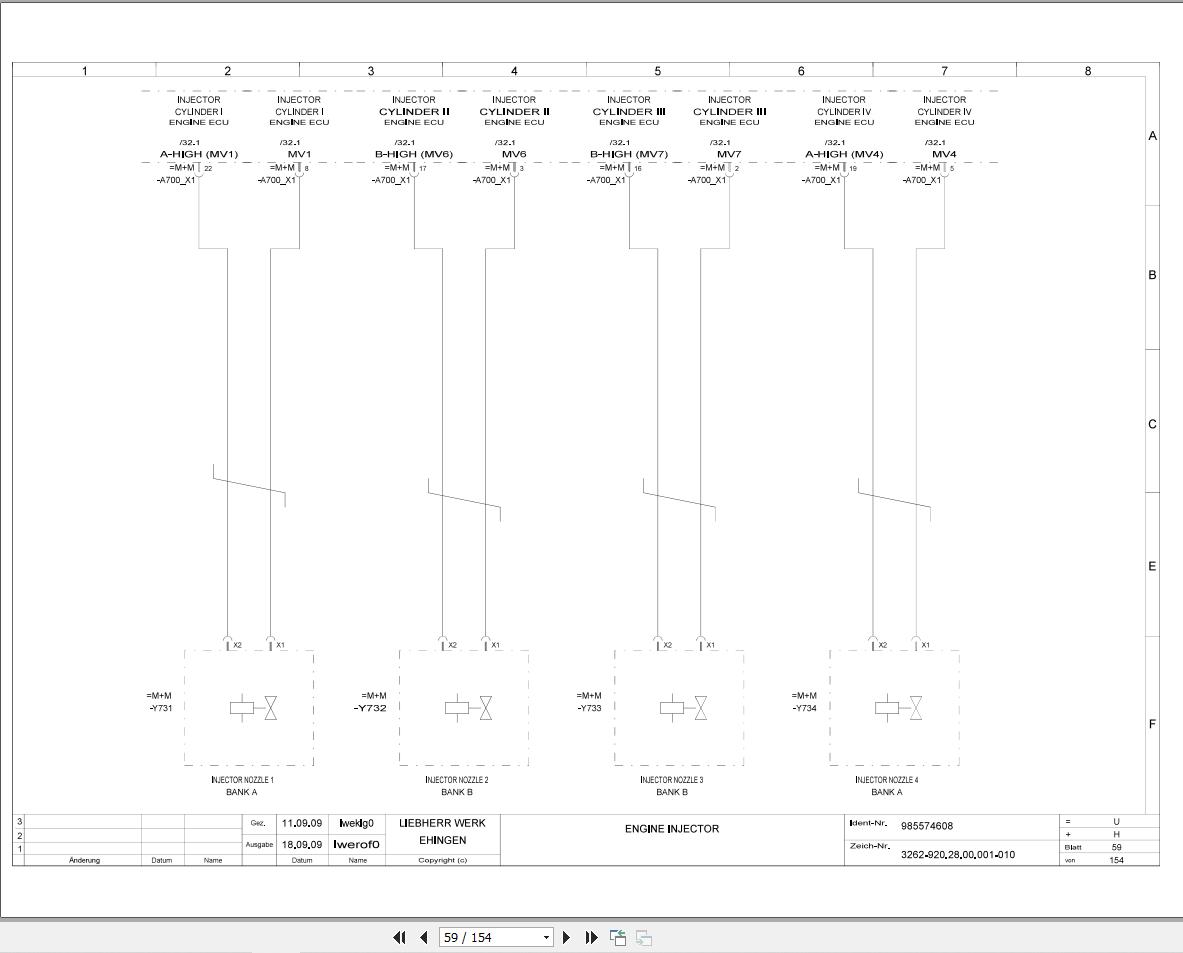

Electric Diagrams 985574608_999_EN.pdf (154 Pages)
Emergency Operation Crane Hydraulics Excess Pressure 984945008_999_EN.pdf (4 Pages)
Emergency Operation Crane Hydraulics Superstructure 984887408_999_EN.pdf (10 Pages)
Hydraulics Superstructure LTM 1500-8.1 985469508_999_EN.pdf (13 Pages)
Hydraulics Suspension LTM 1500-8.1 984801908_999_EN.pdf (6 Pages)
LTM 1500-8.1 Hydraulics Outriggers 984796108_999_EN.pdf (4 Pages)
Pneumatic Operators Cab Tubing Diagram 983517508_999_EN.pdf (4 Pages)
Pre-Assembley Bulkhead Plate 983517908_999_EN.pdf (3 Pages)
Steering Hydraulics Rear Axle Steering 984791208_999_EN.pdf (4 Pages)
Valves - Steering Pre-Assembled 982686308_999_EN.pdf (3 Pages)
