Liebherr LTM 1500 Z73058 Electric and Hydraulic Diagrams DE

Data Size: 68.66 MB
File Type: PDF
Language: German
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1500 Z73058 Crane
(LTM1500, LTM/1500, LTM_1500, LTM-1500)

List Contents:

Auxiliary Hydraulics Winch Preparation III LTM 1500 982943608_000 DE.pdf (3 Pages)
Battery Box Installation 982745508_000 DE.pdf (2 Pages)
Compressed Air System LTM 1500 982243408_002 DE.pdf (11 Pages)

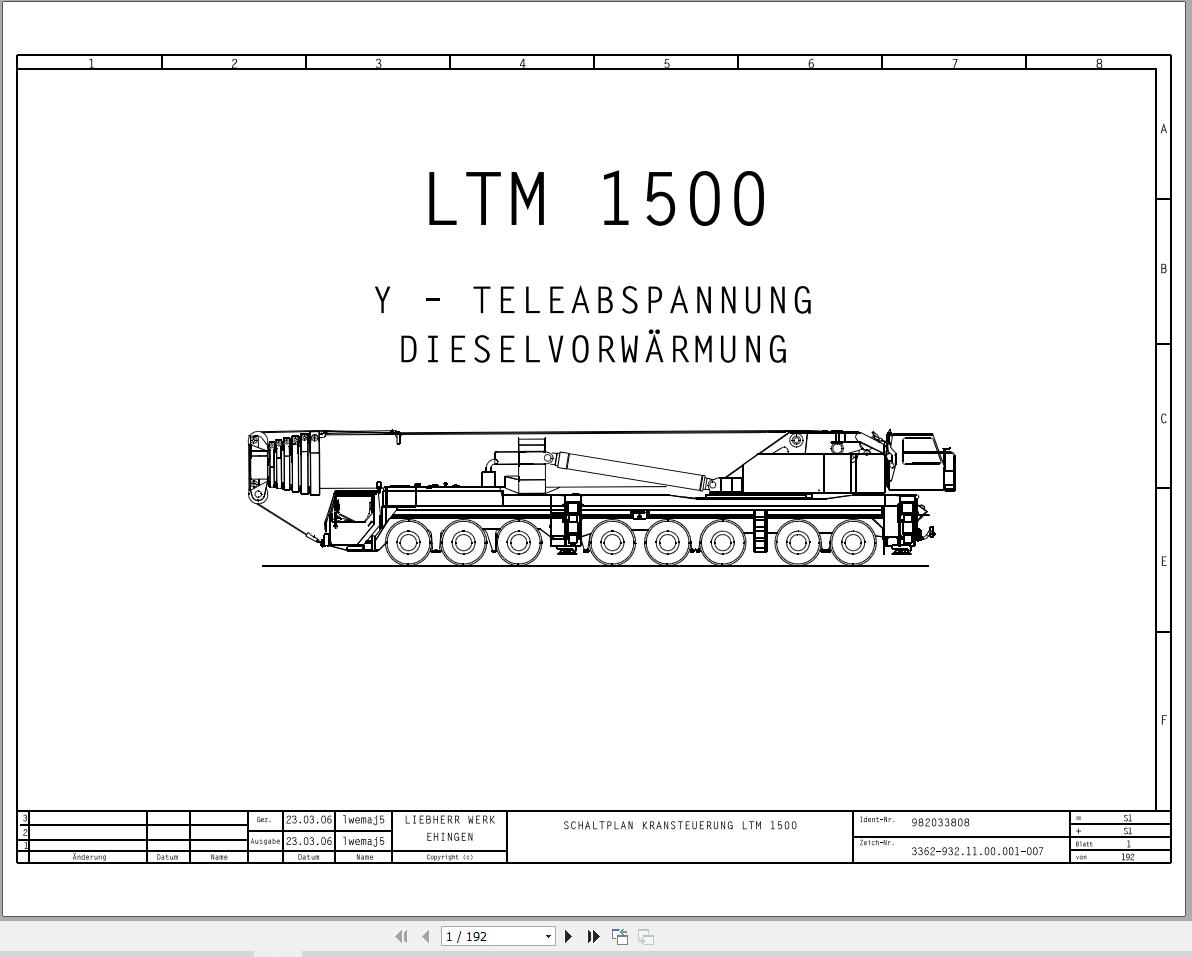

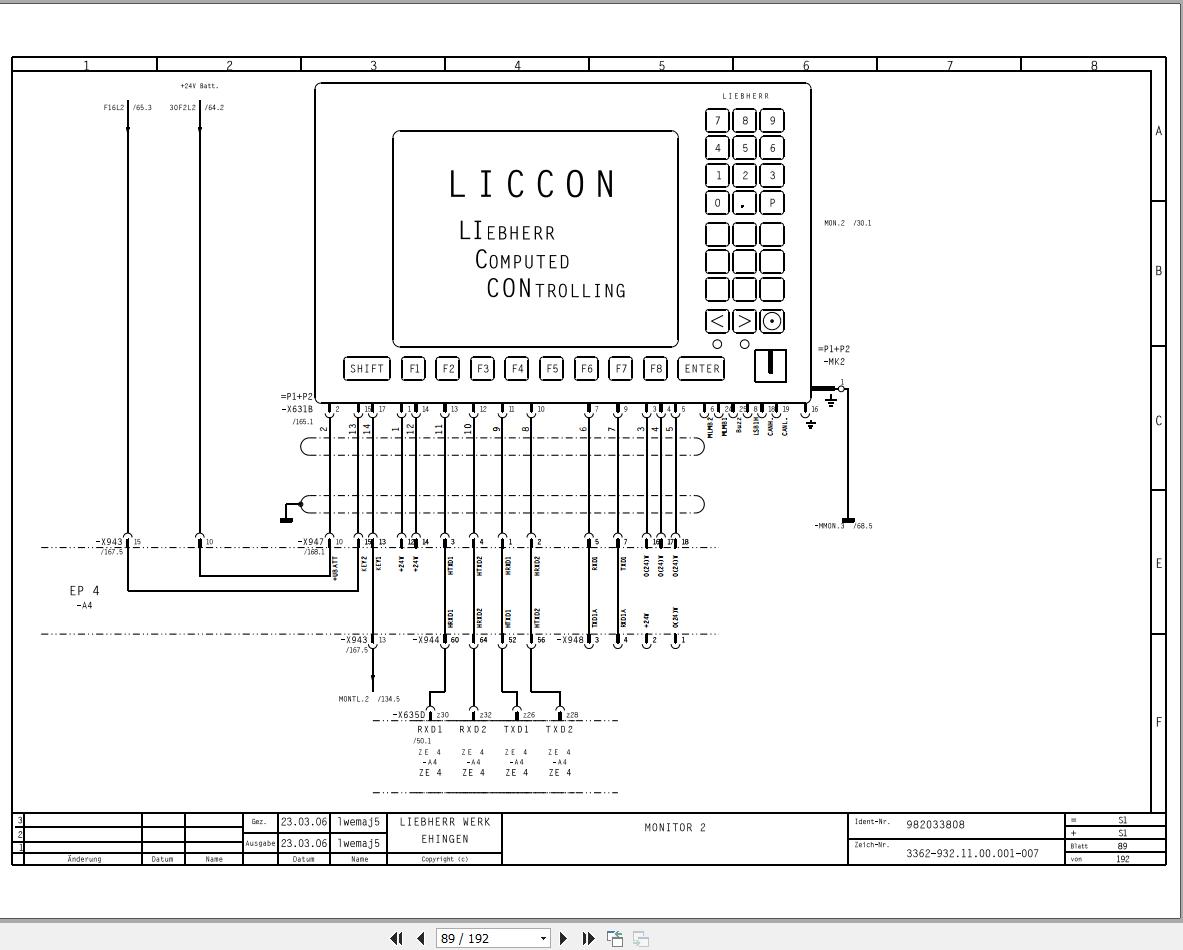

Electric Diagram 982033808_007 DE.pdf (192 Pages)
Electric Diagram 982054808_005 DE.pdf (119 Pages)
Hydraulic Axle Suspension 982068308_000 DE.pdf (10 Pages)
Hydraulic Diagram 982889308_006 DE.pdf (22 Pages)
Hydraulics Outriggers LTM 1500 981432508_000 DE.pdf (9 Pages)
Steering Hydraulics Rear Axle Steering 982932208_000 DE.pdf (8 Pages)
Valves - Steering Pre-Assembled 982686308_001 DE.pdf (3 Pages)
Wiring List S2 983136208_002 DE.pdf (12 Pages)
