Liebherr LTM 1500 Z73058 Electric and Hydraulic Diagrams ES

Data Size: 66.22 MB
File Type: PDF
Language: Spanish
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1500 Z73058 Crane
(LTM1500, LTM/1500, LTM_1500, LTM-1500)

List Contents:

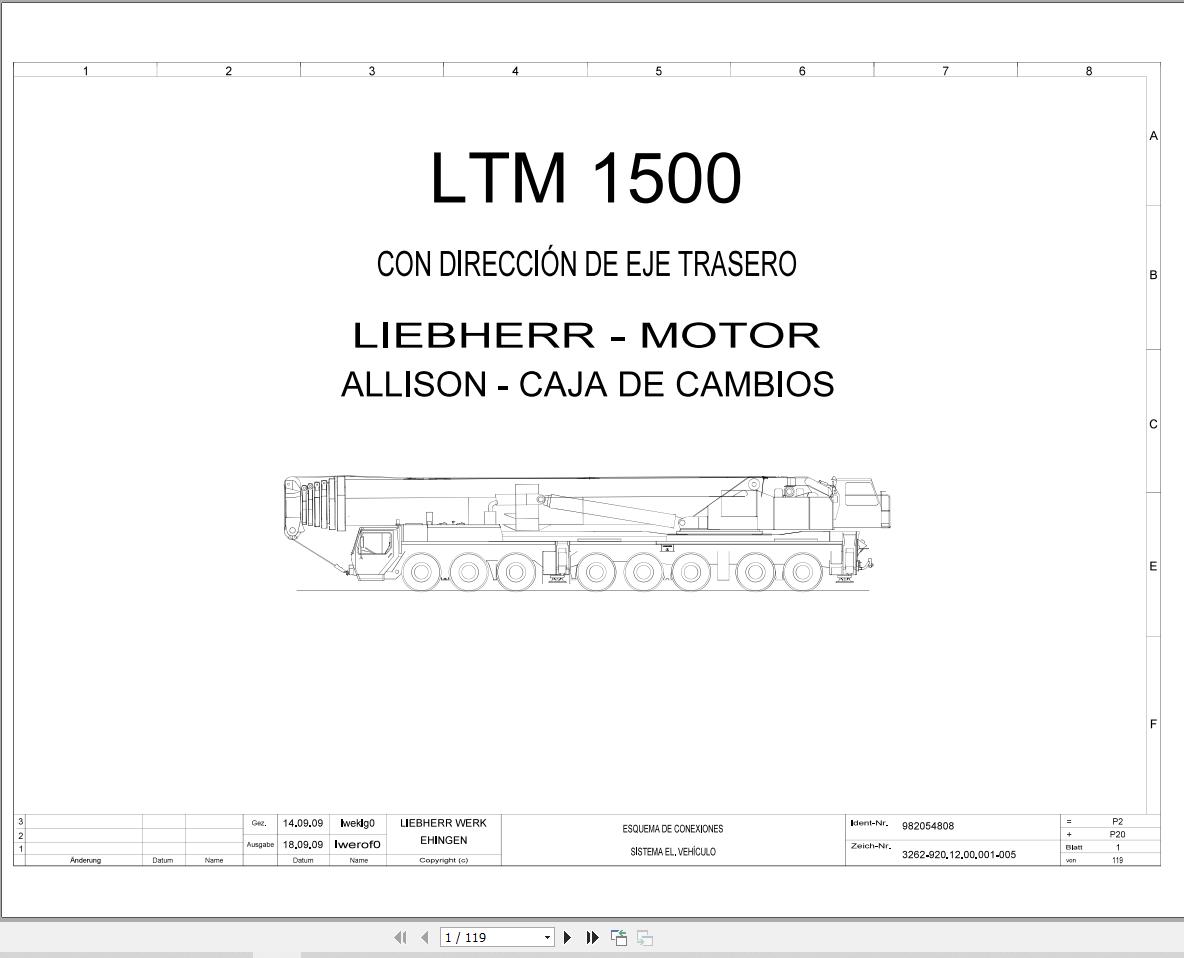

Compressed Air System LTM 1500 982243408_999_ES.pdf (11 Pages)
Electric Diagram 982033808_999_ES.pdf (192 Pages)
Electric Diagram 982054808_999_ES.pdf (119 Pages)
Hydraulic Diagram 982889308_999_ES.pdf (22 Pages)
Hydraulics Outriggers LTM 1500 981432508_999_ES.pdf (9 Pages)
Steering Hydraulics Rear Axle Steering 982932208_999_ES.pdf (8 Pages)
Valves - Steering Pre-Assembled 982686308_999_ES.pdf (3 Pages)
