Liebherr LTM 1650-8.1 Z46836 Electric and Hydraulic Diagrams EN

Data Size: 191.85 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1650-8.1 Z46836 Crane
(LTM1650-8.1, LTM/1650-8.1, LTM_1650-8.1, LTM-1650-8.1, LTM-1650/8.1)

List Contents:

Additional Hydraulics Emergency Operation Tubing Diagram 98028865_999_EN.pdf (5 Pages)
Compressed-Air System Tubing Diagram 98038376_999_EN.pdf (9 Pages)
Control Hydraulics Compressed-Air System Double Axle Suspension 98050887_999_EN.pdf (24 Pages)
Drivers Cab 2,70m Without Driving Off Operator's Cab Tubing Diagram 98035406_999_EN.pdf (6 Pages)
Electric Diagrams 98034121_999_EN.pdf (201 Pages)

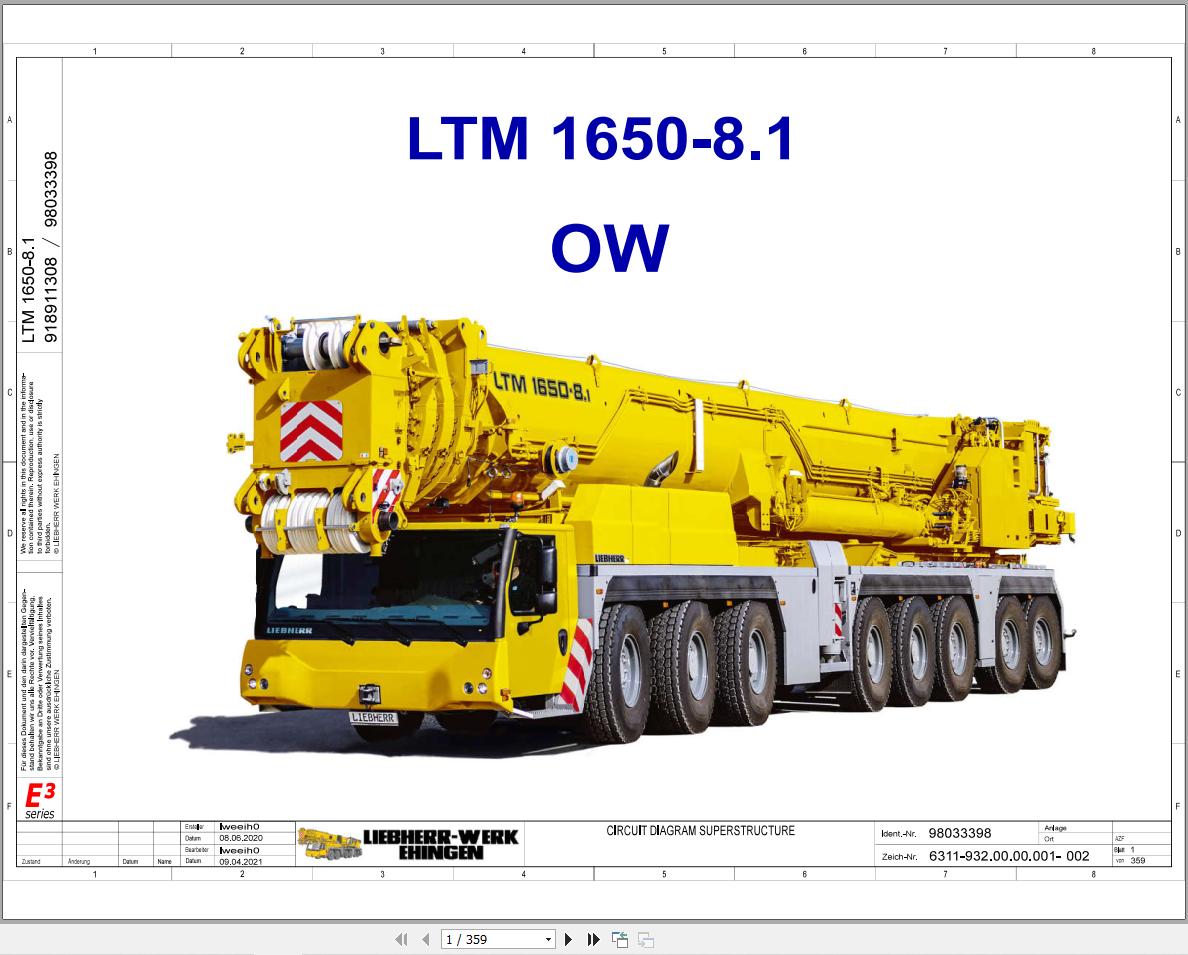

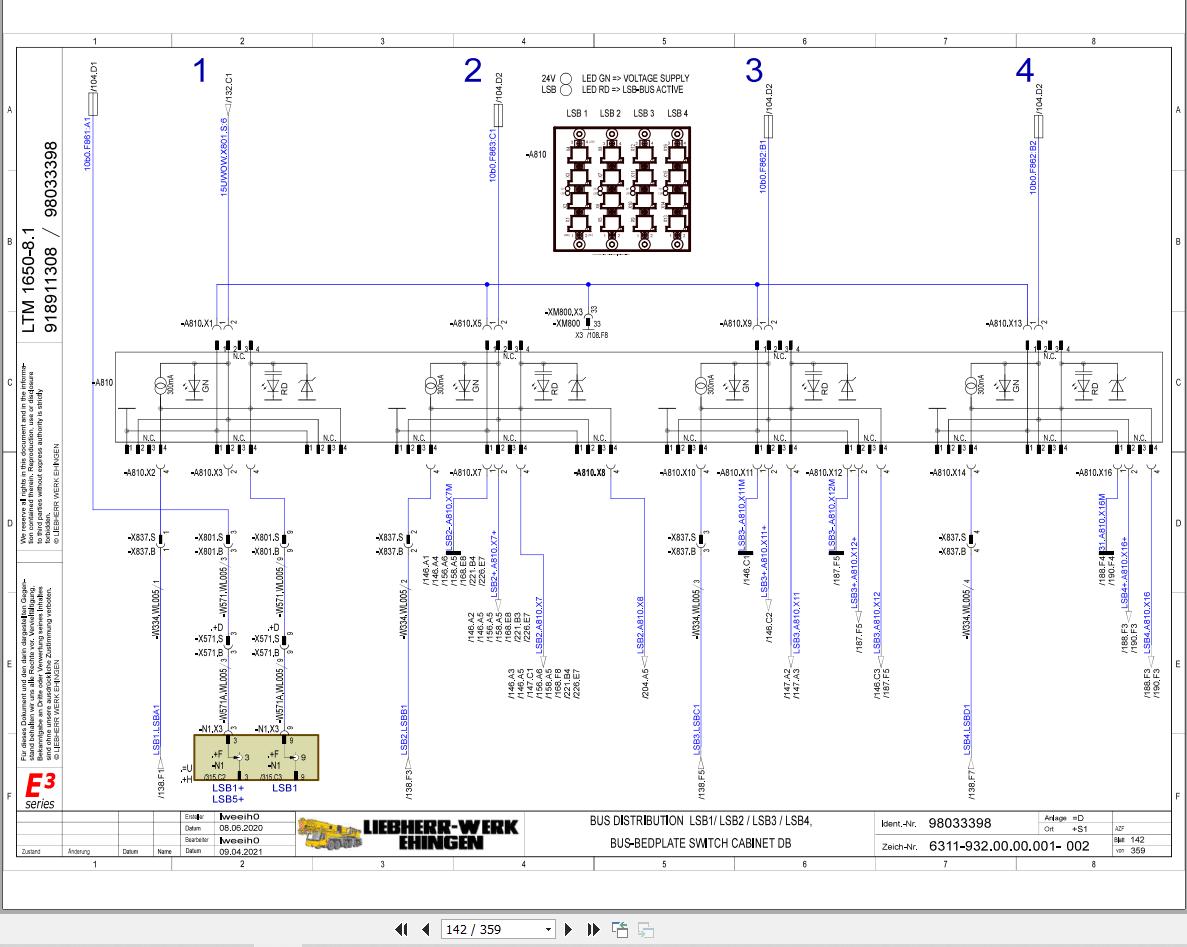

Electric Diagrams OW 98033398_999_EN.pdf (359 Pages)
Emergency Operation Crane Hydraulics Carrier 98035848_999_EN.pdf (6 Pages)
Hydraulics Outriggers, Suspension Double Axle Suspension Tubing Diagram 98050889_999_EN.pdf (14 Pages)
Steering Hydraulics Tubing Diagram 98033998_999_EN.pdf (11 Pages)
