Liebherr LTR 11200 Z97562 Electric and Hydraulic Diagrams DE

Data Size: 76.63 MB
File Type: PDF
Language: German
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTR 11200 Z97562 Crane
(LTR11200, LTR/11200, LTR_11200, LTR-11200)

List Contents:

Additional Hydraulics Bolt Pulling Device 982976208_001 DE.pdf (3 Pages)
Additional Hydraulics Connection Cable 987048908_004 DE.pdf (3 Pages)

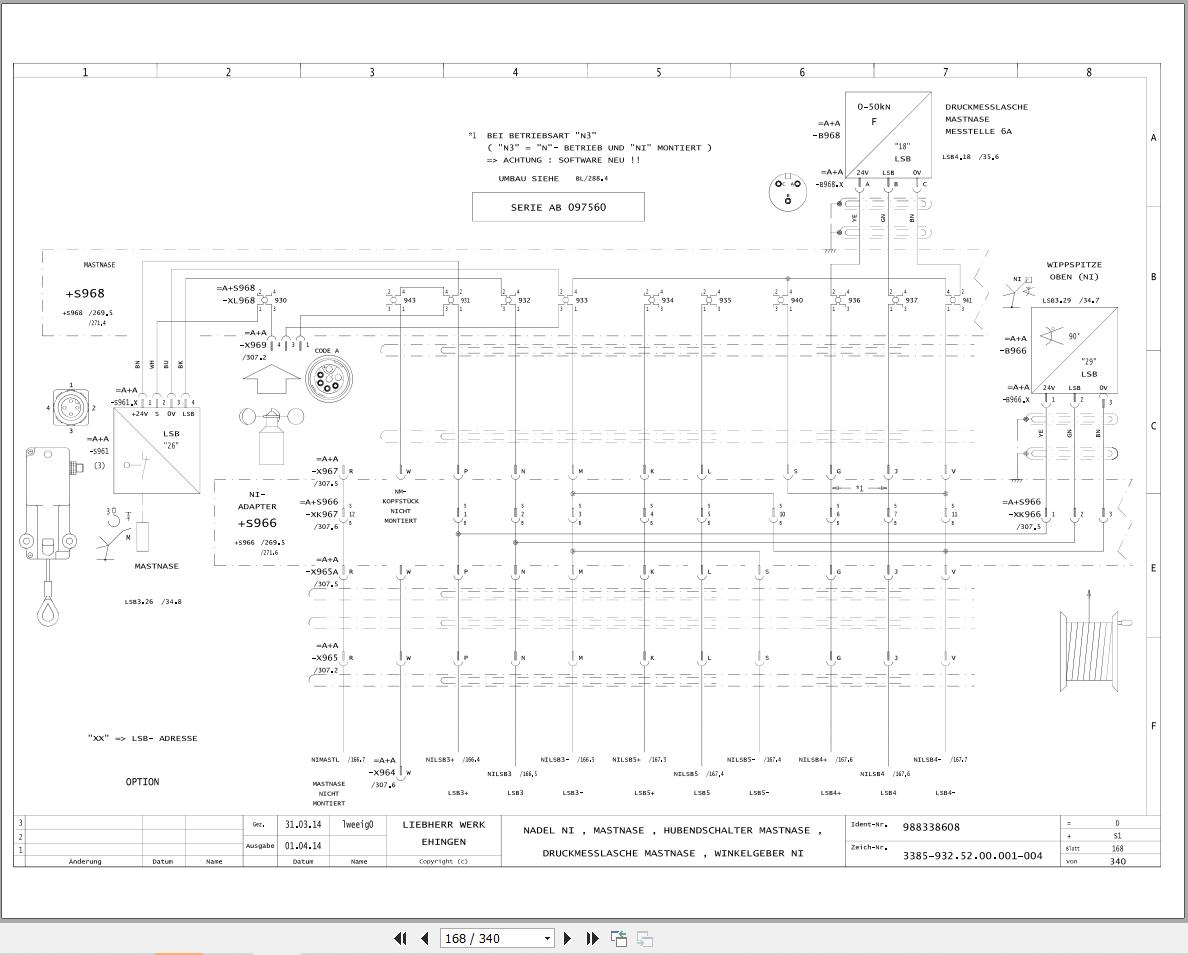

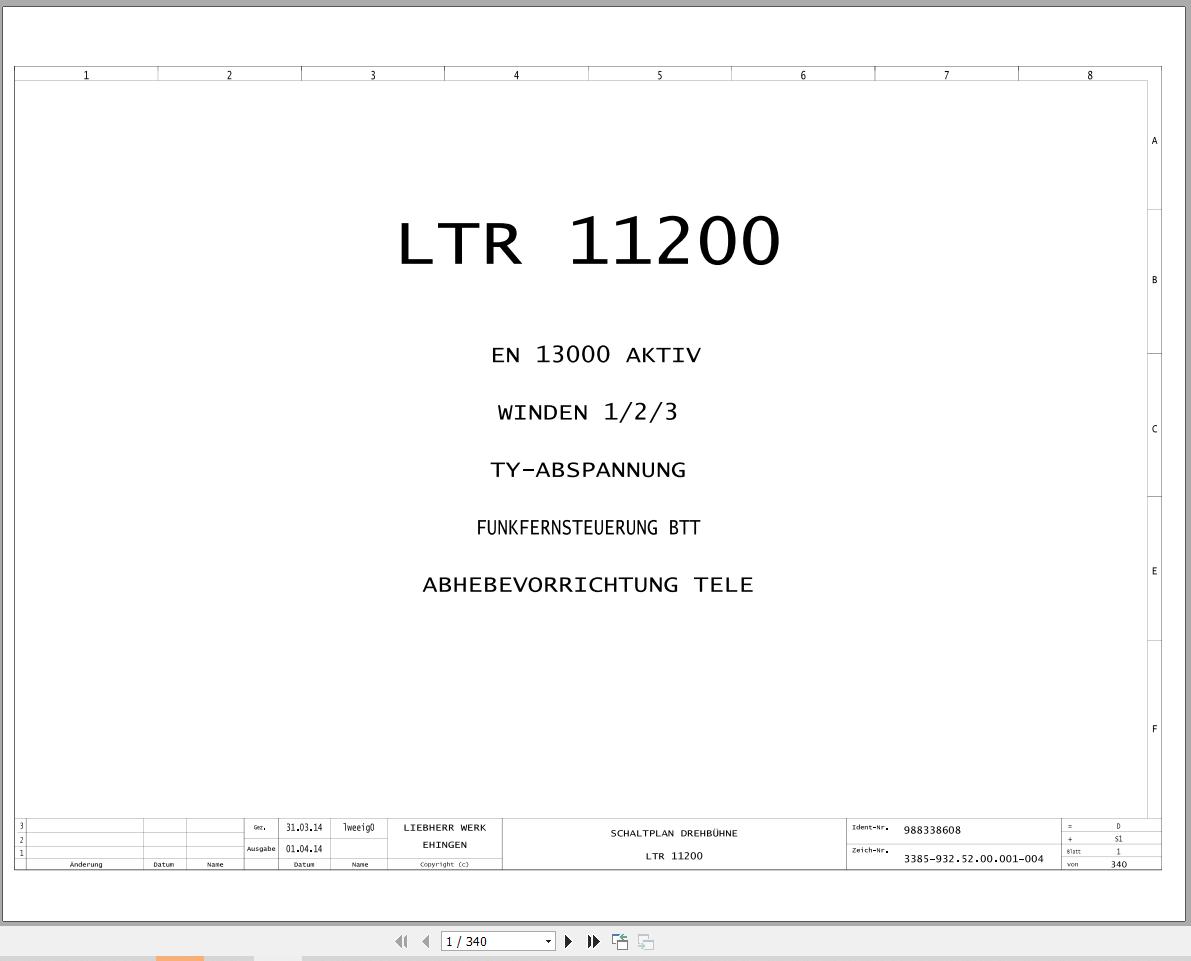

Electric Diagrams 988338608_004 DE.pdf (340 Pages)
Hydraulic Diagram 986598008_005 DE.pdf (4 Pages)
Hydraulic Diagram 986598108_002 DE.pdf (4 Pages)
Hydraulics Superstructure General Layout 987595508_005 DE.pdf (36 Pages)
LTR 11200 Additional Hydraulics Winch III 986645608_001 DE.pdf (3 Pages)
STRANGPLAN W93 982739608_003 DE.pdf (2 Pages)
Wiring List S2 986985008_002 DE.pdf (14 Pages)
