Liebherr LTR 1220 Z96503 Electric and Hydraulic Diagrams EN

Data Size: 85.02 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTR 1220 Z96503 Crane
(LTR1220, LTR/1220, LTR_1220, LTR-1220)

List Contents:

Compressed-Air System Superstructure Pipework 989949408_999_EN.pdf (3 Pages)
Hydraulics Emergency Operation Superstructure Pipework 989767508_999_EN.pdf (5 Pages)
Hydraulics Hoist Gear II Pipework 989767408_999_EN.pdf (3 Pages)
Hydraulics Superstructure General Layout Emergency Operation 989765208_999_EN.pdf (26 Pages)
Hydraulics Superstructure Pipework 989765308_999_EN.pdf (9 Pages)
LTR 1220 Compressed-Air System Superstructure 989949308_999_EN.pdf (4 Pages)

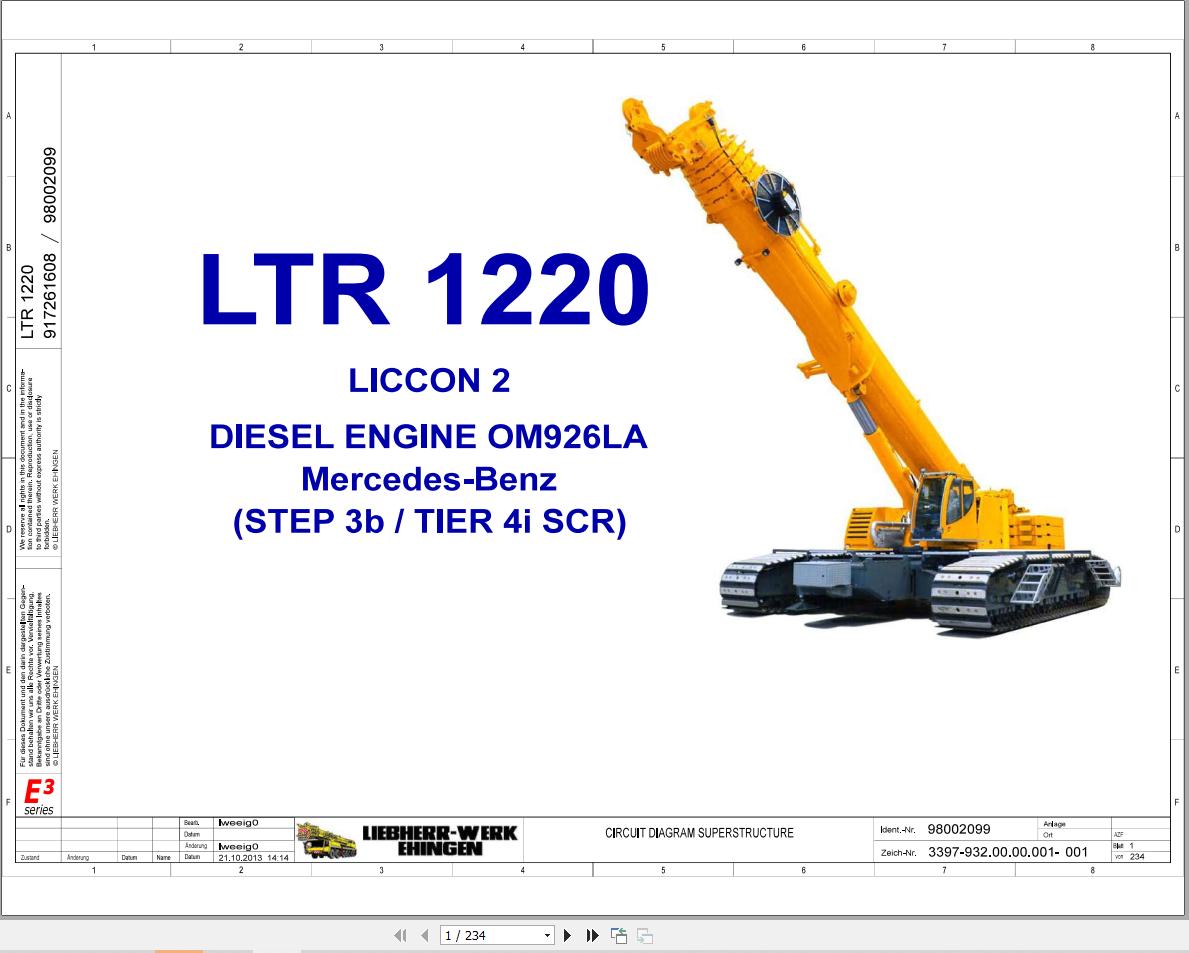

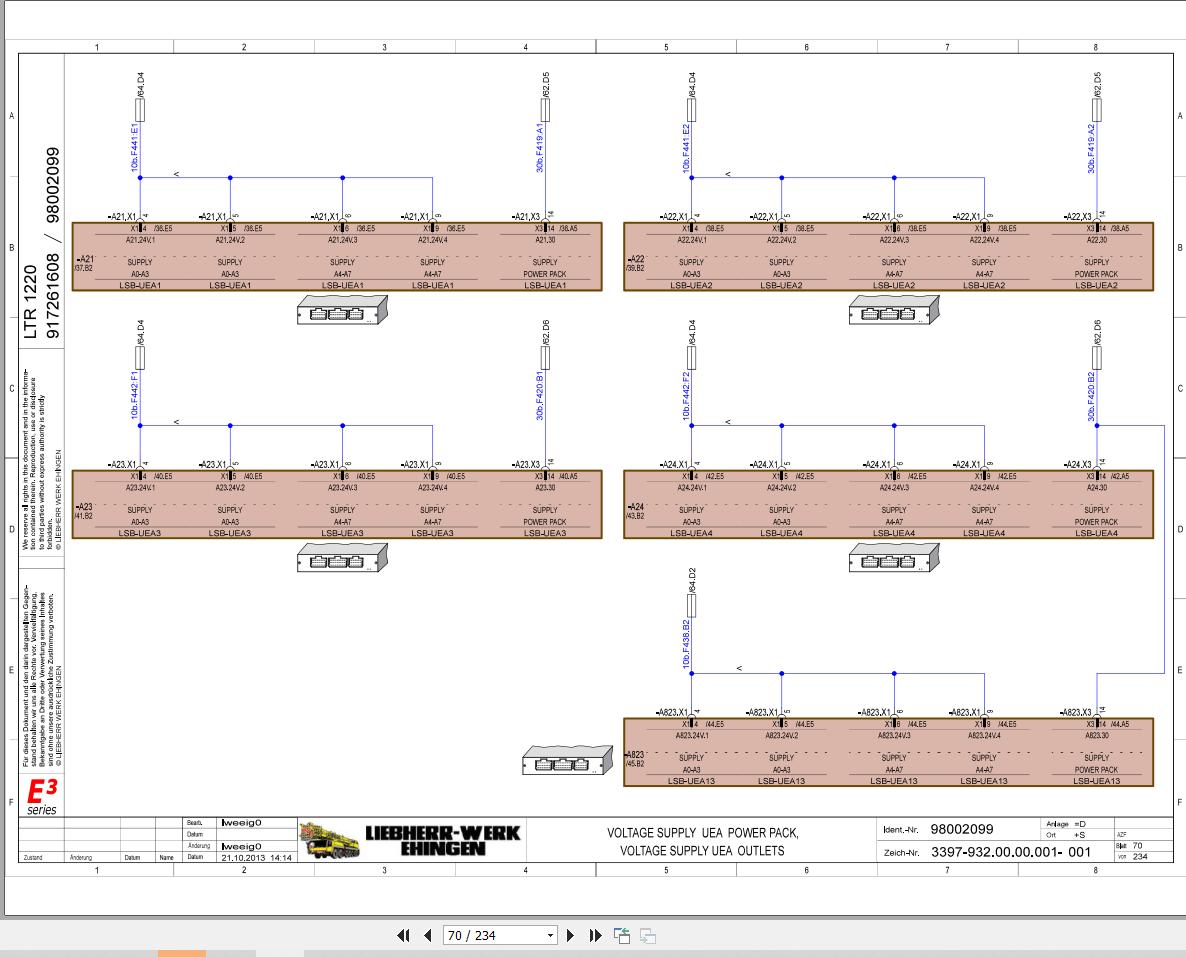

LTR 1220 Electric Diagrams LICCON 2 98002099_999_EN.pdf (234 Pages)
