Liebherr LTS 1030 Z77051 Electric and Hydraulic Diagrams RU

Data Size: 21.43 MB
File Type: PDF
Language: Russian
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTS 1030 Z77051 Crane
(LTS1030, LTS/1030, LTS_1030, LTS-1030)

List Contents:

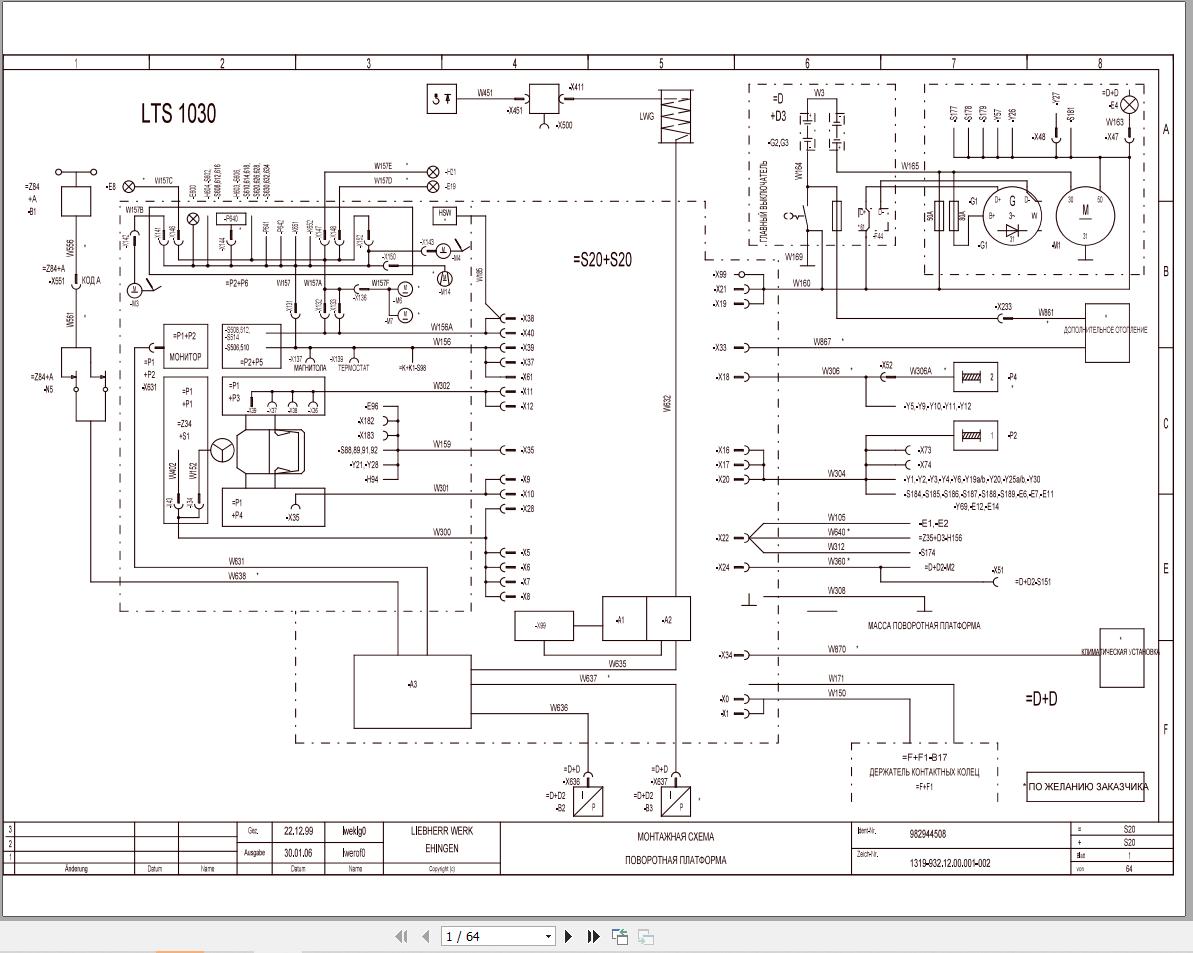

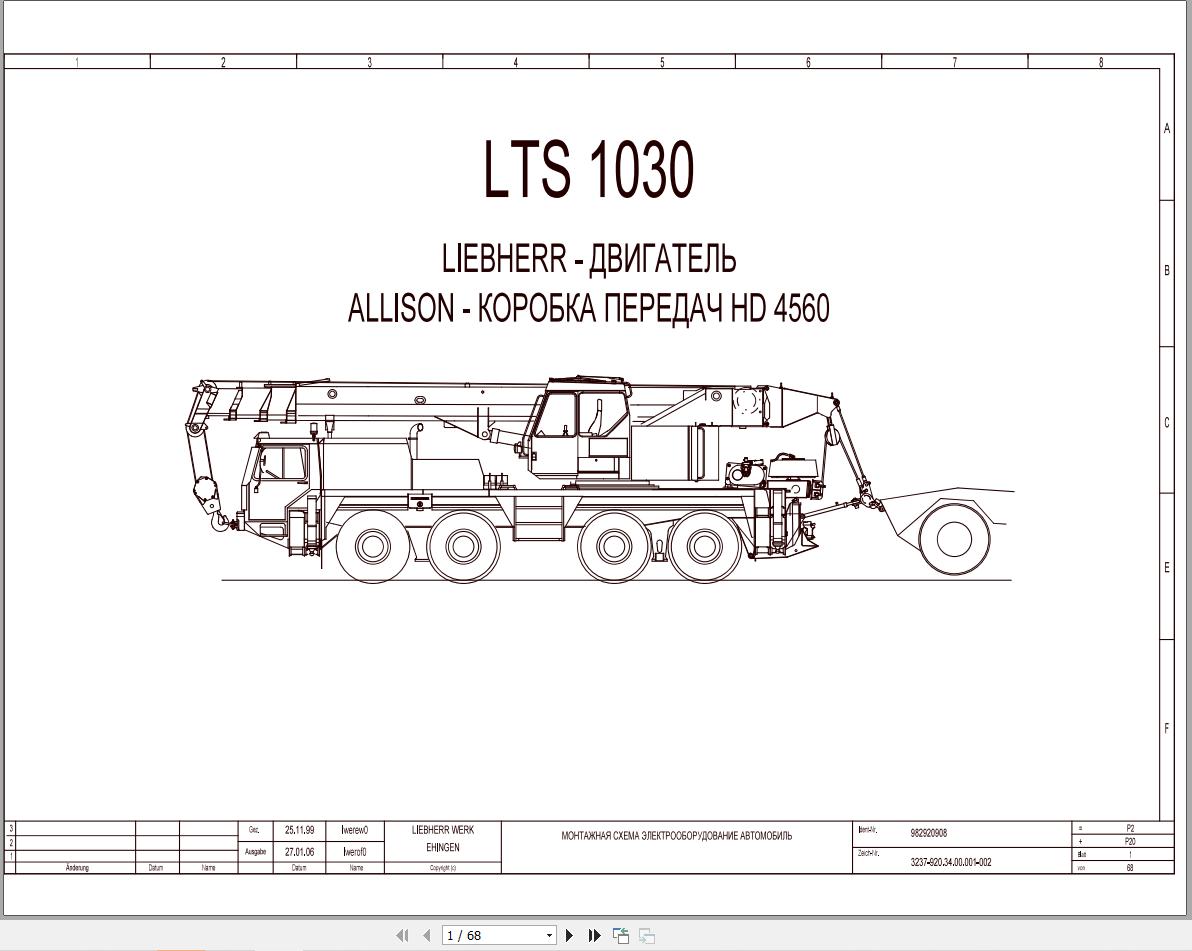

Electric Diagrams 982920908_999_RU.pdf (68 Pages)
Electric Diagrams 982944508_999_RU.pdf (64 Pages)
Hydraulics Outriggers 982415208_999_RU.pdf (7 Pages)
Pneumatic Trailer Coupling 981969908_999_RU.pdf (2 Pages)
Pneumatic Trailer Coupling Pre-Assembled 982123708_999_RU.pdf (2 Pages)
STRANGPLAN W107 982290908_999_RU.pdf (2 Pages)
