Liebherr MK 100 Z77250 Electric and Hydraulic Diagrams ES

Data Size: 32.45 MB
File Type: PDF
Language: Spanish
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr MK 100 Z77250 Crane
(MK100, MK/100, MK_100, MK-100)

List Contents:

Control Hydraulics Compressed-Air System 983473608_999_ES.pdf (18 Pages)
Pneumatic Drivers Cab Tubing Diagram 983517508_999_ES.pdf (4 Pages)
Pre-Assembley Bulkhead Plate 983517908_999_ES.pdf (3 Pages)
Steering Hydraulics Pipework 983473708_999_ES.pdf (8 Pages)
Suspension Tubing Diagram 983473908_999_ES.pdf (6 Pages)
Tubing Diagram Hydraulics Outriggers 983473808_999_ES.pdf (6 Pages)

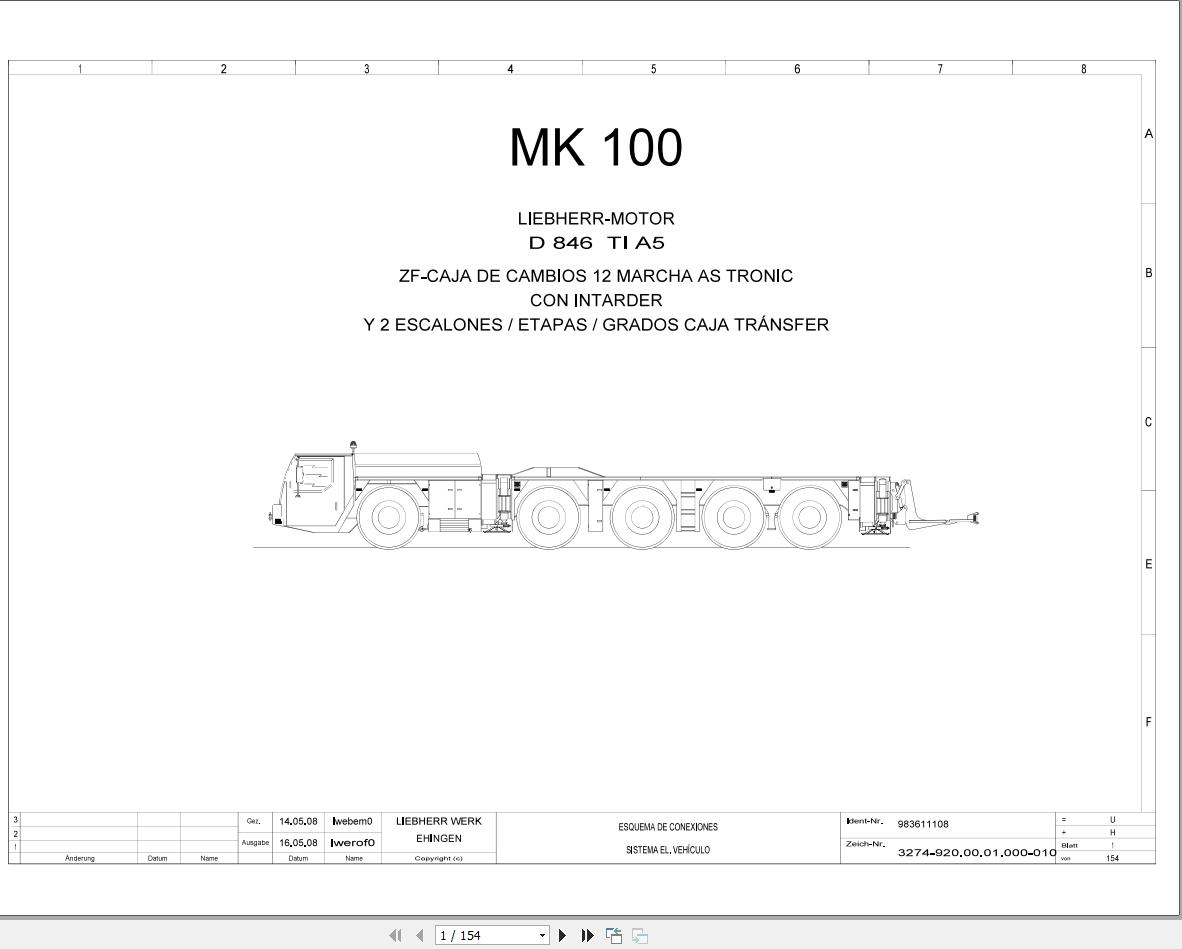

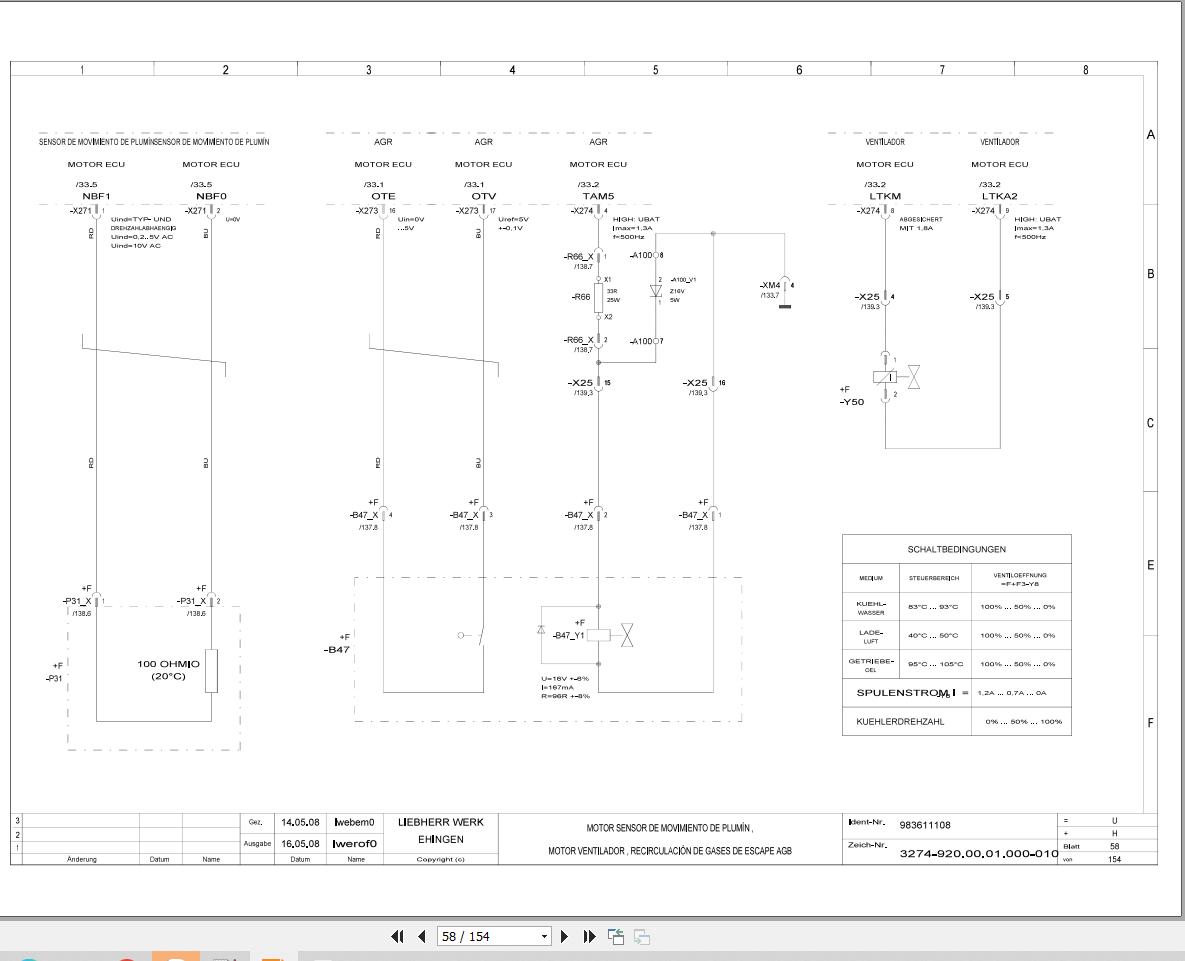

Wiring Diagram 983611108_999_ES.pdf (154 Pages)
