Liebherr MK 63 Z76505 Electric and Hydraulic Diagrams FR

Data Size: 31.22 MB
File Type: PDF
Language: French
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr MK 63 Z76505 Crane
(MK63, MK/63, MK_63, MK-63)

List Contents:

Control Hydraulics Compressed-Air System 985151908_999_FR.pdf (12 Pages)
Control Hydraulics Rear Axle Steering FMEA 985439208_999_FR.pdf (5 Pages)

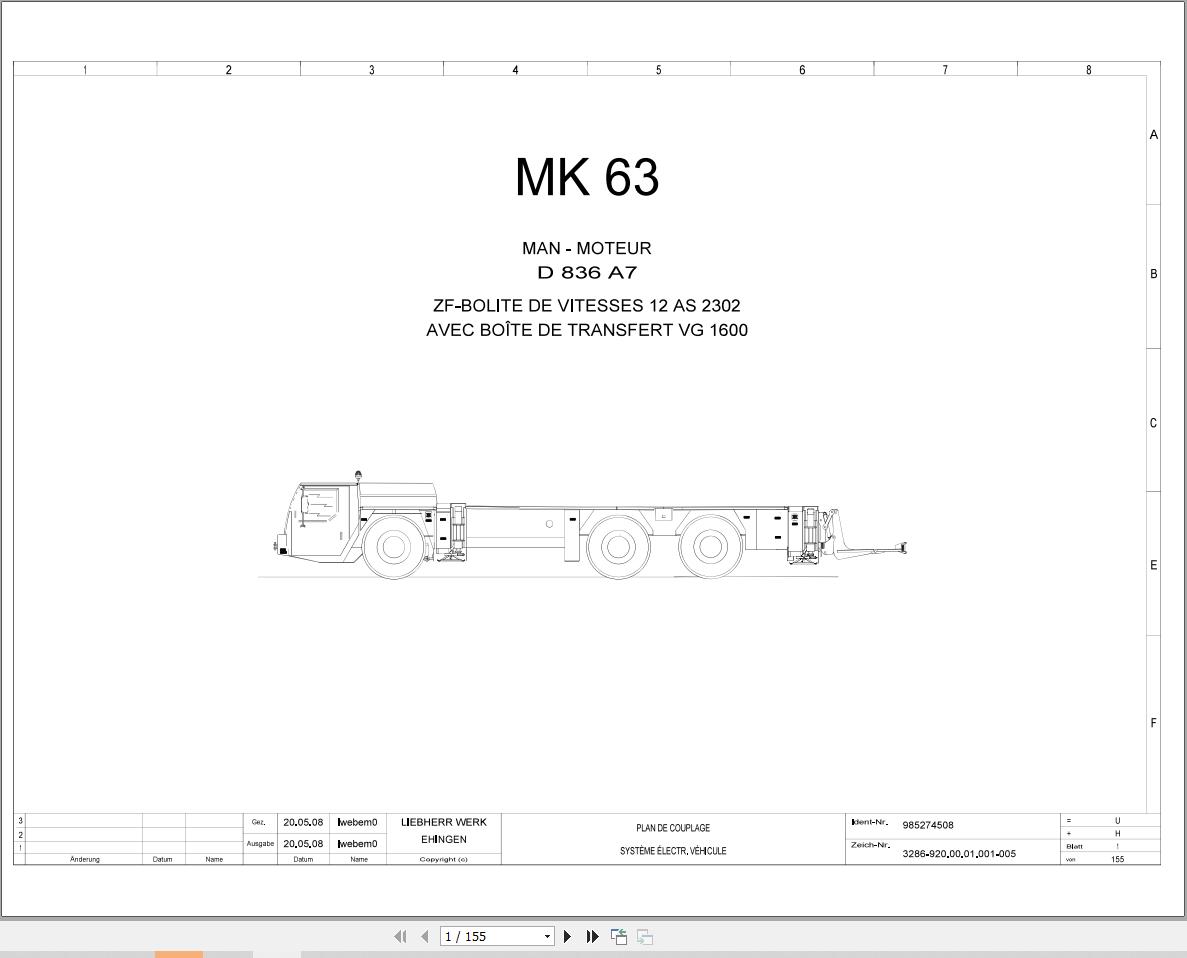

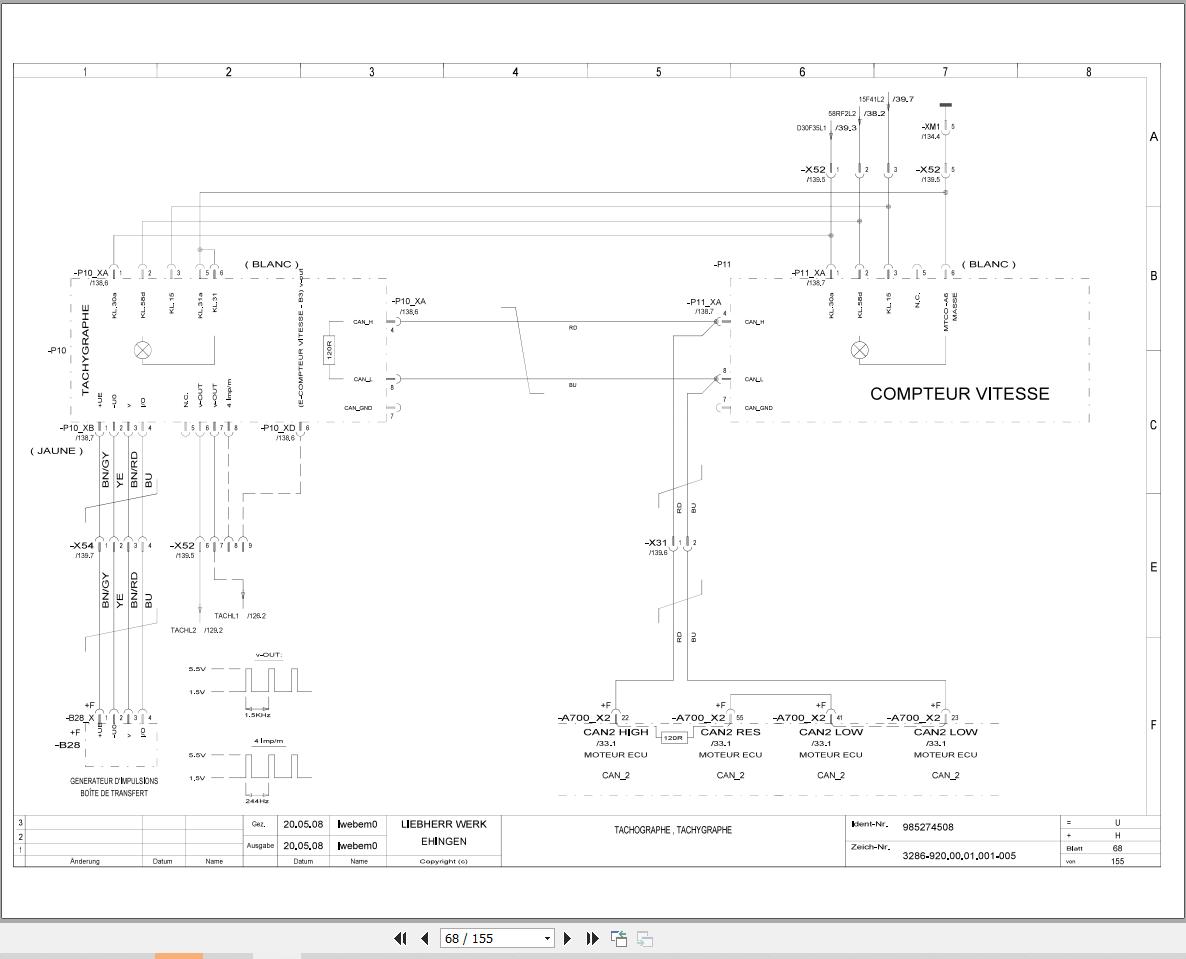

Electric Diagram 985274508_999_FR.pdf (155 Pages)
Hydraulics Outriggers Tubing Diagram 985281408_999_FR.pdf (3 Pages)
Pneumatic Drivers Cab Tubing Diagram 983517508_999_FR.pdf (4 Pages)
Pre-Assembley Bulkhead Plate 983517908_999_FR.pdf (3 Pages)
Steering Hydraulics Tubing Diagram 985281508_999_FR.pdf (4 Pages)
