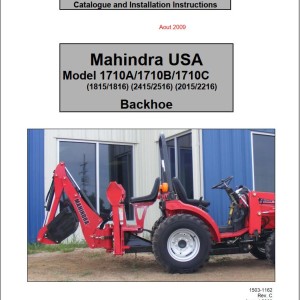

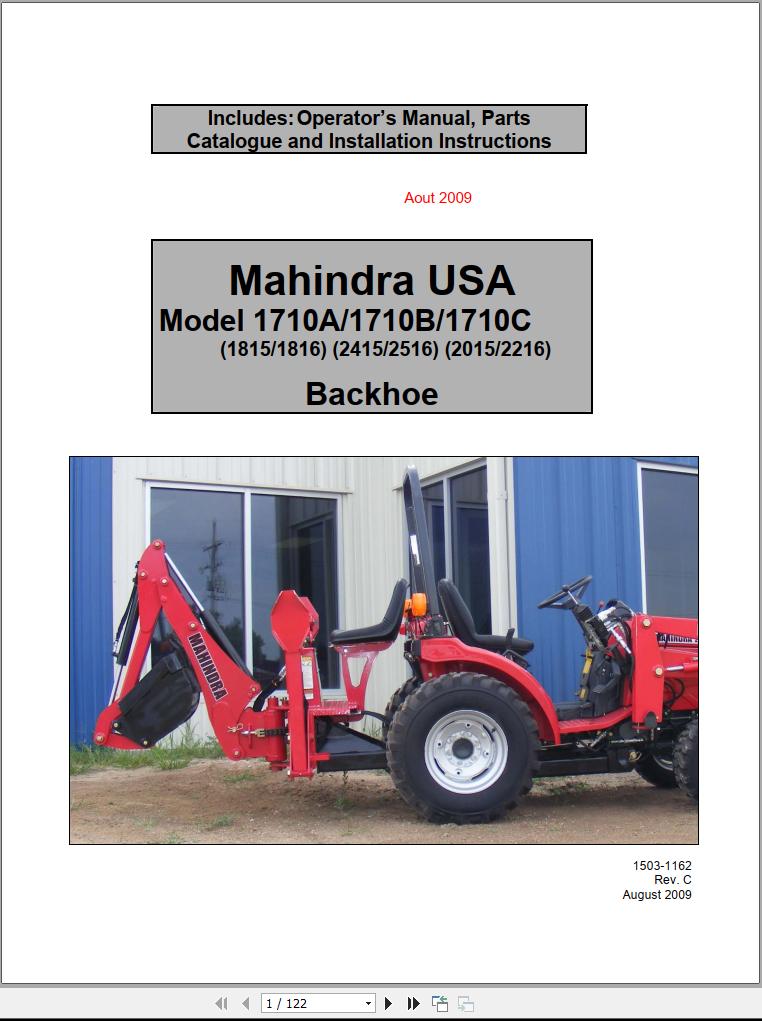

Mahindra 1710A 1710B 1710C Backhoe Operator Manual Parts Manual and Installation Instruction

Mahindra 1710A 1710B 1710C Backhoe Operator Manual Parts Manual and Installation Instruction
Size: 6.80 MB
Machine: Tractor
Machine Model:1710A (1815/1816) 1710B (2415/2516) 1710C (2015/2216) Backhoe
Publication Date: 2009
Page: 122 Pages

Contents:
1. Specifications
1.1. Specification Details
1.2. Specifications
2. Introduction
3. Backhoe Components

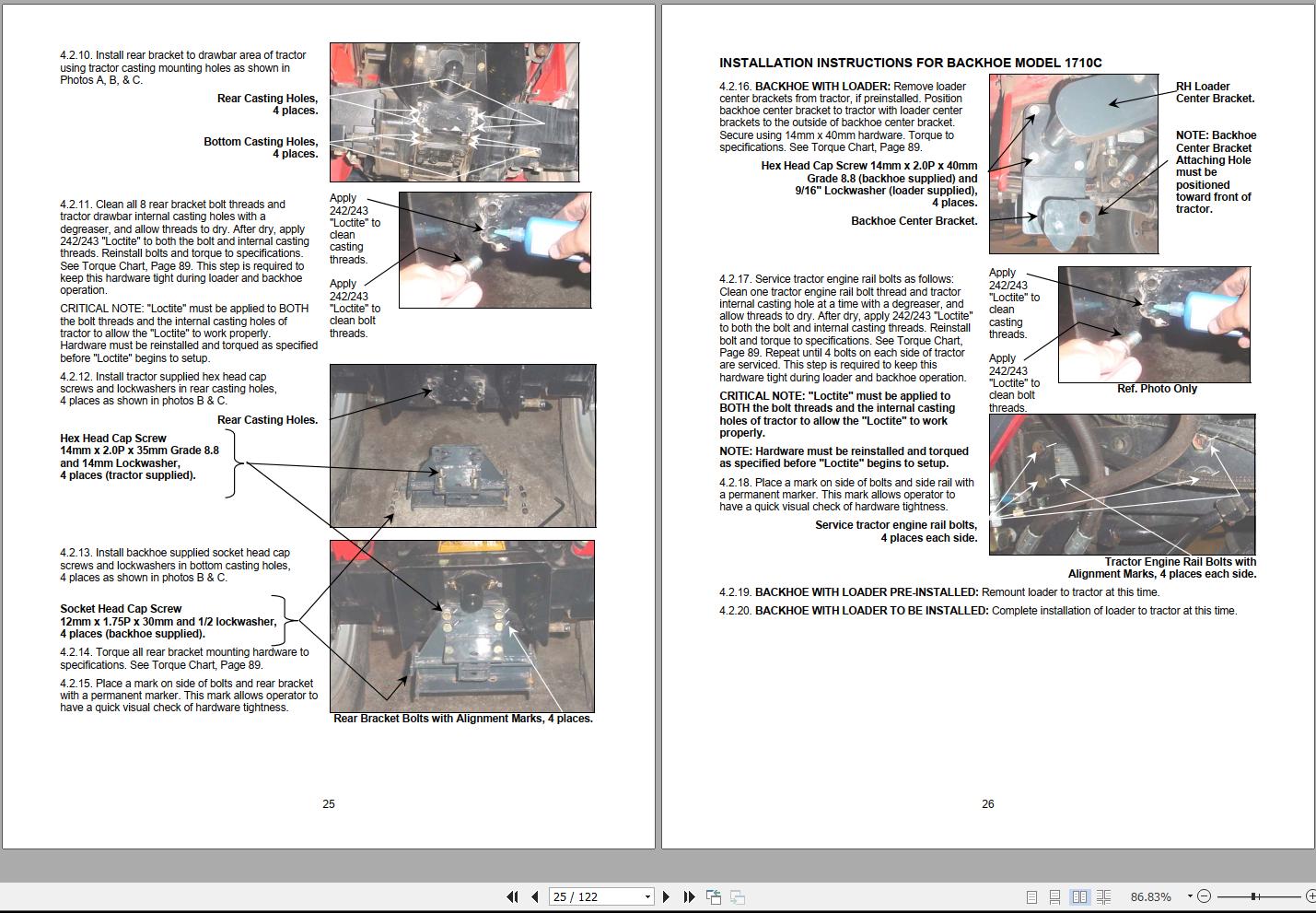

4. Installation Instructions All Machine Models
4.1. Backhoe And Tractor Machine Models
4.2. Tractor Preparation-All Machine Models
4.3. Connect Loader Valve Hydraulics
4.4. Connect Tractor Hydraulics
5. Controls
5.1. Boom & Swing:
5.2. Left Hand Stabilizer:
5.3. Right Hand Stabilizer:
5.4. Crowd & Bucket:
5.5. Operating The Backhoe
6. Transporting Backhoe
6.1. Transporting Backhoe On Tractor
6.2. Transporting Backhoe And Tractor On Truck Or Trailer
6.3. Transport Locking Pins
7. General Operation
7.1. Stabilizer Pads
7.2. Entering And Leaving Backhoe Operator Area
7.3. Placing The Backhoe Stabilizers
For Digging
7.4. Engine Speed
8. General Operation Instructions
8.1. Filling The Bucket
8.2. Dumping The Bucket
8.3. Trenching Between A Building And
Open Excavations
8.4. Side Slope Excavating Or Trenching
8.5. Miscellaneous
8.6. Finishing Straight Walls
8.7. Backfilling
9. Mounting Backhoe To Tractor 1710a And 1710b
10. Mounting Backhoe To Tractor 1710c
11. Initial Backhoe Operation
12. Dismounting Backhoe From Tractor
13. Service
13.1. Service Safety
13.2. Hydraulic Fluid
13.3. Beginning Of Season
13.4. Bleeding Backhoe Hydraulic System
13.5. Hydraulic System Hoses
13.6. Weld On Tooth Replacement
13.7. Tightening Nuts And Bolts
13.8. Check Tractor Side Rails Hardware
13.9. Check Backhoe Rear Bracket Hardware
13.10. Check Backhoe Rear Mount Hardware
13.11. Check Pivot Pins
13.12. Lubrication
13.13. Swing Pivot Service
13.14. Valve And Handle Linkage Service
13.15. Swing Chain Adjustment And Service Instructions
13.16. Swing Chain Replacement
13.17. Bucket Cylinder Hose Routing
13.18. Replacing Swing Cylinder Tube Assembly
14. Troubleshooting Procedures
15. Torque Chart
16. Notes
17. Parts Manual
18. Decals
19. Backhoe Frame And Hardware
20. Backhoe Boom And Hardware
21. Cylinder, Hoses And Fittings
22. Control Handle Components
23. Subframe 1710a
24. Subframe 1710b
25. Subframe 1710c
26. Hydraulic Adapter & Hose Kit 1710a
27. Hydraulic Adapter & Hose Kit 1710b
28. Hydraulic Adapter & Hose Kit 1710c
29. Swing Cylinder And Hardware
30. Backhoe Valve, Fittings, & Hardware
31. Bucket
32. Cylinder, Swing (Cross)
33. Cylinder (Bailey)
34. Cylinder (Bailey)
35. Cylinder (Bailey)
36. Cylinder (Bailey)
37. Valve
