Manitou Axle 111 Service Manual

Manitou Axle 111 Service Manual
Size: 224 MB
Machine: Axle
Machine Model: Manitou 111 Axle
Part Number: 647431EN, 647902EN

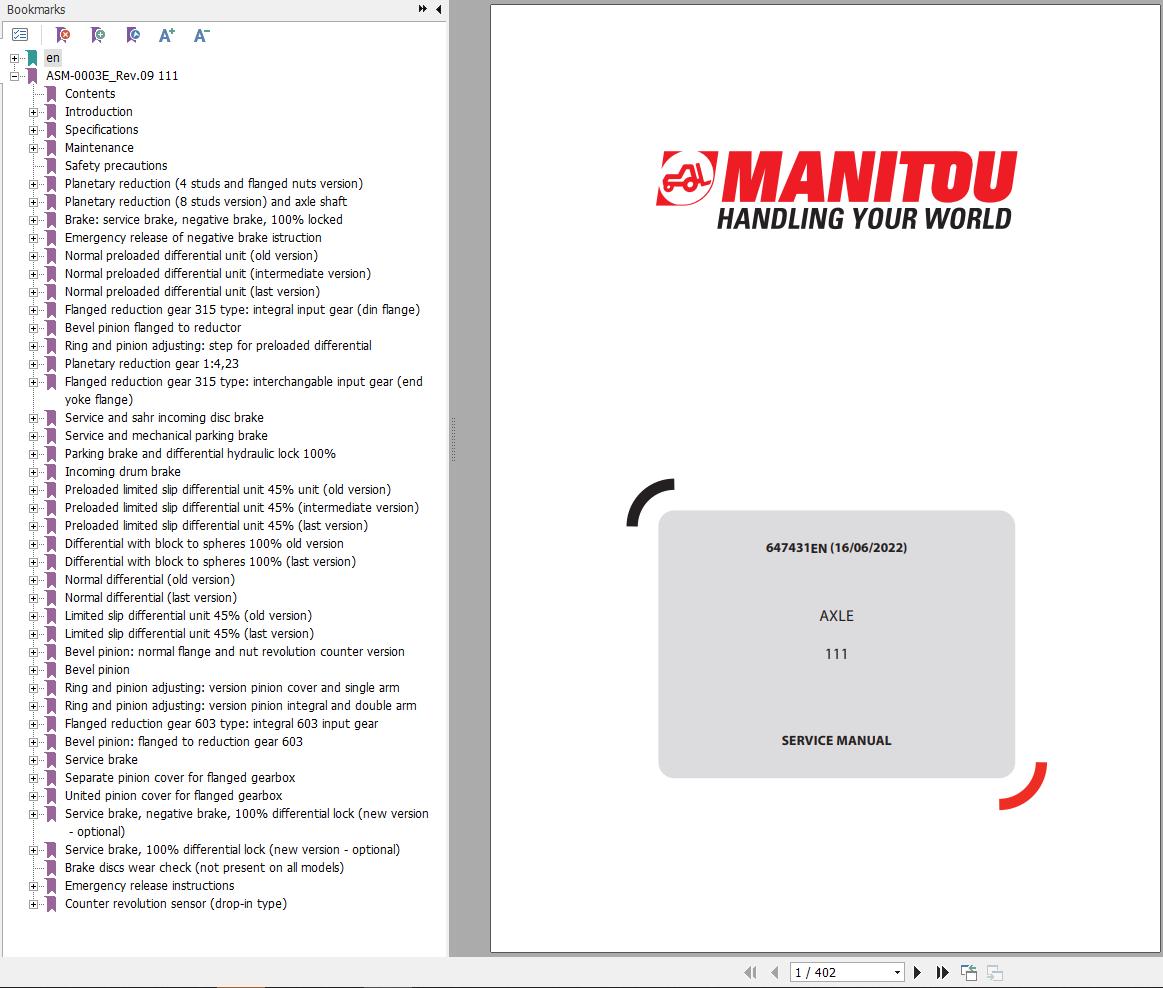

Content:
Introduction
Specifications
Maintenance
Safety Precautions
Planetary Reduction (4 Studs And Flanged Nuts Version)
Planetary Reduction (8 Studs Version) And Axle Shaft
Brake: Service Brake, Negative Brake, 100% Locked
Emergency Release Of Negative Brake Istruction
Normal Preloaded Differential Unit (Old Version)
Normal Preloaded Differential Unit (Intermediate Version)
Normal Preloaded Differential Unit (Last Version)
Flanged Reduction Gear 315 Type: Integral Input Gear (Din Flange)
Bevel Pinion Flanged To Reductor
Ring And Pinion Adjusting: Step For Preloaded Differential
Planetary Reduction Gear 1:4,23
Flanged Reduction Gear 315 Type: Interchangable Input Gear (End Yoke Flange)
Service And Sahr Incoming Disc Brake
Service And Mechanical Parking Brake
Parking Brake And Differential Hydraulic Lock 100%
Incoming Drum Brake .
Preloaded Limited Slip Differential Unit 45% Unit (Old Version)
Preloaded Limited Slip Differential Unit 45% (Intermediate Version)
Preloaded Limited Slip Differential Unit 45% (Last Version)
Differential With Block To Spheres 100% Old Version
Differential With Block To Spheres 100% (Last Version)
Normal Differential (Old Version)
Normal Differential (Last Version)
Limited Slip Differential Unit 45% (Old Version)
Limited Slip Differential Unit 45% (Last Version)
Bevel Pinion: Normal Flange And Nut Revolution Counter Version
Bevel Pinion
Ring And Pinion Adjusting: Version Pinion Cover And Single Arm
Ring And Pinion Adjusting: Version Pinion Integral And Double Arm
Flanged Reduction Gear 603 Type: Integral 603 Input Gear
Bevel Pinion: Flanged To Reduction Gear 603
Service Brake
Separate Pinion Cover For Flanged Gearbox
United Pinion Cover For Flanged Gearbox
Service Brake, Negative Brake, 100% Differential Lock (New Version - Optional)
Service Brake, 100% Differential Lock (New Version - Optional)
Brake Discs Wear Check (Not Present On All Machine Models)
Emergency Release Instructions
Counter Revolution Sensor (Drop-In Type)
