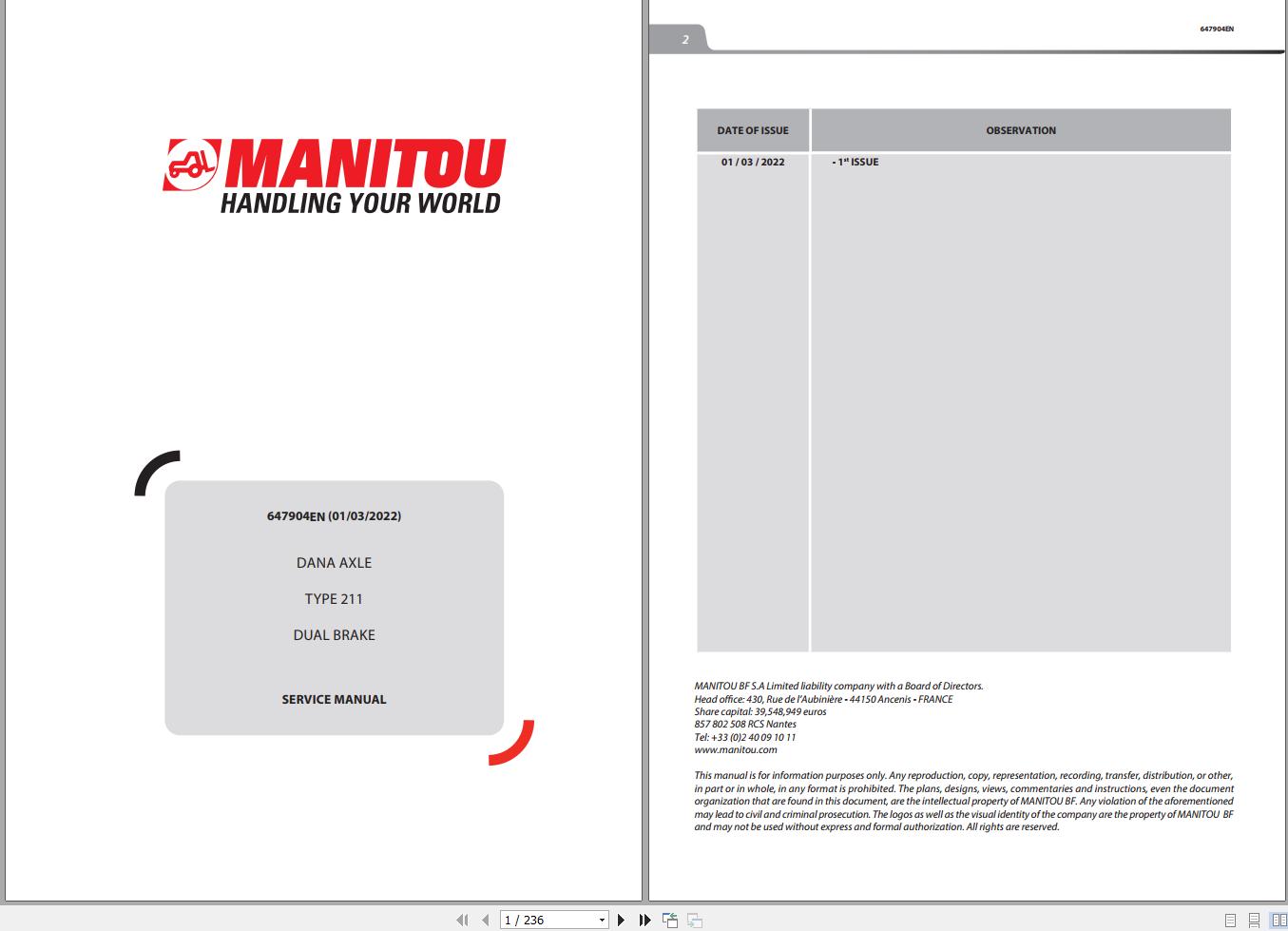

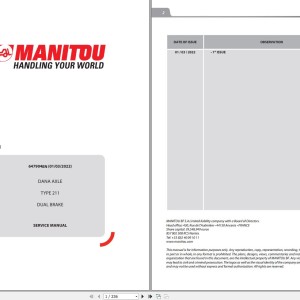

Manitou Dana Axle 211 Service Manual 647904EN

Manitou Dana Axle 211 Service Manual 647904EN
Size: 12.8 MB
Machine: Dana Axle
Machine Model: Manitou 211 Dana Axle
Publication Date: 2022
Page: 236 Pages
Part Number: 647904EN

Content:
Introduction
Specifications
Maintenance
Safety Precautions
Planetary Reduction 1:6 And Steering Knuckle (Flanged Nuts Version)
Planetary Reduction 1:4,23
Double U-Joint
Steering Cylinder
Flanged Reduction Gear 603 Type: Integral 603 Input Gear
Bevel Pinion: Normal Flange And Nut Revolution Counter Version
Swinging Support
Service And Sahr Incoming Disc Brake
Incoming Drum Brake
Normal Differential
Limited Slip Differential Unit 45%
Bevel Pinion: Flanged To Reduction Gear 603
Ring And Pinion Adjusting: Version Pinion Integral And Double Arm
Manual Emergency Release
Adjustment After Manual Release
Brake Wear Check Procedure
Service And Negative Brake
Service Brake
Separate Pinion Cover For Flanged Gearbox
United Pinion Cover For Flanged Gearbox
Steering Knuckle King Pin Preloaded By Belleville Washers
Flanged Reduction Gear 315 Type: Integral Input Gear (Din Flange)
Flanged Reduction Gear 315 Type: Interchangable Input Gear (End Yoke Flange)
Differential With Block To Spheres 100% (Last Version)
Counter Revolution Sensor (Drop-In Type)
