Manitou MLT 735 741 935 940 120 H ST3B Hydraulic Schematic Diagrams 7002M208

Manitou MLT 735 741 935 940 120 H ST3B Hydraulic Schematic Diagrams 7002M208

Size: 1.4 MB
Machine: Telescopic Handler
Machine Model:
MLT 735 120 H ST3B
MLT 741 120 H ST3B
MLT 935 120 H ST3B
MLT 940 120 H ST3B
Publication Date: 2015
Part Number: 7002M208

List File:

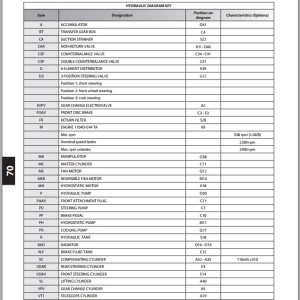

Hydraulic Schematic Diagrams 6 Pages

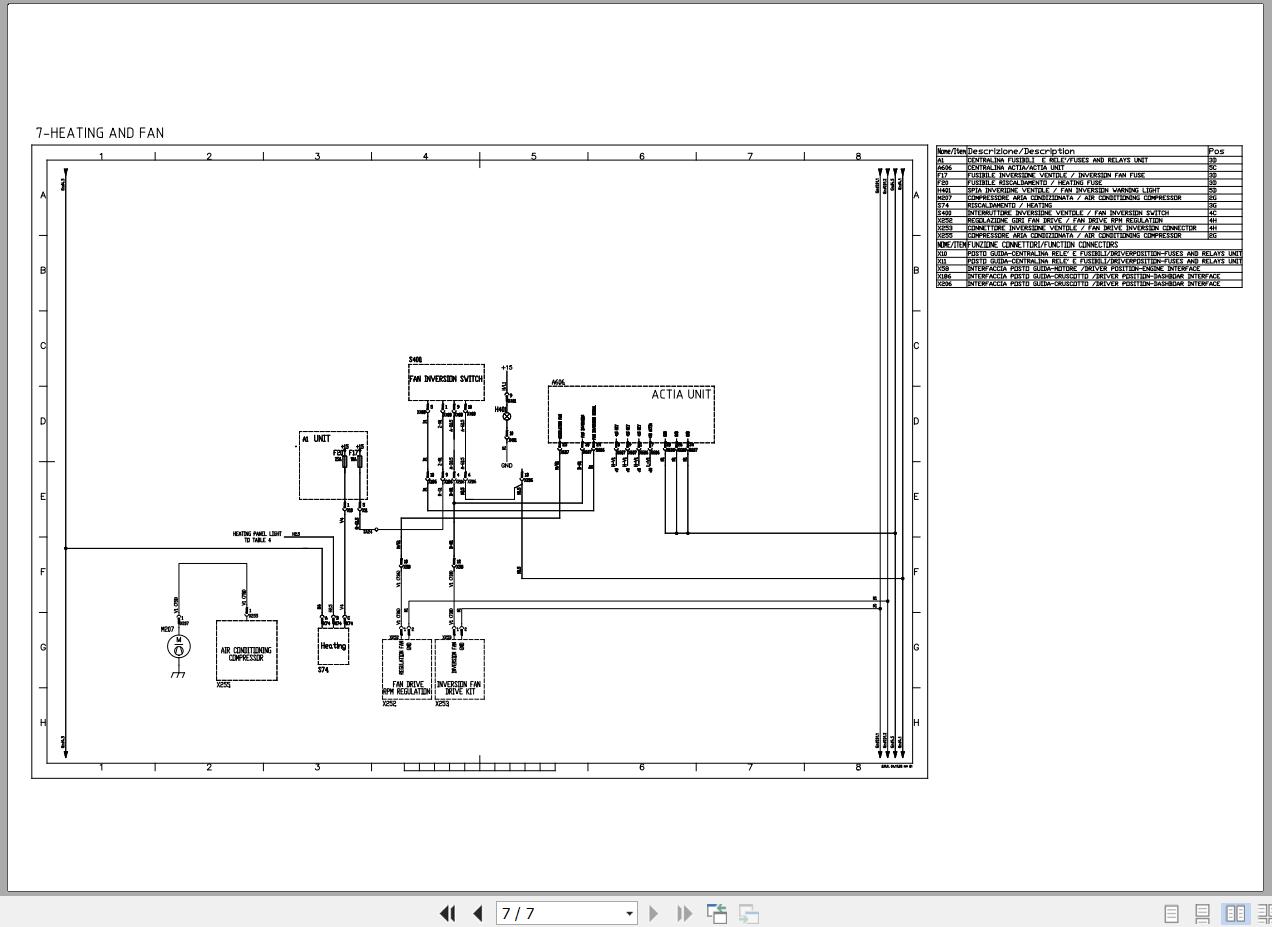

Electric Schematic Diagrams 7 Pages
