Manitou Type 212 Axle Assembly Repair Manual 547983
Support Contact:
Admin@autoepcsoft.org
Manitou Type 212 Axle Assembly Repair Manual 547983
Size: 90.6 MB
Machine: Manitou Axle
Machine Model: Type 212
Publication Date: 2021
Page: 230 Pages
Part Number: 547983

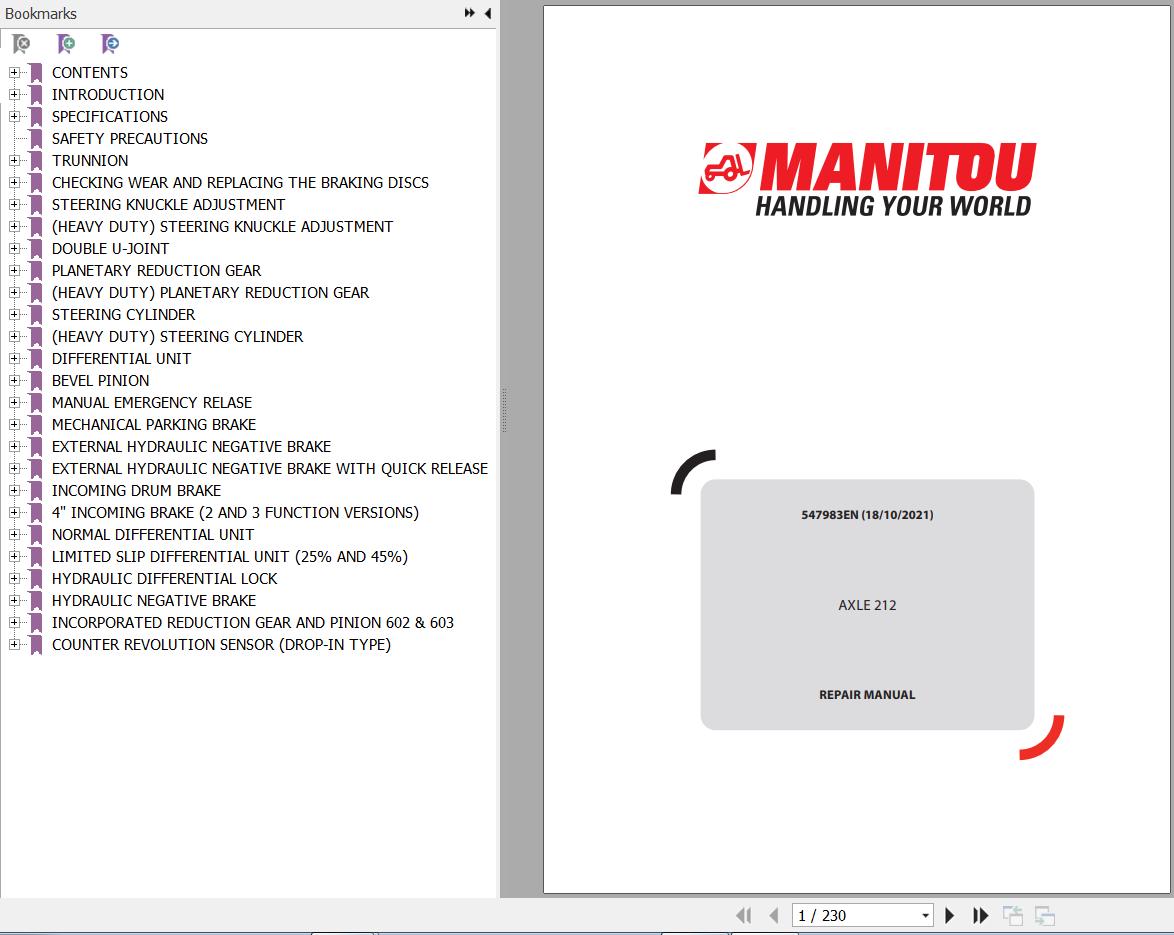

The Bookmarks Of Manitou Type 212 Axle Assembly Repair Manual:
Contents
Introduction
Specifications
Safety Precautions
Trunnion
Checking Wear And Replacing The Braking Discs
Steering Knuckle Adjustment
(Heavy Duty) Steering Knuckle Adjustment
Double U-Joint
Planetary Reduction Gear
(Heavy Duty) Planetary Reduction Gear
Steering Cylinder
(Heavy Duty) Steering Cylinder
Differential Unit
Bevel Pinion
Manual Emergency Relase
Mechanical Parking Brake
External Hydraulic Negative Brake
External Hydraulic Negative Brake With Quick Release
Incoming Drum Brake
4’ Incoming Brake (2 And 3 Function Versions)
Normal Differential Unit
Limited Sup Differential Unit (25% And 45%)
Hydrauuc Differential Lock
Hydrauuc Negative Brake
Incorporated Reduction Gear And Pinion 602 & 603
Counter Revolution Sensor (Drop-In Type)
