Massey Ferguson 241 to 248 Tandem, 221 to 229 Parts Catalog 1637315

Data Size: 6.32 MB
File Type: PDF
Language: English
Manufacturer: Massey Ferguson
Applicable Machine: Tillage, Disc Harrows
Document: Spare Parts Manual
Machine Model: 241 to 248 Tandem, 221 to 229 Offset Disk
Book Number: 1637315
Page: 196 Pages

List Contents:

M.F 241
Frame - M.F 241
Disc - M.F 241
M.F 242
Frame - M.F 242
Disc - M.F 242
M.F 244 S
Frame - M.F 244S
Disc - M.F 244S
Hydraulic - M.F 244S
M.F 246 S
Frame - M.F 246s - Up To 03 98
Frame - M.F 246s - From 04 98
Disc - M.F 246s - Up To 03 98
Disc - M.F 246s - From 04 98
Hydraulic - M.F 246S
Hydraulic - M.F 246s - 2 rams - From 04 98
Hydraulic - M.F 246s - 1 ram - From 04 98
M.F 248
Frame - M.F 248 - Up To 11 98

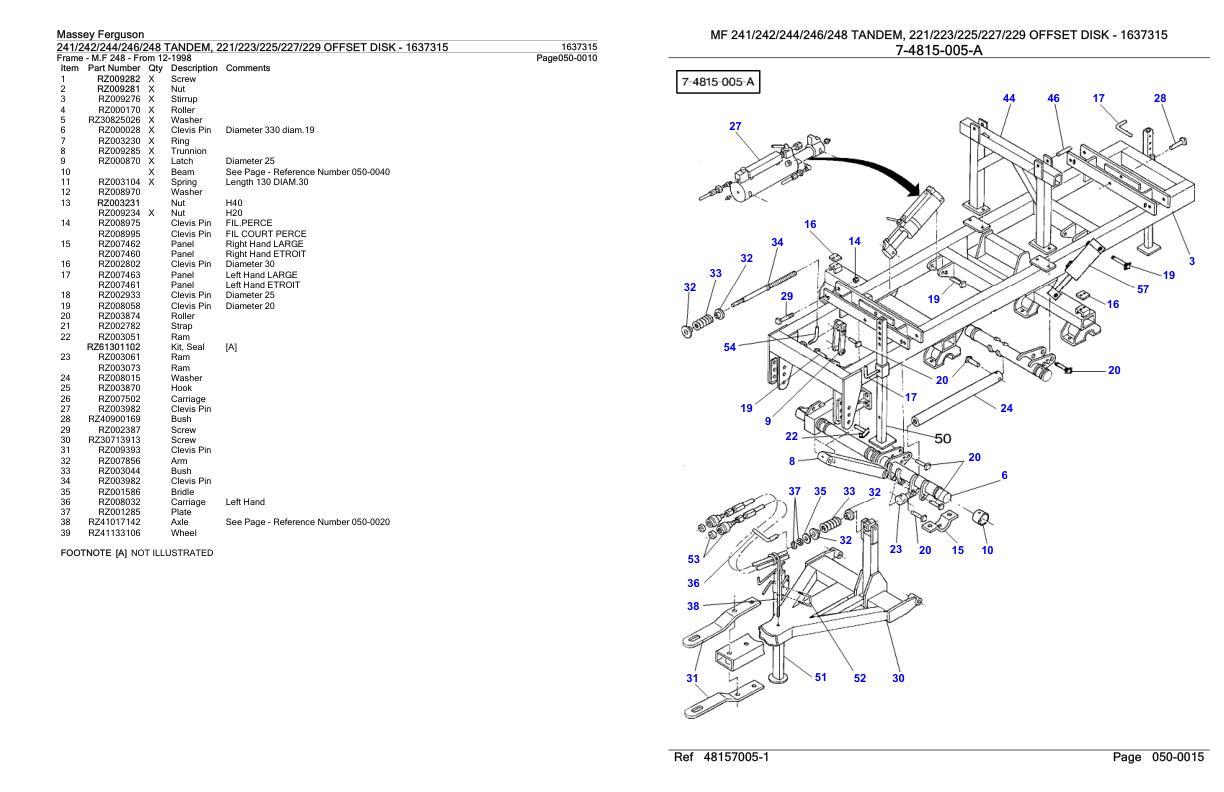

Frame - M.F 248 - From 12-1998
Disc - M.F 248 - Up To 11 98
Disc - M.F 248 - From 12-1998
Hydraulic - M.F 248
M.F 249
Frame - M.F 249 - Left Chassis
Frame - M.F 249 - Middle Chassis
Frame - M.F 249 - Right Chassis - Folding System
Disc - M.F 249 - Front Mounting
Disc - M.F 249 - Rear Mounting
Hydraulic - M.F 249 - For Lift
Hydraulic - Mf 249 - FOR FOLDING
M.F 221
Frame - M.F 221 - Diameter 510 mm 35-45 kg
Frame - M.F 221 - Diameter 610 mm 25 kg
Disc - M.F 221 - Diameter 510 mm 35-45 kg
Disc - M.F 221 - Diameter 610 mm 25 kg
M.F 223
Frame - M.F 223
Disc - M.F 223
M.F 225
Frame - M.F 225
Disc - M.F 225
M.F 227 227S
Frame - M.F 227
Disc - M.F 227
Hydraulic - M.F 227s
Frame - M.F 227s
Disc - M.F 227s
M.F 229
Frame - M.F 229
Disc - M.F 229 - Diameter 760 810 mm
Disc - M.F 229 - Diameter 660 710 mm
Hydraulic - M.F 229
M.F 309
Frame - M.F 309
Disc - M.F 309
Hydraulic - M.F 309
Hydraulic - M.F 309 - Option Cock
M.F 312
Frame - Mf 312 - FOR SINGLE CHASSIS TO MARCH 98
Frame - M.F 312 - From 04 1998 - For Folding Chassis
Frame - Mf 312 - FOR FOLDING CHASSIS TO MARCH 98
Disc - M.F 312 - Up To 03 98
Disc - M.F 312 - From 04-1998
Tines - M.F 312 - Up To 03 98
Tines - M.F 312 - From 04-1998
Crumbler - Mf 312 - ROLLERS TO MARCH 98
Crumbler - M.F 312 - From 04 1998 - For Folding Chassis
Hydraulic - MF 312 FOR FOLDING
Accessories - Mf 312
M.F 349
Frame - MF 349 UNDERBEAM CLEARANCE 75
Frame - MF 349 UNDERBEAM CLEARANCE 95
Spring Tine - M.F 349 - Spring Trip Shovel Clearance 75
Spring Tine - M.F 349 - Spring Trip Shovel Clearance 95
Decals
Axle
Axle - SQUARE 45
Axle - SQUARE 50
Axle - SQUARE 60
Axle - SQUARE 70
