Mitsubishi SBP16NS Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032643

Data Size: 12.63 MB
File Type: PDF
Language: English
Manufacturer: Mitsubishi
Applicable Machine: Forklift
Document: Parts Manual
Region: Europe
Machine Model: Mitsubishi SBP16NS Chassis Mast Options Internal Hosing Europe
Book Number: DOC00032643
Page: 149 Pages

List Contents:

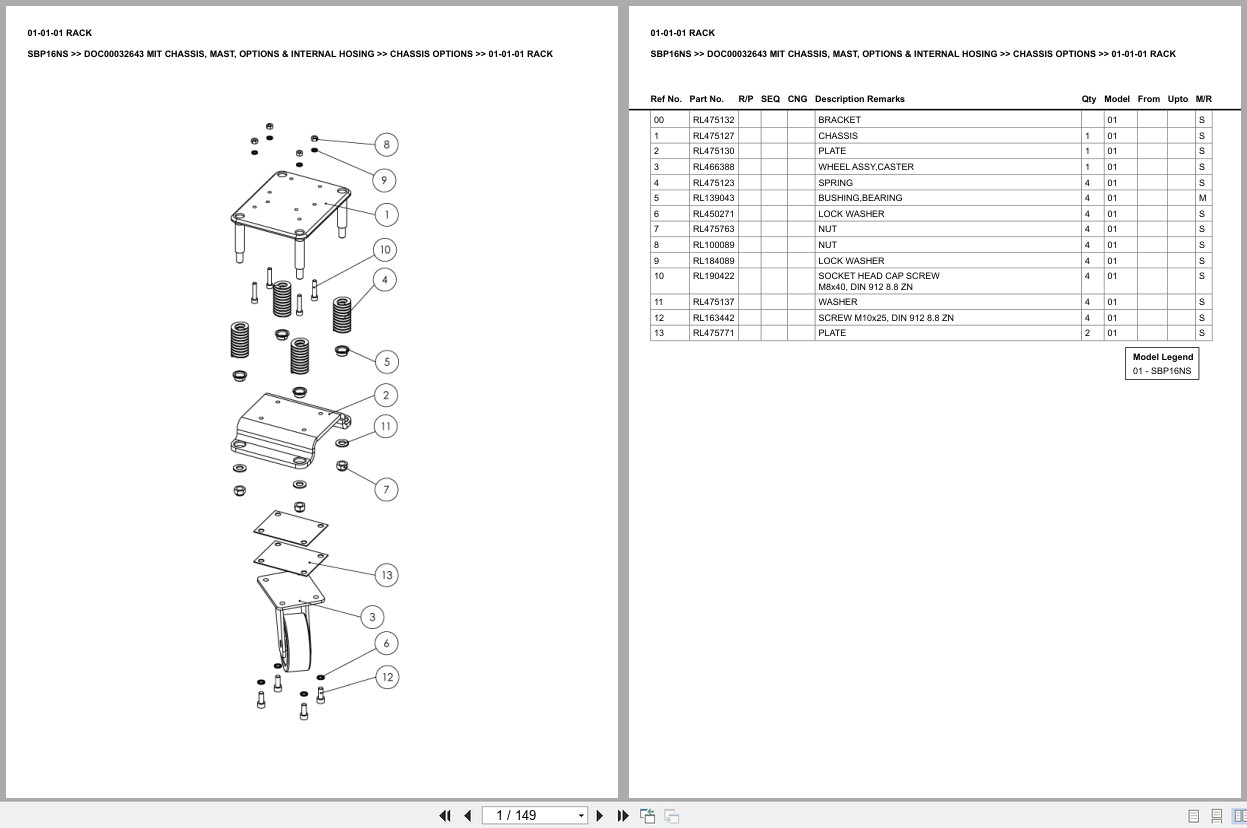

RACK
EL-PANEL
EL-PANEL (PRE 2007)
PRESS KEY
CHAIN WHEEL (Ø91,5)
LIFTING CARRIAGE, SIMPLEX, STRADDLE
LIFTING CARRIAGE, DUPLEX, DUPLEX W_ FREE LIFT, STRADDLE
LIFTING CARRIAGE, TRIPLEX, STRADDLE
LIFTING CARRIAGE, TRIPLEX W_ FULL FREE LIFT
SIDE GUIDE ROLLER
BATTERY COVER
PANEL
PANEL, INTERMEDIATE
PANEL, MULTI FUNCTION SCREEN
PANEL, INTERNAL ACCUMULATOR
HYDRAULIC AGGREGATE
HYDRAULIC AGGREGATE (RL471514)
LIFTING CYLINDER, SIMPLEX, 1500
LIFTING CYLINDER, DUPLEX W_ FREE LIFT, 2500
LIFTING CYLINDER, DUPLEX W_ FREE LIFT, 2900
LIFTING CYLINDER, DUPLEX W_ FREE LIFT, 3300
LIFTING CYLINDER, DUPLEX W_ FREE LIFT, 3450
LIFTING CYLINDER, DUPLEX W_ FREE LIFT, 3600
LIFTING CYLINDER, DUPLEX W_ FREE LIFT, 3700
LIFTING CYLINDER, DUPLEX W_ FREE LIFT, 4300
LIFTING CYLINDER, TRIPLEX, 4100
LIFTING CYLINDER, TRIPLEX, 4300
LIFTING CYLINDER, TRIPLEX, 5400
LIFTING CYLINDER, TRIPLEX, 6500
LIFTING CYLINDER, TRIPLEX W_ FREE LIFT, 4100

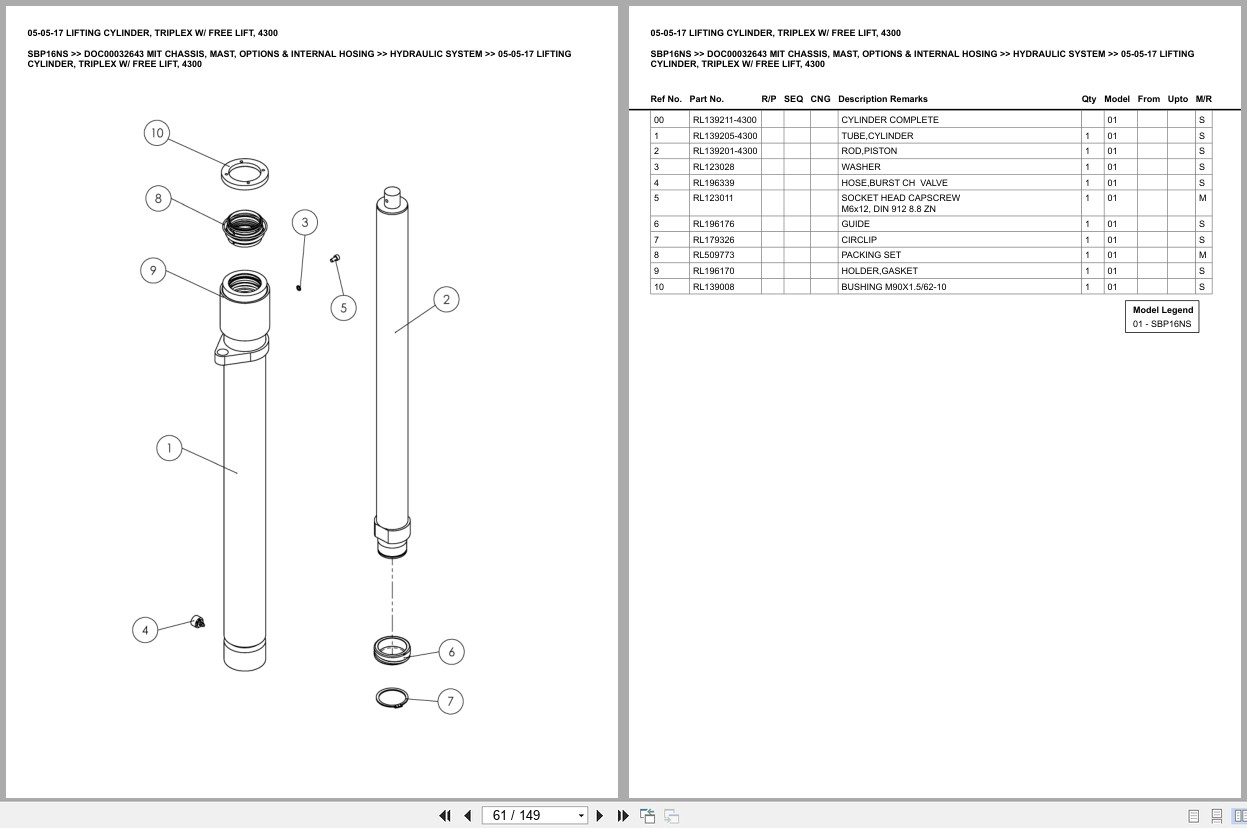

LIFTING CYLINDER, TRIPLEX W_ FREE LIFT, 4300
LIFTING CYLINDER, TRIPLEX W_ FREE LIFT, 5400
LIFTING CYLINDER, TRIPLEX W_ FREE LIFT, 5900
LIFTING CYLINDER, TRIPLEX W_ FREE LIFT, 6500
HOSE, TRIPLEX W_ FREE LIFT
SIDE CYLINDER, DUPLEX, 2500
SIDE CYLINDER, DUPLEX, 2900
SIDE CYLINDER, DUPLEX, 3300
SIDE CYLINDER, DUPLEX, 3450
SIDE CYLINDER, DUPLEX, 3600
SIDE CYLINDER, DUPLEX, 4300
SIDE CYLINDER, DUPLEX W_ FREE LIFT, 2500
SIDE CYLINDER, DUPLEX W_ FREE LIFT, 2900
SIDE CYLINDER, DUPLEX W_ FREE LIFT, 3300
SIDE CYLINDER, DUPLEX W_ FREE LIFT, 3450
SIDE CYLINDER, DUPLEX W_ FREE LIFT, 3600
SIDE CYLINDER, DUPLEX W_ FREE LIFT, 4300
PLUG, RIGHT, DUPLEX W_ FREE LIFT SIDE CYLINDER
PLUG, LEFT, DUPLEX W_ FREE LIFT SIDE CYLINDER
MACHINERY SHIELD
OPERATORS MODULE
STEERING ARM, MANIPULATOR
STEERING ARM, MANIPULATOR, COLD STORAGE
STEERING UNIT, TILLER ARM CONTROL UNIT
STEERING UNIT, TILLER ARM PUSH BUTTONS
STEERING ARM, FASTENER SET
STEERING ARM, FASTENER SET, COLD STORAGE
STEERING ARM, JOINT, COLD STORAGE
STEERING ARM, PIPE
STEERING ARM (PRE 2007)
STEERING ARM, STANDARD (PRE 2007)
MAST UNIT, DUPLEX W_ FREE LIFT, 3600, STRADDLE
MAST UNIT, DUPLEX W_ FREE LIFT, 4300, STRADDLE
MAST UNIT, TRIPLEX, 4100, STRADDLE
CHAIN WHEEL (Ø80)
CHAIN YOKE, SIMPLEX
CHAIN YOKE, DUPLEX
CHAIN YOKE, DUPLEX, COLD STORAGE
DRIVE UNIT, 0,8kW AC, VULKOLLAN
DRIVE UNIT
LOAD WHEEL, SINGLE, VULKOLLAN
LOAD WHEEL, TANDEM, VULKOLLAN
