Mitsubishi SBV12NS Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032629

Data Size: 8.65 MB
File Type: PDF
Language: English
Manufacturer: Mitsubishi
Applicable Machine: Forklift
Document: Parts Manual
Region: Europe
Machine Model: Mitsubishi SBV12NS Chassis Mast Options Internal Hosing Europe
Book Number: DOC00032629
Page: 95 Pages

List Contents:

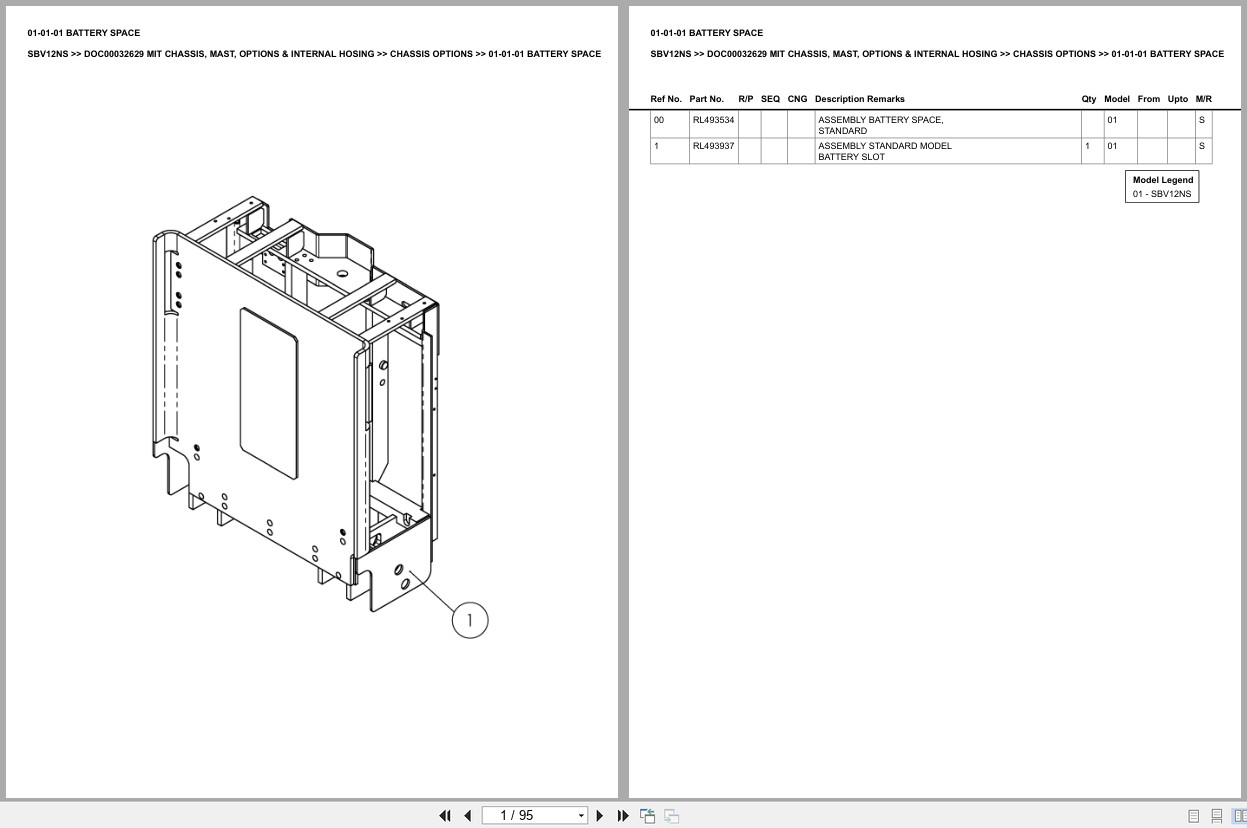

BATTERY SPACE
FAN, 24V
FAN, MANUAL STEERING, HEAVY DUTY
FORK CARRIAGE, STRADDLE
ROLLBAR
ROLLBAR, WITHOUT SIDE SAFETY
SUPPORTING FORK
ASSEMBLING SET
BATTERY ROLLER
BUMPER, LOW RIDE HEIGHT
BUMPER, NARROW
BUMPER, WIDE
FASTENER SET
KEY SWITCH
PANEL
PIPE
PLATFORM, BACK WALL
STEERING ARM
CYLINDER, ASSEMBLY
CYLINDER WHEEL, LOAD CYLINDER
HYDRAULIC AGGREGATE, STANDARD
HYDRAULIC AGGREGATE, W_ PROPORTIONAL VALVE
HYDRAULIC SYSTEM, STANDARD
HYDRAULIC SYSTEM, W_ PROPORTIONAL VALVE
HYDRAULIC SYSTEM, SIMPLEX
HYDRAULIC SYSTEM, DUPLEX, TRIPLEX
VALVE ELEMENT (K5101633)

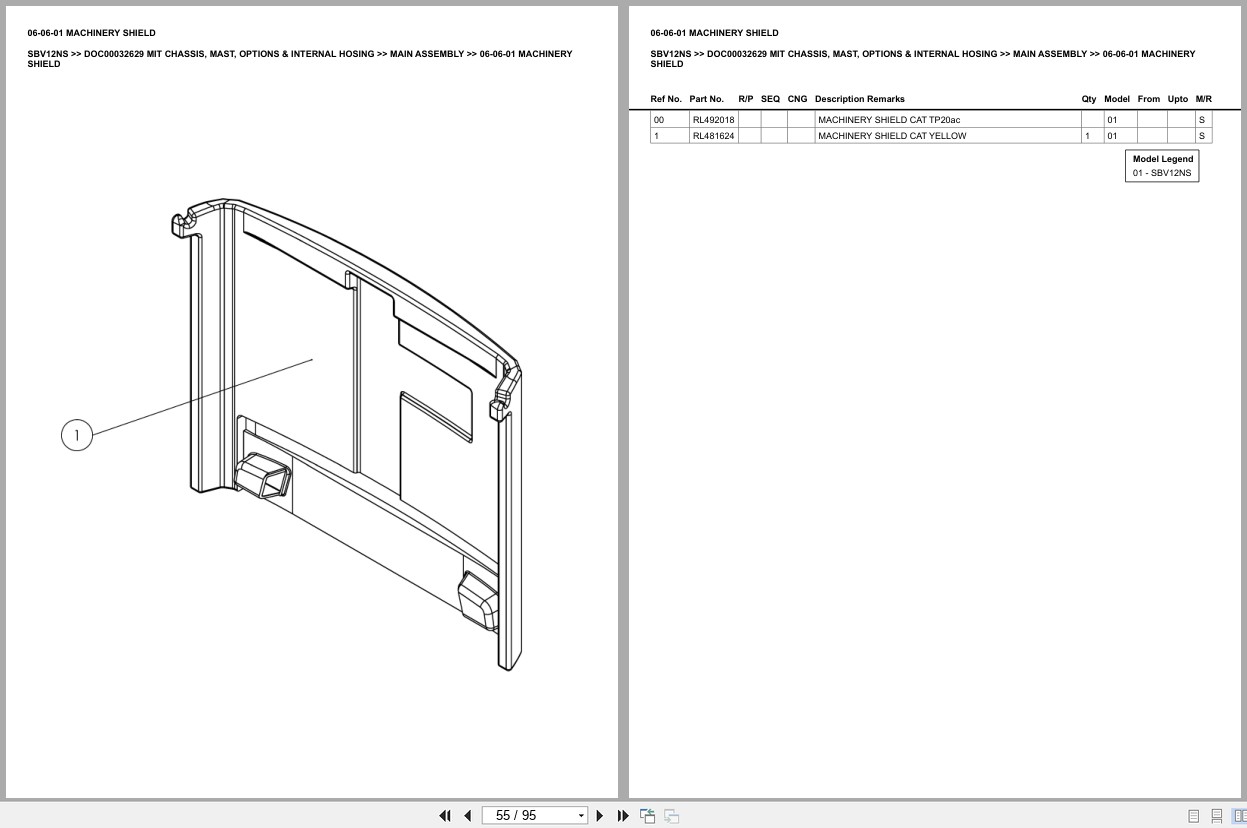

MACHINERY SHIELD
PLATFORM, SOLID SIDE WALLS
STEERING UNIT, TILLER ARM CONTROL UNIT
STEERING UNIT, TILLER ARM PUSH BUTTONS
CHAIN WHEEL
CHAIN YOKE
CHAIN YOKE, COLD STORAGE
CHAIN, DUPLEX W_ FREE LIFT
CHAIN, TRIPLEX W_ FREE LIFT
HOSE ROLLER
DRIVE UNIT, ASSEMBLY
DRIVE UNIT, 0,8kW
DRIVE UNIT, 2,0kW AC, VULKOLLAN
DRIVE UNIT, 2,0kW AC, POWER FRICTION
DRIVE UNIT (RL467334)
MOTOR, 2,2kW
CASTER WHEEL
CASTER WHEEL, COLD STORAGE
LOAD WHEEL, SINGLE, VULKOLLAN
LOAD WHEEL, TANDEM, VULKOLLAN
