Mitsubishi SBV16NS Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032625

Data Size: 9.02 MB
File Type: PDF
Language: English
Manufacturer: Mitsubishi
Applicable Machine: Forklift
Document: Parts Manual
Region: Europe
Machine Model: Mitsubishi SBV16NS Chassis Mast Options Internal Hosing Europe
Book Number: DOC00032625
Page: 99 Pages

List Contents:

BATTERY SPACE
FAN, 24V
FAN, MANUAL STEERING, HEAVY DUTY

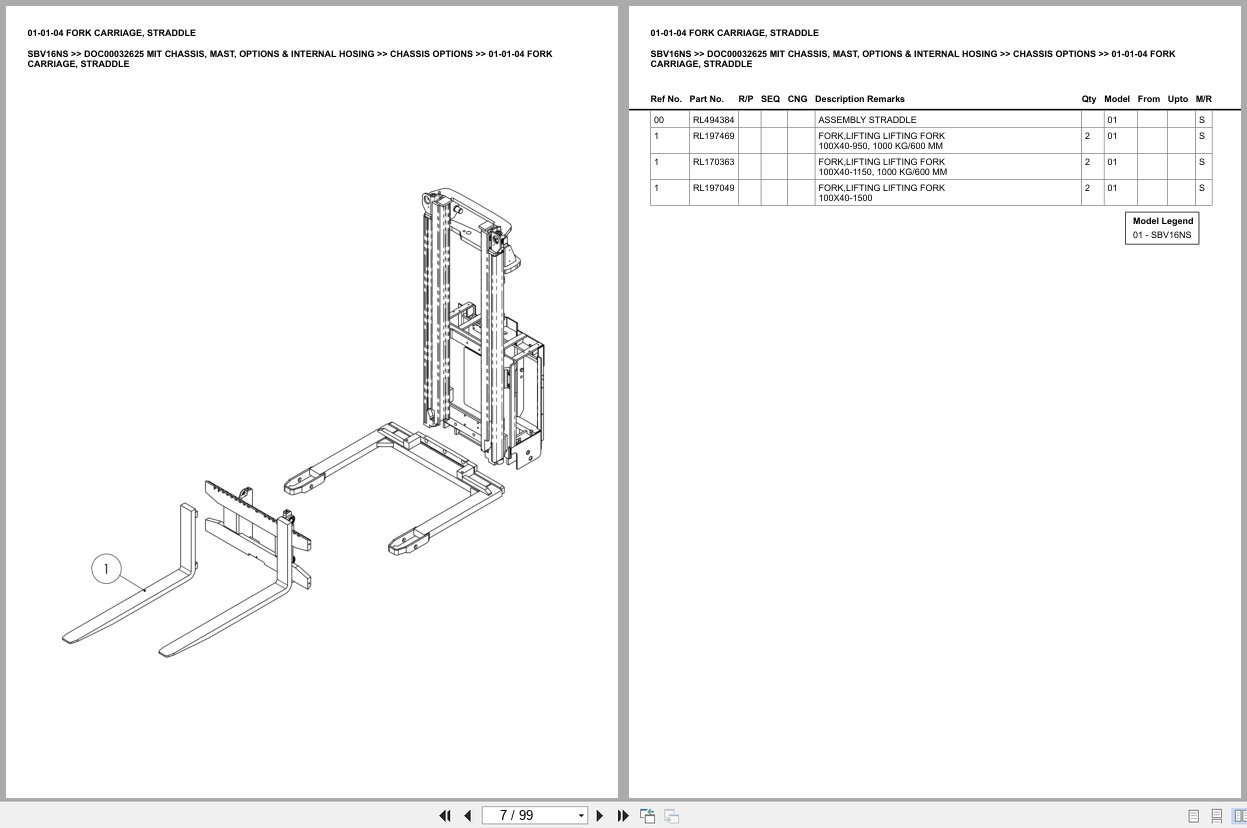

FORK CARRIAGE, STRADDLE
ROLLBAR
ROLLBAR, WITHOUT SIDE SAFETY
SAFETY RAIL, LEFT
SAFETY RAIL, RIGHT
EL-PANEL
MANIPULATOR, STEERING ARM
LIFTING CARRIAGE, ASSEMBLY
LIFTING CARRIAGE, D_DF 570x1150 x=625
SUPPORTING FORK
ASSEMBLING SET
BATTERY ROLLER
BUMPER, LOW RIDE HEIGHT
BUMPER, NARROW
BUMPER, WIDE
FASTENER SET
JOINT
KEY SWITCH
PANEL
PIPE
PLATFORM, BACK WALL
STEERING ARM
CYLINDER, ASSEMBLY
CYLINDER WHEEL, LOAD CYLINDER
HYDRAULIC SYSTEM, SIMPLEX
HYDRAULIC SYSTEM, DUPLEX, TRIPLEX
HYDRAULIC SYSTEM, W_ PROPORTIONAL VALVE
STEERING UNIT, TILLER ARM CONTROL UNIT
PLATFORM, COMPLETE VISOR
STEERING UNIT, TILLER ARM PUSH BUTTONS
MACHINERY SHIELD
OUTER MAST SECTION, SIMPLEX
CHAIN WHEEL
CHAIN YOKE
CHAIN YOKE, COLD STORAGE
CHAIN, DUPLEX W_ FREE LIFT
CHAIN, TRIPLEX W_ FREE LIFT
HOSE ROLLER
DRIVE UNIT, ASSEMBLY
DRIVE UNIT, 2,0kW AC, VULKOLLAN
DRIVE UNIT, 2,0kW AC, POWER FRICTION
DRIVE UNIT (RL476657)
CASTER WHEEL
LOAD WHEEL, SINGLE, VULKOLLAN
LOAD WHEEL, TANDEM, VULKOLLAN
