Mitsubishi TBR30N2 Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00039433

Data Size: 58.40 MB
File Type: PDF
Language: English
Manufacturer: Mitsubishi
Applicable Machine: Forklift
Document: Parts Manual
Region: Europe
Machine Model: Mitsubishi TBR30N2 Chassis Mast Options Internal Hosing Europe
Book Number: DOC00039433
Page: 390 Pages

List Contents:

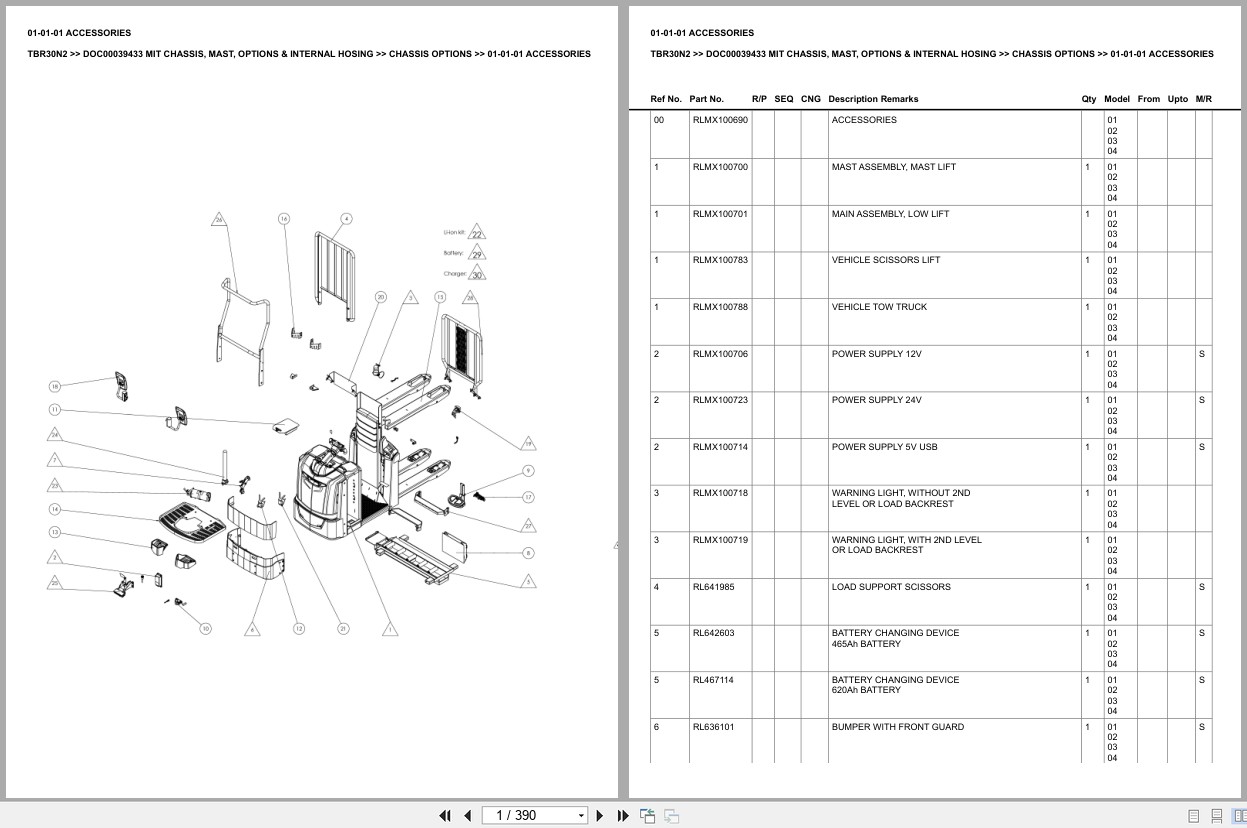

ACCESSORIES
ACCESSORY RAIL IN FRONT (OPB20N2X, TBR30-50N2)
ACCESSORY RACK, 1 PC, C-SIZE, RAM MOUNT (OPB20N2X, TBR30-50N2)
ACCESSORY RACK, 2 PCS, C-SIZE, RAM MOUNT (OPB20N2X, TBR30-50N2)
ACCESSORY RACK, 1 PC, D-SIZE, RAM MOUNT (OPB20N2X, TBR30-50N2)
ACCESSORY RACK, 2 PCS, D-SIZE, RAM MOUNT (OPB20N2X, TBR30-50N2)
ACCESSORY RACK, 1 PC, D-SIZE, RAM MOUNT ON TRAY (OPB20N2XP)
ACCESSORY RACK, 2 PCS, D-SIZE, RAM MOUNT ON TRAY (OPB20N2XP)
BARCODE SCANNER HOLDER (OPB20N2X)
BARCODE SCANNER HOLDER (OPB20N2XP)

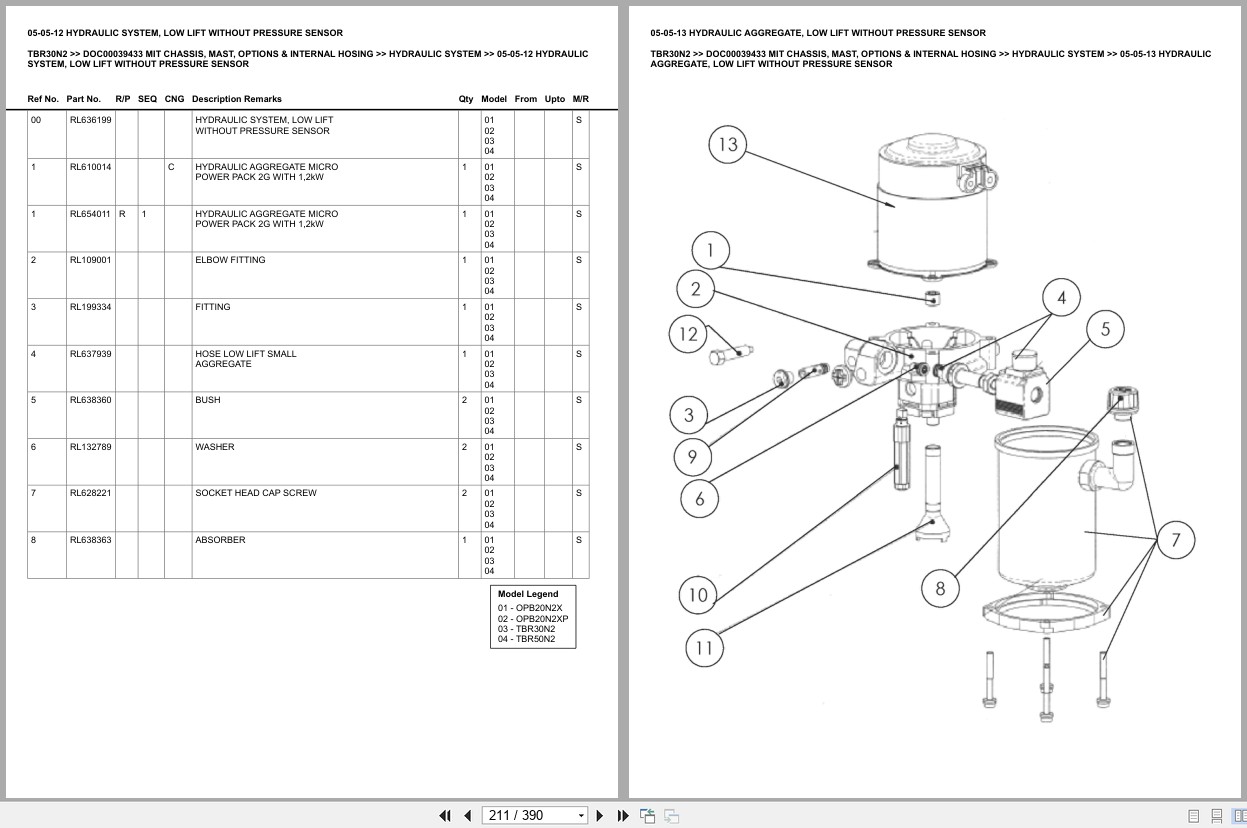

BATTERY CHANGING DEVICE, 465Ah
BATTERY CHANGING DEVICE, 620Ah
BRACKET C-SERIES
BRACKET D-SERIES
BUZZER
COUPLING, MANUAL, Ø22 (TBR30-50N2) - OPTION
COUPLING, AUTOMATIC (TBR30-50N2) - OPTION
COUPLING, AUTOMATIC WITH HANDLE (TBR30-50N2) - OPTION
DRIVING SEAT (NEW)
DRIVING SEAT (OLD)
FIRE EXTINGUISHER ASSEMBLY
GAS SPRING
LI-ION BATTERY KIT (OP20N2X, TBR30-50N2 WITH BATTERY, INTEGRATED) - OPTION
LI-ION BATTERY KIT (OPB20N2XP WITH BATTERY, INTEGRATED) - OPTION
MIRROR, RIGHT
MIRROR, LEFT
MIRROR (TBR30-50N2)
PAPER HOLDER (OPB20N2XP) - OPTION
PICKING TRAY (OPB20N2XP)
STEERING UNIT, 465Ah (OPB20N2X, TBR30-50N2)
STEERING UNIT, 620Ah (OPB20N2X, TBR30-50N2) - OPTION
STEERING (OPB20N2XP)
STORAGE UNIT (OPB20N2X, TBR30-50N2)
WORKING LIGHT, REAR (TBR30-50N2)
WRAPPING FOIL HOLDER, REAR, LOAD BACKREST (OPB20N2X)
WRAPPING FOIL HOLDER, FRONT, RAIL (OPB20N2X, TBR30-50N2)
WRAPPING FOIL HOLDER, FRONT, RAISING PLATFORM (OPB20N2XP)
DRIVING LIGHT (LIFT PLATFORM)
DRIVING LIGHT (FIXED PLATFORM)
BLUE SPOT LIGHT (LIFT PLATFORM)
BLUE SPOT LIGHT (FIXED PLATFORM)
RED SPOT LIGHT (LIFT PLATFORM)
RED SPOT LIGHT (FIXED PLATFORM)
EL-PANEL (OPB20N2X)
EL-PANEL (OPB20N2X) - OLD
EL-PANEL (OPB20N2XP)
EL-PANEL (OPB20N2XP) - OLD
EL-PANEL (TBR30-50N2)
EL-PANEL (TBR30-50N2) - OLD
EL-PANEL, RL629754
FAN
LED BEACON 6262 W_ CONNECTORS
POWER SUPPLY, 12V
POWER SUPPLY, 24V
POWER SUPPLY, 5V USB
WARNING LIGHT, WITHOUT 2ND LEVEL GUARD RAILS
WARNING LIGHT, WITH 2ND LEVEL GUARD RAILS (OPB20N2X(P))
LIFTING DEVICE (OPB20N2X)
LIFTING DEVICE (OPB20N2XP)
SCISSOR LIFT (OPB20N2X(P))
ASSEMBLING SET
BATTERY ROLLER
BATTERY ROLLER, Ø38
CHASSIS (TBR30-50N2)
CONNECTOR, 4-PIN TRAILER SOCKET (TBR30-50N2)
CONNECTOR, 7-PIN TRAILER SOCKET (TBR30-50N2)
COUPLING, MANUAL, Ø25 (TBR30-50N2)
CYLINDER, Ø30
CYLINDER, Ø50
LIFTING CYLINDER (OPB20N2X(P))
LIFT CYLINDER, 850mm
LIFT CYLINDER, 1200mm
HYDRAULIC SYSTEM, MAST LIFT WITH PRESSURE SENSOR (OPB20N2X)
HYDRAULIC AGGREGATE, MINI 3G 2,2kW (OPB20N2X)
HYDRAULIC SYSTEM, MAST LIFT WITH PRESSURE SENSOR (OPB20N2XP)
HYDRAULIC AGGREGATE, MINI 3G 2,2kW WITH VALVE BLOCK (OPB20N2XP)
HYDRAULIC SYSTEM (TBR30-50N2)
HYDRAULIC AGGREGATE, MICRO POWER PACK 2G WITH 1,2kW (TBR30-50N2)
HYDRAULIC SYSTEM, LOW LIFT WITHOUT PRESSURE SENSOR
HYDRAULIC AGGREGATE, LOW LIFT WITHOUT PRESSURE SENSOR
HYDRAULIC SYSTEM, LOW LIFT WITH PRESSURE SENSOR (FIXED PLATFORM)
HYDRAULIC AGGREGATE, LOW LIFT WITH PRESSURE SENSOR (FIXED PLATFORM)
HYDRAULIC SYSTEM, LOW LIFT WITHOUT PRESSURE SENSOR (LIFT PLATFORM)
HYDRAULIC SYSTEM, LOW LIFT WITH PRESSURE SENSOR (LIFT PLATFORM)
HYDRAULIC SYSTEM, MAST LIFT WITHOUT PRESSURE SENSOR (FIXED PLATFORM)
HYDRAULIC SYSTEM, MAST LIFT WITHOUT PRESSURE SENSOR (LIFT PLATFORM)
HYDRAULIC AGGREGATE (RL638611)
MAIN ASSEMBLY (OPB20N2X(P))
MAIN ASSEMBLY (TBR30-50N2)
INSTRUMENT PANEL, KEY + BATTERY DISPLAY (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, KEY + BATTERY DISPLAY (OPB20N2XP)
INSTRUMENT PANEL, PIN KEY + PIN PAD + BATTERY DISPLAY (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, PIN KEY + PIN PAD + BATTERY DISPLAY (OPB20N2XP)
INSTRUMENT PANEL, KEY + COLOR DISPLAY (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, KEY + COLOR DISPLAY (OPB20N2XP)
INSTRUMENT PANEL, PIN KEY + COLOR DISPLAY (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, PIN KEY + COLOR DISPLAY (OPB20N2XP)
INSTRUMENT PANEL, KEY+DISPLAY, LI-ION (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, KEY+DISPLAY, LI-ION (OPB20N2XP)
INSTRUMENT PANEL, PIN KEY+PIN PAD+DISPLAY, LI-ION (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, PIN KEY+PIN PAD+DISPLAY, LI-ION (OPB20N2XP)
INSTRUMENT PANEL, KEY+AURORA, LI-ION (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, KEY+AURORA, LI-ION (OPB20N2XP)
INSTRUMENT PANEL, PIN KEY+AURORA, LI-ION (OPB20N2X, TBR30-50N2)
INSTRUMENT PANEL, PIN KEY+AURORA, LI-ION (OPB20N2XP)
KEYBOARD, PIN CODE UNIT
BATTERY COVER, 465Ah (OPB20N2X, TBR30-50N2)
BATTERY COVER, 620Ah (OPB20N2X, TBR30-50N2)
BATTERY COVER, 465Ah (OPB20N2X(P))
BATTERY COVER, 620Ah (OPB20N2X(P))
BATTERY LOCKING, FIXED
BATTERY LOCKING, FIXED, LI-ION - OPTION
BATTERY LOCKING, OPEN TO LEFT - OPTION
BATTERY LOCKING, OPEN TO RIGHT - OPTION
BUMPER (FRONT GUARD)
BUMPER (HEAVY BUMPER)
COVER PLATE
EMERGENCY STOP - OPTION
EMERGENCY STOP, LI-ION - OPTION
LEVER
LIMIT SWITCH
LOAD SUPPORT (OPB20N2X(P))
MACHINERY SHIELD
COVER PLATE
PLATE WITH FAN
OPERATOR COMPARTMENT, WITHOUT FLOOR SWITCH (OPB20N2X(P))
OPERATING COMPARTMENT, WITH FLOOR SWITCH (OPB20N2X(P)) - OPTION
PEDAL, FLOOR SWITCH ASSEMBLY
SWITCH
DECAL (OPB20N2X(P))
DECAL (TBR30-50N2)
LIFT CHAIN, 850mm
LIFT CHAIN, 1200mm - OPTION
FORK CROSSWIDE HANDLING
DRIVE UNIT
GEAR
STEERING MOTOR
CASTER WHEEL
LOAD WHEEL, SINGLE
LOAD WHEEL, TANDEM
