Mitsubishi VNT15XL Europe Parts Catalog PMWEM-EVNA1-23

Data Size: 15.53 MB
File Type: PDF
Language: English
Manufacturer: Mitsubishi
Applicable Machine: Forklift
Document: Parts Manual
Region: Europe
Machine Model: Mitsubishi VNT15XL Europe
Book Number: PMWEM-EVNA1-23
Page: 127 Pages

List Contents:

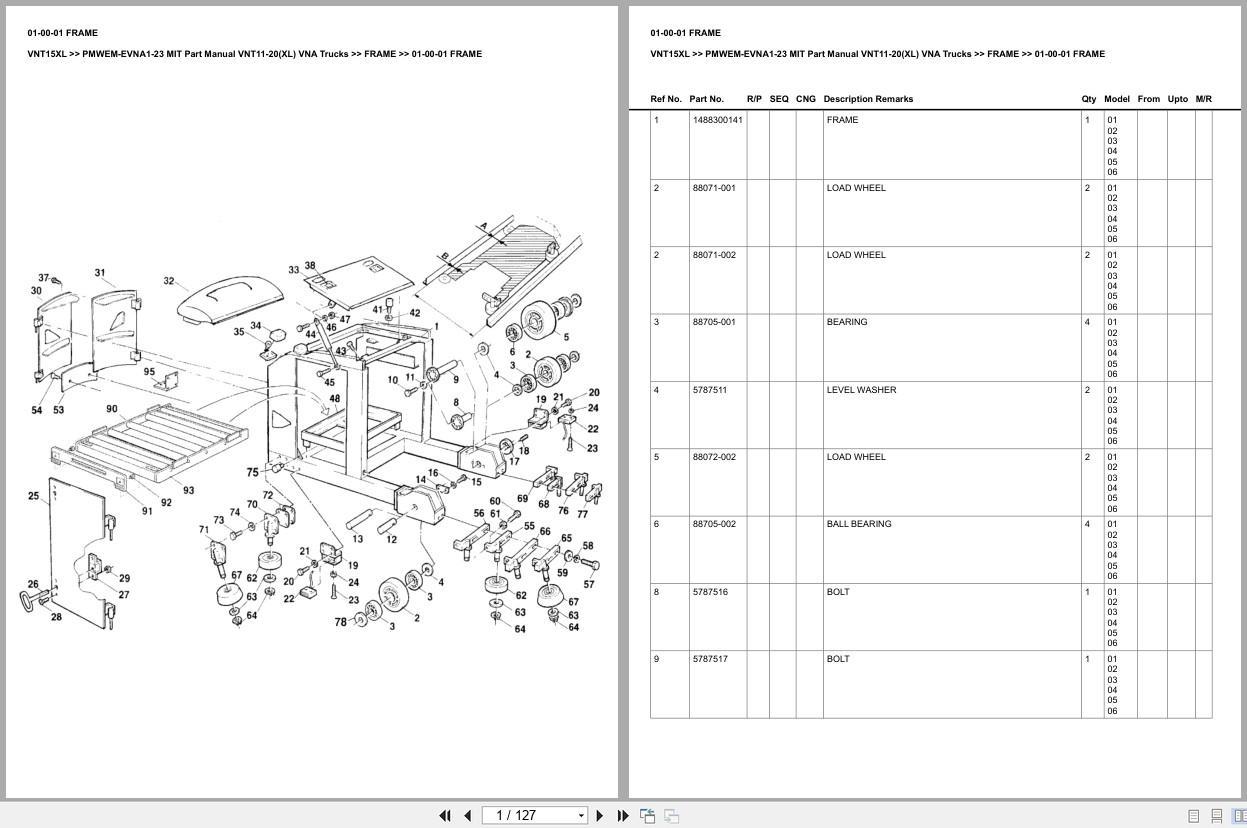

FRAME
HYDRAULICS
TRACTION STEERING
ELECTRONICS
ELECTRONICS AC 80V
ELECTRONICS WIRE GUIDANCE
MAGNET SWITCHES
CABIN

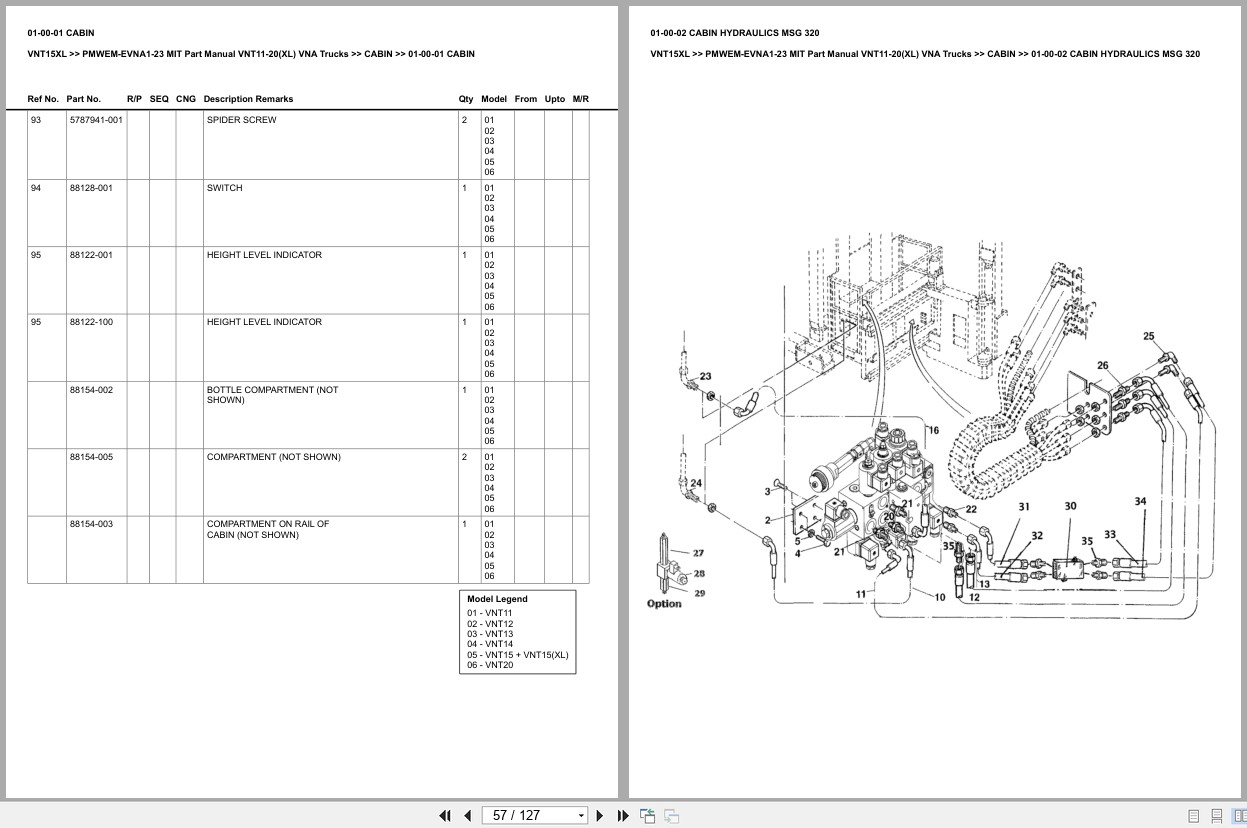

CABIN HYDRAULICS MSG 320
CABIN ELECTRONICS
PANEL WITH ROTARY SWITCHES
REACH PLATE
HYDRAULIC MSG 320
LOAD SENSOR MSG 320
TURRET HEAD MSG 320
INSIDE MAST DUPLEX
OUTSIDE MAST DUPLEX
INSIDE MAST TRIPLEX
MIDDLE MAST TRIPLEX
OUTSIDE MAST TRIPLEX
