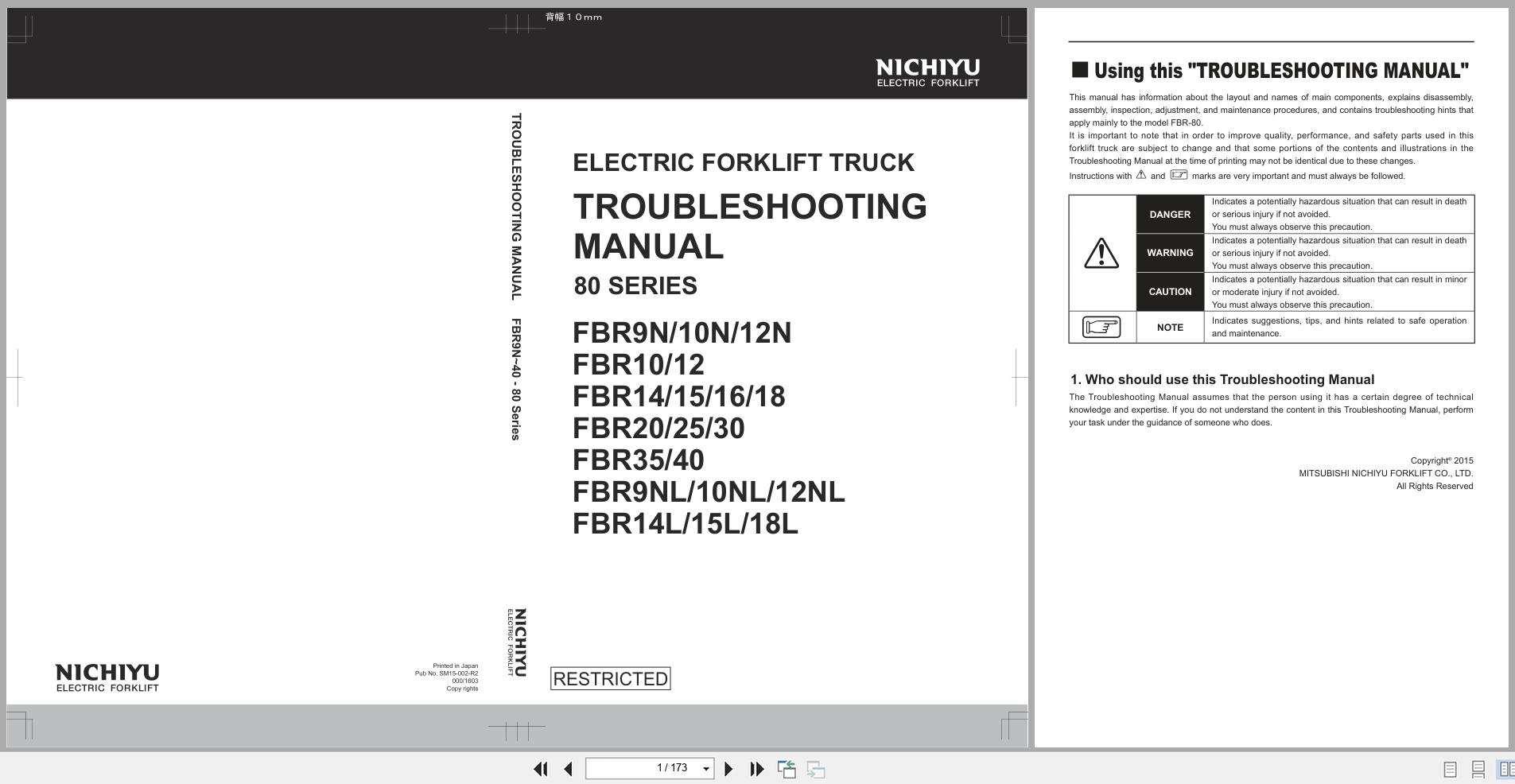

Nichiyu 80 Series FBR9N to FBR18L Troubleshooting Manual SM15-002-R2

Data Size: 36.13 MB
File Type: PDF
Language: English
Manufacturer: Nichiyu
Applicable Machine: Forklift, Electric Forklift Truck
Document: Troubleshooting Manual, Wiring Diagram, Error Code
Machine Model: Nichiyu 80 Series FBR9N, FBR10N, FBR12N, FBR10, FBR12, FBR14, FBR15,
FBR16, FBR18, FBR20, FBR25, FBR30, FBR35, FBR40, FBR9NL, FBR10NL, FBR12NL, FBR14L FBR15L FBR18L
Book Number: SM15-002-R2
Date: 2015
Page: 173 Pages

List Contents:

1. Introduction 1
1-1. Fbr-80 Control Overview
1-2. Main Board Basic Configuration
1-2-1. Main Board Basic Configuration 2
1-2-2. Capacitor - Discharge 3
1-3. Required Settings
1-3-1. Settings For Main Board Replacing / Memory
Initialization 4
1-4. Reference
1-4-1. Fuse 6
1-4-2. Indication Of Display 7
2. User And Manager Screen Setting 9
2-1. Monitor Display Functions
2-1-1. Indicator Panel 9
2-1-2. Indication Of Display 10
2-1-3. Function 10
2-1-4. Sheet Switch 12
2-2. Setting Screen
2-2-1. Operation Setting 15
1 Operation Feeling 15
2 Neutral Reg Power 17
2-2-2. Function Setting 18
1 Speed Limit (Turtle Button) 18
2 Tare Setting (Option) 19
3 Reserved Charge 20
4 Laser Pointer (Option) 20
5 Count For Charge (Option) 21
2-2-3. Display Setting 22
1 Display Content 22
2 Load Meter Size 23
3 Clock Setting 24
4 Brightness 25
5 Contrast 25
6 Display Type 26
2-3. Manager Screen
How To Access
Press Button On The Normal Screen.
Setting Screen Press Button For A While.
2-3-1. Function Setting 29
1 Speed Limit 29
2 Speed Alarm 29
3 Switchback Pwr
4 Brake Power 30
5 Neutral Res
6 Antislip Func
7 Lift (High) 32
8 Lift (Low) 32
9 Tilt 32
10 Reach 33
11 Att 1(Opt) 33
12 Att 2(Opt) 33
13 Function Reset 33
2-3-2. Custom Feeling 34
2-3-3. Fixed Feeling 35
2-3-4. Password Change 36
3. Model Check Screen Settings 37
How To Access
Press The Switch In Order Of While
Pressing Switch On The Normal Screen.
3-1. Function List And Description Of All Items
3-2. Model Check/Setting Screen
3-2-1. Type (Type Setting) 38
3-2-2. Software (Program No. Check) 39
3-2-3. Buzzer (Buzzer Setting) 40
3-2-4. Hour Meter(Hour Meter Count Start) 40
3-2-5. Tire Data Adjust (Tire Diameter Adjustment) 41
3-2-6. Load Sensor Adjust (Load Sensor Setting) 42
4. Service Dsp. Setting 45
How To Access
Press The Switch In Order Of
While Pressing Switch On The
Manager Screen.
4-1. Settings List And Description Of Items

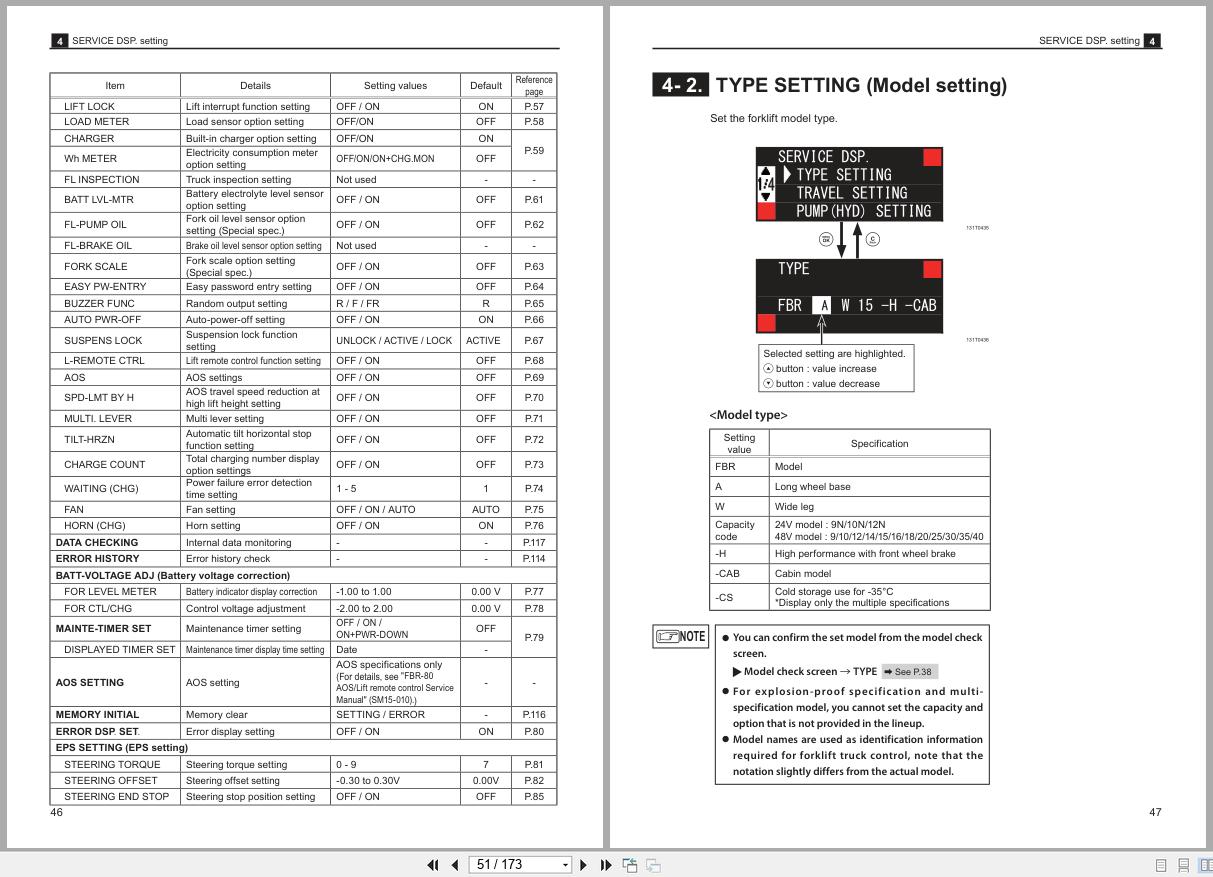

4-2. Type Setting (Model Setting)
4-3. Travel Setting
4-3-1. Lmt. Speed (Turn)
(Turn Speed Reduction Setting) 48
4-4. Pump (Hyd) Setting
4-4-1. Limited Lift-Spd.
(Lift Speed Reduction Setting) 49
4-4-2. Opr-Priority Set.
(Hydraulic Simultaneous Operation Priority Setting) 50
4-4-3. Opr-L/R Setting
(Reach Valve Opening Amount Setting) 514-5. Language Setting
4-6. Option Setting
4-6-1. Hour Meter
(Hour Meter Display Contents) 53
4-6-2. Valve (Hydraulic Valve Number Setting) 54
4-6-3. Accel. Angle (Accelerator Option Setting) 55
4-6-4. Laser Pointer (Laser Pointer Option Setting) 56
4-6-5. Lift Lock (Lift Interrupt Function Setting) 57
4-6-6. Load Meter (Load Sensor Option Setting) 58
4-6-7. Charger (Built-In Charger Option Setting) 59
4-6-8. Wh Meter
(Electricity Consumption Meter Option Setting) 59
4-6-9. Batt. Lvl-Mtr
(Battery Electrolyte Level Sensor Option Setting) 61
4-6-10.Fl-Pump Oil
(Fork Oil Level Sensor Option Setting) 62
4-6-11.Fork Scale (Fork Scale Option Setting)
(Special Spec.) 63
4-6-12.Easy Pw-Entry
(Easy Password Entry Setting) 64
4-6-13.Buzzer Func. (Random Output Setting) 65
4-6-14.Auto Pwr.-Off
(Auto-Power-Off Function Setting) 66
4-6-15.Suspens. Lock
(Suspension Lock Function Setting) 67
4-6-16.L-Remote Ctrl
(Lift Remote Control Function Setting) 68
4-6-17.Aos (Aos Setting) 69
4-6-18.Spd-Lmt By H
(Aos Travel Speed Reduction At High Lift Height Setting) 70
4-6-19.Multi. Lever (Multi Lever Setting) 71
4-6-20.Tilt-Hrzn
(Automatic Tilt Horizontal Stop Function Setting) 72
4-6-21.Charge Count
(Total Charging Number Display Option Setting) 73
4-6-22.Waiting(Chg)
(Power Failure Error Detection Time Setting) 74
4-6-23.Fan (Fan Setting) 75
4-6-24.Horn(Chg) (Horn Setting) 76
4-7. Other Settings
4-7-1. For Level Meter
(Battery Indicator Display Correction) 77
4-7-2. For Ctl. / Chg (Control Voltage Adjustment) 78
4-7-3. Mainte-Timer Set. (Maintenance Timer Setting) 79
4-7-4. Error Dsp. Set. (Error Display Setting) 80
4-7-5. Steering Torque (Steering Torque Setting) 81
4-7-6. Steering Offset
(Torque Sensor Neutral Voltage Adjustment) 82
4-7-7. Steering End Stop
(Steering End Stop Setting) 85
5. Inspection And Adjustment Of Equipment/Functions 87
5-1. Cautions When Inspecting And Adjusting
5-2. How To Check And Adjust
5-2-1. Chassis Insulation Check 88
5-2-2. Body Ground Check 88
5-2-3. Traction And Hydraulic Motor Insulationinspection 88
5-2-4. Traction Motor Current Measurement 89
5-2-5. Hydraulic Motor Current Measurement 91
5-2-6. Eps Motor - Inspection 93
5-2-7. Transformer - Inspection (For Built-In Charger) 93
5-2-8. Diode - Inspection 94
5-2-9. Descending Regeneration Check 94
5-2-10.Auto-Power-Off Function Check 94
5-2-11.Ois (Operation Interlock System) Check 95
5-2-12.Turn Signal Lamp Check 95
5-2-13.Travel Inhibitor Check (Option) 96
5-2-14.Lift Lock (Lift Limit) Operation Check (Option) 96
5-2-15.Cooling Fan Check 96
5-2-16.Accelerator Sensor Adjustment 97
5-2-17.Drive Angle Sensor Adjustment 98
5-2-18.Torque Sensor Neutral - Check And Adjustment 99
5-2-19.Ipm Module - Inspection And Replacement 102
5-2-20.Battery Front Loading Travel/Hydraulic Interlock103
5-2-21.Built-In Charger Function Check (Total Timer) 103
6. Troubleshooting 105
6-1. Caution For Electricity-Related Repairs
6-2. Self Diagnosis Function
6-2-1. Display 106
6-2-2. Error Message List 107
6-3. Trouble When An Error Message Does Not Appear 113
6-3-1. Trouble Of Error Non-Occurrence 113
6-4. Error History Memory
6-4-1. Error History Memory (Latest 10) 114
6-4-2. Error History Memory (All) 115
6-4-3. Memory Initialize (Setting/Error History Reset) 116
6-5. I / O Monitor Check
6-5-1. Display Method 117
6-5-2. Travel Cpu Monitor (Trv Cpu) 118
6-5-3. Travel I/O Port Table 120
6-5-4. Hydraulic Cpu Monitor (Hyd Cpu) 121
6-5-5. Hydraulic Micro Switch I / O Monitor Check 123
6-5-6. Hydraulic I/O Port Table 124
6-5-7. Eps/Dsp Display Cpu Monitor (Eps/Dsp Cpu) 125
6-5-8. Dsp I/O Port Table 1277. Wiring (Diagrams) 129
7-1. Wiring, System
7-1-1. Fbr-80 129
7-2. Wiring, Body
7-2-1. Fbr-80 130
7-3. Harness, Body
7-3-1. Fbr-80 Body Harness 131
7-3-2. Fbr-H80 Body Harness (2) 132
7-3-3. Fbr-80 Body Harness (3) 133
7-3-4. Fbr-H80 Body Harness (3) 134
7-4. Wiring, Controller
7-4-1. Fbr-80 135
7-5. Harness, Controller
7-5-1. Fbr-80 136
7-6. Wiring, Panel
7-6-1. Fbr-80 137
7-7. Harness, Panel
7-7-1. Fbr9 - 40 - 80 138
7-7-2. Fbr9n - 12n - 80 139
7-8. Wiring, Charger Panel
7-8-1. Fbr - 80 (3ø, 200v) 140
7-8-2. Fbr - 80 (3ø, 200v) 6.4kva 141
7-9. Harness, Bc
7-9-1. Fbr - 80 Std 142
7-9-2. Fbr - 80 W/Charging Monitoring System (Cms) 143
7-9-3. Fbr - 80 W/Electric Power Usage Meter 144
7-9-4. Fbr - 80 6.4kva Std 145
7-9-5. Fbr - 80 6.4kva W/Charging Monitoring System (Cms) 146
7-9-6. Fbr - 80 6.4kva W/Electric Power Usage Meter 147
7-10.Wiring, Accessory
7-10-1.Wiring For Strobe Light 148
7-11.Wiring, Lamp
7-11-1.Revolving Lamp 149
7-11-2.Revolving Lamp Interlocking Reverse Travelling 150
7-11-3.Working Lamp 151
7-11-4.Back-Up Lamp (Reversing Lamp) 152
7-11-5.Rear Lamp 153
7-11-6.Rear Lamp Interlocking Reverse Travelling 154
7-11-7 Rear Lamp 24v +
Separately Interlocking Reverse Travelling 155
7-11-8.Spot Lamp 156
7-11-9.Spot Lamp 157
7-11-10.Signal, Display Replenish Water Message 158
7-12.Wiring, Chime
7-12-1.Wiring, Chime 159
7-12-2.Wiring, Chime (W/Back Buzzer) 160
7-13.Wiring, Buzzer
7-13-1.Wiring, Buzzer 161
7-14.Wiring, Lift Limit
7-14-1.P-Mast (2 Stage Mast) (High Lift Height Detection:
Only When The Lift Height Is 4500 Mm Or More) 162
7-14-2.M(Nm)/Pfl-Mast (2 Stage / 3 Stage Full Free Mast)
(High Lift Height Detection: Only When The Lift Height Is
4500 Mm Or More) 163
7-14-3.Lift Limit (W/Release Switch) 164
7-14-4.Lift Limit (W.O./Release Switch) 165
7-15.Wiring, Fan
7-15-1.Fbr - 80 6.4kva 166
