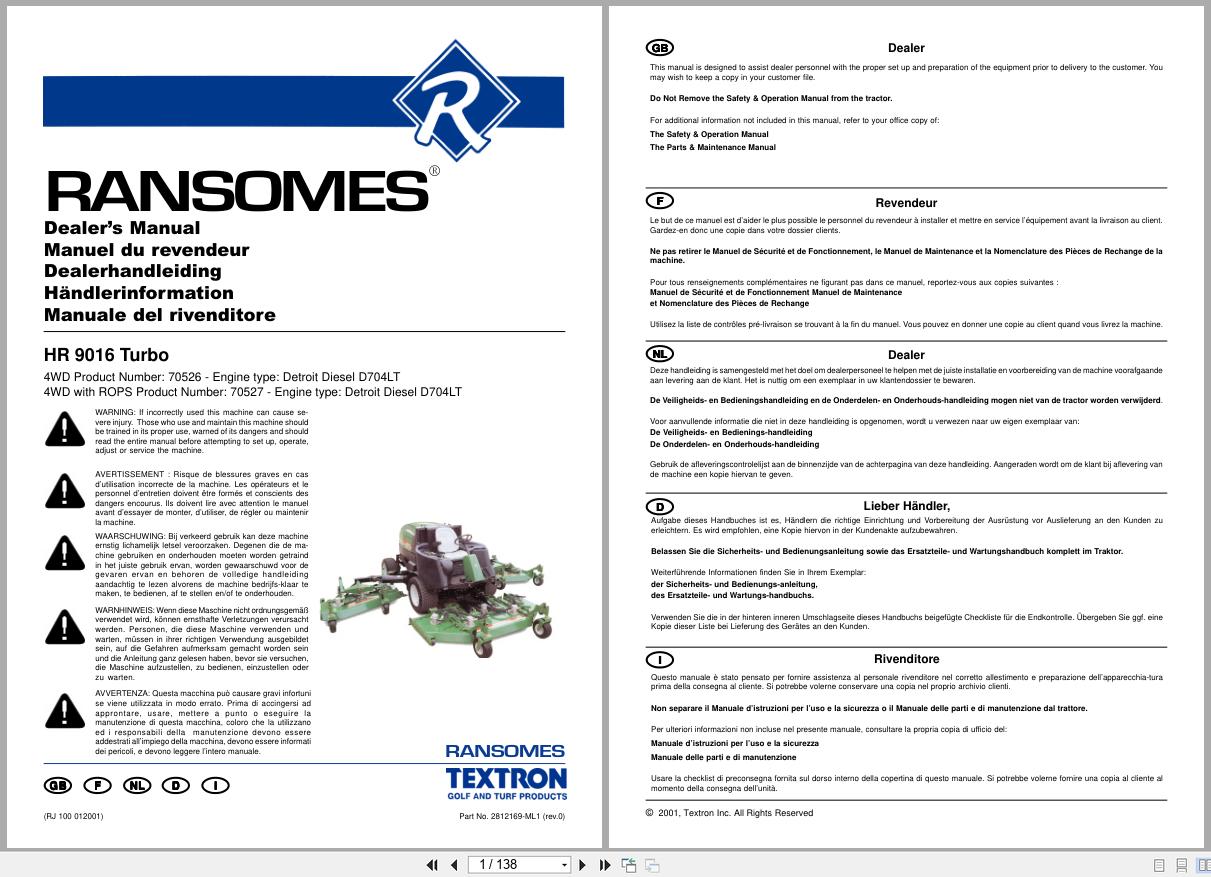

Ransomes HR-9016T Dealer Manual 2812169-ML1 2001

Data Size: 4.32 MB
File Type: PDF
Language: French, German, Italian, English
Manufacturer: Ransomes
Applicable Machine: Mower
Document: Dealer Manual
Machine Model: Ransomes HR-9016 Turbo Mower
4WD 70526, 4WD 70527 with ROPS
Engine: Detroit Diesel D704LT
Book Number: 2812169-ML1
Publication Date: 2001
Page: 138 Pages

List Contents:

Safety
1.1 Operating Safety
1.2 Important Safety Notes
Controls
2.1 Icons
2.2 Controls
Set-up

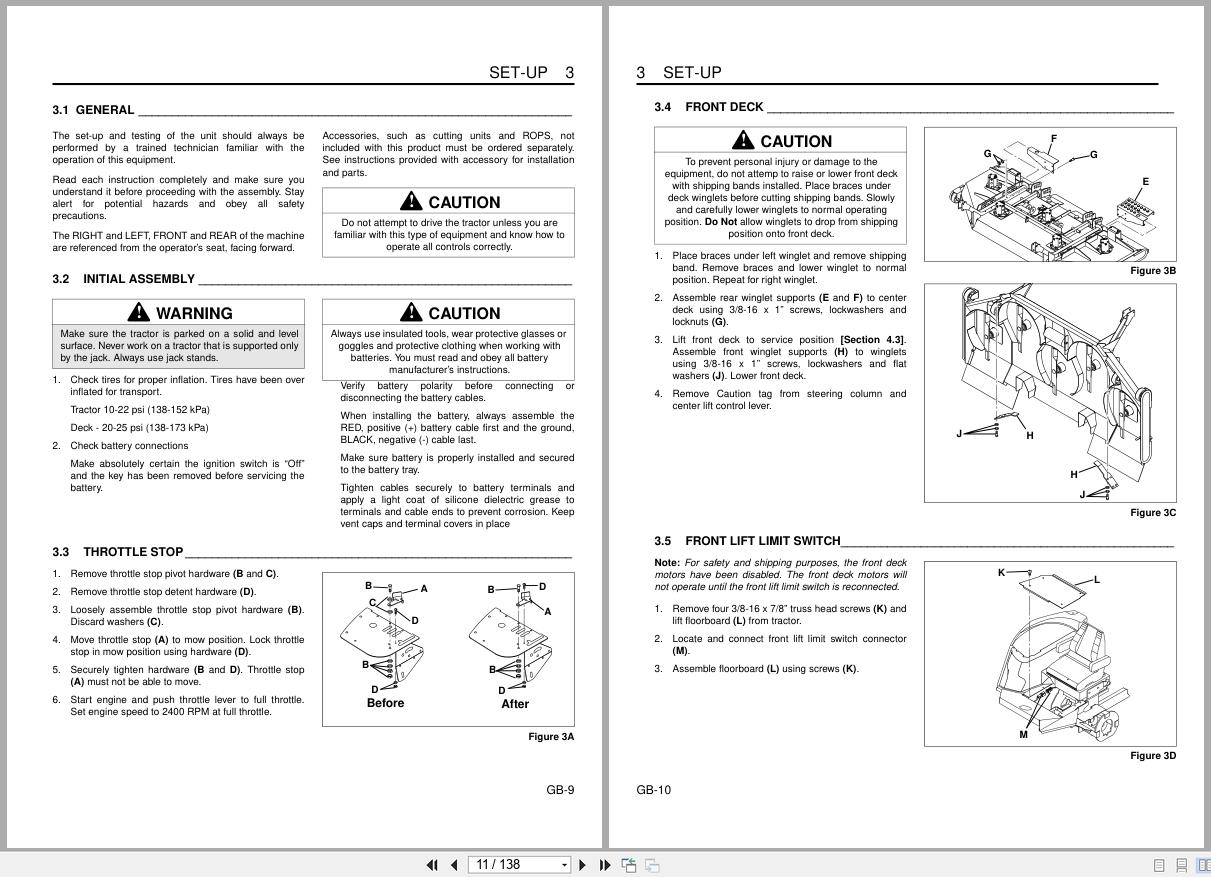

3.1General9
3.2 Initial Assembly
3.3 Throttle Stop
3.4 Front Deck
3.5 Front Lift Limit Switch
3.6 Initial Inspection
3.7 Operating Checks
3.8 Interlock System
3.9 Traction Pedal Speed Limiter
Adjustments
4.1 General
4.2 Leveling Decks
4.3 Servicing Front Deck
4.4 Winglet Adjustment
4.5 Cutting Height
4.6 Parking Brake
4.7 Neutral Adjustment
4.8 Neutral Sensing Switch
4.9 Forward Sensing Switch
4.10 Lift Limit Switches
4.11 Traction Pedal
4.12 Torque Specification
Lubrication
5.1 Lubrication Chart
Troubleshooting
6.1 General
