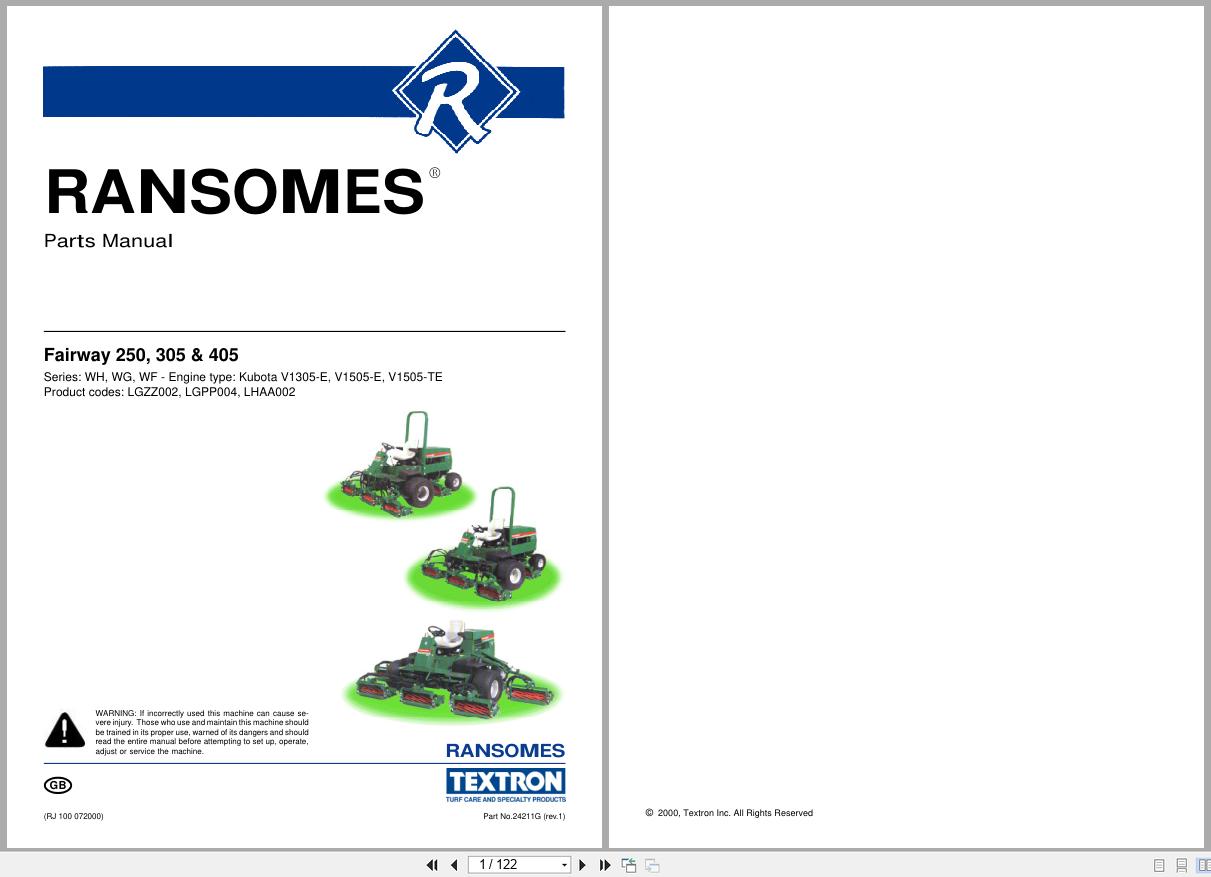

Ransomes Mower Fairway 250 305 405 Parts Maintenance Manual 24211GR1 2000

Data Size: 4.74 MB
File Type: PDF
Language: English
Manufacturer: Jacobsen
Applicable Machine: Ride On Reel Mower
Document: Parts Manual, Hydraulic Diagram, Wiring Diagram
Machine Model: Ransomes Fairway 250, Fairway 305, Fairway 405 Ride On Reel Mower
Series: WH, WG, WF - Engine Kubota V1305-E, V1505-E, V1505-TE
Product Codes: LGZZ002, LGPP004, LHAA002
Book Number: 24211GR1
Publication Date: 2000
Page: 122 Pages

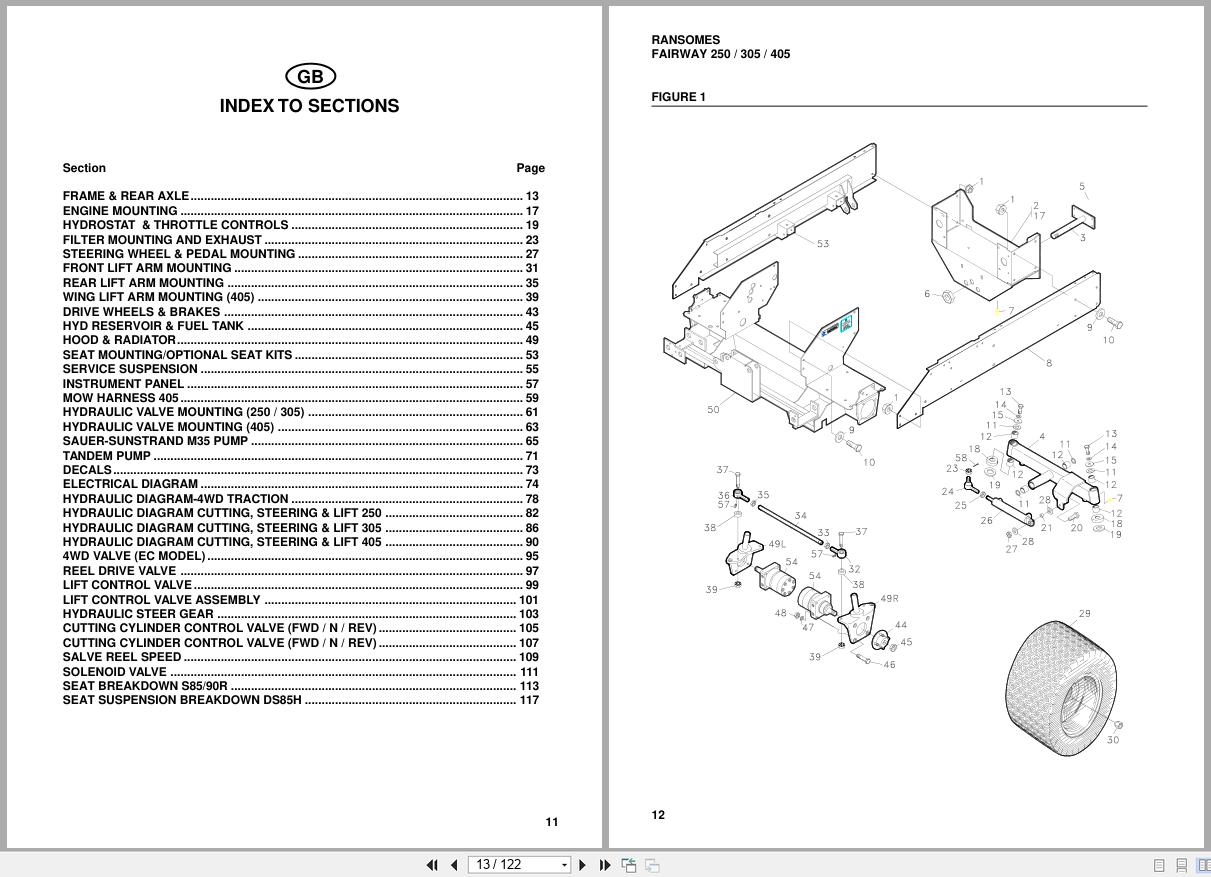

List Contents:

Frame & Rear Axle
Engine Mounting
Hydrostat & Throttle Controls
Filter Mounting And Exhaust
Steering Wheel & Pedal Mounting
Front Lift Arm Mounting
Rear Lift Arm Mounting
Wing Lift Arm Mounting (405)
Drive Wheels & Brakes
Hyd Reservoir & Fuel Tank
Hood & Radiator
Seat Mounting/Optional Seat Kits
Service Suspension
Instrument Panel
Mow Harness 405
Hydraulic Valve Mounting (250 / 305)
Hydraulic Valve Mounting (405)
Sauer-Sunstrand M35 Pump
Tandem Pump
Decals
Electrical Diagram
Hydraulic Diagram-4wd Traction
Hydraulic Diagram Cutting, Steering & Lift 250
Hydraulic Diagram Cutting, Steering & Lift 305
Hydraulic Diagram Cutting, Steering & Lift 405
4wd Valve (Ec Model)
Reel Drive Valve
Lift Control Valve
Lift Control Valve Assembly
Hydraulic Steer Gear
Cutting Cylinder Control Valve (Fwd / N / Rev)
Cutting Cylinder Control Valve (Fwd / N / Rev)
Salve Reel Speed
Solenoid Valve
Seat Breakdown S85/90r
Seat Suspension Breakdown Ds85h
