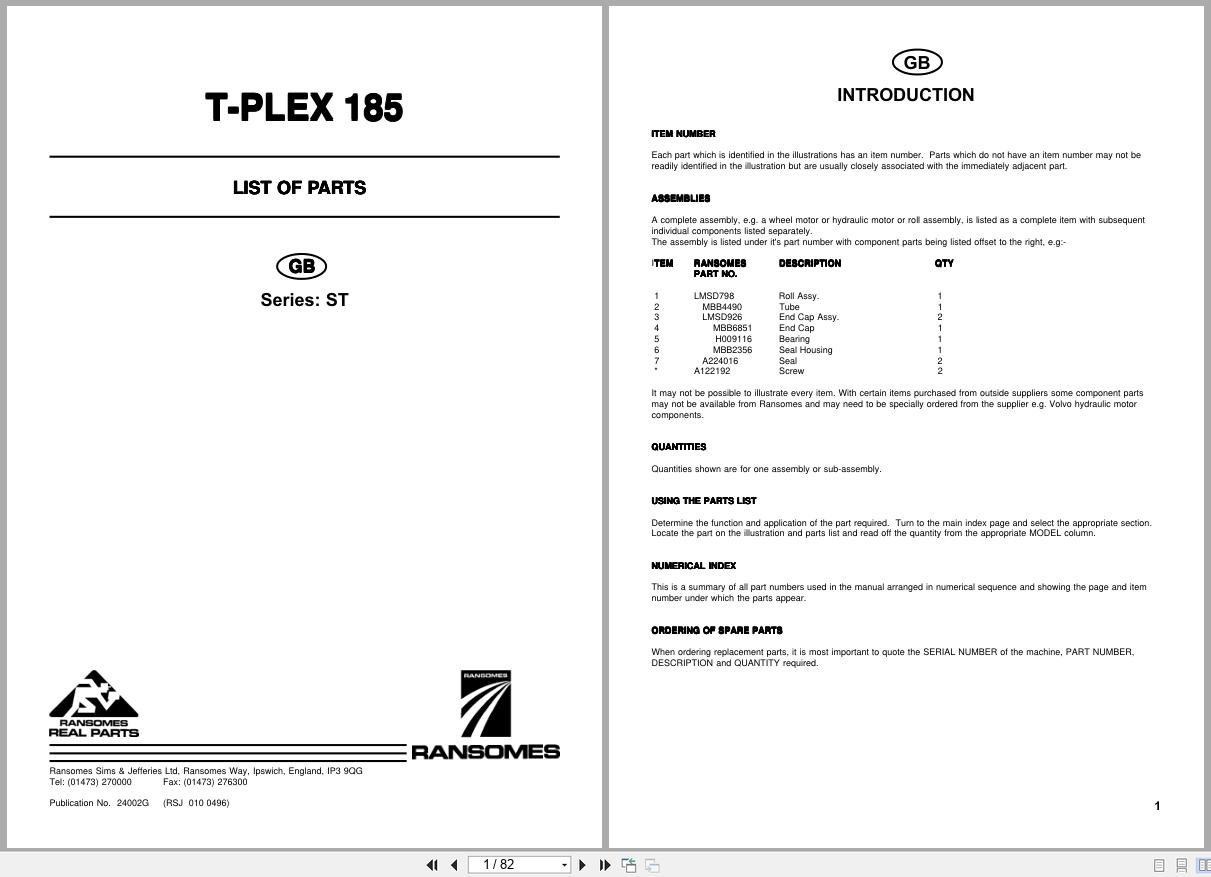

Ransomes T-Plex 185 Parts List 24002G

Data Size: 1.86 MB
File Type: PDF
Language: English
Manufacturer: Ransomes
Applicable Machine: Ride-on Mower
Document: Parts List
Machine Model: Ransomes T-Plex 185 Ride-on Mower
Engine: kubota D722-E
Book Number: 24002G
Page: 82 Pages

List Contents:

Mainframe
Fuel Tank
Hydraulic Tank
Steering And Rear Axle
Electrical System
Traction Circuit
Cooler Charge Circuit
Cutter Circuit
Lift Lower / Power Steer Circuit
Engine And Transmission

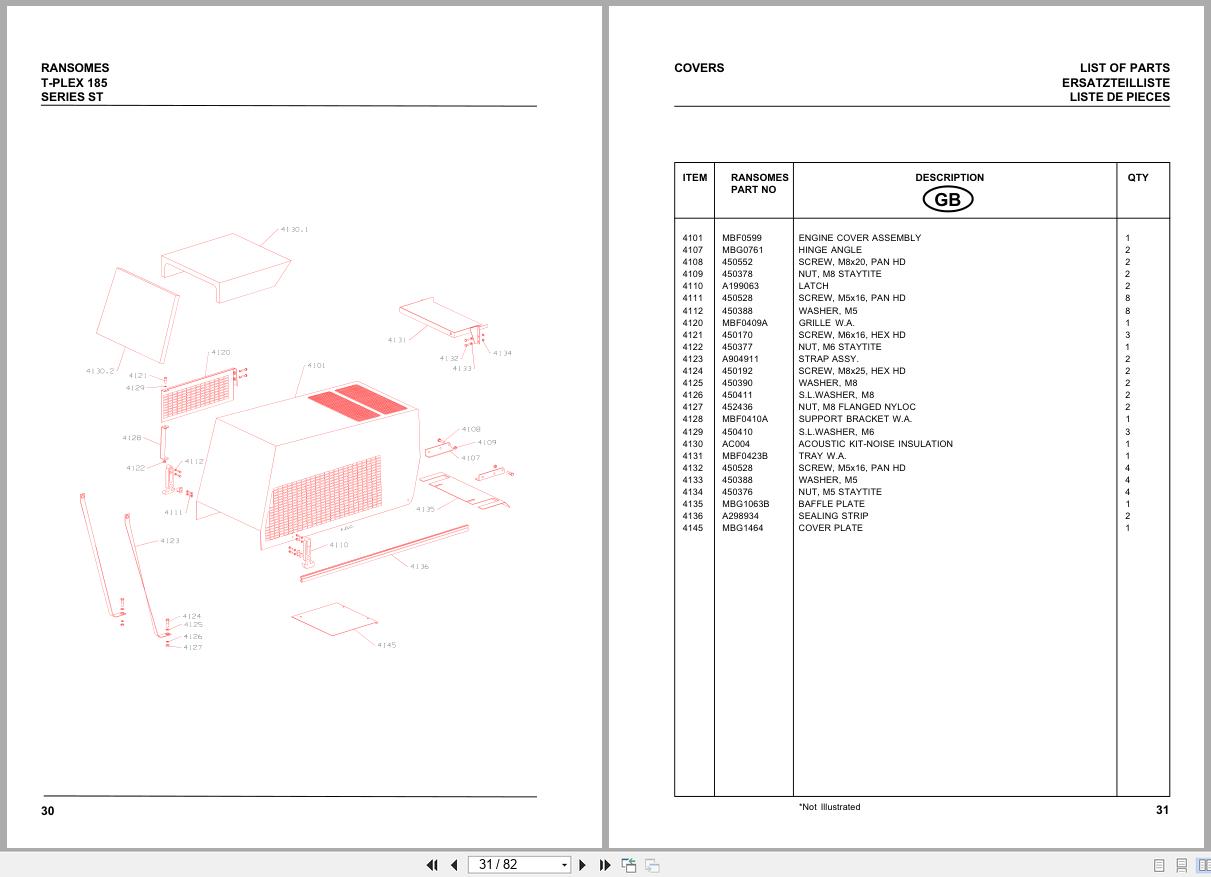

Covers
Wheels
Rear Cutting Unit Lift
Front Cutting Unit Lift
Decals
Brake System
Operator’s Platform
Seat And Frame
Control System
Seat Breakdown
Seat Suspension Breakdown
Radiator & Oil Cooler Breakdown
Triple Pump Assy
Transmission Pump
Tandem Gear Pump
Hydraulic Lift Valve
Weight Transfer Valve
Hydraulic Traction Motor
Caliper Brake Assembly
Hydraulic Lift Ram
Hydraulic Steering Ram
Hydraulic Steering Unit
Numerical Index
