Size: 234 MB
NOTE: Model 7400 requires the used of matched pairs of VM (vehicle manager) and
DM (display manager) software.
Example: VM version 2.7 must be used with DM version 2.4
Filename structure for Model 7400:
10330xxx.s19 VM
10332xxx.s19 DM
10337xxx.hex Power Amp
Note:
For accurate and efficient assistance, please ensure that the provided information is correct.

Enter new models between the START and END lines and use tabs before software model number and truck model.

Contact Us : “CLICK HERE ”
Payment Method : “CLICK HERE ”
Shopping Guide : “CLICK HERE ”

Software Model Number Truck Model

START

905B 3010/3020 Courier
9064 3030 Courier Stacker
906B 3220 Courier Tow Tractor
1036 4100/4200/4150/4250 Counterbalance
1065 5500/5600 (S/N >= 44001) 5300 (S/N 00001 and up) OPR
9059 6210 Walkie Stacker
105F 7200 Reach
105E 7300/7310 Reach
1050 7500/7520/7700/7720 Reach
1061 7530/7730 Reach
9058 8210/8250 Pallet
9045 8300 Pallet (S/N >= 83001) and 8310 (S/N 10001 and up)
9046 8400 Pallet (S/N >= 83001) and 8410 (S/N 10001 and up)
905E 8410 Pallet (S/N 10001 and up) with intellispeed option
9047 8500/8600 Pallet Spring Handle (S/N >= 83001) and 8510/8610 (S/N 10001 and up)
9048 8500/8600 Pallet Fixed Handle (S/N >= 83001) and 8510/8610 (S/N 10001 and up)
904E 8500/8600 Pallet PowerSteer (S/N >= 83001), 8510/8610 (S/N 10001 and up), 8510 with Advance (S/N 10001 and up)
905D 8720 2nd Level Orderpicker
9042 8900 Pallet
104C 9300/9400 Sideloader
103B 9600/9700 Swing Reach
RDPT Raymond Data Port Translator Board
NSAPM Navigation Solutions All Purpose Module
RTLS Raymond Tracking Location System
9040 102XM Walkie
101C 212/218/233 Low Level OPR
1024 261 OPR
803A 4400 Counterbalance
804F 4450 Counterbalance
8039 4700 Counterbalance
1038 5200 OPR
1035 5400/5500/5600 OPR
1033 7400/7600 Reach
903C 8300 Pallet (S/N <= 83000)
903D 8400 Pallet (S/N <= 83000)
903E 8500/8600 Spring Handle (S/N <= 83000)
903F 8500/8600 Fixed Handle (S/N <= 83000)
201E D30/D35/D40/D50 Counterbalance
102F EZ-C/DZ-C Reach
1031 EZ-D/DZ-D Reach
1034 ET-F/DT-F Reach
101E R30/R35/R40/R50 Counterbalance
9041 RAS Walkie Stacker

END

NOTE: Models with multiple modules must have matched software. For example,
Model 7XX0 requires the use of matched pairs of VM (Vehicle Manager),
DM (Display Manager), and PA (Power Amplifier) software.

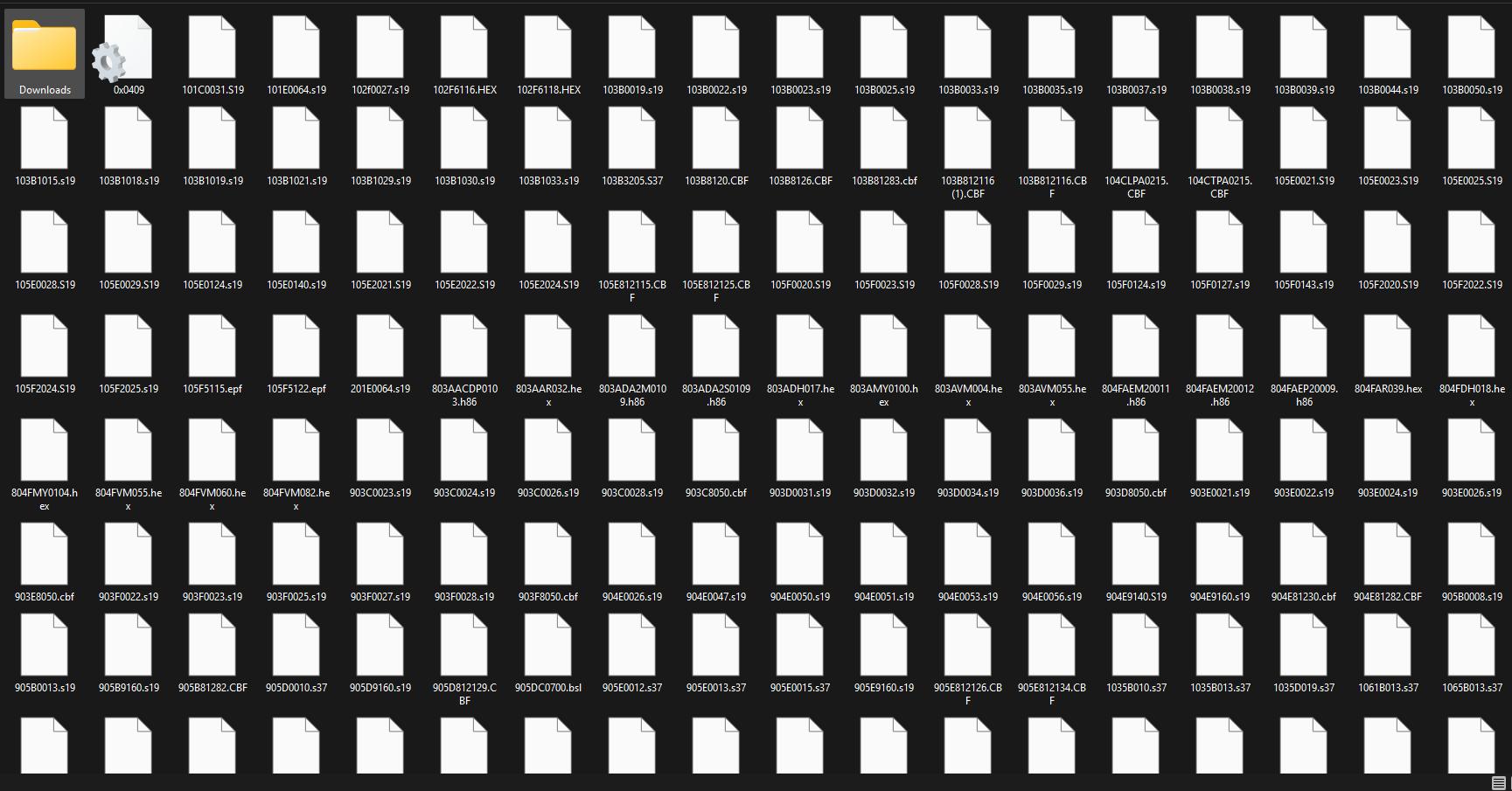

Files included in this package:

FlashWareDealer xxx Flashware Application Ver x.x
Readme.txt Installation Instructions
Flashware_table.txt Truck Model Table

______________________________________________________________________________________________________________

NOTE:THE FORMAT OF THE SOFTWARE MODEL NUMBER HAS CHANGED, IT IS NOW BROKEN DOWN INTO TWO SECTIONS.

SECTION 1 :

Current Production:
(For additional trucks, See SECTION 2 below.)
______________________________________________________________________________________________________________

Model 3010/3020 Courier
905B81282.cbf Power Amplifier (Version 12.82) (Letters SE will not be visible on the Amplifier sticker)
905B83192.cbf Power Amplifier (Version 31.92) (Letters SE will be visible on the Amplifier sticker)
905B0014.s19 Vehicle Manager (Version 1.4)
905B9160.s19 Electric Steering Amplifier(Version 160)

Model 3030 Courier Stacker
906483192.cbf Power Amplifier (Version 31.92)
90640015.s37 Vehicle Manager (Version 1.5)
90649160.s19 Electric Steering Amplifier(Version 160)

Model 3220 Courier Tow Tractor
906B832107.cbf Power Amplifier (Version 32.107)
906B0016.s37 Vehicle Manager (Version 1.6)
906B9160.s19 Electric Steering Amplifier(Version 160)

Model 4150/4250 Stand-Up Counterbalanced Lift Truck VM PN VM PN 1045780/201 or Higher
1036812125.cbf Power Amplifier (Version 12.125)
10360157.s19 Vehicle Manager (Version 15.7)

Model 5500/5600 S/N >= 44001 5300 S/N 00001 and Up OPR
106583167.cbf Power Amplifier (Version 31.67)
106500116.s19 Vehicle Manager (Version 1.16)
1065B013.s37 RCM (Version 1.3)
10653205.s37 Guidance Manager (Version 20.5)
1065D020.s37 Carriage Control Card (Version 2.0)
NSAPM015.s37 Navigation Solutions APM

Model 6210
90590026.s37 Vehicle Manager (Version 2.6)
905983046.CBF Power Amplifier (Version 30.46)

Model 7200 Reach-Fork Lift Truck Integrated (7 inch display)
raymondgdmapp_2.0.22_201216082708.ipk Display AP (Version 2.0.22)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
105F5122.epf Power Amplifer (Version 1.22)
105F0145.s19 Vehicle Manager (Version 14.5)

Model 7300/7310 Reach-Fork Lift Truck Integrated (7 inch display)
raymondgdmapp_2.0.22_201216082708.ipk Display AP (Version 2.0.22)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
105E812115.CBF Power Amplifier (Version 12.115)
105E0144.s19 Vehicle Manager (Version 14.4)

Model 7500/7520/7700/7720 Reach-Fork Lift Truck Integrated VM 1045780/107 and above (7 inch display)
raymondgdmapp_2.0.22_201216082708.ipk Display AP (Version 2.0.22)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
1050812133.cbf Power Amplifier Lift and Traction (Version 12.133)
105083162.cbf Aux Power Amp (Vehicles with AC Aux)(Version 31.62)
10500141.s19 Vehicle Manager (Version 14.1)

Model 7530/7730 Reach-Fork Lift Truck Integrated (7 inch display)
raymondgdmapp_2.0.22_201216082708.ipk Display AP (Version 2.0.22)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
106112133.cbf Power Amplifier Traction (Version 12.133)
106183162.cbf Power Amplifier Lift (Version 31.62)
106183162.cbf Aux Power Amp (Version 31.62)
10610034.s19 Vehicle Manager (Version 3.4)
1061B013.s37 RCM (Version 1.3)

Model 8210 Pallet Truck
90580036.s37 Vehicle Manager (Version 3.6)
905883046.CBF Power Amplifier (Version 30.46)

Model 8250 Pallet Truck
90580036.s37 Vehicle Manager (Version 3.6)
905883046.CBF Power Amplifier (Version 30.46)
BMS3BMU_26.8.17.bin BMU (Version 26.8.17)
BMS3BMC_3.5.15.bin BMC (Version 3.5.15)
BMS3LIBUI_1.3.11.bin LIBUI (Version 1.3.11)

Model 8310 Pallet Truck - S/N 10001 and Up
904581282.cbf Power Amplifier (Version 12.82)
90450040.s19 Vehicle Manager (Version 4.0)
RDPT012.s19 Translator Module (Version 01.20)

Model 8410 Pallet Truck - S/N 10001 and Up equipped with 1232SE Amplifier (Letters SE will be visible on the Amplifier sticker)
904683192.cbf Power Amplifier (Version 31.92)
90460056.s19 Vehicle Manager (Version 5.6)
RDPT012.s19 Translator Module (Version 01.20)
90469160.s19 Power Steering Amplifier (Version V160)

Model 8410 Pallet Truck - S/N 10001 and Up with intellispeed option
905E812134.cbf Power Amplifier (Version 12.134)
905E0015.s37 Vehicle Manager (Version 1.5)
RDPT012.s19 Translator Module (Version 01.20)
905E9160.s19 Power Steering Amplifier (Version V160)

Model 8510 Pallet Truck with Advance S/N 10001 and Up
904E81282,cbf Power Amplifier (Version 12.82)
904E0013.s37 Vehicle Manager (Version 1.3)
904E9160.s19 Electric Steering Amplifier (Version V160)
ADV_1_3.s37 Advance APM (Version 1.3)

Model 8510/8610 Pallet Truck Spring Loaded Control Handle- S/N 10001 and Up
904781282.cbf Power Amplifier (Version 12.82)
90470042.s19 Vehicle Manager (Version 4.2)
RDPT012.s19 Translator Module (Version 01.20)

Model 8510/8610 Pallet Truck Fixed Control Handle- S/N 10001 and Up
904881282.cbf Power Amplifier (Version 12.82)
90480041.s19 Vehicle Manager (Version 4.1)
RDPT012.s19 Translator Module (Version 01.20)

Model 8510/8610 Pallet Truck PowerSteer Control Handle- S/N 10001 and Up
904E81282.cbf Power Amplifier (Version 12.82)
904E0057.s19 Vehicle Manager (Version 5.7)
904E9160.s19 Electric Steering Amplifier (Version V160)
RDPT012.s19 Translator Module (Version 01.20)

Model 8720 2nd Level Orderpicker
905D812129.cbf Power Amplifier (Version 12.129)
905D0011.s37 Vehicle Manager (Version 1.1)
905D9160.s19 Power Steering Amplifier (Version V160)
905DC0700.bsl PIM Platform Interface Module (Version 7.0)
905DC0700.bsl TIM Tractor Interface Module (Version 7.0)

Model 8900 Pallet Truck
904281251_VCL_167.CBF Power Amplifier (VCL 1.67)

Model 9300/9400 Sideloader
104CLPA0215.CBF Lift Power Amplifier
104CTPA0215.CBF Traction Power Amplifier

Model 9600/9700 Swing-Reach Truck
103B0050.s19 Tractor Manager (Version 5.0)
103B1033.s19 Carriage Manager (Version 3.3)
103B812116.cbf Lift and Traction Power Amplifier (Version 12.116)
103B3205.s37 Guidance Manager (Version 20.5)(As equipped,part number 1268588/001)
NSAPM015.s37 Navigation Solutions APM

Model RTLS
RTLS0110.s37 RTLS

_____________________________________________________________________________________________________________

SECTION 2 :

Not current production/older trucks trucks are listed below.
_____________________________________________________________________________________________________________

Model 102XM Must have ETAC Card 167833-004 or higher
90400012.S19 Vehicle Manager (Version 1.2)

Model 212/218/233 Gofer Low-Level Orderpicker
101C0031.s19 Vehicle Manager (Version 3.1)

Model 261 Gofer High-Level Orderpicker
10240040.s19 Vehicle Manager (Version 4.0)

Model 4100/4150/4200/4250 Stand-Up Counterbalanced Lift Truck VM PN 1045780-105 OR 106
1036812125.cbf Power Amplifier (Version 12.125)
10360093.s19 Vehicle Manager (Version 9.3)

Model 4150/4250 Stand-Up Counterbalanced Lift Truck VM PN VM PN 1045780/107 or Higher
1036812125.cbf Power Amplifier (Version 12.125)
10360157.s19 Vehicle Manager (Version 15.7)

Model 4400 Sit-Down Counterbalanced Lift Truck
803AACDP0103.h86 Power Amplifier - AC2 Pump (Version 0103)
803ADA2M0109.h86 Power Amplifier - AC2 Traction Master (Version 0109)
803ADA2S0109.h86 Power Amplifier - AC2 Traction Slave (Version 0109)
803AAR032.hex Armrest (Version 032)
803ADH017.hex Operator Display (Dashboard) (Version 1.7)
803AMY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
803AVM055.hex Vehicle Manager (Version 05.5)

Model 4450 Sit-Down Counterbalanced Lift Truck
804FAEP20009.h86 Power Amplifier - AE2 Pump (Version 0009)
804FAEM20012.h86 Power Amplifier - AE2 Traction Master (Version 0012)
804FAEM20012.h86 Power Amplifier - AE2 Traction Slave (Version 0012)
804FAR039.hex Armrest (Version 039)
804FDH018.hex Operator Display (Dashboard) (Version 1.8)
804FMY0104.hex Hydraulic Control Board (Mhyrio)(Version 0104)
804FVM060.hex Vehicle Manager (VM PN 2773106CE) (Version 06.0)
804FVM082.hex Vehicle Manager (VM PN 2773117CE) (Version 08.2)

Model 4700 C30/C40/C50HM Sit-Down Counterbalanced Lift Truck - S/N 29998 and Below
8039ACDP0103.h86 Pump Power Amplifier - AC2, Dual Drive (Version 0103)
8039DA2M0110.h86 Traction Power Amplifier, Master - AC2 (Version 0110)
8039DA2S0110.h86 Traction Power Amplifier, Slave - AC2 (Version 0110)
8039AR140.hex Armrest (C40/C50HM)(Version 040)
8039DH017.hex Operator Display (Dashboard) (Version 1.7)
8039MY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
8039VM031.hex Vehicle Manager (VM PN 2943010CE) (Version 03.1)

Model 4700 C30/C40/C50HM Sit-Down Counterbalanced Lift Truck - S/N 29999 and Up
8039AC2P0113.h86 Pump Power Amplifier - AC2, Dual Drive (Version 0113)
8039DA2M0111.h86 Traction Power Amplifier, Master - AC2 (Version 0111)
8039DA2S0111.h86 Traction Power Amplifier, Slave - AC2 (Version 0111)
8039AR038.hex Armrest/Fingertip (Version 038)
8039DH017.hex Operator Display (Dashboard)(Version 1.7)
8039MY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
8039VM063.hex Vehicle Manager (VM PN 2773063CE) (Version 06.3)
8039VM090.hex Vehicle Manager (VM PN 2943037CE) (Version 09.0)

Model 4700 C50 Sit-Down Counterbalanced Lift Truck - S/N 10676 and Below
8039AC2P0100.h86 Pump Power Amplifier - AC2 (Version 0100)
8039AC3T0115.h86 Traction Power Amplifier, Master - AC3 (Version 0115)
8039AR140.hex Armrest (Version 040)
8039DH017.hex Operator Display (Dashboard)(Version 1.7)
8039MY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
8039VM031.hex Vehicle Manager (VM PN 2943010CE)(Version 03.1)

Model 4700 C50 Sit-Down Counterbalanced Lift Truck - S/N 10677 and Up
8039AC2P0100.h86 Pump Power Amplifier - AC2 (Version 0100)
8039AC3T0132.h86 Traction Power Amplifier, Master - AC3 (Version 0132)
8039AR038.hex Armrest/Fingertip (Version 038)
8039DH017.hex Operator Display (Dashboard)(Version 1.7)
8039MY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
8039VM063.hex Vehicle Manager (VM PN 2773063CE)(Version 06.3)
8039VM090.hex Vehicle Manager (VM PN 2943037CE)(Version 09.0)

Model 4700 C50L Sit-Down Counterbalanced Lift Truck - S/N 10676 and Below
8039AC3P0117.h86 Pump Power Amplifier - AC3 (Version 0117)
8039AC3T0115.h86 Traction Power Amplifier, Master - AC3 (Version 0115)
8039AR140.hex Armrest (Version 140)
8039DH017.hex Operator Display (Dashboard)(Version 1.7)
8039MY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
8039VM031.hex Vehicle Manager (VM PN 2943010CE)(Version 03.1)

Model 4700 C60 Sit-Down Counterbalanced Lift Truck - S/N 10676 and Below
8039AC3P0117.h86 Pump Power Amplifier - AC3 (Version 0117)
8039AC4T0124.h86 Traction Power Amplifier, Master - AC4 (Version 0124)
8039AR140.hex Armrest (Version 140)
8039DH017.hex Operator Display (Dashboard)(Version 1.7)
8039MY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
8039VM031.hex Vehicle Manager (VM PN 2943010CE) (Version 03.1)

Model 4700 C50L/C60 Sit-Down Counterbalanced Lift Truck - S/N 10677 and Up
8039AC3P0119.h86 Pump Power Amplifier - AC3 (Version 0119)
8039AC3T0132.h86 Traction Power Amplifier, Master - AC3 (Version 0132)
8039AR038.hex Armrest/Fingertip (Version 038)
8039DH017.hex Operator Display (Dashboard)(Version 1.7)
8039MY0100.hex Hydraulic Control Board (Mhyrio)(Version 0100)
8039VM063.hex Vehicle Manager (VM PN 2773063CE)(Version 06.3)
8039VM090.hex Vehicle Manager (VM PN 2943037CE)(Version 09.0)

Model 5200 High-Level Orderpicker Lift Truck
10380025.s19 Vehicle Manager (Version 2.5)

Model 5400/5500/5600 High-Level Orderpicker Lift Truck Below SN 43999
1035812115.cbf Power Amplifier (Version 12.115)
10350099.s19 Vehicle Manager (Version 9.9)
10353205.s37 Guidance Manager (Version 20.5)(As equipped,part number 1268588/001) RSI OPR-18-002
1035D019.s37 Carriage Control Card (Version 1.9)(As equipped, part number 1275051/003) RSI OPR-18-005A
NSAPM015.s37 Navigation Solutions APM

Model 5400/5500/5600 High-Level Orderpicker Lift Truck with PLL Below SN 43999
1035812115.cbf Power Amplifier (Version 12.115)
10350099.s19 Vehicle Manager (Version 9.9)
1035B013.s37 RCM (Version 1.3)
10353205.s37 Guidance Manager (Version 20.5)(As equipped,part number 1268588/001) RSI OPR-18-002
1035D019.s37 Carriage Control Card (Version 1.9)(As equipped, part number 1275051/003) RSI OPR-18-005A
NSAPM015.s37 Navigation Solutions APM

Model 7200 Reach-Fork Lift Truck Integrated Pre Contactor Panel Update Trucks (7 inch display)
raymondgdmapp_2.0.18_190313104252.ipk Display AP (Version 2.0.18)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
105F5115.epf Power Amplifer (Version 1.15)
105F0127.s19 Vehicle Manager (Version 12.7)

Model 7200 Reach-Fork Lift Truck Non Integrated (With dash display)
105F2025.S19 Display Manager (Version 2.5)
105F5115.epf Power Amplifer (Version 1.15)
105F0030.S19 Vehicle Manager (Version 3.0)

Model 7300/7310 Reach-Fork Lift Truck Integrated Pre Contactor Panel Update Trucks built prior to 3/10/2020 (7 inch display)
raymondgdmapp_2.0.18_190313104252.ipk Display AP (Version 2.0.18)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
105E812115.CBF Power Amplifier (Version 12.115)
105E0127.s19 Vehicle Manager (Version 12.7)

Model 7300/7310 Reach-Fork Lift Truck Non Integrated (With dash display)
105E2025.S19 Display Manager (Version 2.5)
105E812125.CBF Power Amplifier (Version 12.125)
105E0030.S19 Vehicle Manager (Version 3.0)

Model 7400/7420/7440/7600/7620/7640 Reach-Fork Lift Truck
10332057.s19 Display Manager (Version 5.7)
10337032.hex Power Amplifier (Version 032)
10330080.s19 Vehicle Manager (Version 8.0)

Model 7500/7520/7700/7720 Reach-Fork Lift Truck VM 1045780/105 and 1045780/106 Non Integrated (With dash display)
10502039.s19 Display Manager (Version 3.9)
1050812125.cbf Power Amplifier Lift (Version 12.125)
1050812125.cbf Power Amplifier Traction (Version 12.125)
10500055.s19 Vehicle Manager (Version 5.5)

Model 7500/7520/7700/7720 Reach-Fork Lift Truck VM 1045780/107 and above Integrated Pre Contactor Panel Update (7 inch display)
raymondgdmapp_2.0.18_190313104252.ipk Display AP (Version 2.0.18)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
1050812115.cbf Power Amplifier Lift and Traction (Version 12.115)
105083104.cbf Aux Power Amp (Vehicles with AC Aux)(Version 31.04)
10500125.s19 Vehicle Manager (Version 12.5)

Model 7500/7520/7700/7720 Reach-Fork Lift Truck VM 1045780/107 and above Non Integrated (With dash display)
10502091.s19 Display Manager (Version 9.1)
1050812125.cbf Power Amplifier Lift and Traction (Version 12.125)
105083104.cbf Aux Power Amp (Equipped with AC Aux) (Version 31.04)
10500093.s19 Vehicle Manager (Version 9.3)

Model 7530/7730 Reach-Fork Lift Truck Integrated Pre Contactor Panel Update (7 inch display)
raymondgdmapp_2.0.18_190313104252.ipk Display AP (Version 2.0.18)
EVO OS 1.6.8.zip Display OS (Version 1.6.8.3)
106112133.cbf Power Amplifier Traction (Version 12.133)
106183162.cbf Power Amplifier Lift (Version 31.62)
106183162.cbf Aux Power Amp (Version 31.62)
10610018.s19 Vehicle Manager (Version 1.8)
1061B013.s37 RCM (Version 1.3)

Model 8300 Pallet Truck - S/N 83000 and Below
903C8050.cbf Power Amplifier (Version 05.0)
903C0028.s19 Vehicle Manager (Version 2.8)
RDPT012.s19 Translator Module (Version 01.20)

Model 8400 Pallet Truck - S/N 83000 and Below
903D8050.cbf Power Amplifier (Version 05.0)
903D0036.s19 Vehicle Manager (Version 3.6)
RDPT012.s19 Translator Module (Version 01.20)

Model 8500/8600 Pallet Truck Spring Control Handle- S/N 83000 and Below
903E8050.cbf Power Amplifier (Version 05.0)
903E0026.s19 Vehicle Manager (Version 2.6)
RDPT012.s19 Translator Module (Version 01.20)

Model 8500/8600 Pallet Truck Fixed Control Handle- S/N 83000 and Below
903F8050.cbf Power Amplifier (Version 05.0)
903F0028.s19 Vehicle Manager (Version 2.8)
RDPT012.s19 Translator Module (Version 01.20)

Model 8300 Pallet Truck - S/N 83001 and Up
904581282.cbf Power Amplifier (Version 12.82)
90450040.s19 Vehicle Manager (Version 4.0)
RDPT012.s19 Translator Module (Version 01.20)

Model 8400 Pallet Truck - S/N 83001 and Up equipped 1232 (Older Amplifier-non SE)
9046812134.cbf Power Amplifier (Version 12.134)
90460056.s19 Vehicle Manager (Version 5.6)
RDPT012.s19 Translator Module (Version 01.20)
90469160.s19 Power Steering Amplifier (Version V160)

Model 8400 Pallet Truck - S/N 83001 and Up equipped with 1232SE Amplifier (Letters SE will be visible on the Amplifier sticker)
904683192.cbf Power Amplifier (Version 31.92)
90460056.s19 Vehicle Manager (Version 5.6)
RDPT012.s19 Translator Module (Version 01.20)
90469160.s19 Power Steering Amplifier (Version V160)

Model 8410 Pallet Truck - S/N 10001 and Up equipped 1232 (Older Amplifier-non SE)
9046812134.cbf Power Amplifier (Version 12.134)
90460056.s19 Vehicle Manager (Version5.6)
RDPT012.s19 Translator Module (Version 01.20)
90469160.s19 Power Steering Amplifier (Version V160)

Model 8410 Pallet Truck - S/N 10001 and Up equipped with 1232SE Amplifier (Letters SE will be visible on the Amplifier sticker)
904683192.cbf Power Amplifier (Version 31.92)
90460056.s19 Vehicle Manager (Version 5.6)
RDPT012.s19 Translator Module (Version 01.20)
90469160.s19 Power Steering Amplifier (Version V160)

Model 8500/8600 Pallet Truck Spring Loaded Control Handle - S/N 83001 and Up
904781282.cbf Power Amplifier (Version 12.82)
90470042.s19 Vehicle Manager (Version 4.2)
RDPT012.s19 Translator Module (Version 01.20)

Model 8500/8600 Pallet Truck Fixed Control Handle - S/N 83001 and Up
904881282.cbf Power Amplifier (Version 12.82)
90480041.s19 Vehicle Manager (Version 4.1)
RDPT012.s19 Translator Module (Version 01.20)

Model 8500/8600 Pallet Truck PowerSteer Control Handle- S/N 83001 and Up
904E81282.cbf Power Amplifier (Version 12.82)
904E0057.s19 Vehicle Manager (Version 5.7)
904E9160.s19 Electric Steering Amplifier (Version V160)
RDPT012.s19 Translator Module (Version 01.20)

Model D30/D35/D40/D50 Dockstocker HP
201E0064.s19 Vehicle Manager (Version 6.4)

Model DT-F/ET-F EASi Reach-Fork Lift Truck
103481287.cbf Power Amplifier (Version 12.87)
10340021.s19 Vehicle Manager (Version 2.1)

Model DZ-C/EZ-C EASi Reach-Fork Lift Truck
102F6118.hex Power Amplifier (Version 6118)
102F0027.s19 Vehicle Manager (Version 2.7)

Model DZ-D/EZ-D EASi Reach-Fork Lift Truck
10316118.hex Power Amplifier (Version 6118)
10310023.s19 Vehicle Manager (Version 2.7)

Model R30/R35/R40/R50 EASi Pacer Lift Truck
101E0064.s19 Vehicle Manager (Version 6.4)

Model RAS Must have ETAC Card 167833-004 or higher
90410010.S19 Vehicle Manager (Version 1.0)

CONTENTS:

101C0031.S19
101E0064.s19
10240040.s19
102f0027.s19
102F6118.HEX
10310023.S19
10316118.HEX
10330080.s19
10332057.s19
10337032.hex
10340021.s19
103481287.CBF
10350109.s19
10353205.S37
1035812115.CBF
1035B014.fsp
1035D022.fsp
10360097.s19
10360173.s19
1036812125.CBF
103682_1_0.zip
10380025.S19
103B0052.s19
103B1033.s19
103B3205.S37
103B812116.CBF
104CLPA0215.CBF
104CTPA0215.CBF
10500055.s19
10500095.s19
10500125.s19
10500143.s19
10500154.s19
10500156.s19
10502039.s19
10502093.s19
1050812115.CBF
1050812125.CBF
1050812133.CBF
105082_5_0.zip
105083104.CBF
105083162.CBF
105E0032.s19
105E0127.s19
105E0155.s19
105E2027.s19
105E812115.CBF
105E812125.CBF
105E812133.CBF
105E82_5_0.zip
105F0032.s19
105F0127.s19
105F0155.s19
105F2027.s19
105F5115.epf
105F5122.epf
10610018.s19
10610040.s19
1061812133.CBF
106183162.CBF
1061B013.s37
1061B014.fsp
106500136.s19
10653205.S37
1065812125.CBF
106582_2_0.zip
106583167.CBF
1065B014.fsp
1065D022.fsp
10680015.s19
10681014.s19
10683205.S37
1068832117.CBF
201E0064.s19
8039AC2P0100.h86
8039AC2P0113.h86
8039AC3P0119.h86
8039AC3P117.h86
8039AC3T0115.h86
8039AC3T0132.h86
8039AC4T0124.h86
8039ACDP0103.h86
8039AR038.hex
8039AR140.hex
8039DA2M0110.h86
8039DA2M0111.h86
8039DA2S0110.h86
8039DA2S0111.h86
8039DH017.hex
8039MY0100.hex
8039VM031.hex
8039VM050Upload.hex
8039VM055.hex
8039VM057.hex
8039VM063.hex
8039VM090.hex
803AACDP0103.h86
803AAR032.hex
803ADA2M0109.h86
803ADA2S0109.h86
803ADH017.hex
803AMY0100.hex
803AVM055.hex
804FAEM20012.h86
804FAEP20009.h86
804FAR039.hex
804FDH018.hex
804FMY0104.hex
804FVM060.hex
804FVM082.hex
903C0028.s19
903C8050.cbf
903D0036.s19
903D8050.cbf
903E0026.s19
903E8050.cbf
903F0028.s19
903F8050.cbf
90400012.s19
90410010.s19
904281251_VCL_167.CBF
90450040.s19
90450106.fsp
904581282.CBF
90460056.s19
9046812134.CBF
904683117.CBF
904683192.CBF
90469160.s19
90470042.s19
904781282.CBF
90480041.s19
90480103.fsp
904881282.CBF
904E0013.s37
904E0057.s19
904E0113.fsp
904E0114.fsp
904E81282.CBF
904E82_4_3.zip
904E9160.s19
90580044.fsp
905883046.CBF
90590032.fsp
905983046.CBF
905B0014.s19
905B81282.CBF
905B83192.CBF
905B9160.s19
905D0018.fsp
905D812129.CBF
905D9160.s19
905DC0700.bsl
905E0016.s37
905E0108.fsp
905E812134.CBF
905E82_2_0.zip
905E9160.s19
90640017.s37
906483192.CBF
90649160.s19
90690101.fsp
906B0016.s37
906B832107.CBF
906B9160.s19
906C83_20_0.zip
906C9160.s19
906CE011.s37
906CF033.s37
907584_4_0.zip
9075G016.fsp
916981282.CBF
91699160.s19
ADV_1_3.S37
BMS3BMC_4.0.1.bin
BMS3BMU_26.08.17.bin
BMS3LIBUI_1.3.11.bin
energy cpht.txt
FlashWare_table.txt
FlashWareDealer108.exe
IPM011.s19
RDPT012.S19
Readme.txt
UPM019.S19
UPM030.S19
0x0409.ini
101C0031.S19
101E0064.s19
10240040.s19
102f0027.s19
102F6116.HEX
102F6118.HEX
10310020.s19
10310023.S19
10316116.HEX
10316118.HEX
10330056.s19
10330064.s19
10330067.s19
10330068.s19
10330070.S19
10330079.s19
10330080.s19
10332034.s19
10332043.s19
10332046.s19
10332047.s19
10332049.S19
10332057.s19
10337032.hex
10340017.s19
10340021.s19
10348050.CBF
103481287.CBF
10350036.S19
10350043.s19
10350046.s19
10350047.s19
10350051.s19
10350053.s19
10350054.s19
10350056.S19
10350057.S19
10350061.S19
10350093.s19
10350097.s19
10350099.s19
10353205.S37
10358050.cbf
1035812115.CBF
103581287.CBF
1035B010.s37
1035B013.s37
1035D019.s37
10360031.s19
10360035.s19
10360036.S19
10360040.S19
10360051.S19
10360052.S19
10360060.S19
10360065.S19
10360071.S19
10360082.S19
10360086.S19
10360092.s19
10360093.s19
10360152.s19
10368050.cbf
1036812115.CBF
1036812125.CBF
103681215.CBF
10380020.s19
10380022.s19
10380023.S19
10380025.S19
103B0019.s19
103B0022.s19
103B0023.s19
103B0025.s19
103B0033.s19
103B0035.s19
103B0037.s19
103B0038.s19
103B0039.s19
103B0044.s19
103B0050.s19
103B1015.s19
103B1018.s19
103B1019.s19
103B1021.s19
103B1029.s19
103B1030.s19
103B1033.s19
103B3205.S37
103B8120.CBF
103B812116 (1).CBF
103B812116.CBF
103B8126.CBF
103B81283.cbf
104CLPA0215.CBF
104CTPA0215.CBF
10500023.trk
10500036.s19
10500038.s19
10500043.s19
10500044.S19
10500049.S19
10500053.s19
10500055.s19
10500085.s19
10500087.s19
10500090.s19
10500092.s19
10500122.s19
10500123.s19
10500125.s19
10500131.s19
10500133.s19
10500137.s19
10500141.s19
10500146.s19
10500152.s19
10500154.s19
10502021.trk
10502028.s19
10502029.s19
10502031.s19
10502032.S19
10502035.S19
10502038.s19
10502039.s19
10502085.s19
10502087.s19
10502091.s19
1050812115.CBF
1050812125.CBF
1050812133.CBF
10508127.CBF
105083104.CBF
105083162.CBF
1054076005.tc2
105E0021.S19
105E0023.S19
105E0025.S19
105E0028.S19
105E0029.S19
105E0124.s19
105E0140.s19
105E2021.S19
105E2022.S19
105E2024.S19
105E812115.CBF
105E812125.CBF
105F0020.S19
105F0023.S19
105F0028.S19
105F0029.s19
105F0124.s19
105F0127.s19
105F0143.s19
105F2020.S19
105F2022.S19
105F2024.S19
105F2025.s19
105F5115.epf
105F5122.epf
10610014.S19
10610018.s19
10610030.s19
10610033.s19
1061812133.CBF
106183162.CBF
1061B013.s37
106500105.s19
106500107.s19
106500111.s19
106500116.s19
106500131.s19
106500134.s19
10653205.S37
106582_2_0.zip
106583167.CBF
1065B013.s37
1065D020.s37
11010030.s19
201E0064.s19
209517-004.tc2
313506-001.tc2
313506003.tc2
506500105.s19
8039AC2P0100.h86
8039AC2P0113.h86
8039AC3P0119.h86
8039AC3P117.h86
8039AC3T0115.h86
8039AC3T0127.h86
8039AC3T0132.h86
8039AC4T0124.h86
8039ACDP0103.h86
8039AR038.hex
8039AR130.hex
8039AR140.hex
8039DA2M0110.h86
8039DA2M0111.h86
8039DA2S0110.h86
8039DA2S0111.h86
8039DH017.hex
8039MY0100.hex
8039VM008.hex
8039VM031.hex
8039VM055.hex
8039VM057.hex
8039VM063.hex
8039VM090.hex
803AACDP0103.h86
803AAR032.hex
803ADA2M0109.h86
803ADA2S0109.h86
803ADH017.hex
803AMY0100.hex
803AVM004.hex
803AVM055.hex
804FAEM20011.h86
804FAEM20012.h86
804FAEP20009.h86
804FAR039.hex
804FDH018.hex
804FMY0104.hex
804FVM055.hex
804FVM060.hex
804FVM082.hex
81320028.tc2
81328050.CBF
8132C019.tc2
8132T020.tc2
8132W021.tc2
903C0023.s19
903C0024.s19
903C0026.s19
903C0028.s19
903C8050.cbf
903D0031.s19
903D0032.s19
903D0034.s19
903D0036.s19
903D8050.cbf
903E0021.s19
903E0022.s19
903E0024.s19
903E0026.s19
903E8050.cbf
903F0022.s19
903F0023.s19
903F0025.s19
903F0027.s19
903F0028.s19
903F8050.cbf
90400010.s19
90400012.s19
9040011.s19
90410010.s19
90428100.cbf
904281251.CBF
904281251_VCL_165.CBF
904281251_VCL_167.CBF
90450022.s19
90450027.s19
90450033.s19
90450035.s19
90450036.s19
90450037.s19
90450039.s19
904581230.cbf
90458126.CBF
904581282.CBF
90460025.s19
90460030.s19
90460042.s19
90460044.s19
90460045.s19
90460046.s19
90460049.s19
90460051.s19
90460054.s19
90460055.s19
90460056.s19
9046812134.CBF
904681230.cbf
90468126.CBF
904681282.CBF
904683117.CBF
904683192.CBF
90469140.S19
90469160.s19
90470022.s19
90470027.s19
90470036.s19
90470038.s19
90470039.s19
90470040.s19
90470041.s19
904781230.cbf
90478126.CBF
904781282.CBF
90480022.s19
90480027.s19
90480035.s19
90480037.s19
90480038.s19
90480039.s19
90480040.s19
90480041.s19
904881230.cbf
90488126.CBF
904881282.CBF
904E0026.s19
904E0047.s19
904E0050.s19
904E0051.s19
904E0053.s19
904E0056.s19
904E81230.cbf
904E81282.CBF
904E9140.S19
904E9160.s19
90580018.s37
90580019.s37
90580020.s37
90580023.s37
90580033.s37
90580036.s37
905882536.CBF
905882537.CBF
905883046.CBF
90590021.s37
90590023.s37
905982536.CBF
905982537.CBF
905983046.CBF
905B0008.s19
905B0013.s19
905B81282.CBF
905B9160.s19
905D0010.s37
905D812129.CBF
905D9160.s19
905DC0700.bsl
905E0012.s37
905E0013.s37
905E0015.s37
905E812126.CBF
905E812134.CBF
905E9160.s19
BMS3BMC_3.3.12.bin
BMS3BMC_3.3.13.bin
BMS3BMC_3.5.15.bin
BMS3BMU_26.08.16.bin
BMS3BMU_26.08.17.bin
BMS3BMU_26.7.5.bin
BMS3BMU_26.7.7.bin
BMS3LIBUI_1.3.11.bin
BMS3LIBUI_1.3.2.bin
CHARGER_4_5_1.zip
IPM011.s19
rdpt0110.S19
RDPT012.S19
UPM019.S19
UPM030.S19
10500044.trk
10500049.S19
10500053.s19
10500055.s19
10502033.trk
10502038.s19
10502039.s19
1050812125.CBF
105082_5_0.zip
106582_2_0.zip
