Renault Master EV XDD 2024 Wiring Diagrams

Renault Master EV XDD 2024 Wiring Diagrams

Data Size: 45.8 MB
Format: PDF
Language: English
Manufacturer:: Renault
Applicable Machine: Car
Document: Wiring Diagram
Machine Model: 2024 Renault Master EV (XDD) ELE-Electric Engine

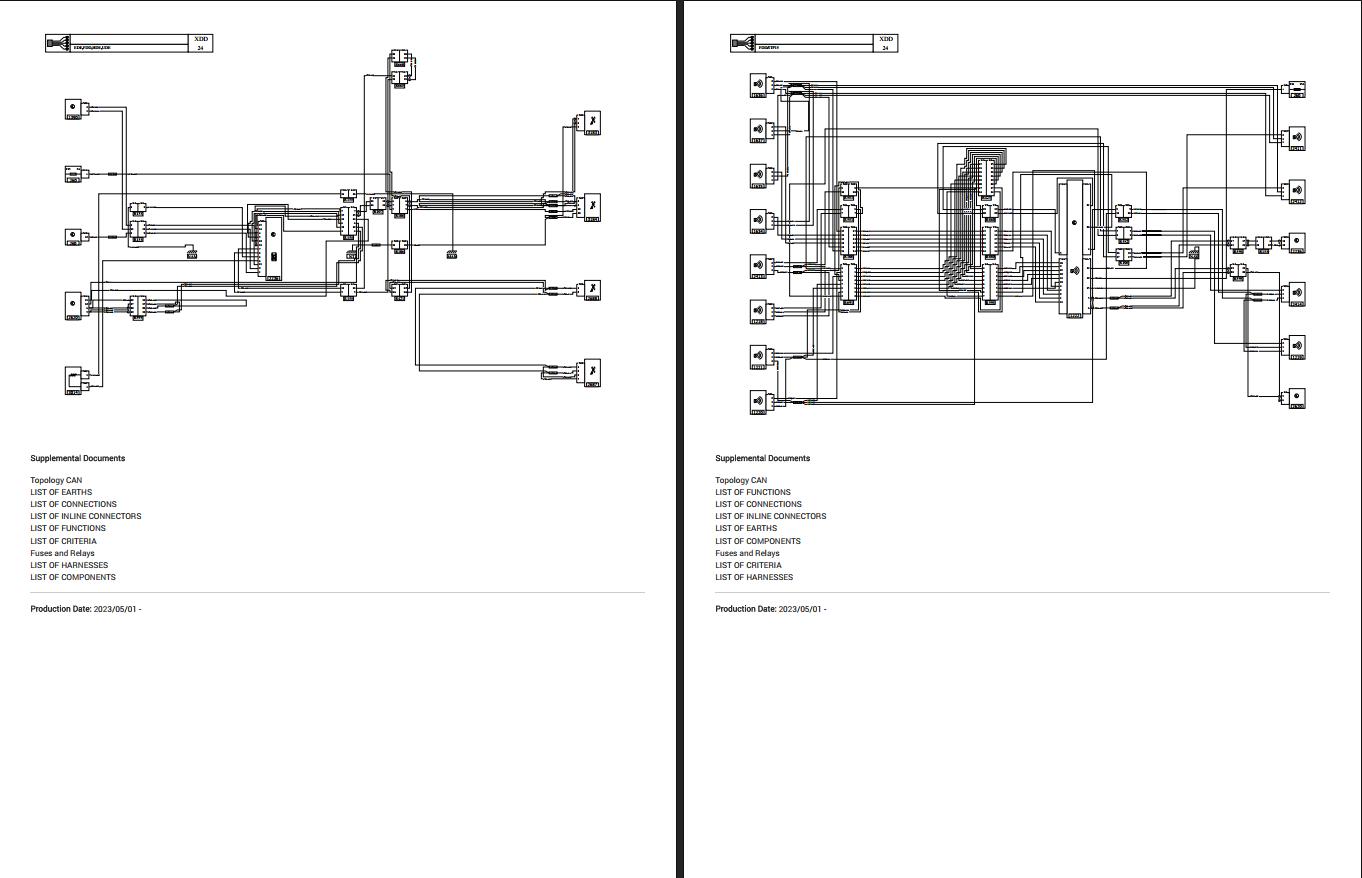

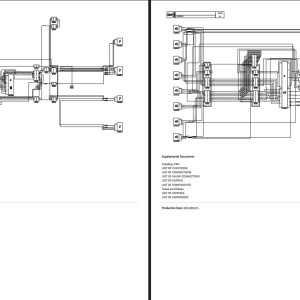

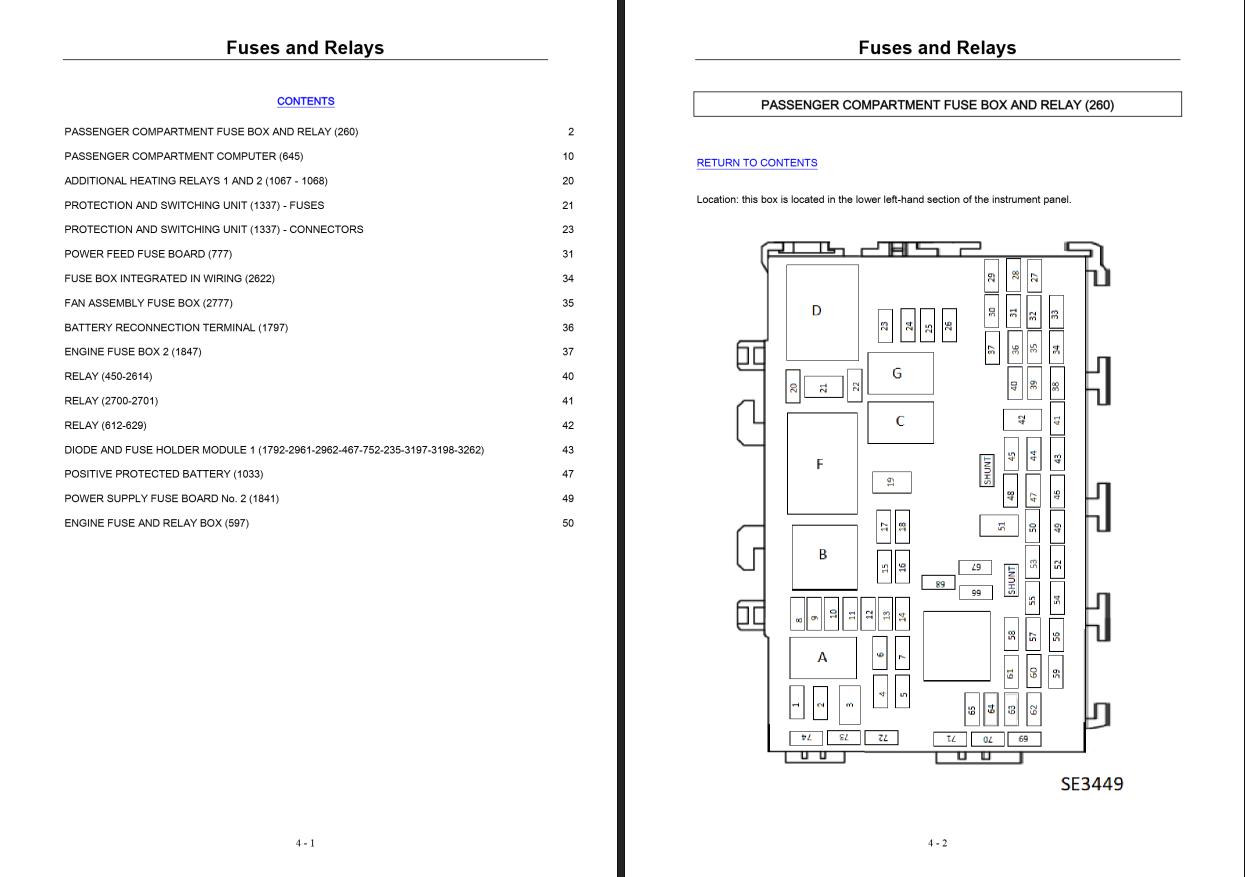

Component - Fuses and Relays.pdf
Component - LIST OF COMPONENTS.pdf
Component - LIST OF CONNECTIONS.pdf
Component - LIST OF CRITERIA.pdf
Component - LIST OF EARTHS.pdf
Component - LIST OF FUNCTIONS.pdf
Component - LIST OF HARNESSES.pdf
Component - LIST OF INLINE CONNECTORS.pdf
Component - TOPOLOGY CAN XDD CAN.pdf
Electrical (OE) - Accessory Predisposition (Entertainment Systems) .pdf
Electrical (OE) - Additional Adaptation Pre-Fitting (Police Special Vehicle Options) .pdf
Electrical (OE) - Additional Air Conditioning Bus.pdf
Electrical (OE) - Additional Heater Bus.pdf
Electrical (OE) - Additional Passenger Compartment Heating.pdf
Electrical (OE) - Air Bag and Seat Belt Pretensioner.pdf
Electrical (OE) - Air Conditioning and Engine Cooling System.pdf
Electrical (OE) - Air Conditioning Compressor.pdf
Electrical (OE) - Anti-Intrusion Alarm (Antitheft and Alarm Systems) .pdf
Electrical (OE) - Anti-Lock Braking System and Directional Stability Control.pdf
Electrical (OE) - Anti-Theft Switch (Antitheft and Alarm Systems) .pdf
Electrical (OE) - Automatic Air Conditioning.pdf
Electrical (OE) - Basic Heating Or Air Conditioning.pdf
Electrical (OE) - Battery Current Sensor (Battery Current Sensor) .pdf
Electrical (OE) - Battery Heating ECU (Hybrid and Electric Drive Systems) .pdf
Electrical (OE) - Bonnet Switch (Hood) .pdf
Electrical (OE) - Boot Accessories Socket (Auxiliary Power Outlet) .pdf
Electrical (OE) - Chassis Supervisor.pdf
Electrical (OE) - Diagnostics Socket (Computers and Control Systems) .pdf
Electrical (OE) - Diesel Pre and Postheating (Fuel Delivery and Air Induction) .pdf
Electrical (OE) - Door Locking (Locks) .pdf
Electrical (OE) - Electric Rear-View Mirrors (Mirrors) .pdf
Electrical (OE) - Electric Side Step Bus (Auxiliary Step Running Board) .pdf
Electrical (OE) - Electric Vehicle Control Section 1 (Hybrid and Electric Drive Systems) .pdf
Electrical (OE) - Electric Vehicle Control Section 2 (Hybrid and Electric Drive Systems) .pdf
Electrical (OE) - Electronic Injection Engine Section (Computers and Control Systems) .pdf
Electrical (OE) - Electronic Injection Passenger Compartment Section ) (Computers and Control Systems) .pdf
Electrical (OE) - Fire Detection Bus (Fire Suppression System) .pdf
Electrical (OE) - Front Central Door Locking (Locks) .pdf
Electrical (OE) - Fuse and Relays Board (Fuse Block) .pdf
Electrical (OE) - Heat Pump Control (Heating and Air Conditioning) .pdf
Electrical (OE) - Hinged Door Locking (Locks) .pdf
Electrical (OE) - Horn.pdf
Electrical (OE) - Inductive Charger (Entertainment Systems) .pdf
Electrical (OE) - Integrated Front Radar And Camera (Forward Looking Camera) .pdf
Electrical (OE) - Multimedia Accessories Socket (Auxiliary Input Output Jack) .pdf
Electrical (OE) - Parking Distance Control - (Collision Avoidance and Parking Assist Systems) .pdf
Electrical (OE) - Parking Distance Control (Collision Avoidance and Parking Assist Systems) .pdf
Electrical (OE) - Passenger Compartment Protection and Switching Unit (Body Control Systems) .pdf
Electrical (OE) - Passenger Compartment Relay and Fuse Board Section 1 (Fuse Block) .pdf
Electrical (OE) - Radio Aerial and Navigation.pdf
Electrical (OE) - Radio Aerials.pdf
Electrical (OE) - Rear Side Radar (Collision Avoidance and Parking Assist Systems) .pdf
Electrical (OE) - Rear Window De-Icing.pdf
Electrical (OE) - Reversing Camera After-Sales Pre-Equipment (Collision Avoidance and Parking Assist Systems) .pdf
Electrical (OE) - Side Door Locking (Locks) .pdf
Electrical (OE) - Telematics) (Entertainment Systems) .pdf
Electrical (OE) - Thermoplungers (Fuel Delivery and Air Induction) .pdf
Electrical (OE) - Traction Battery (Hybrid and Electric Drive Systems) .pdf
Electrical (OE) - Traction Battery Module (High Voltage Battery (EV HEV)) .pdf
Electrical (OE) - Traction Battery Module Part 1 (High Voltage Battery System (EV HEV)) .pdf
Electrical (OE) - Traction Battery Module Part 2 (High Voltage Battery System (EV HEV)) .pdf
Electrical (OE) - Transponder (Antitheft and Alarm Systems) .pdf
Electrical (OE) - UCH Section 1.pdf
Electrical (OE) - UCH Section 2.pdf
Electrical (OE) - Volumetric Alarm (Antitheft and Alarm Systems) .pdf
Electrical (OE) - Grounding Point - Bodywork Electrical Earth.pdf
Electrical (OE) - Grounding Point - B-Pillar Electronic Earth.pdf
Electrical (OE) - Grounding Point - Dashboard Left-Hand Cross Member Electrical Earth.pdf
Electrical (OE) - Grounding Point - Dashboard Left-Hand Cross Member Electronic Earth.pdf
Electrical (OE) - Grounding Point - Engine Electrical Earth.pdf
Electrical (OE) - Grounding Point - Engine Front Left-Hand Side Member Electric Earth.pdf
Electrical (OE) - Grounding Point - Fan Assembly Earth.pdf
Electrical (OE) - Grounding Point - Front Left-Hand Side Member Electrical Earth 1.pdf
Electrical (OE) - Grounding Point - Front Left-Hand Side Member Electrical Earth 2.pdf
Electrical (OE) - Grounding Point - Front Left-Hand Side Member Electrical Earth.pdf
Electrical (OE) - Grounding Point - Left Hand B-Pillar Electronic Earth.pdf
Electrical (OE) - Grounding Point - Left-Hand A-Pillar Electrical Earth.pdf
Electrical (OE) - Grounding Point - Radio Electrical Earth.pdf
Electrical (OE) - Grounding Point - Rear Left-Hand Electrical Earth.pdf
Electrical (OE) - Grounding Point - Rear Right-Hand Electrical Earth.pdf
Electrical (OE) - Grounding Point - Right-Hand A-Pillar Electrical Earth.pdf
Electrical (OE) - Information Bus - CAN Chassis 4DM 4DN.pdf
Electrical (OE) - Information Bus - CAN CHASSIS 4EH 4EL.pdf
Electrical (OE) - Information Bus - CAN CHASSIS 4FH 4FL.pdf
Electrical (OE) - Information Bus - CAN CHASSIS 4HH 4HL.pdf
Electrical (OE) - Information Bus - CAN CONN 34VH 34VL.pdf
Electrical (OE) - Information Bus - CAN Core Gateway.pdf
Electrical (OE) - Information Bus - CAN DTOOL 137I 137J.pdf
Electrical (OE) - Information Bus - CAN DTOOL 137K 137L.pdf
Electrical (OE) - Information Bus - CAN DTOOL CANH CANL.pdf
Electrical (OE) - Information Bus - CAN E 189A 189B.pdf
Electrical (OE) - Information Bus - CAN ENGINE 3YP 3YQ.pdf
Electrical (OE) - Information Bus - CAN EXT 34GB 34GC.pdf
Electrical (OE) - Information Bus - CAN ITS 47DH 47DL.pdf
Electrical (OE) - Information Bus - CAN ITS 47EH 47EL.pdf
Electrical (OE) - Information Bus - CAN ITS 47FH 47FL.pdf
Electrical (OE) - Information Bus - CAN ITS 47GH 47GL.pdf
Electrical (OE) - Information Bus - CAN ITS 4EH 4EL.pdf
Electrical (OE) - Information Bus - CAN IVI 34UH 34UL.pdf
Electrical (OE) - Information Bus - CAN M1 34OH 34OL.pdf
Electrical (OE) - Information Bus - CAN M2 34SH 34SL.pdf
Electrical (OE) - Information Bus - CAN V1 137H 137G.pdf
Electrical (OE) - Information Bus - CAN V2 35AH 35AL.pdf
Electrical (OE) - Information Bus - CAN V3 134H 134L.pdf
Electrical (OE) - Information Bus - CAN V3 94BH 94BL.pdf
Electrical (OE) - Information Bus - CAN V4 55AP 55AQ.pdf
Electrical (OE) - Instrument Panel, Gauges and Warning Indicators - Central Switch Bar.pdf
Electrical (OE) - Instrument Panel, Gauges and Warning Indicators - Cigarette Lighter.pdf
Electrical (OE) - Instrument Panel, Gauges and Warning Indicators - Electric Vehicle Buzzer.pdf
Electrical (OE) - Instrument Panel, Gauges and Warning Indicators - Handbrake Warning Light.pdf
Electrical (OE) - Instrument Panel, Gauges and Warning Indicators - Instrument Panel.pdf
Electrical (OE) - Instrument Panel, Gauges and Warning Indicators - Multifunction Control Screen.pdf
Electrical (OE) - Instrument Panel, Gauges and Warning Indicators - Tachometer and Vehicle Speed.pdf
Electrical (OE) - Lighting and Horns - Analogue Light Sensor.pdf
Electrical (OE) - Lighting and Horns - Brake Lights.pdf
Electrical (OE) - Lighting and Horns - Courtesy Lighting.pdf
Electrical (OE) - Lighting and Horns - Daytime Running Lights.pdf
Electrical (OE) - Lighting and Horns - Dipped Headlights.pdf
Electrical (OE) - Lighting and Horns - Direction Indicators and Hazard Warning Lights.pdf
Electrical (OE) - Lighting and Horns - Front Foglights.pdf
Electrical (OE) - Lighting and Horns - In Headlight Height Adjustment.pdf
Electrical (OE) - Lighting and Horns - Interior Spotlamps and Back-Up Bus.pdf
Electrical (OE) - Lighting and Horns - Lighting Dimmer.pdf
Electrical (OE) - Lighting and Horns - Main Beam Headlights.pdf
Electrical (OE) - Lighting and Horns - Position Lights.pdf
Electrical (OE) - Lighting and Horns - Rear Foglights.pdf
Electrical (OE) - Lighting and Horns - Rear Lighting.pdf
Electrical (OE) - Lighting and Horns - Reversing Lights.pdf
Electrical (OE) - Lighting and Horns - Under Steering Wheel Control.pdf
Electrical (OE) - Power and Ground Distribution - Air Bag and Seat Belt Pretensioner.pdf
Electrical (OE) - Power and Ground Distribution - Battery Charge Circuit 2.pdf
Electrical (OE) - Power and Ground Distribution - Battery Charge Circuit.pdf
Electrical (OE) - Power and Ground Distribution - Caravan Socket.pdf
Electrical (OE) - Power and Ground Distribution - Electric Vehicle Control (Power Control Systems (EV HEV)) .pdf
Electrical (OE) - Power and Ground Distribution - Electronic Power Unit.pdf
Electrical (OE) - Power and Ground Distribution - Engine Fuse and Relay Board Section 1.pdf
Electrical (OE) - Power and Ground Distribution - Engine Switching Protection Unit.pdf
Electrical (OE) - Power and Ground Distribution - Front Electric Windows.pdf
Electrical (OE) - Power and Ground Distribution - Fuse and Relays Board.pdf
Electrical (OE) - Power and Ground Distribution - Heated Seats.pdf
Electrical (OE) - Power and Ground Distribution - Heated Windscreen.pdf
Electrical (OE) - Power and Ground Distribution - Passenger Compartment Control Unit.pdf
Electrical (OE) - Power and Ground Distribution - Passenger Compartment Fuse and Relay Board.pdf
Electrical (OE) - Power and Ground Distribution - Passenger Compartment Relay and Fuse Board Section 2.pdf
Electrical (OE) - Power and Ground Distribution - Power Assisted Steering.pdf
Electrical (OE) - Power and Ground Distribution - Power Fuse Board.pdf
Electrical (OE) - Power and Ground Distribution - Power Socket For Countermarks.pdf
Electrical (OE) - Power and Ground Distribution - Power Supply.pdf
Electrical (OE) - Power and Ground Distribution - Radio and Communication Equipment Section 1.pdf
Electrical (OE) - Power and Ground Distribution - Radio and Communication Equipment Section 2.pdf
Electrical (OE) - Power and Ground Distribution - Ramp Braking Assistance Control.pdf
Electrical (OE) - Power and Ground Distribution - SSD Motorised Side Door.pdf
Electrical (OE) - Power and Ground Distribution - Starting Circuit.pdf
Electrical (OE) - Power and Ground Distribution - Tyre Pressure Sensor 2.pdf
Electrical (OE) - Power and Ground Distribution - Tyre Pressure Sensor.pdf
Electrical (OE) - Power and Ground Distribution - Uch.pdf
Electrical (OE) - Power and Ground Distribution - Windscreen Wiper.pdf
