ROPA euroTiger V8h (2005-2006) Parts Catalog PDF

Data Size: 188.91 MB
File Type: PDF
Language: English
Manufacturer: ROPA
Applicable Machine: Harvester, Harvesting Technology
Document: Spare Parts Catalog
Machine Model: ROPA euroTiger V8h (2005-2006) Harvester
Year of Manufacture: 2005-2006
Page: 2556 Pages

List Contents:

euroTiger V8h (2005-2006)
euroTiger V8h (2005-2006)

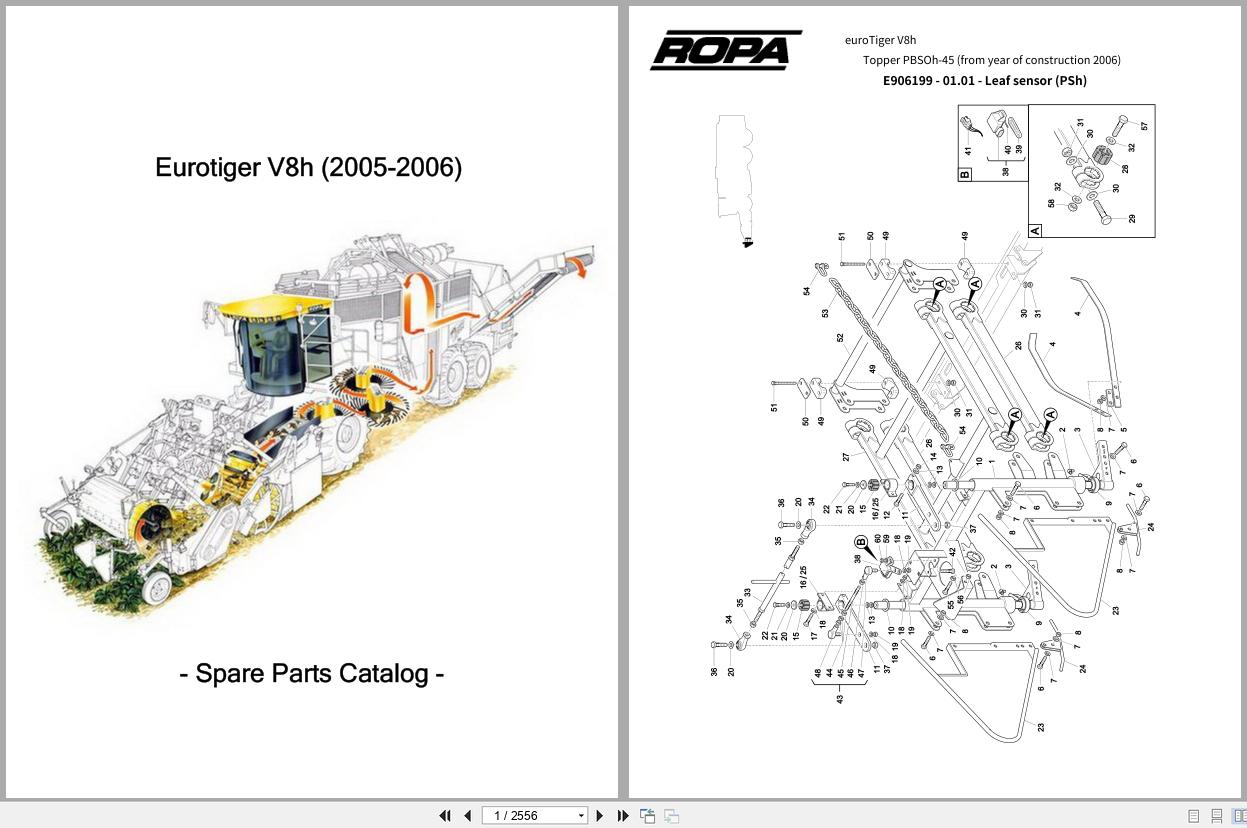

0 Cover Eurotiger V8h (2005-2006)
01 - Topper
01 - Topper PBSOh-45 (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906198 Topper wheel - internal (PSOh)
01.02.2 - E906197 Topper wheel - external (PSOh_RSO)
01.03 - E906188 Topper housing - left and right - from year of construction 2008 (PBSOh-45)
01.03 - E906196 Topper housing - left and right - to year of construction 2007 (PBSOh-45)
01.04 - E906195 Topper housing - front and rear - to year of construction 2007 (PBSOh-45)
01.04.1 - E906187 Topper housing - front - from year of construction 2008 (PBSOh-45)
01.04.2 - E906186 Topper housing - rear - from year of construction 2008 (PBSOh-45)
01.05 - E906194 Topper shaft (PBSOh-45)
01.06 - E906185 Leaf auger - from year of construction 2008 (PBSOh-45)
01.06 - E906193 Leaf auger - to year of construction 2007 (PBSOh-45)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906192 Holding device for leaf spreader (PBSh)
01.08 - E906191 Scalper bar (PBSOh-45)
01.09 - E906190 Scalper holding frame (PBSOh-45)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906099 Central lubrication and stickers (PBSOh-45)
Hydraulic system - PBSOh-45 topper
01.20 - E905484 Topper shaft (PBSOh-45)
01.21 - E905483 Leaf auger (PBSOh-45)
01.22 - E905487 Topper wheel (PBSOh-45)
01.23 - E905486 Adjustment of the cutting depth (PBSOh-45)
01.24 - E905485 Leaf spreader and leaf spreader flaps (PBSOh-45)
01 - Topper PBSh-45_50 (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905372 Topper housing - left and right (PBSh-45_50_V)
01.04 - E906180 Topper housing - front and rear (PBSh-45_50_V)
01.05.1 - E905368 Topper shaft (PBSh-45)
01.05.2 - E906181 Topper shaft (PBSh-50)
01.06 - E905367 Leaf auger with cleaning roller (PBSh-45_50)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906192 Holding device for leaf spreader (PBSh)
01.08 - E905373 Scalper bar (PBSh-45_50)
01.09 - E906179 Scalper holding frame (PBSh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E905381 Central lubrication and stickers (PBSh-45_50_V)
Hydraulic system - PBSh-45_50 topper
01.20 - E905492 Topper shaft (PBSh-45_50_V)
01.21 - E905491 Leaf auger with cleaning roller (PBSh-45_50_V)
01.22 - E905495 Topper wheel (PBSh-45_50_V)
01.23 - E905494 Adjustment of the cutting depth (PBSh-45_50_V)
01.24 - E905493 Leaf spreader and leaf spreader flaps (PBSh-45_50_V)
Model - leaf belt
01.30 - E905490 Leaf belt with accessories (PBSh_PBSWh)
01.31 - E905489 Hydraulic system_ leaf belt (PBSh-45_50_V)
01 - Topper PBSh-45_50 (year of construction 2005)
01.01 - E905376 Leaf sensor (PBSh-45_50_V)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905372 Topper housing - left and right (PBSh-45_50_V)
01.04 - E905371 Topper housing - front and rear (PBSh-45_50_V)
01.05.1 - E905368 Topper shaft (PBSh-45)
01.05.2 - E905369 Topper shaft (PBSh-50)
01.06 - E905367 Leaf auger with cleaning roller (PBSh-45_50)
01.07 - E905365 Leaf spreader (PBSh-45_50_V)
01.08 - E905373 Scalper bar (PBSh-45_50)
01.09 - E905366 Scalper holding frame (PBSh-45_50)
01.10 - E905375 Scalper (PBSh-45_50_V)
01.11 - E905381 Central lubrication and stickers (PBSh-45_50_V)
Hydraulic system - PBSh-45_50 topper
01.20 - E905492 Topper shaft (PBSh-45_50_V)
01.21 - E905491 Leaf auger with cleaning roller (PBSh-45_50_V)
01.22 - E905495 Topper wheel (PBSh-45_50_V)
01.23 - E905494 Adjustment of the cutting depth (PBSh-45_50_V)
01.24 - E905493 Leaf spreader and leaf spreader flaps (PBSh-45_50_V)
Model - leaf belt
01.30 - E905490 Leaf belt with accessories (PBSh_PBSWh)
01.31 - E905489 Hydraulic system_ leaf belt (PBSh-45_50_V)
01 - Topper PBSh-V (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905372 Topper housing - left and right (PBSh-45_50_V)
01.04 - E906178 Topper housing - front and rear (PBSh-V)
01.05 - E905370 Topper shaft (PBSh-V)
01.06 - E905379 Leaf auger with cleaning roller (PBSh-V)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906192 Holding device for leaf spreader (PBSh)
01.08 - E905380 Scalper bar (PBSh-V)
01.09 - E905374 Scalper holding frame (PBSh-V)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E905381 Central lubrication and stickers (PBSh-45_50_V)
Hydraulic system - PBSh-V topper
01.20 - E905492 Topper shaft (PBSh-45_50_V)
01.21 - E905491 Leaf auger with cleaning roller (PBSh-45_50_V)
01.22 - E905495 Topper wheel (PBSh-45_50_V)
01.23 - E905494 Adjustment of the cutting depth (PBSh-45_50_V)
01.24 - E905493 Leaf spreader and leaf spreader flaps (PBSh-45_50_V)
01.25 - E905482 Scalper - displacement and clamping cylinders (PBSh-V)
Model - leaf belt
01.30 - E905490 Leaf belt with accessories (PBSh_PBSWh)
01.31 - E905489 Hydraulic system_ leaf belt (PBSh-45_50_V)
01 - Topper PBSh-V (year of construction 2005)
01.01 - E905376 Leaf sensor (PBSh-45_50_V)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905372 Topper housing - left and right (PBSh-45_50_V)
01.04 - E905378 Topper housing - front and rear (PBSh-V)
01.05 - E905370 Topper shaft (PBSh-V)
01.06 - E905379 Leaf auger with cleaning roller (PBSh-V)
01.07 - E905365 Leaf spreader (PBSh-45_50_V)
01.08 - E905380 Scalper bar (PBSh-V)
01.09 - E905374 Scalper holding frame (PBSh-V)
01.10 - E905375 Scalper (PBSh-45_50_V)
01.11 - E905381 Central lubrication and stickers (PBSh-45_50_V)
Hydraulic system - PBSh-V topper
01.20 - E905492 Topper shaft (PBSh-45_50_V)
01.21 - E905491 Leaf auger with cleaning roller (PBSh-45_50_V)
01.22 - E905495 Topper wheel (PBSh-45_50_V)
01.23 - E905494 Adjustment of the cutting depth (PBSh-45_50_V)
01.24 - E905493 Leaf spreader and leaf spreader flaps (PBSh-45_50_V)
01.25 - E905482 Scalper - displacement and clamping cylinders (PBSh-V)
Model - leaf belt
01.30 - E905490 Leaf belt with accessories (PBSh_PBSWh)
01.31 - E905489 Hydraulic system_ leaf belt (PBSh-45_50_V)
01 - Topper PIS-XL (years of construction 2006 - 2013)
01.01 - E906530 Leaf sensor (PIS-XL)
01.02.1 - E906531 Topper wheel - internal (PIS-XL)
01.02.2 - E906532 Topper wheel - external (PIS-XL)
01.03 - E906540 Topper housing - left and right (PIS-XL)
01.04 - E906539 Topper housing - front (PIS-XL)
01.05 - E906538 Topper housing - rear (PIS-XL)
01.06 - E906535 Topper shaft - left and right (PIS-XL)
01.07 - E906537 Scalper bar (PIS-XL)
01.08 - E906536 Adjustment tube for scalper with a height indicator (PIS-XL)
01.09 - E906533 Scalper holding frame (PIS-XL)
01.10.1 - E906534 Scalper - standard (PIS-XL)
01.10.2 - E906541 Scalper - Micro-Topper 2 (PIS-XL)
01.11.1 - E906542 Central lubrication and stickers (PIS-XL)
01.11.2 - E906543 Central lubrication and stickers - for USA_Canada (PIS-XL)
Hydraulic system - PIS-XL topper
01.20 - E906547 Topper shaft - from year of construction 2007 (PIS-XL)
01.20 - E906548 Topper shaft - year of construction 2006 (PIS-XL 8x22_; 9x45; 6x30_)
01.21.1 - E906545 Topper wheel (PIS-XL 8x45; 8x50; 8x22_; 9x45; 9x50; 9x20_)
01.21.2 - E906549 Topper wheel (PIS-XL 6x30_)
01.22 - E906546 Scalper height adjustment (PIS-XL)
01 - Topper PISh-45_50 (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04.1 - E906173 Topper housing - front and rear (PISh-45)
01.04.2 - E906172 Topper housing - front and rear (PISh-50)
01.05 - E906170 Topper shaft - year of construction 2007 to 2009 (PISh-45_50)
01.05 - E906171 Topper shaft - to year of construction 2006 (PISh-45_50)
01.05 - E906175 Topper shaft - from year of construction 2010 (PISh-45_50)
01.06 - E905351 Scalper bar (PISh-45_50)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E906174 Scalper holding frame (PISh-45_50)
01.09.1 - E906144 Scalper - standard (PISh_RIS)
01.09.2 - E906143 Scalper - Micro-Topper 2 (PISh)
01.10 - E906360 Central lubrication and sticker (PISh)
01.11 - E906362 Additional stickers for contour marking (PISh)
Hydraulic system - PISh-45_50 topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01 - Topper PISh-45_50 (year of construction 2005)
01.01 - E905354 Leaf sensor (PISh-45_50_V)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04 - E905353 Topper housing - front and rear (PISh-45_50)
01.05 - E905359 Topper shaft (PISh-45_50)
01.06 - E905351 Scalper bar (PISh-45_50)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E905357 Scalper holding frame (PISh-45_50)
01.09 - E905356 Scalper (PISh-45_50_V)
Hydraulic system - PISh-45_50 topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01 - Topper PISh-V (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04 - E906167 Topper housing - front and rear (PISh-V)
01.05 - E906168 Topper shaft - year of construction 2007 to 2009 (PISh-V)
01.05 - E906169 Topper shaft - to year of construction 2006 (PISh-V)
01.05 - E906176 Topper shaft - from year of construction 2010 (PISh-V)
01.06 - E905361 Scalper bar - till year of constr. 2009 (PISh-V)
01.06 - E906131 Scalper bar - till year of constr. 2010 (PISh-V)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E905358 Scalper holding frame - up to year of construction 2009 (PISh-V)
01.08 - E906130 Scalper holding frame - from year of construction 2010 (PISh-V)
01.09.1 - E906144 Scalper - standard (PISh_RIS)
01.09.2 - E906143 Scalper - Micro-Topper 2 (PISh)
01.10 - E906360 Central lubrication and sticker (PISh)
01.11 - E906362 Additional stickers for contour marking (PISh)
Hydraulic system - PISh-V topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01.22 - E905498 Scalper - displacement cylinder - up to year of construction 2009 (PISh-V)
01.22 - E906129 Scalper - displacement cylinder - from year of construction 2010 (PISh-V)
01.23 - E905496 Scalper - clamping cylinder (PISh-V)
01 - Topper PISh-V (year of construction 2005)
01.01 - E905354 Leaf sensor (PISh-45_50_V)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04 - E905352 Topper housing - front and rear (PISh-V)
01.05 - E905360 Topper shaft (PISh-V)
01.06 - E905361 Scalper bar - till year of constr. 2009 (PISh-V)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E905358 Scalper holding frame - up to year of construction 2009 (PISh-V)
01.09 - E905356 Scalper (PISh-45_50_V)
Hydraulic system - PISh-V topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01.22 - E905498 Scalper - displacement cylinder - up to year of construction 2009 (PISh-V)
01.23 - E905496 Scalper - clamping cylinder (PISh-V)
02 - Lifter
02 - Lifter PR-XL (years of construction 2006-2013)
02.01.1 - E906482 Supporting frame with lifter depth hydraulic cylinder - centre (PR-XL 8x45; 8x50; 8x22_; 6x30_)
02.01.2 - E906520 Supporting frame with lifter depth hydraulic cylinder - centre (PR-XL 9x45; 9x50; 9x20_)
02.02 - E906481 Lifter side arm - left (PR-XL)
02.03 - E906480 Lifter side arm - right (PR-XL)
02.04 - E906483 Lifter depth hydraulic cylinder and topper maintenance - left (PR-XL)
02.05 - E906484 Lifter depth hydraulic cylinder and topper maintenance - right (PR-XL)
02.06 - E906485 Cross tube for shaking share pickup (PR-XL)
02.07 - E906493 Shaking share clamping brackets (PR-XL)
02.07 - E906607 Shaking share clamping brackets - reinforced (PR-XL)
02.08.1 - E906502 Shaking share (PR-XL 8x50; 9x50)
02.08.2 - E906503 Shaking share (PR-XL 8x22_)
02.08.3 - E906504 Shaking share (PR-XL 8x45; 9x45)
02.08.4 - E906505 Shaking share (PR-XL 9x20_)
02.08.5 - E906506 Shaking share (PR-XL 6x30_)
02.09 - E906507 Shaking share gears - to year of construction 2007 (PR-XL)
02.09 - E906508 Shaking share gears - from year of construction 2008 (PR-XL)
02.09 - E906603 Shaking share gears - reinforced (PR-XL)
02.10.1 - E906486 Cross tube for linear guide (PR-XL 8x45; 8x50; 8x22_; 6x30_)
02.10.2 - E906487 Cross tube for linear guide (PR-XL 9x45; 9x50; 9x20_)
02.11 - E906488 Linear guide clamping brackets (PR-XL)
02.12.1 - E906494 Lifter steering (PR-XL 8x45; 8x50)
02.12.2 - E906495 Lifter steering (PR-XL 8x22_; 6x30_)
02.12.3 - E906496 Lifter steering (PR-XL 9x45; 9x50)
02.12.4 - E906497 Lifter steering (PR-XL 9x20_)
02.13.1 - E906489 Bracket for PA rods - linear guide (PR-XL 8x45; 8x50; 8x22_; 9x45; 9x50; 9x20_)
02.13.2 - E906490 Bracket for PA rods - linear guide (PR-XL 6x30_)
02.14 - E906491 Share body with step grids (PR-XL)
02.15.1 - E906527 Share body with lifter shares (PR-XL)
02.15.2 - E906492 Share guide rods (PR-XL)
02.16 - E906499 Depth-control wheel - to year of construction 2011 (PR-XL)
02.16.1 - E906478 Depth-control wheel - from year of construction 2012 (PR-XL 8x22“; 6x30“)
02.16.2 - E906479 Depth-control wheel - from year of construction 2012 (PR-XL 8x45; 8x50; 9x45; 9x50; 9x20_)
02.17 - E906477 Supporting roller drive - left and right - with Poclain MSE05 (PR-XL)
02.17 - E906500 Supporting roller drive - left and right - year of construction 2007 to 2011 (PR-XL)
02.17 - E906521 Supporting roller drive - left and right - to year of construction 2006 (PR-XL)
02.17 - E906554 Supporting roller drive - left and right - with Poclain MSE08 (PR-XL)
02.18 - E906476 Supporting arm for supporting roller - left and right - with Poclain MSE05 (PR-XL)
02.18 - E906501 Supporting arm for supporting roller - left and right - to year of construction 2011 (PR-XL)
02.18 - E906555 Supporting arm for supporting roller - left and right - with Poclain MSE08 (PR-XL)
02.19 - E906513 Depth guide with automatic depth control - left and right - to year of construction 2011 (PR-XL)
02.19 - E906528 Depth guide with automatic depth control - left and right - from year of construction 2012 (PR-XL)
02.20 - E906514 Topper guide parallelogram - left and right (PR-XL)
02.21 - E906510 Lifting rollers - from year of construction 2007 (PR-XL)
02.21 - E906522 Lifting rollers - to year of construction 2006 (PR-XL - 7 rollers)
02.22 - E906511 Short lifting rollers - from year of construction 2008 (PR-XL)
02.22 - E906512 Short lifting rollers - to year of construction 2007 (PR-XL)
02.22 - E906523 Short lifting rollers - till year of construction 2006 (PR-XL - 7 rollers)
02.23.1 - E906517 Lifter gears - left-rear to year of construction 2006 (PR-XL - 7 rollers)
02.23.2 - E906518 Lifter gears - right-rear to year of construction 2006 (PR-XL - 7 rollers)
02.23.3 - E906516 Lifter gears - left-front to year of construction 2006 (PR-XL - 7 rollers)
02.23.4 - E906519 Open roller position - to year of construction 2006 (PR-XL - 7 rollers)
02.24 - E906509 Complete lifter gears from year of construction 2007 (PR-XL - 6 rollers)
02.25.1 - E906498 Paddle with drive (PR-XL)
02.25.2 - E906524 Paddle gears - to year of construction 2006 (PR-XL)
02.25.2 - E906525 Paddle gears - from year of construction 2007 (PR-XL)
02.26 - E906515 Lifter side covers (PR-XL)
02.27.1 - E906526 Central lubrication and stickers (PR-XL)
02.27.2 - E906544 Central lubrication and stickers - for USA_Canada (PR-XL)
Hydraulic system - lifting unit PR-XL - 6 rollers (Flange position - outside left and right) - from year of construction 2010
02.40 - E906700 Lifter and topper drive - left (PR-XL)
02.41 - E906701 Lifter and topper drive - right - to year of construction 2011 (PR-XL)
02.41 - E906720 Lifter and topper drive - right - from year of construction 2012 (PR-XL)
02.42 - E906702 Short lifting roller lifter drive and leak oil - left - to year of constr. 2011 (PR-XL)
02.42 - E906721 Short lifting roller lifter drive and leak oil - left - from year of constr. 2012 (PR-XL)
02.43 - E906703 Short lifting roller drive - left (PR-XL)
02.44 - E906704 Short lifting roller drive - right - to year of construction 2011 (PR-XL)
02.44 - E906722 Short lifting roller drive - right - from year of construction 2012 (PR-XL)
02.45 - E906705 Depth-control wheel drive and leak oil - left - to year of constr. 2011 (PR-XL)
02.45 - E906718 Depth-control wheel drive and leak oil - left - with Poclain MSE05 (PR-XL)
02.45 - E906780 Depth-control wheel drive and leak oil - left - with Poclain MSE08 (PR-XL)
02.46 - E906706 Depth-control wheel drive and leak oil - right - to year of constr. 2011 (PR-XL)
02.46 - E906719 Depth-control wheel drive and leak oil - right - with Poclain MSE05 (PR-XL)
02.46 - E906781 Depth-control wheel drive and leak oil - right - with Poclain MSE08 (PR-XL)
02.47 - E906608 Shaking share drive - reinforced (PR-XL 8x45)
02.47 - E906707 Shaking share drive - to year of construction 2011 (PR-XL)
02.47 - E906723 Shaking share drive - from year of construction 2012 (PR-XL)
02.48 - E906708 Paddle drive - till year of construction 2011 (PR-XL)
02.48 - E906724 Paddle drive - from year of construction 2012 (PR-XL)
02.49 - E906709 Leak oil lines - rear - to year of construction 2011 (PR-XL)
02.49 - E906725 Leak oil lines - rear - from year of construction 2012 (PR-XL)
02.50 - E906710 Leak oil lines - depth-control shaft and topper drive (PR-XL)
02.51 - E906711 Supply lines - rear - left and right - to year of construction 2011 (PR-XL)
02.51 - E906726 Supply lines - rear - left and right - from year of construction 2012 (PR-XL)
02.52 - E906712 Supply lines - left and right (PR-XL)
02.53 - E906713 Supporting frame lifter depth-centre - to year of constr. 2011 (PR-XL)
02.53 - E906727 Supporting frame lifter depth - centre - from year of constr. 2012 (PR-XL)
02.54 - E906593 Topper relief cylinder (PR-XL)
02.55 - E906714 Topper maintenance cylinder - to year of construction 2011 (PR-XL)
02.55 - E906728 Topper maintenance cylinder - from year of construction 2012 (PR-XL)
02.56 - E906592 Supporting roller and lifting roller height adjustment (PR-XL)
02.57 - E906715 Stone protection (PR-XL)
02.58.1 - E906716 Multi-coupler with quick coupler - left (PR-XL)
02.58.2 - E906597 Multi-coupler without quick coupler - left (PR-XL)
02.59.1 - E906717 Distribution block with quick coupler - right (PR-XL)
02.59.2 - E906596 Distribution block without quick coupler - right (PR-XL)
Hydraulic system - lifting unit PR-XL - 6 rollers (Flange position - outside left and right) - up to year of construction 2009
02.40 - E906571 Lifter and topper drive - left (PR-XL 8x22_; 9x45)
02.41 - E906573 Lifter and topper drive - right (PR-XL 8x22_; 9x45)
02.42 - E906578 Lifter drive and short lifting roller leak oil - left (PR-XL 8x22_; 9x45)
02.43 - E906580 Short lifting roller drive - left (PR-XL 8x22_; 9x45)
02.44 - E906585 Short lifting roller drive - right (PR-XL 8x22_; 9x45)
02.45 - E906589 Depth-control wheel drive and leak oil - left (PR-XL 8x22_; 9x45)
02.46 - E906587 Depth-control wheel drive and leak oil - right (PR-XL 8x22_; 9x45)
02.47 - E906575 Shaking share drive (PR-XL 8x22_; 9x45)
02.48 - E906594 Paddle drive (PR-XL 8x22_; 9x45)
02.49 - E906576 Leak oil lines - rear (PR-XL 8x22_; 9x45)
02.50 - E906583 Leak oil lines - depth-control shaft and topper drive (PR-XL 8x22_; 9x45)
02.51 - E906563 Supply lines - rear - left and right (PR-XL 8x22_; 9x45)
02.52 - E906564 Supply lines - left and right (PR-XL 8x22_; 9x45)
02.53 - E906561 Supporting frame lifter depth - centre (PR-XL 8x22_; 9x45)
02.54 - E906593 Topper relief cylinder (PR-XL)
02.55 - E906568 Topper maintenance cylinder (PR-XL 8x22_; 9x45)
02.56 - E906592 Supporting roller and lifting roller height adjustment (PR-XL)
02.57 - E906591 Stone protection (PR-XL)
02.58 - E906582 Multi-coupler with quick coupler - left (PR-XL)
02.59 - E906566 Distribution block with quick coupler - right (PR-XL - to year of constr. 2007)
02.59 - E906567 Distribution block with quick coupler - right (PR-XL - from year of constr. 2008)
Hydraulic system - lifting unit PR-XL - 6 rollers (flange position - centre)
02.40 - E906570 Lifter and topper drive - left (PR-XL 8x50; 9x50)
02.41 - E906572 Lifter and topper drive - right (PR-XL 8x50; 9x50)
02.42 - E906579 Lifter drive and short lifting roller leak oil - left (PR-XL 8x50; 9x50)
02.43 - E906581 Short lifting roller drive - left (PR-XL 8x50; 9x50)
02.44 - E906586 Short lifting roller drive - right (PR-XL 8x50; 9x50)
02.45 - E906590 Depth-control wheel drive and leak oil - left (PR-XL 8x50; 9x50)
02.46 - E906588 Depth-control wheel drive and leak oil - right (PR-XL 8x50; 9x50)
02.47 - E906574 Shaking share drive (PR-XL 8x50; 9x50)
02.48 - E906595 Paddle drive (PR-XL 8x50; 9x50)
02.49 - E906577 Leak oil lines - rear (PR-XL 8x50; 9x50)
02.50 - E906584 Leak oil lines - depth-control shaft and topper drive (PR-XL 8x50; 9x50)
02.51 - E906562 Supply lines - rear - left and right (PR-XL 8x50; 9x50)
02.52 - E906565 Supply lines - left and right (PR-XL 8x50; 9x50)
02.53 - E906560 Supporting frame lifter depth - centre (PR-XL 8x50; 9x50)
02.54 - E906593 Topper relief cylinder (PR-XL)
02.55 - E906569 Topper maintenance cylinder (PR-XL 8x50; 9x50)
02.56 - E906592 Supporting roller and lifting roller height adjustment (PR-XL)
02.57 - E906591 Stone protection (PR-XL)
Special equipment
02.30.1 - E906340 Model - transporter with accessories - part 1
02.30.2 - E906341 Model - transporter with accessories - part 2
02.30.3 - E906342 Model - transporter with accessories - part 3
02.30.4 - E906343 Model - transporter with accessories - part 4
02.31.1 - E906344 Model - transporter - brake system - part 1
02.31.2 - E906345 Model - transporter - brake system - part 2
02.32 - E906329 Model - transporter warning sign
02.33 - E906359 Model - stickers transporter
Components and Details
02 - Lifter PRh-45 (from year of construction 2006)
02.01 - E906200 Cross tube for shaking share pickup (PRh-45)
02.02 - E906202 Shaking shear clamping brackets (PRh-45)
02.02 - E906604 Shaking share clamping brackets - reinforced (PRh-45)
02.03 - E906204 Shaking share drive (PRh-45)
02.04 - E906205 Shaking share gears - to year of construction 2007 (PRh-45_50_V)
02.04 - E906257 Shaking share gears - from year of construction 2008 (PRh-45_50_V)
02.04 - E906600 Shaking share gears - reinforced (PRh-45_50_V)
02.05 - E906207 Linear guide cross tube (PRh-45)
02.06 - E906209 Linear guide (PRh-45)
02.07 - E905408 Bracket for linear guide PA rods (PRh-45_50)
02.08 - E906189 Share body with linear guide - from year of construction 2014 (PRh-45_50_V)
02.08 - E906211 Share body with linear guide - to year of construction 2013 (PRh-45_50_V)
02.09.1 - E906271 Share body with lifting shares - to year of construction 2013 (PRh-45_50_V)
02.09.1 - E906274 Share body with lifter shares - from year of construction 2014 (PRh-45_50_V)
02.09.2 - E906161 Share guide rods - from year of construction 2014 (PRh-45_50_V)
02.09.2 - E906272 Share guide rods - to year of construction 2013 (PRh-45_50_V)
02.10 - E906226 Lifter steering (PRh-45_50_V)
02.11 - E906212 Depth-control wheel - to year of construction 2006 (PRh-45)
02.11 - E906250 Depth-control wheel - from year of construction 2007 with OMVU (PRh-45_50)
02.11 - E906550 Depth-control wheel - with Poclain MSE05 (PRh-45_50)
02.12 - E905407 Supporting roller drive-left - to year of construction 2006 (PRh-45_50_V)
02.12 - E906252 Supporting roller drive-left - from year of construction 2007 with OMVU (PRh-45_50)
02.13 - E905437 Supporting roller drive-right - to year of construction 2006 (PRh-45_50_V)
02.13 - E906251 Supporting roller drive-right - from year of construction 2007 with OMVU (PRh-45_50)
02.13 - E906551 Supporting roller drive - left and right - with Poclain MSE05 - to year of construction 2013 (PRh-45_50)
02.13 - E906558 Supporting roller drive - left and right - with Poclain MSE05 - from year of construction 2014 (PRh-45_50)
02.14.1 - E906215 Supporting roller supporting arm - left - year of construction 2006 (PRh-45)
02.14.2 - E906214 Supporting roller supporting arm - right - year of construction 2006 (PRh-45)
02.15 - E906253 Support roller support arm - left and right - from year of constr. 2007 with OMVU (PRh-45_50)
02.15 - E906552 Supporting roller supporting arm - left and right - with Poclain MSE05 (PRh-45_50)
02.16 - E906247 Depth guide - with OMVU (PRh-45_50)
02.16 - E906553 Depth guide - with Poclain MSE05 (PRh-45_50)
02.17 - E906216 Lifting rollers (PRh-45)
02.18 - E906218 Short lifting rollers (PRh-45)
02.19.1 - E905432 Paddle (PRh-45_50_V)
02.19.2 - E905453 Paddle gears - to year of construction 2006 (PRh-45_50_V)
02.19.2 - E906267 Paddle gears - from year of construction 2007 (PRh-45_50_V)
02.20 - E905434 Complete lifter gears - left-rear (PRh-45_50_V)
02.21 - E905433 Complete lifter gears - right - rear (PRh-45_50_V)
02.22 - E906262 Complete lifter gears - left-front (PRh-45_50_V)
02.23 - E906221 Supporting frame and lifter side arm (PRh-45)
02.24 - E906235 Topper guide parallelogram - to year of construction 2006 (PRh-45_50_V)
02.24 - E906242 Topper guide parallelogram - from year of construction 2007 (PRh-45_50_V)
02.25 - E906227 Supporting arm - centre (PRh-45)
02.26 - E906229 Lifter side covers - to year of construction 2007 (PRh-45)
02.26 - E906263 Lifter side covers - from year of construction 2008 (PRh-45)
02.27 - E906233 Supporting frame lifter covers - left (PRh-45)
02.28 - E906231 Supporting frame lifter covers - right (PRh-45)
02.29 - E906269 Central lubrication and stickers (PRh-45)
Hydraulic system - lifting unit PRh-45
02.40 - E906458 Topper drive (PRh-45_50_V)
02.41.1 - E906459 Topper - supply line and leak oil (PRh-45_50_V)
02.41.2 - E906446 Topper - supply line and leak oil with shaking share fast speed (PRh-45_50_V)
02.42 - E906473 Return line - topper drive with PBSh_PASh (PRh-45_50_V)
02.43 - E906472 Return line - topper drive with PISh_PESh (PRh-45_50_V)
02.44 - E906474 Return line - lifting roller drive and leak oil (PRh-45_50_V)
02.45 - E906469 Short lifting roller drive (PRh-45_50_V)
02.46 - E906461 Shake share drive with PBSh_PASh (PRh-45_50_V)
02.46 - E906601 Shake share drive - reinforced with PBSh_PASh (PRh-45_50_V)
02.47 - E906460 Shake share drive with PISh_PESh (PRh-45_50_V)
02.47 - E906602 Shake share drive - reinforced with PISh_PESh (PRh-45_50_V)
02.48 - E906462 Paddle drive and shift lifting unit (PRh-45_50_V)
02.49 - E906465 Supply lines - left and right (PRh-45_50)
02.50 - E906470 Topper relief cylinder (PRh-45_50_V)
02.51 - E906471 Topper maintenance cylinder (PRh-45_50_V)
02.52 - E906475 Stone protection (PRh-45_50_V)
02.53 - E906468 Supporting roller supply and return lines (PRh-45_50_V)
02.54 - E906467 Supporting roller drive - right - with OMVU (PRh-45_50)
02.54 - E906556 Supporting roller drive - right - with Poclain MSE05 - to year of construction 2013 (PRh-45_50)
02.54 - E906559 Supporting roller drive - right - with Poclain MSE05 - from year of construction 2014 (PRh-45_50)
02.55 - E906466 Supporting roller drive - left - with OMVU (PRh-45_50)
02.55 - E906557 Supporting roller drive - left - with Poclain MSE05 - to year of construction 2013 (PRh-45_50)
02.55 - E906598 Supporting roller drive - left - with Poclain MSE05 - from year of constr. 2014 (PRh-45_50)
02.56 - E906447 Supporting roller and lifting roller height adjustment - to year of construction 2006 (PRh-45_50_V)
02.56 - E906463 Supporting roller and lifting roller height adjustment - from year of construction 2007 (PRh-45_50_V)
Special equipment
02.35 - E906236 Chicory model - share body with lifting shares (PRh-45)
02.36 - E906244 Chicory model - linear guide tilting frame (PRh-45)
02.37.1 - E906241 Chicory model - row sensor - part 1 (PRh-45)
02.37.2 - E906273 Chicory model - row sensor - part 2 (PRh-45)
02 - Lifter PRh-45_50 (year of construction 2005)
02.01 - E905411 Cross tube for shaking share pickup (PRh-45_50)
02.02 - E905413 Shaking share clamping brackets (PRh-45_50)
02.03 - E905430 Shaking share drive - till year of construction 2005 (PRh-45_50)
02.03.1 - E905438 Shaking share drive - from year of construction 2006 (PRh-45)
02.03.2 - E905431 Shaking share drive - from year of construction 2006 (PRh-50)
02.04 - E905418 Shaking share gears - to year of construction 2005 (PRh-45_50_V)
02.04 - E905445 Shaking share gears - from year of construction 2006 (PRh-45_50_V)
02.05 - E905415 Linear guide cross tube (PRh-45_50)
02.06 - E905419 Linear guide (PRh-45_50)
02.07 - E905408 Bracket for linear guide PA rods (PRh-45_50)
02.08 - E905421 Share body with linear guide (PRh-45_50_V)
02.09 - E905422 Bracket for share guide rods at share body (PRh-45_50_V)
02.10 - E905423 Lifter steering (PRh-45_50_V)
02.11.1 - E905424 Depth-control wheel (PRh-45)
02.11.2 - E905425 Depth-control wheel (PRh-50)
02.12 - E905407 Supporting roller drive-left - to year of construction 2006 (PRh-45_50_V)
02.13 - E905437 Supporting roller drive-right - to year of construction 2006 (PRh-45_50_V)
02.14 - E905406 Supporting roller supporting arm - left (PRh-45_50)
02.15 - E905405 Supporting roller supporting arm - right (PRh-45_50)
02.16 - E905429 Depth guide (PRh-45_50_V)
02.17 - E905427 Lifting rollers (PRh-45_50)
02.18 - E905428 Short lifting rollers (PRh-45_50)
02.19.1 - E905432 Paddle (PRh-45_50_V)
02.19.2 - E905453 Paddle gears - to year of construction 2006 (PRh-45_50_V)
02.20 - E905434 Complete lifter gears - left-rear (PRh-45_50_V)
02.21 - E905433 Complete lifter gears - right - rear (PRh-45_50_V)
02.22 - E905435 Complete lifter gears - left-front (PRh-45_50_V)
02.23 - E905400 Supporting frame and lifter side arm (PRh-45_50)
02.24 - E905404 Topper guide parallelogram - left (PRh-45_50)
02.25 - E905403 Topper guide parallelogram - right (PRh-45_50)
02.26 - E905410 Supporting arm - centre (PRh-45_50)
02.27 - E905436 Lifter side covers (PRh-45_50)
02.28 - E905401 Supporting frame lifter covers - left (PRh-45_50)
02.29 - E905402 Supporting frame lifter covers - right (PRh-45_50)
02.30 - E905399 Central lubrication and stickers (PRh-45_50)
02 - Lifter PRh-50 (from year of construction 2006)
02.01 - E906201 Cross tube for shaking share pickup (PRh-50)
02.02 - E906203 Shaking share clamping brackets (PRh-50)
02.02 - E906605 Shaking share clamping brackets - reinforced (PRh-50)
02.03 - E906206 Shaking share drive - to year of construction 2007 (PRh-50)
02.03 - E906256 Shaking share drive - from year of construction 2008 (PRh-50)
02.04 - E906205 Shaking share gears - to year of construction 2007 (PRh-45_50_V)
02.04 - E906257 Shaking share gears - from year of construction 2008 (PRh-45_50_V)
02.04 - E906600 Shaking share gears - reinforced (PRh-45_50_V)
02.05 - E906208 Linear guide cross tube (PRh-50_V)
02.06 - E906210 Linear guide (PRh-50)
02.07 - E905408 Bracket for linear guide PA rods (PRh-45_50)
02.08 - E906189 Share body with linear guide - from year of construction 2014 (PRh-45_50_V)
02.08 - E906211 Share body with linear guide - to year of construction 2013 (PRh-45_50_V)
02.09.1 - E906271 Share body with lifting shares - to year of construction 2013 (PRh-45_50_V)
02.09.1 - E906274 Share body with lifter shares - from year of construction 2014 (PRh-45_50_V)
02.09.2 - E906161 Share guide rods - from year of construction 2014 (PRh-45_50_V)
02.09.2 - E906272 Share guide rods - to year of construction 2013 (PRh-45_50_V)
02.10 - E906226 Lifter steering (PRh-45_50_V)
02.11 - E906213 Depth-control wheel - to year of construction 2006 (PRh-50)
02.11 - E906250 Depth-control wheel - from year of construction 2007 with OMVU (PRh-45_50)
02.11 - E906550 Depth-control wheel - with Poclain MSE05 (PRh-45_50)
02.12 - E905407 Supporting roller drive-left - to year of construction 2006 (PRh-45_50_V)
02.12 - E906252 Supporting roller drive-left - from year of construction 2007 with OMVU (PRh-45_50)
02.13 - E905437 Supporting roller drive-right - to year of construction 2006 (PRh-45_50_V)
02.13 - E906251 Supporting roller drive-right - from year of construction 2007 with OMVU (PRh-45_50)
02.13 - E906551 Supporting roller drive - left and right - with Poclain MSE05 - to year of construction 2013 (PRh-45_50)
02.13 - E906558 Supporting roller drive - left and right - with Poclain MSE05 - from year of construction 2014 (PRh-45_50)
02.14.1 - E906238 Supporting roller supporting arm - left - year of construction 2006 (PRh-50_V)
02.14.2 - E906237 Supporting roller supporting arm - right - year of construction 2006 (PRh-50_V)
02.15 - E906253 Support roller support arm - left and right - from year of constr. 2007 with OMVU (PRh-45_50)
02.15 - E906552 Supporting roller supporting arm - left and right - with Poclain MSE05 (PRh-45_50)
02.16 - E906247 Depth guide - with OMVU (PRh-45_50)
02.16 - E906553 Depth guide - with Poclain MSE05 (PRh-45_50)
02.17 - E906217 Lifting rollers (PRh-50)
02.18 - E906219 Short lifting rollers (PRh-50_V)
02.19.1 - E905432 Paddle (PRh-45_50_V)
02.19.2 - E905453 Paddle gears - to year of construction 2006 (PRh-45_50_V)
02.19.2 - E906267 Paddle gears - from year of construction 2007 (PRh-45_50_V)
02.20 - E905434 Complete lifter gears - left-rear (PRh-45_50_V)
02.21 - E905433 Complete lifter gears - right - rear (PRh-45_50_V)
02.22 - E906262 Complete lifter gears - left-front (PRh-45_50_V)
02.23 - E906222 Supporting frame and lifter side arm (PRh-50)
02.24 - E906235 Topper guide parallelogram - to year of construction 2006 (PRh-45_50_V)
02.24 - E906242 Topper guide parallelogram - from year of construction 2007 (PRh-45_50_V)
02.25 - E906228 Supporting arm - centre (PRh-50_V)
02.26 - E906224 Lifting roller side shift - left - to year of construction 2007 (PRh-50_V)
02.26 - E906261 Lifting roller side shift - left - from year of construction 2008 (PRh-50_V)
02.27 - E906223 Lifting roller side shift - right - to year of construction 2007 (PRh-50_V)
02.27 - E906260 Lifting roller side shift - right - from year of construction 2008 (PRh-50_V)
02.28 - E906230 Lifter side covers - to year of construction 2007 (PRh-50_V)
02.28 - E906264 Lifter side covers - from year of construction 2008 (PRh-50_V)
02.29 - E906234 Supporting frame lifter covers - left (PRh-50_V)
02.30 - E906232 Supporting frame lifter covers - right (PRh-50_V)
02.31 - E906270 Central lubrication and stickers (PRh-50_V)
Hydraulic system - lifting unit PRh-50
02.40 - E906458 Topper drive (PRh-45_50_V)
02.41.1 - E906459 Topper - supply line and leak oil (PRh-45_50_V)
02.41.2 - E906446 Topper - supply line and leak oil with shaking share fast speed (PRh-45_50_V)
02.42 - E906473 Return line - topper drive with PBSh_PASh (PRh-45_50_V)
02.43 - E906472 Return line - topper drive with PISh_PESh (PRh-45_50_V)
02.44 - E906474 Return line - lifting roller drive and leak oil (PRh-45_50_V)
02.45 - E906469 Short lifting roller drive (PRh-45_50_V)
02.46 - E906461 Shake share drive with PBSh_PASh (PRh-45_50_V)
02.46 - E906601 Shake share drive - reinforced with PBSh_PASh (PRh-45_50_V)
02.47 - E906460 Shake share drive with PISh_PESh (PRh-45_50_V)
02.47 - E906602 Shake share drive - reinforced with PISh_PESh (PRh-45_50_V)
02.48 - E906462 Paddle drive and shift lifting unit (PRh-45_50_V)
02.49 - E906465 Supply lines - left and right (PRh-45_50)
02.50 - E906470 Topper relief cylinder (PRh-45_50_V)
02.51 - E906471 Topper maintenance cylinder (PRh-45_50_V)
02.52 - E906475 Stone protection (PRh-45_50_V)
02.53 - E906468 Supporting roller supply and return lines (PRh-45_50_V)
02.54 - E906467 Supporting roller drive - right - with OMVU (PRh-45_50)
02.54 - E906556 Supporting roller drive - right - with Poclain MSE05 - to year of construction 2013 (PRh-45_50)
02.54 - E906559 Supporting roller drive - right - with Poclain MSE05 - from year of construction 2014 (PRh-45_50)
02.55 - E906466 Supporting roller drive - left - with OMVU (PRh-45_50)
02.55 - E906557 Supporting roller drive - left - with Poclain MSE05 - to year of construction 2013 (PRh-45_50)
02.55 - E906598 Supporting roller drive - left - with Poclain MSE05 - from year of constr. 2014 (PRh-45_50)
02.56 - E906447 Supporting roller and lifting roller height adjustment - to year of construction 2006 (PRh-45_50_V)
02.56 - E906463 Supporting roller and lifting roller height adjustment - from year of construction 2007 (PRh-45_50_V)
02.57 - E906456 Shift roller position - from year of construction 2008 (PRh-50_V)
02.57 - E906457 Shift roller position - to year of construction 2007 (PRh-50_V)
02 - Lifter PRh-V (from year of construction 2006)
02.01 - E906239 Cross tube for shaking share pickup (PRh-V)
02.02 - E905414 Shaking share clamping brackets (PRh-V)
02.02 - E906606 Shaking share clamping brackets - reinforced (PRh-V)
02.03 - E905439 Shaking share drive (PRh-V)
02.04 - E906205 Shaking share gears - to year of construction 2007 (PRh-45_50_V)
02.04 - E906257 Shaking share gears - from year of construction 2008 (PRh-45_50_V)
02.04 - E906600 Shaking share gears - reinforced (PRh-45_50_V)
02.05 - E906208 Linear guide cross tube (PRh-50_V)
02.06 - E905420 Linear guide (PRh-V)
02.07 - E905409 Bracket for linear guide PA rods (PRh-V)
02.08 - E906189 Share body with linear guide - from year of construction 2014 (PRh-45_50_V)
02.08 - E906211 Share body with linear guide - to year of construction 2013 (PRh-45_50_V)
02.09.1 - E906271 Share body with lifting shares - to year of construction 2013 (PRh-45_50_V)
02.09.1 - E906274 Share body with lifter shares - from year of construction 2014 (PRh-45_50_V)
02.09.2 - E906161 Share guide rods - from year of construction 2014 (PRh-45_50_V)
02.09.2 - E906272 Share guide rods - to year of construction 2013 (PRh-45_50_V)
02.10 - E906226 Lifter steering (PRh-45_50_V)
02.11 - E906225 Depth-control wheel - till year of construction 2006 (PRh-V)
02.11 - E906254 Depth-control wheel - from year of construction 2007 (PRh-V)
02.12 - E905407 Supporting roller drive-left - to year of construction 2006 (PRh-45_50_V)
02.12 - E906246 Supporting roller gears - left - year of construction 2007 (PRh-V)
02.12 - E906265 Supporting roller gears - left - from year of construction 2008 (PRh-V)
02.13 - E905437 Supporting roller drive-right - to year of construction 2006 (PRh-45_50_V)
02.13 - E906245 Supporting roller gears - right - year of construction 2007 (PRh-V)
02.13 - E906266 Supporting roller gears - right - from year of construction 2008 (PRh-V)
02.14.1 - E906238 Supporting roller supporting arm - left - year of construction 2006 (PRh-50_V)
02.14.2 - E906237 Supporting roller supporting arm - right - year of construction 2006 (PRh-50_V)
02.15 - E906249 Supporting roller supporting arm - left and right - year of construction 2007 (PRh-V)
02.15 - E906258 Supporting roller supporting arm - left and right - from year of constr. 2008 (PRh-V)
02.16 - E906243 Depth guide - year of construction 2007 (PRh-V)
02.16 - E906248 Depth guide - year of construction 2006 (PRh-V)
02.16 - E906259 Depth guide - from year of construction 2008 (PRh-V)
02.17 - E906240 Lifting rollers (PRh-V)
02.18 - E906219 Short lifting rollers (PRh-50_V)
02.19.1 - E905432 Paddle (PRh-45_50_V)
02.19.2 - E905453 Paddle gears - to year of construction 2006 (PRh-45_50_V)
02.19.2 - E906267 Paddle gears - from year of construction 2007 (PRh-45_50_V)
02.20 - E905434 Complete lifter gears - left-rear (PRh-45_50_V)
02.21 - E905433 Complete lifter gears - right - rear (PRh-45_50_V)
02.22 - E906262 Complete lifter gears - left-front (PRh-45_50_V)
02.23 - E906220 Supporting frame and lifter side arm (PRh-V)
02.24 - E906235 Topper guide parallelogram - to year of construction 2006 (PRh-45_50_V)
02.24 - E906242 Topper guide parallelogram - from year of construction 2007 (PRh-45_50_V)
02.25 - E906228 Supporting arm - centre (PRh-50_V)
02.26 - E906224 Lifting roller side shift - left - to year of construction 2007 (PRh-50_V)
02.26 - E906261 Lifting roller side shift - left - from year of construction 2008 (PRh-50_V)
02.27 - E906223 Lifting roller side shift - right - to year of construction 2007 (PRh-50_V)
02.27 - E906260 Lifting roller side shift - right - from year of construction 2008 (PRh-50_V)
02.28 - E906230 Lifter side covers - to year of construction 2007 (PRh-50_V)
02.28 - E906264 Lifter side covers - from year of construction 2008 (PRh-50_V)
02.29 - E906234 Supporting frame lifter covers - left (PRh-50_V)
02.30 - E906232 Supporting frame lifter covers - right (PRh-50_V)
02.31 - E906270 Central lubrication and stickers (PRh-50_V)
Hydraulic system - lifting unit PRh-V
02.40 - E906458 Topper drive (PRh-45_50_V)
02.41.1 - E906459 Topper - supply line and leak oil (PRh-45_50_V)
02.41.2 - E906446 Topper - supply line and leak oil with shaking share fast speed (PRh-45_50_V)
02.42 - E906473 Return line - topper drive with PBSh_PASh (PRh-45_50_V)
02.43 - E906472 Return line - topper drive with PISh_PESh (PRh-45_50_V)
02.44 - E906474 Return line - lifting roller drive and leak oil (PRh-45_50_V)
02.45 - E906469 Short lifting roller drive (PRh-45_50_V)
02.46 - E906461 Shake share drive with PBSh_PASh (PRh-45_50_V)
02.46 - E906601 Shake share drive - reinforced with PBSh_PASh (PRh-45_50_V)
02.47 - E906460 Shake share drive with PISh_PESh (PRh-45_50_V)
02.47 - E906602 Shake share drive - reinforced with PISh_PESh (PRh-45_50_V)
02.48 - E906462 Paddle drive and shift lifting unit (PRh-45_50_V)
02.49 - E906464 Supply lines - left and right - from year of construction 2007 (PRh-V)
02.49 - E906529 Supply lines - left and right - to year of construction 2006 (PRh-V)
02.50 - E906470 Topper relief cylinder (PRh-45_50_V)
02.51 - E906471 Topper maintenance cylinder (PRh-45_50_V)
02.52 - E906475 Stone protection (PRh-45_50_V)
02.53 - E906468 Supporting roller supply and return lines (PRh-45_50_V)
02.54 - E906449 Supporting roller drive - right to year of construction 2006 (PRh-V)
02.54 - E906454 Supporting roller drive - right - from year of construction 2007 (PRh-V)
02.55 - E906448 Supporting roller drive - left to year of construction 2006 (PRh-V)
02.55 - E906455 Supporting roller drive - left - from year of construction 2007 (PRh-V)
02.56 - E906447 Supporting roller and lifting roller height adjustment - to year of construction 2006 (PRh-45_50_V)
02.56 - E906463 Supporting roller and lifting roller height adjustment - from year of construction 2007 (PRh-45_50_V)
02.57 - E906456 Shift roller position - from year of construction 2008 (PRh-50_V)
02.57 - E906457 Shift roller position - to year of construction 2007 (PRh-50_V)
02.58 - E906255 Shift supporting roller from year of construction 2007 (PRh-V)
02.58 - E906445 Shift supporting roller to year of construction 2006 (PRh-V)
02.59 - E906452 Shift share body (PRh-V)
02.60 - E906451 Clamp share body (PRh-V)
02.61 - E906453 Shift shaking share (PRh-V)
02.62 - E906450 Clamp shaking share (PRh-V)
02 - Lifter PRh-V (year of construction 2005)
02.01 - E905412 Cross tube for shaking share pickup (PRh-V)
02.02 - E905414 Shaking share clamping brackets (PRh-V)
02.03 - E905439 Shaking share drive (PRh-V)
02.04 - E905418 Shaking share gears - to year of construction 2005 (PRh-45_50_V)
02.04 - E905445 Shaking share gears - from year of construction 2006 (PRh-45_50_V)
02.05 - E905444 Linear guide cross tube (PRh-V)
02.06 - E905420 Linear guide (PRh-V)
02.07 - E905409 Bracket for linear guide PA rods (PRh-V)
02.08 - E905421 Share body with linear guide (PRh-45_50_V)
02.09 - E905422 Bracket for share guide rods at share body (PRh-45_50_V)
02.10 - E905423 Lifter steering (PRh-45_50_V)
02.11 - E905426 Depth-control wheel (PRh-V)
02.12 - E905407 Supporting roller drive-left - to year of construction 2006 (PRh-45_50_V)
02.13 - E905437 Supporting roller drive-right - to year of construction 2006 (PRh-45_50_V)
02.14 - E905442 Supporting roller supporting arm - left (PRh-V)
02.15 - E905440 Supporting roller supporting arm - right (PRh-V)
02.16 - E905429 Depth guide (PRh-45_50_V)
02.17 - E905446 Lifting rollers (PRh-V)
02.18 - E905447 Short lifting rollers (PRh-V)
02.19.1 - E905432 Paddle (PRh-45_50_V)
02.19.2 - E905453 Paddle gears - to year of construction 2006 (PRh-45_50_V)
02.20 - E905434 Complete lifter gears - left-rear (PRh-45_50_V)
02.21 - E905433 Complete lifter gears - right - rear (PRh-45_50_V)
02.22 - E905435 Complete lifter gears - left-front (PRh-45_50_V)
02.23 - E905449 Supporting frame and lifter side arm (PRh-V)
02.24 - E905451 Topper guide parallelogram - left (PRh-V)
02.25 - E905450 Topper guide parallelogram - right (PRh-V)
02.26 - E905443 Supporting arm - centre (PRh-V)
02.27 - E905417 Lifting roller side shift - left (PRh-V)
02.28 - E905416 Lifting roller side shift - right (PRh-V)
02.29 - E905452 Lifter side covers (PRh-V)
02.30 - E905441 Supporting frame lifter covers - left (PRh-V)
02.31 - E905448 Supporting frame lifter covers - right (PRh-V)
02.32 - E905398 Central lubrication and stickers (PRh-V)
03 - Intermediate belt
03.01 - E905147 Sieve conveyor, rollers and transfer pipe
03.02 - E905148 Intermediate belt frame and intermediate belt rubber
03.03 - E905149 Intermediate belt suspension
04 - Strainer wheel
04.01 - E905150 Strainer wheel 1
04.02 - E905151 Strainer wheel 2
04.03 - E905152 Strainer wheel 3
04.04.1 - E905156 Strainer wheel guide grids without spring tines
04.04.2 - E905153 Strainer wheel guide grids with spring tines
04.04.3 - E905154 Holding device and guide grid for pig tails
04.05 - E902030 Strainer wheel rubber cover
04.06 - E905157 Central adjustment of strainer wheel guide grids
04.07 - E902034 Bearing arm guide grids
04.08 - E902035 Guide grid adj. control lever
04.09 - E905155 Transfer tube central adjustment
04.10 - E902018 Strainer wheel mounting frame and safety bar
Special equipment
04.20 - E905169 Model - 1st strainer wheel agitator
04.21 - E905168 Model - driven guide grids (burl cleaning)
05 - Elevator
05.01 - E905159 Elevator drive
05.02 - E902037 Elevator arm - right
05.03 - E905158 Elevator arm - left, elevator rubber - above
05.04 - E901247 Elevator duct - left
05.05 - E905170 Elevator duct elevator bearer - left
05.06 - E901261 Elevator duct elevator bearer - right
05.07 - E901257 Elevator angular gear
06 - Bunker
- E9800498 Frame tubes on conveyor drive
06.01 - E902047 Bunker auger
06.02 - E905164 Rear cover in bunker
06.03 - E905160 Cleaning roller with chain drive (up to year of construction 2009)
06.04 - E905167 PA guide bars conveyors
06.05 - E905162 Longitudinal conveyor
06.06 - E905163 Cross conveyor
06.07 - E901231 Rubber in the bunker
06.08 - E902041 Foldable bunker connection bracket
06.09 - E905161 Bunker inside
07 - Unload conveyor
07.01 - E905165 Unload conveyor frame
07.02 - E905166 Unload conveyor, belt and rollers
08 - Chassis
- E9800487 Overview of lacquers and paints
08.01 - E905205 Three-point suspension, lower guide rod and upper guide rod
08.02 - E905206 Forward frame component, articulated joint and axle support
08.03.1 - E902079 Cabin ladder
08.03.2 - E902080 Bunker ladder
08.04 - E905201 Engine compartment underride guard
08.05 - E905202 Engine compartment frame and rear cover
08.06 - E905203 Engine compartment frame - above
08.07 - E905204 Engine compartment cover - above
08.08 - E905209 Support arm, axle 3
08.09.1 - E905216 Axles, drive shafts and tyres - part 1
08.09.2 - E905214 Axles, drive shafts and tyres - part 2
08.10 - E905213 axle 4_
08.11 - E905207 Bunker entry gate, ultrasound
08.12 - E905208 Hydraulic pipe covers
08.13 - E905215 Protective cover on the bunker - right
08.14 - E905212 Protective cover on the bunker - left
08.15 - E905210 Operator protection deflector bracket - left
08.16 - E905211 Operator protection deflector bracket - right
08.17 - E905217 Ladder in the engine compartment - rear
08.18 - E905219 Stickers - front and left
08.19 - E905220 Stickers - rear and right
08.20 - E905218 Vehicle tools and accessories
09 - Cabin
09.01 - E905179 Cabin roof and mounting
09.02 - E905180 Fresh air filter, air jets and covers
09.03 - E905184 TERMINAL
09.04 - E905182 Radio and radio consoles (Funk)
09.05 - E905181 Steering column, driver's seat and passenger's seat
09.06 - E905178 Front window, side window and cabin door
09.07 - E905176 Front window wiper
09.08 - E905177 Mirror bracket and working floodlight
09.09 - E905183 Accelerator and brake pedals and cleaning flap
09.10 - E905173 Windscreen washer system
09.11 - E905174 Stickers - cabin and central electrical system
10 - Engine
10.01 - E905192 Diesel tank
10.02 - E905193 Pump distributor gears with pumps
10.03 - E905194 Diesel engine radiator
10.04 - E905199 Charge air cooler element
10.05 - E905198 Charge air cooler
10.06 - E905197 Air filter
10.07 - E905200 Exhaust system
10.08 - E905196 Diesel engine with engine bracket
10.09 - E905191 Oil cooler
10.10 - E905530 Fuel system with filter
10.11 - E905195 Air conditioning compressor and generator
10.12 - E905185 Battery connection with main switch
10.13 - E905187 Heating system - part 1
10.14 - E905188 Heating system - part 2
10.15 - E905186 Air conditioning system
Components and Details
- E9800490 301023000 - Separ fuel filter
11 - Hydraulic system
11.01 - E905509 Three-point suspension with lifting unit lift cylinder
11.02.1 - E905538 Articulated front component - left - part 1
11.02.2 - E905539 Articulated front component - left - part 2 (up to chassis no. 6_707)
11.03.1 - E905556 Articulated front component - right - part 1
11.03.2 - E905537 Articulated front component - right - part 2
11.04.1 - E905512 Articulated steering cylinder with control block articulated coupling
11.04.2 - E905531 Articulated steering cylinder without control block articulated coupling
11.05.1 - E905541 Steering with control block articulated coupling
11.05.2 - E905542 Steering without control block articulated coupling
11.06 - E905559 Connection - control block articulated steering
11.07 - E905544 Working hydraulics system - steering block
11.08 - E905505 front axle steering
11.09 - E905504 rear axle steering
11.10 - E905562 Brake - front axle
11.11 - E905563 Pressure line - brake block and LS
11.12 - E905525 Drive - infeed conveyor
11.13 - E905540 Drive - infeed conveyor, shaking shares and servostat
11.14 - E905536 Drive - infeed conveyor and strainer wheel on the PDG
11.15 - E905558 Infeed conveyor tensioning
11.16 - E905546 Pressure line - strainer wheels
11.17 - E905550 Drive - strainer wheels
11.18 - E905545 Guide grid adjustment
11.19 - E905557 Axle lock
11.20 - E905518 Drive - longitudinal conveyor
11.21 - E905528 Drive - unload conveyor
11.22 - E905529 Drive - cross conveyor on the PDG
11.23.1 - E905520 Drive - elevator - part 1
11.23.2 - E905519 Drive - elevator - part 2
11.24 - E905510 Elevator - up_down
11.25 - E905501 Elevator tensioning
11.26 - E905561 Connection - elevator roller
11.27 - E905527 Pressure line - bunker auger
11.28 - E905522 Drive - bunker auger
11.29 - E905514 Bunker auger - up_down
11.30 - E905502 Fold bunker connection bracket
11.31.1 - E905552 Unload conveyor - up_down - part 1
11.31.2 - E905503 Unload conveyor - up_down - part 2
11.32 - E905548 Articulate unload conveyor
11.33.1 - E905516 3rd axle - part 1
11.33.2 - E905517 Axle 3 - part 2
11.33.3 - E905521 Axle 3 - part 3
11.34.1 - E905560 Axle 4 - part 1
11.34.2 - E905543 4th axle - part 2
11.35.1 - E905507 Lifting unit drive
11.35.2 - E905547 Lifting unit drive (only PR-XL 8_9)
11.36 - E905508 Traction drive
11.37 - E905506 Traction drive and lifting unit drive at PDG
11.38 - E905533 Drive - oil cooler
11.39 - E905534 Drive - charge air cooler
11.40 - E905515 Collective return pipe on the frame
11.41.1 - E905511 Collective return pipe on the PDG - part 1
11.41.2 - E905524 Collective return pipe on the PDG - part 2
11.42 - E905551 Leak oil traction drive and return flow strainer wheels
11.43 - E905554 Heating, leak oil and pressure pipes
11.44 - E905553 LS working hydraulics system and LS servostat
11.45 - E905555 LS and operating hydraulics supply line
11.46 - E905535 Suction hoses, LS operating hydraulics and servostat on the PDG (till year of construction 2008)
11.47.1 - E905532 Intake hoses on the PDG - part 1
11.47.2 - E905513 Suction hoses at PDG - part 2
11.48.1 - E905526 Lubrication lines on the PDG - part 1
11.48.2 - E905523 Lubrication lines on the PDG - part 2
11.49 - E905500 Hydraulic oil tank
Special equipment
11.60.1 - E905564 Model - driven guide grids (burl cleaning) - part 1
11.60.2 - E905565 Model - driven guide grids (burl cleaning) - part 2
11.61 - E905566 Model - leak oil driven guide grids (burl cleaning)
12 - Central electrical system
- E9800477 Übersicht Stecker - Teil 2
- E9800478 018079700 - Electrical assortment box
- E9800499 Overview of plugs
12.01 - E905175 Switching cabinet for central electrical system and diesel engine
13 - Gears & axles
Front axle
13.11 - E905662 (O-11340021) Differential housing
13.12 - E905663 (O-11340021) Brake
13.13 - E905664 (O-11340021) Planetary axle carrier
13.14 - E905665 (O-11340021) Front axle wheel hub
13.15 - E905666 (O-11340021) Steering group
13.16 - E905667 (O-11340021) Front axle steering cylinder
Intermediate belt gears
13.31 - E905690 (O-10630028) Intermediate belt gears
Manual transmission
13.17 - E905670 (O-10560084) Manual transmission housing
13.18 - E905671 (O-10560084) Manual transmission drive shaft
13.19 - E905672 (O-10560084) Manual transmission output drive shaft
13.20 - E905673 (O-10560084) Gearshift - gear 1-2
13.21 - E905674 (O-10560084) Drive turn off
Pump distributor gears
13.01 - E905650 (O-10620035) Pump distributor gears compartment
13.02 - E905651 (O-10620035) Pump drive shaft
13.03 - E905652 (O-10620035) Pump distributor gears drive shaft
13.04 - E905653 (O-10620035) Pump distributor gears side shaft
13.05 - E905654 (O-10620035) Pump distributor gears intermediate shaft above
13.06 - E905655 (O-10620035) Pump distributor gears side shaft
13.07 - E905656 (O-10620035) Pump distributor gears intermediate shaft central
13.08 - E905657 (O-10620035) Pump distributor gears intermediate shaft below
13.09 - E905658 (O-10620035) Pump distributor gears drive shaft below
13.10 - E905659 (O-10620035) Pump distributor gears filter
Rear axle 1
13.22 - E905677 (O-11220051) Differential housing rear axle 1
13.23 - E905678 (O-11220051) rear axle
13.24 - E905679 (O-11220051) Rear axle wheel hub
13.25 - E905680 (O-11220051) Rear axle steering cylinder
13.26 - E905681 (O-11220051) Reduction gears (up to year of construction 2008)
Rear axle 2
13.27 - E905685 (O-11220031) Differential housing rear axle 2
13.28 - E905686 (O-11220031) Rear axle 2
13.29 - E905687 (O-11220031) 2nd rear axle wheel hub
13.30 - E905688 (O-11220031) 2nd rear axle steering cylinder
14 - Pneumatic system
14.01 - E905190 Pneumatic lines - part 1
14.02 - E905189 Pneumatic lines - part 2
14.03 - E905461 Connection for personal protection keep-off rail - left and right
14.04 - E905462 Mirror adjustment connection with blow-out gun
14.05 - E905463 Connection for axes, circuit and differential lock
15 - Hydraulic screw connections
15.01 - E9800500 Hydraulic screw connection - type_ G
15.02 - E9800501 Hydraulic screw connection - type_ W
15.03 - E9800502 Hydraulic screw connection - type_ T
15.04 - E9800503 Hydraulic screw connection - type_ K
15.05 - E9800504 Hydraulic screw connection - type_ EVW
15.06 - E9800505 Hydraulic screw connection - type_ EVT
15.07 - E9800506 Hydraulic screw connection - type_ EVL
15.08.1 - E9800507 Hydraulic screw connection - type_ EVGE - part 1 (metric)
15.08.2 - E9800508 Hydraulic screw connection - type_ EVGE - part 2 (inch)
15.09.1 - E9800509 Hydraulic screw connection - type_ GE - part 1 (metric)
15.09.2 - E9800510 Hydraulic screw connection - type_ GE - part 2 (metric)
15.09.3 - E9800511 Hydraulic screw connection - type_ GE - part 3 (metric)
15.09.4 - E9800512 Hydraulic screw connection - type_ GE - part 4 (inch)
15.09.5 - E9800513 Hydraulic screw connection - type_ GE - part 5 (inch)
15.09.6 - E9800514 Hydraulic screw connection - type_ GE - part 6 (inch)
15.10 - E9800515 Hydraulic screw connection - type_ GR
15.11 - E9800516 Hydraulic screw connection - type_ GVO
15.12.1 - E9800517 Hydraulic screw connection - type_ KOR - part 1
15.12.2 - E9800518 Hydraulic screw connection - type_ KOR - part 2
15.13 - E9800519 Hydraulic screw connection - type_ SWVE
15.14.1 - E9800520 Hydraulic screw connection - type_ VSTI - part 1 (metric)
15.14.2 - E9800521 Hydraulic screw connection - type_ VSTI - part 2 (inch)
15.15 - E9800522 Hydraulic screw connection - type_ ROV
15.16.1 - E9800523 Hydraulic screw connection - type_ RED - part 1 (metric)
15.16.2 - E9800524 Hydraulic screw connection - type_ RED - part 2 (inch)
15.17 - E9800525 Hydraulic screw connection - type_ GAI
15.18 - E9800526 Hydraulic screw connection - type_ MAV
15.19 - E9800527 Hydraulic screw connection - type_ MAV-EV
15.20 - E9800528 Hydraulic screw connection - type_ Measuring screw connection
15.21 - E9800529 Hydraulic screw connection - type_ measuring port
15.22 - E9800530 Hydraulic screw connection - type_ gauge connection
15.23 - E9800531 Hydraulic screw connection - type_ pressure gauge
15.24 - E9800532 Hydraulic screw connection - type_ pressure gauge connection
15.25 - E9800533 Hydraulic screw connection - type_ hose for pressure gauge
15.26 - E9800534 Hydraulic screw connection - type_ Bulkhead screw connection
15.27 - E9800535 Hydraulic screw connection - type_ Bulkhead union elbow
15.28 - E9800536 Hydraulic screw connection - type_ Flat nut for bulkhead screw connections
15.29 - E9800537 Hydraulic screw connection - type_ screw cap
15.30 - E9800538 Hydraulic screw connection - type_ BUZ
15.31 - E9800539 Hydraulic screw connection - type_ cutting ring
15.32 - E9800540 Hydraulic screw connection - type_ reinforcing sleeve
16 - Central lubrication
- E9800491 Central lubricating pump
- E9800493 Distributor - components
- E9800494 Hose connections
- E9800495 Screw connections - central lubrication
16.01 - E905230 Central lubricating system
16.02 - E905231 Central lubricating pump with grease bucket
21 - Lubricants
21.01 - E9016500 Lubricants
22 - Control blocks and seat valves
- E9800001 270043100 - seat valves 4-part
- E9800002 270044400 - control unit - articulation coupling
- E9800003 270044500 - control unit - elevator
- E9800004 270047000 - seat valves 1-part
- E9800005 270050300 - control unit - steering RA & articulation
- E9800006 270050600 - control unit - strainer wheel
- E9800007 270050700 - control unit - steering FA
- E9800008 270051100 - control unit - infeed conveyor PR
- E9800009 270051400 - control unit
- E9800010 270051500 - control unit - lifting rollers
- E9800011 270051600 - control unit - lifter gears and depth-control shaft
- E9800012 270051700 - control unit - elevator tightening
- E9800013 270052100 - control unit - short lifting roller and paddle
- E9800014 270053700 - control unit - shaking share and leaf-spreader
- E9800022 270043200 - seat valves 2-part
- E9800043 270044600 - seat valves 1-part
- E9800044 270054400 - control unit - leaf auger
- E9800051 2700546_ - Suction unit
- E9800065 270050400 - control unit - operating hydraulics 2
- E9800066 270051300 - control unit conveyor 2
- E9800068 270053200 - control unit conveyor 1
- E9800069 270054000 - control unit additional axle
- E9800070 270050500 - control unit - operating hydraulics 1
- E9800071 270043600 - Compact brake unit
- E9800072 270018800 - Pressure reduction valve
23 - Hydraulic motors and cylinders
- E9800033 2720132_ - hydraulic motor OMV 400 tapered shaft
- E9800089 272012100 - gear motor
- E9800090 272016310 - hydraulic motor wheel motor MSE05
- E9800091 272016900 - hydraulic motor wheel motor MSE08
- E9800093 272012701 - axial piston motor A2 FE 80 _ BR 61
- E9800094 272012801 - axial piston motor A2 FE 90 _ BR 61
- E9800095 272013601 - axial piston motor A2 FE 107 _ BR 61
- E9800096 272013701 - axial piston motor A2 FE 125 _ BR 61
- E9800097 272013801 - axial piston motor A6 VM 160 EP2
- E9800107 2720135_ - hydraulic motor TMT 250 tapered shaft
- E9800110 Hydraulic motor OMV
- E9800111 Hydraulic motor OMT
- E9800112 Hydraulic motor OMS
- E9800113 Hydraulic motor OMR
- E9800116 276014901 - hydraulic cylinder(s) ø25mm x 120mm
