ROPA Panther 1 (2013-2016) Parts Catalog PDF

Data Size: 190.27 MB
File Type: PDF
Language: English
Manufacturer: ROPA
Applicable Machine: Harvester, Harvesting Technology
Document: Spare Parts Catalog
Machine Model: ROPA Panther 1 (2013-2016) Harvester
Year of Manufacture: 2013-2016
Page: 2198 Pages

List Contents:

ROPA Panther 1 (2013-2016)
ROPA Panther 1 (2013-2016)

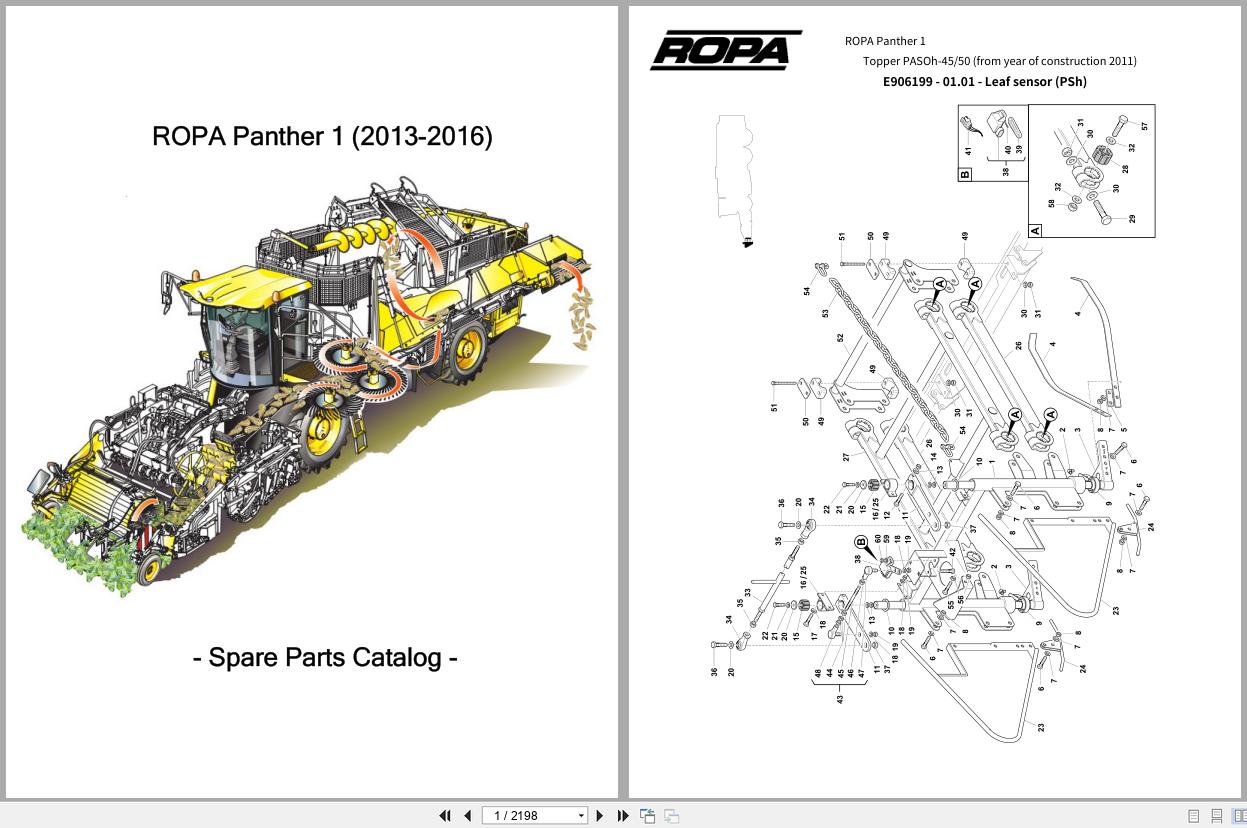

0 Cover ROPA Panther 1 (2013-2016)
01 - Topper
01 - Topper PASOh-45_50 (from year of construction 2011)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906198 Topper wheel - internal (PSOh)
01.02.2 - E906197 Topper wheel - external (PSOh_RSO)
01.03.1 - E906690 Topper housing - left (PASOh)
01.03.2 - E906691 Topper housing - right (PASOh)
01.04.1 - E906692 Adjustment tube for changeover flap (PASOh)
01.04.2 - E906693 Topper housing - front (PASOh)
01.04.3 - E906664 Topper housing - upper rear (PASh)
01.04.4 - E906673 Topper housing - lower rear (PASh-45_50)
01.05 - E906666 Topper shaft - to year of construction 2013 (PASh)
01.05.1 - E906677 Topper shaft - from year of construction 2014 (PASh-45)
01.05.2 - E906678 Topper shaft - from year of construction 2014 (PASh-50)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906689 - Central lubrication and stickers (PASOh) - Copy
01.11 - E906689 - Central lubrication and stickers (PASOh)
Hydraulic system - topper PASOh-45_50
01.20 - E906694 - Drive topper shaft and leaf auger (PASOh)
01.21 - E906695 Leak oil topper shaft and leaf auger (PASOh)
01.22 - E906696 Topper wheel (PASOh)
01.23 - E906697 Cutting depth adjustment (PASOh)
01.24 - E906698 Leaf spreader (PASOh)
01.25 - E906699 Fold leaf spreader and changeover flap (PASOh)
01 - Topper PASWh-45_50 (from year of construction 2011)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906660 Topper housing - left (PASWh)
01.03.2 - E906661 Topper housing - right (PASWh)
01.04.1 - E906662 Adjustment tube for changeover flap (PASWh)
01.04.2 - E906663 Topper housing - front (PASWh)
01.04.3 - E906664 Topper housing - upper rear (PASh)
01.04.4 - E906673 Topper housing - lower rear (PASh-45_50)
01.05 - E906666 Topper shaft - to year of construction 2013 (PASh)
01.05.1 - E906677 Topper shaft - from year of construction 2014 (PASh-45)
01.05.2 - E906678 Topper shaft - from year of construction 2014 (PASh-50)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906672 Central lubrication and stickers (PASWh)
Hydraulic system - topper PASWh-45_50
01.20 - E906680 Drive topper shaft and leaf auger (PASWh)
01.21 - E906681 Leak oil topper shaft and leaf auger (PASWh)
01.22 - E906682 Topper wheel (PASWh)
01.23 - E906683 Cutting depth adjustment (PASWh)
01.24 - E906684 Leaf spreader (PASWh)
01.25 - E906685 Fold leaf spreader and changeover flap (PASWh)
Model - leaf belt
01.30 - E906671 Leaf belt with accessories (PASWh)
01.31 - E906676 Hydraulic system_ leaf belt (PASWh)
01 - Topper PASWh-V (from year of construction 2010)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906660 Topper housing - left (PASWh)
01.03.2 - E906661 Topper housing - right (PASWh)
01.04.1 - E906662 Adjustment tube for changeover flap (PASWh)
01.04.2 - E906663 Topper housing - front (PASWh)
01.04.3 - E906664 Topper housing - upper rear (PASh)
01.04.4 - E906665 Topper housing - lower rear (PASWh)
01.05 - E906666 Topper shaft - to year of construction 2013 (PASh)
01.05 - E906679 Topper shaft - from year of construction 2014 (PASh-V)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906669 Scalper bar (PASWh-V_PB2SWh-V)
01.09 - E906670 Scalper holding frame (PASWh-V_PB2SWh-V)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906672 Central lubrication and stickers (PASWh)
Hydraulic system - PASWh-V topper
01.20 - E906680 Drive topper shaft and leaf auger (PASWh)
01.21 - E906681 Leak oil topper shaft and leaf auger (PASWh)
01.22 - E906682 Topper wheel (PASWh)
01.23 - E906683 Cutting depth adjustment (PASWh)
01.24 - E906684 Leaf spreader (PASWh)
01.25 - E906685 Fold leaf spreader and changeover flap (PASWh)
01.26 - E906686 Scalper - displacement cylinder (PASWh-V)
01.27 - E906687 Scalper - clamping cylinder (PASWh-V)
Model - leaf belt
01.30 - E906671 Leaf belt with accessories (PASWh)
01.31 - E906676 Hydraulic system_ leaf belt (PASWh)
01 - Topper PB2SOh-45 (from year of construction 2012)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906198 Topper wheel - internal (PSOh)
01.02.2 - E906197 Topper wheel - external (PSOh_RSO)
01.03.1 - E906731 Topper housing - left (PB2SOh)
01.03.2 - E906733 Topper housing - right (PB2SOh)
01.04.1 - E906739 Topper housing - front - part 1 (PB2SOh-45_RBSO-45)
01.04.2 - E906741 Topper housing - front - part 2 (PB2SOh-45_RBSO-45)
01.04.3 - E906742 Topper housing - rear (PB2Sh)
01.05 - E906737 Topper shaft (PB2SOh-45)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906744 Central lubrication and stickers (PB2SOh)
Components and Details
01.40 - E9416136 Replace topper hood (RBSO-45_PB2SOh-45)
Hydraulic system - PB2SOh-45 topper
01.20 - E906760 Drive topper shaft and leaf auger (PB2SOh-45)
01.21 - E906761 Leak oil topper shaft and leaf auger (PB2SOh-45)
01.22 - E906762 Topper wheel (PB2SOh-45)
01.23 - E906763 Cutting depth adjustment (PB2SOh-45)
01.24 - E906764 Leaf spreader (PB2SOh-45)
01.25 - E906765 Fold leaf spreader and changeover flap (PB2SOh-45)
01 - Topper PB2SWh-45_50 (from year of construction 2012)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906730 Topper housing - left (PB2SWh)
01.03.2 - E906732 Topper housing - right (PB2SWh)
01.04.1 - E906738 Topper housing - front - part 1 (PB2SWh)
01.04.2 - E906740 Topper housing - front - part 2 (PB2SWh)
01.04.3 - E906742 Topper housing - rear (PB2Sh)
01.05.1 - E906734 Topper shaft (PB2SWh-45)
01.05.2 - E906735 Topper shaft (PB2SWh-50)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906743 Central lubrication and stickers (PB2SWh)
Hydraulic system - topper PB2SWh-45_50
01.20 - E906750 Drive topper shaft and leaf auger (PB2SWh)
01.21 - E906751 Leak oil topper shaft and leaf auger (PB2SWh)
01.22 - E906752 Topper wheel (PB2SWh)
01.23 - E906753 Cutting depth adjustment (PB2SWh)
01.24 - E906754 Leaf spreader (PB2SWh)
01.25 - E906755 Fold leaf spreader (PB2SWh)
01 - Topper PB2SWh-V (from year of construction 2012)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906730 Topper housing - left (PB2SWh)
01.03.2 - E906732 Topper housing - right (PB2SWh)
01.04.1 - E906738 Topper housing - front - part 1 (PB2SWh)
01.04.2 - E906740 Topper housing - front - part 2 (PB2SWh)
01.04.3 - E906742 Topper housing - rear (PB2Sh)
01.05 - E906736 Topper shaft (PB2SWh-V)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906669 Scalper bar (PASWh-V_PB2SWh-V)
01.09 - E906670 Scalper holding frame (PASWh-V_PB2SWh-V)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906743 Central lubrication and stickers (PB2SWh)
Hydraulic system - PB2SWh-V topper
01.20 - E906750 Drive topper shaft and leaf auger (PB2SWh)
01.21 - E906751 Leak oil topper shaft and leaf auger (PB2SWh)
01.22 - E906752 Topper wheel (PB2SWh)
01.23 - E906753 Cutting depth adjustment (PB2SWh)
01.24 - E906754 Leaf spreader (PB2SWh)
01.25 - E906755 Fold leaf spreader (PB2SWh)
01.26 - E906756 Scalper - displacement cylinder (PB2SWh-V)
01.27 - E906757 Scalper - clamping cylinder (PB2SWh-V)
01 - Topper PESh-45 (from YOM 2015)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906864 Topper wheel-wheel arm bracket - till year of constr. 2016 (PESh)
01.02.1 - E906865 Topper wheel-wheel arm bracket - from year of constr. 2017 (PESh)
01.02.2 - E906866 Topper wheel-swivel guide - till year of constr. 2016 (PESh)
01.02.2 - E906867 Topper wheel-swivel guide - from year of constr. 2017 (PESh)
01.03.1 - E906800 Topper housing - left (PESh)
01.03.2 - E906801 Topper housing - right (PESh)
01.03.3 - E906844 Topper housing - front (PESh-45)
01.03.4 - E906845 Topper housing - rear (PESh-45)
01.04 - E906804 Support arm (PESh)
01.05 - E906805 Lifting cylinder (PESh)
01.06.1 - E906846 Topper shaft - part 1 - to year of construction 2016 (PESh-45)
01.06.1 - E906860 Topper shaft - part 1 - from year of construction 2017 (PESh-45)
01.06.2 - E906847 Topper shaft - part 2 - to year of construction 2016 (PESh-45)
01.06.2 - E906861 Topper shaft - part 2 - from year of construction 2017 (PESh-45)
01.07 - E906850 Cleaner shaft (PESh-45)
01.08 - E906810 Central lubrication and sticker (PESh)
Hydraulic system - topper PESh-45
01.10 - E906852 Topper and cleaner shaft drive - left (PESh-45)
01.11 - E906853 Topper and cleaner shaft drive - right (PESh-45)
01.12 - E906854 Leak oil topper shaft and cleaner shaft (PESh-45)
01.13 - E906855 Lifting cylinder (PESh-45)
01.14 - E906857 Topper wheel (PESh-45)
01 - Topper PESh-45_50_V (years of construction 2013 - 2014)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906864 Topper wheel-wheel arm bracket - till year of constr. 2016 (PESh)
01.02.2 - E906866 Topper wheel-swivel guide - till year of constr. 2016 (PESh)
01.03.1 - E906800 Topper housing - left (PESh)
01.03.2 - E906801 Topper housing - right (PESh)
01.03.3 - E906802 Topper housing - front (PESh)
01.03.4 - E906803 Topper housing - rear (PESh)
01.04 - E906804 Support arm (PESh)
01.05 - E906805 Lifting cylinder (PESh)
01.06.1.1 - E906832 Topper shaft - part 1 (PESh-45)
01.06.1.2 - E906833 Topper shaft - part 2 (PESh-45)
01.06.2.1 - E906834 Topper shaft - part 1 (PESh-50_V)
01.06.2.2 - E906835 Topper shaft - part 2 (PESh-50_V)
01.07.1 - E906836 Cleaner shaft (PESh-45)
01.07.2 - E906837 Cleaner shaft (PESh-50_V)
01.08 - E906810 Central lubrication and sticker (PESh)
Hydraulic system - topper PESh-45_50_V
01.10 - E906811 Drive topper and cleaner shaft - left (PESh)
01.11 - E906812 Drive topper and cleaner shaft - right (PESh)
01.12 - E906813 Leak oil topper shaft and cleaner shaft (PESh)
01.13 - E906814 Lifting cylinder (PESh)
01.14 - E906815 Topper wheel (PESh)
01 - Topper PESh-V (from YOM 2015)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906864 Topper wheel-wheel arm bracket - till year of constr. 2016 (PESh)
01.02.1 - E906865 Topper wheel-wheel arm bracket - from year of constr. 2017 (PESh)
01.02.2 - E906866 Topper wheel-swivel guide - till year of constr. 2016 (PESh)
01.02.2 - E906867 Topper wheel-swivel guide - from year of constr. 2017 (PESh)
01.03.1 - E906800 Topper housing - left (PESh)
01.03.2 - E906801 Topper housing - right (PESh)
01.03.3 - E906838 Topper housing - front (PESh-V)
01.03.4 - E906839 Topper housing - rear (PESh-V)
01.04 - E906804 Support arm (PESh)
01.05 - E906805 Lifting cylinder (PESh)
01.06.1 - E906848 Topper shaft - part 1 - till year of construction 2016 (PESh-V)
01.06.1 - E906862 Topper shaft - part 1 - from year of construction 2017 (PESh-V)
01.06.2 - E906849 Topper shaft - part 2 - till year of construction 2016 (PESh-V)
01.06.2 - E906863 Topper shaft - part 2 - from year of construction 2017 (PESh-V)
01.07 - E906851 Cleaner shaft (PESh-V)
01.08 - E906810 Central lubrication and sticker (PESh)
Hydraulic system - topper PESh-V
01.10 - E906840 Topper and cleaner shaft drive - left (PESh-V)
01.11 - E906841 Topper and cleaner shaft drive - right (PESh-V)
01.12 - E906842 Leak oil topper shaft and cleaner shaft (PESh-V)
01.13 - E906856 Lifting cylinder (PESh-V)
01.14 - E906843 Topper wheel (PESh-V)
01 - Topper PISh-45_50 (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04.1 - E906173 Topper housing - front and rear (PISh-45)
01.04.2 - E906172 Topper housing - front and rear (PISh-50)
01.05 - E906170 Topper shaft - year of construction 2007 to 2009 (PISh-45_50)
01.05 - E906171 Topper shaft - to year of construction 2006 (PISh-45_50)
01.05 - E906175 Topper shaft - from year of construction 2010 (PISh-45_50)
01.06 - E905351 Scalper bar (PISh-45_50)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E906174 Scalper holding frame (PISh-45_50)
01.09.1 - E906144 Scalper - standard (PISh_RIS)
01.09.2 - E906143 Scalper - Micro-Topper 2 (PISh)
01.10 - E906360 Central lubrication and sticker (PISh)
01.11 - E906362 Additional stickers for contour marking (PISh)
Hydraulic system - PISh-45_50 topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01 - Topper PISh-V (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04 - E906167 Topper housing - front and rear (PISh-V)
01.05 - E906168 Topper shaft - year of construction 2007 to 2009 (PISh-V)
01.05 - E906169 Topper shaft - to year of construction 2006 (PISh-V)
01.05 - E906176 Topper shaft - from year of construction 2010 (PISh-V)
01.06 - E905361 Scalper bar - till year of constr. 2009 (PISh-V)
01.06 - E906131 Scalper bar - till year of constr. 2010 (PISh-V)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E905358 Scalper holding frame - up to year of construction 2009 (PISh-V)
01.08 - E906130 Scalper holding frame - from year of construction 2010 (PISh-V)
01.09.1 - E906144 Scalper - standard (PISh_RIS)
01.09.2 - E906143 Scalper - Micro-Topper 2 (PISh)
01.10 - E906360 Central lubrication and sticker (PISh)
01.11 - E906362 Additional stickers for contour marking (PISh)
Hydraulic system - PISh-V topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01.22 - E905498 Scalper - displacement cylinder - up to year of construction 2009 (PISh-V)
01.22 - E906129 Scalper - displacement cylinder - from year of construction 2010 (PISh-V)
01.23 - E905496 Scalper - clamping cylinder (PISh-V)
02 - Lifter
02 - Lifter PR2h-V
02.01 - E9314101 Cross tube for shaking share pickup (PR2h-V)
02.02 - E9314103 Shaking share clamping brackets - reinforced (PR2h-V)
02.03 - E9314099 Shaking share drive (PR2h-V)
02.04 - E9314105 Shaking share gears - reinforced (PR2h-45_50_V)
02.05 - E9314106 Linear guide cross tube (PR2h-45_50_V)
02.06 - E9314108 Linear guide (PR2h-V)
02.07 - E9314110 Bracket for linear guide PA rods - to year of construction 2014 (PR2h-V)
02.07 - E9314159 Bracket for linear guide PA rods - from year of construction 2015 (PR2h-V)
02.08 - E9314111 Share body with linear guide (PR2h-45_50_V)
02.09.1 - E9314112 Share body with lifter shares - to year of construction 2014 (PR2h-45_50_V)
02.09.1 - E9314160 Share body with lifter shares - from year of construction 2015 (PR2h-45_50_V)
02.09.2 - E9314113 Share guide rods - from year of construction 2014 (PR2h-45_50_V)
02.09.2 - E9314161 Share guide rods - from year of construction 2015 (PR2h-45_50_V)
02.10 - E9314114 Lifter steering (PR2h-45_50_V)
02.11 - E9314116 Depth-control wheel (PR2h-V)
02.12.1 - E9314118 Supporting roller gears - left (PR2h-V)
02.12.2 - E9314119 Supporting roller gears - right (PR2h-V)
02.13 - E9314121 Supporting roller supporting arm - left and right (PR2h-V)
02.14 - E9314123 Depth guide (PR2h-V)
02.15 - E9314125 Lifting rollers (PR2h-V)
02.16 - E9314127 Short lifting rollers (PR2h-50_V)
02.17.1 - E9314128 Paddle (PR2h-45_50_V)
02.17.2 - E9314129 Paddle gears (PR2h-45_50_V)
02.18 - E9314130 Complete lifter gears - left-rear (PR2h-45_50_V)
02.19 - E9314131 Complete lifter gears - right-rear (PR2h-45_50_V)
02.20 - E9314132 Complete lifter gears - left-front (PR2h-45_50_V)
02.21 - E9314134 Supporting frame and lifter side arm (PR2h-V)
02.22 - E9314135 Topper guide parallelogram - left and right (PR2h-45_50_V)
02.23 - E9314136 Supporting arm - centre (PR2h-45_50_V)
02.24 - E9314137 Lifting roller side shift - left (PR2h-50_V)
02.25 - E9314138 Lifting roller side shift - right (PR2h-50_V)
02.26 - E9314140 Lifter side covers (PR2h-50_V)
02.27 - E9314142 Supporting frame lifter covers - left (PR2h-50_V)
02.28 - E9314144 Supporting frame lifter covers - right (PR2h-50_V)
02.29 - E9314146 Central lubrication and stickers (PR2h-50_V)
02.30 - E9314157 Electrical control cabinet, working lights and accessories (PR2h-50_V)
Hydraulic system - lifting unit PR2h-V
02.50 - E9314170 Topper drive (PR2h-45_50_V)
02.51.1 - E9314171 Topper - supply line and leak oil (PR2h-45_50_V)
02.51.2 - E9314172 Topper - supply line and leak oil with shaking share fast speed - only till YOM 2013 (PR2h-45_50_V)
02.52 - E9314173 Return line - topper drive with PBSh_PASh (PR2h-45_50_V)
02.53 - E9314174 Return line - topper drive with PISh_PESh (PR2h-45_50_V)
02.54 - E9314175 Return line - lifting roller drive and leak oil (PR2h-45_50_V)
02.55 - E9314176 Short lifting roller drive (PR2h-45_50_V)
02.56 - E9314177 Shaking share drive - reinforced with PBSh_PASh (PR2h-45_50_V)
02.57 - E9314178 Shaking share drive - reinforced with PISh_PESh (PR2h-45_50_V)
02.58 - E9314179 Paddle drive and shift lifting unit (PR2h-45_50_V)
02.59 - E9314181 Supply lines - left and right (PR2h-V)
02.60 - E9314182 Topper relief cylinder (PR2h-45_50_V)
02.61 - E9314183 Topper maintenance cylinder (PR2h-45_50_V)
02.62 - E9314184 Stone protection (PR2h-45_50_V)
02.63 - E9314185 Supporting roller supply and return lines (PR2h-45_50_V)
02.64 - E9314187 Supporting roller drive - right (PR2h-V)
02.65 - E9314189 Supporting roller drive - left (PR2h-V)
02.66 - E9314190 Supporting roller and lifting roller height adjustment (PR2h-45_50_V)
02.67 - E9314191 Shift roller position (PR2h-50_V)
02.68 - E9314192 Shift supporting roller (PR2h-V)
02.69 - E9314193 Shift share body (PR2h-V)
02.70 - E9314194 Clamp share body - till year of construction 2014 (PR2h-V)
02.70 - E9314197 Clamp share body - from year of construction 2015 (PR2h-V)
02.71 - E9314195 Shift shaking share (PR2h-V)
02.72 - E9314196 Clamp shaking share (PR2h-V)
Special equipment
02.40 - E9314147 Variant - additional chassis - frame with components (PR2h-45_50_V)
02.41 - E9314148 Variant - additional chassis - support foot (PR2h-45_50_V)
02.42 - E9314149 Variant - additional chassis - wheel suspension (PR2h-45_50_V)
02 - Lifting unit PR2h-45
02.01 - E9314100 Cross tube for shaking share pickup (PR2h-45)
02.02 - E9314102 Shaking share clamping brackets - reinforced (PR2h-45)
02.03 - E9314104 Shaking share drive (PR2h-45)
02.04 - E9314105 Shaking share gears - reinforced (PR2h-45_50_V)
02.05 - E9314106 Linear guide cross tube (PR2h-45_50_V)
02.06 - E9314107 Linear guide (PR2h-45)
02.07 - E9314109 Bracket for linear guide PA rods - to year of construction 2014 (PR2h-45_50)
02.07 - E9314158 Bracket for linear guide PA rods - from year of construction 2015 (PR2h-45_50)
02.08 - E9314111 Share body with linear guide (PR2h-45_50_V)
02.09.1 - E9314112 Share body with lifter shares - to year of construction 2014 (PR2h-45_50_V)
02.09.1 - E9314160 Share body with lifter shares - from year of construction 2015 (PR2h-45_50_V)
02.09.2 - E9314113 Share guide rods - from year of construction 2014 (PR2h-45_50_V)
02.09.2 - E9314161 Share guide rods - from year of construction 2015 (PR2h-45_50_V)
02.10 - E9314114 Lifter steering (PR2h-45_50_V)
02.11 - E9314115 Depth-control wheel (PR2h-45_50)
02.12 - E9314117 Supporting roller drive - left and right (PR2h-45_50)
02.13 - E9314120 Supporting roller supporting arm - left and right (PR2h-45_50)
02.14 - E9314122 Depth guide (PR2h-45_50)
02.15 - E9314124 Lifting rollers (PR2h-45)
02.16 - E9314126 Short lifting rollers (PR2h-45)
02.17.1 - E9314128 Paddle (PR2h-45_50_V)
02.17.2 - E9314129 Paddle gears (PR2h-45_50_V)
02.18 - E9314130 Complete lifter gears - left-rear (PR2h-45_50_V)
02.19 - E9314131 Complete lifter gears - right-rear (PR2h-45_50_V)
02.20 - E9314132 Complete lifter gears - left-front (PR2h-45_50_V)
02.21 - E9314133 Supporting frame and lifter side arm (PR2h-45)
02.22 - E9314135 Topper guide parallelogram - left and right (PR2h-45_50_V)
02.23 - E9314136 Supporting arm - centre (PR2h-45_50_V)
02.24 - E9314139 Lifter side covers (PR2h-45)
02.25 - E9314141 Supporting frame lifter covers - left (PR2h-45)
02.26 - E9314143 Supporting frame lifter covers - right (PR2h-45)
02.27 - E9314145 Central lubrication and stickers (PR2h-45)
02.28 - E9314156 Electrical control cabinet, working lights and accessories (PR2h-45)
Hydraulic system - lifting unit PR2h-45
02.50 - E9314170 Topper drive (PR2h-45_50_V)
02.51.1 - E9314171 Topper - supply line and leak oil (PR2h-45_50_V)
02.51.2 - E9314172 Topper - supply line and leak oil with shaking share fast speed - only till YOM 2013 (PR2h-45_50_V)
02.52 - E9314173 Return line - topper drive with PBSh_PASh (PR2h-45_50_V)
02.53 - E9314174 Return line - topper drive with PISh_PESh (PR2h-45_50_V)
02.54 - E9314175 Return line - lifting roller drive and leak oil (PR2h-45_50_V)
02.55 - E9314176 Short lifting roller drive (PR2h-45_50_V)
02.56 - E9314177 Shaking share drive - reinforced with PBSh_PASh (PR2h-45_50_V)
02.57 - E9314178 Shaking share drive - reinforced with PISh_PESh (PR2h-45_50_V)
02.58 - E9314179 Paddle drive and shift lifting unit (PR2h-45_50_V)
02.59 - E9314180 Supply lines - left and right (PR2h-45_50)
02.60 - E9314182 Topper relief cylinder (PR2h-45_50_V)
02.61 - E9314183 Topper maintenance cylinder (PR2h-45_50_V)
02.62 - E9314184 Stone protection (PR2h-45_50_V)
02.63 - E9314185 Supporting roller supply and return lines (PR2h-45_50_V)
02.64 - E9314186 Supporting roller drive - right (PR2h-45_50)
02.65 - E9314188 Supporting roller drive - left (PR2h-45_50)
02.66 - E9314190 Supporting roller and lifting roller height adjustment (PR2h-45_50_V)
Special equipment
02.40 - E9314147 Variant - additional chassis - frame with components (PR2h-45_50_V)
02.41 - E9314148 Variant - additional chassis - support foot (PR2h-45_50_V)
02.42 - E9314149 Variant - additional chassis - wheel suspension (PR2h-45_50_V)
02.43 - E9314150 Share body - divided
02.44.1 - E9314152 Share body - divided - attachments sugar beet
02.44.2 - E9314151 Share body - divided - attachments chicory
02.45 - E9314153 Tilting frame - linear guide for chicory
02.46.1 - E9314154 Row sensor for chicory - part 1
02.46.2 - E9314155 Row sensor for chicory - part 2
02 - Lifting unit PR2h-50
02.01 - E9314200 Cross tube for shaking share pickup (PR2h-50)
02.02 - E9314201 Shaking share clamping brackets - reinforced (PR2h-50)
02.03 - E9314202 Shaking share drive (PR2h-50)
02.04 - E9314105 Shaking share gears - reinforced (PR2h-45_50_V)
02.05 - E9314106 Linear guide cross tube (PR2h-45_50_V)
02.06 - E9314203 Linear guide (PR2h-50)
02.07 - E9314109 Bracket for linear guide PA rods - to year of construction 2014 (PR2h-45_50)
02.07 - E9314158 Bracket for linear guide PA rods - from year of construction 2015 (PR2h-45_50)
02.08 - E9314111 Share body with linear guide (PR2h-45_50_V)
02.09.1 - E9314112 Share body with lifter shares - to year of construction 2014 (PR2h-45_50_V)
02.09.1 - E9314160 Share body with lifter shares - from year of construction 2015 (PR2h-45_50_V)
02.09.2 - E9314113 Share guide rods - from year of construction 2014 (PR2h-45_50_V)
02.09.2 - E9314161 Share guide rods - from year of construction 2015 (PR2h-45_50_V)
02.10 - E9314114 Lifter steering (PR2h-45_50_V)
02.11 - E9314115 Depth-control wheel (PR2h-45_50)
02.12 - E9314117 Supporting roller drive - left and right (PR2h-45_50)
02.13 - E9314120 Supporting roller supporting arm - left and right (PR2h-45_50)
02.14 - E9314122 Depth guide (PR2h-45_50)
02.15 - E9314204 Lifting rollers (PR2h-50)
02.16 - E9314127 Short lifting rollers (PR2h-50_V)
02.17.1 - E9314128 Paddle (PR2h-45_50_V)
02.17.2 - E9314129 Paddle gears (PR2h-45_50_V)
02.18 - E9314130 Complete lifter gears - left-rear (PR2h-45_50_V)
02.19 - E9314131 Complete lifter gears - right-rear (PR2h-45_50_V)
02.20 - E9314132 Complete lifter gears - left-front (PR2h-45_50_V)
02.21 - E9314205 Supporting frame and lifter side arm (PR2h-50)
02.22 - E9314135 Topper guide parallelogram - left and right (PR2h-45_50_V)
02.23 - E9314136 Supporting arm - centre (PR2h-45_50_V)
02.24 - E9314137 Lifting roller side shift - left (PR2h-50_V)
02.25 - E9314138 Lifting roller side shift - right (PR2h-50_V)
02.26 - E9314140 Lifter side covers (PR2h-50_V)
02.27 - E9314142 Supporting frame lifter covers - left (PR2h-50_V)
02.28 - E9314144 Supporting frame lifter covers - right (PR2h-50_V)
02.29 - E9314146 Central lubrication and stickers (PR2h-50_V)
02.30 - E9314157 Electrical control cabinet, working lights and accessories (PR2h-50_V)
Hydraulic system - lifting unit PR2h-50
02.50 - E9314170 Topper drive (PR2h-45_50_V)
02.51.1 - E9314171 Topper - supply line and leak oil (PR2h-45_50_V)
02.51.2 - E9314172 Topper - supply line and leak oil with shaking share fast speed - only till YOM 2013 (PR2h-45_50_V)
02.52 - E9314173 Return line - topper drive with PBSh_PASh (PR2h-45_50_V)
02.53 - E9314174 Return line - topper drive with PISh_PESh (PR2h-45_50_V)
02.54 - E9314175 Return line - lifting roller drive and leak oil (PR2h-45_50_V)
02.55 - E9314176 Short lifting roller drive (PR2h-45_50_V)
02.56 - E9314177 Shaking share drive - reinforced with PBSh_PASh (PR2h-45_50_V)
02.57 - E9314178 Shaking share drive - reinforced with PISh_PESh (PR2h-45_50_V)
02.58 - E9314179 Paddle drive and shift lifting unit (PR2h-45_50_V)
02.59 - E9314180 Supply lines - left and right (PR2h-45_50)
02.60 - E9314182 Topper relief cylinder (PR2h-45_50_V)
02.61 - E9314183 Topper maintenance cylinder (PR2h-45_50_V)
02.62 - E9314184 Stone protection (PR2h-45_50_V)
02.63 - E9314185 Supporting roller supply and return lines (PR2h-45_50_V)
02.64 - E9314186 Supporting roller drive - right (PR2h-45_50)
02.65 - E9314188 Supporting roller drive - left (PR2h-45_50)
02.66 - E9314190 Supporting roller and lifting roller height adjustment (PR2h-45_50_V)
02.67 - E9314191 Shift roller position (PR2h-50_V)
Special equipment
02.40 - E9314147 Variant - additional chassis - frame with components (PR2h-45_50_V)
02.41 - E9314148 Variant - additional chassis - support foot (PR2h-45_50_V)
02.42 - E9314149 Variant - additional chassis - wheel suspension (PR2h-45_50_V)
03 - Intermediate belt
03.01 - E9213001 Intermediate belt frame and accessories
03.02 - E9213002 Intermediate belt transfer pipe and supporting rollers
03.03 - E9213003 Intermediate belt suspension
03.04 - E9213004 Sieve conveyor for intermediate belt (infeed conv.)
04 - Strainer wheel
04.01 - E9213011 Strainer wheel 1
04.02 - E9213012 Strainer wheel 2
04.03 - E9213013 Strainer wheel 3
04.04 - E9213014 Bearing arm guide grids 1
04.05 - E9213015 Bearing arm guide grids 2
04.06 - E9213016 Bearing arm guide grids 3
04.07.1 - E9213017 Strainer wheel guide grids without spring tines
04.07.2 - E9213018 Strainer wheel guide grids with spring tines (till year of construction 2015)
04.07.2 - E9213020 Strainer wheel guide grids with spring tines (from YOM 2016)
Special equipment
04.10 - E9213019 Model - 1st strainer wheel agitator
04.30 - E906287 Strainer wheel tines, round - chicory
04.32 - E9014025 Sliding plates - chicory (from year of constr. 2016)
04.32 - E9014026 Sliding plates - chicory (till year of constr. 2015)
05 - Elevator
05.01 - E9213031 Elevator drive
05.02 - E9213032 Elevator arm - right
05.03 - E9213033 Elevator duct - right top
05.04 - E9213034 Elevator duct - right bottom
05.05.1 - E9213035 Elevator duct - left - part 1
05.05.2 - E9213036 Elevator duct - left - part 2
05.06 - E9213037 Elevator bottom
05.07 - E9213038 Angular gear
05.08 - E9213039 Sieve conveyor for elevator
05.08 - E9213040 Sieve conveyor for elevator
06 - Bunker
06.01 - E9213051 Bunker auger
06.02 - E9213052 Bunker bar
06.03 - E9213053 Longitudinal conveyor - sheet metal and rubber
06.04 - E9213054 Longitudinal conveyor - guide bars and sprockets
06.05 - E9213055 Longitudinal conveyor - drive
06.06.1 - E9213057 Cross conveyor - sheet metal and rubber
06.06.2 - E9213058 Cross conveyor - guide bars and sprockets
06.07 - E9213059 Cross conveyor - drive
06.08 - E9213060 Cleaning roller
06.09 - E9213061 Bunker increase
06.10 - E9213062 Ultrasound and flow limiter
06.11 - E9213063 Bunker rear wall
07 - Unload conveyor
07.01 - E9213081 Unload conveyor frame
07.02 - E9213082 Articulated unloading conveyor frame 1
07.03 - E9213083 Articulated unload conveyor frame 2 with drive
07.04 - E9213084 Unload conveyor support rollers
07.05 - E9213085 Potentiometer unload conveyor
07.06 - E9213086 Sieve conveyor for unloading conveyor
08 - Chassis
- E9800487 Overview of lacquers and paints
08.01 - E9213091 Three-point suspension
08.02 - E9213092 Hydraulic cylinders - axles and articulation
08.03.1 - E9213093 Articulated joint - suspension_potentiometer
08.03.2 - E9213115 Chassis
08.04 - E9213094 Axle mounting and inclinometers
08.05 - E9213095 Axles, drive shafts and transfer gear
08.06 - E9213096 Tyres
08.07 - E9213097 Axle 3 (additional axle)
08.08 - E9213098 Forward frame component - attachments
08.09 - E9213099 Cabin ladder
08.10 - E9213100 Ladder for bunker entry gate
08.11 - E9213101 Covers over hydraulic tubes
08.12 - E9213102 Protective cover and components on the bunker - left
08.13 - E9213103 Protective cover and components on the bunker - right
08.14 - E9213104 Operator protection safety bar
08.15 - E9213105 Engine compartment underride guard
08.16 - E9213106 Engine compartment - splash guard
08.17 - E9213107 Engine compartment - frame
08.18 - E9213108 Engine compartment - rear cover
08.19 - E9213109 Engine compartment - side cover
08.20 - E9213110 Engine compartment - top left
08.21 - E9213111 Engine compartment - radiator grill
08.22 - E9213112 Stickers - front and left
08.23 - E9213113 Stickers - rear and right
08.24 - E9213114 Vehicle tools and accessories
Komponenten und Details
- E9800479 Additional axle wheel bearing
Special equipment
08.30 - E9213116 Model - beet transport system (Batsch)
09 - Cabin
09.01 - E9213131 Cabin mounting
09.02 - E9213132 Accelerator and brake pedals and cleaning flap
09.03 - E9213133 Cabin roof and accessories
09.04 - E9213134 Fresh air filter, air jets and covers
09.05 - E9213135 Air conditioner with accessories
09.06 - E9213136 Driver's seat and passenger's seat and accessories
09.07 - E9213137 Steering column
09.08 - E9213138 Radio console (till year of construction 2014)
09.08 - E9213149 Roof console - front (from year of construction 2015)
09.09 - E9213139 Radio console (Funk) (till year of constr. 2014)
09.09 - E9213150 Roof console - right (from year of construction 2015)
09.10.1 - E9213140 Terminal console - part 1
09.10.2 - E9213141 Terminal console - part 2
09.10.3 - E9213142 Terminal console - part 3
09.11 - E9213148 Mirror bracket and working floodlight
09.12 - E9213143 Front window, side window and cabin door
09.13 - E9213144 Window wipers
09.14 - E9213145 Windscreen washer system
09.15 - E9213146 Cabin linings
09.16 - E9213147 Stickers - cabin and central electrical system (from year of constr. 2014)
09.16 - E9213151 Stickers - cabin and central electrical system (till year of construction 2015)
Components and Details
- E9800483 352044400 - driver's seat
10 - Engine
10.01 - E9213161 Diesel tank
10.02.1 - E9213162 - Pump distributor gears with pumps - part 1
10.02.2 - E9213163 - Pump distributor gears with pumps - part 2
10.03.1 - E9213164 Diesel engine radiator - part 1
10.03.2 - E9213165 Diesel engine radiator - part 2
10.03.3 - E9213166 Diesel engine radiator - part 3
10.04 - E9213168 Air filter and charge air cooler
10.05 - E9213169 Exhaust system
10.06 - E9213170 Diesel engine with engine bracket
10.07 - E9213171 Oil cooler
10.08 - E9213172 Fuel system with filter
10.09 - E9213178 AdBlue® tank
10.10 - E9213174 AdBlue system
10.11 - E9213175 Connecting battery, starter, emergency steering pump, generator
10.12 - E9213179 Diesel engine OM 471
10.13 - E9213176 Heating system
10.14 - E9213177 Air conditioning system
Components and Details
- E9800486 303026800 - Fuel filter with water separator and e-pump
11 - Hydraulic system
11.01 - E9213200 Three-point suspension with lifting unit lift cylinder
11.02 - E9213201 - Drive infeed conveyor and tightening infeed conveyor
11.03 - E9213203 Supply - articulation front part
11.04.1.1 - E9213204 Articulation steering with control unit articulated coupling - part 1
11.04.1.2 - E9213205 Articulation steering without control unit articulated coupling - part 1
11.04.2 - E9213206 Articulation steering - part 2
11.05.1 - E9213207 Steering with control block articulated coupling
11.05.2 - E9213208 Steering without control block articulated coupling
11.06 - E9213209 Supply operating hydraulic and seat valves; 4 pcs.
11.07 - E9213210 Pressure lines operating hydraulics-articulation to articulated steering control unit
11.08.1 - E9213211 Pressure line - steering, shaking share and paddle - part 1
11.08.2 - E9213212 Pressure line - steering, shaking share and paddle - part 2
11.09 - E9213213 Steering - front axle
11.10 - E9213214 Steering - rear axle
11.11.1 - E9213215 Brake - front axle - part 1
11.11.2 - E9213216 Brake - front axle - part 2
11.12.1 - E9213217 Brake - rear axle - part 1
11.12.2 - E9213218 Brake - rear axle - part 2
11.13 - E9213219 Axle lock - front
11.14 - E9213220 Axle support - rear
11.15 - E9213221 Axle lock - rear with emergency steering pump
11.16 - E9213222 Additional axle
11.17 - E9213223 Pressure line strainer wheel and bunker unloading
11.18 - E9213224 Drive strainer wheel 1
11.19 - E9213225 Drive strainer wheel 2
11.20 - E9213226 Drive strainer wheel 3
11.21 - E9213227 Connection height adjustment of guide grids - strainer wheel 1
11.22 - E9213228 Connection height adjustment of guide grids - strainer wheel 2
11.23 - E9213229 Connection height adjustment of guide grids - strainer wheel 3
11.24 - E9213230 Drive elevator - left with_without agitator
11.25 - E9213231 Drive elevator - right
11.26 - E9213232 Drive elevator roller and leak oil - right
11.27 - E9213233 Elevator up_down
11.28 - E9213234 Elevator tensioning
11.29 - E9213235 Supply elevator_bunker
11.30 - E9213236 Drive bunker auger
11.31 - E9213237 Bunker auger up_down
11.32 - E9213238 Fold bunker connection bracket
11.33 - E9213239 Drive longitudinal conveyor
11.34 - E9213240 Drive cross conveyor and bunker unloading
11.35 - E9213241 Feed unload conveyor
11.36 - E9213242 Drive unload conveyor
11.37 - E9213243 Bend unload conveyor (articulation 1)
11.38 - E9213244 Bend unload conveyor (articulation 2)
11.39.1 - E9213245 Unload elevator up_down - part 1
11.39.2 - E9213246 Unload elevator up_down - part 2
11.40 - E9213247 Lifting unit drive
11.41 - E9213248 Traction drive
11.42 - E9213249 Collective return pipe on the frame
11.43 - E9213250 Drive oil cooler
11.44 - E9213251 Drive charge air cooler
11.45 - E9213252 Connection emergency steering valve at PDG
11.46 - E9213253 Connection accumulative return unit at PDG
11.47 - E9213254 Suction hoses at PDG - part 1
11.48 - E9213255 Suction hoses at PDG - part 2
11.49 - E9213256 Lubrication lines on the PDG - part 1
11.50 - E9213257 Lubrication lines on the PDG - part 2
11.51 - E9213258 Hydraulic oil tank
11.52 - E9213259 Hydraulic return filter
12 - Central electrical system
- E9800477 Übersicht Stecker - Teil 2
- E9800478 018079700 - Electrical assortment box
- E9800499 Overview of plugs
12.01 - E9213301 Switching cabinet for central electrical system and diesel engine
12.02 - E9213302 Cameras and splash guard
12.03.1 - E9213303 Wiring harness overview - part 1
12.03.2 - E9213304 Wiring harness overview - part 2
13 - Gears & axles
299196 - pump distributor gears
13.01 - E9011326 (O-10620041) Pump distributor gears compartment
13.02 - E9011327 (O-10620041) Pump drive shaft
13.03 - E9011328 (O-10620041) Pump distributor gears drive shaft
13.04 - E9011329 (O-10620041) Pump distributor gears side shaft
13.05 - E9011330 (O-10620041) Pump distributor gears intermediate shaft above
13.06 - E9011331 (O-10620041) Pump distributor gears side shaft
13.07 - E9011332 (O-10620041) Pump distributor gears intermediate shaft central
13.08 - E9011333 (O-10620041) Pump distributor gears intermediate shaft below
13.09 - E9011334 (O-10620041) Pump distributor gears drive shaft below
13.10 - E9011335 (O-10620041) Pump distributor gears filter
299254 - manual transmission
13.17 - E9213320 (O-10560134) Manual transmission housing
13.18 - E9213321 (O-10560134) Manual transmission drive shaft
13.19 - E9213322 (O-10560134) Manual transmission output drive shaft
13.20 - E9213323 (O-10560134) Gearshift - gear 1-2
13.21 - E9213324 (O-10560134) Drive turn off
299255 - front axle
13.11 - E9213311 (O-11340029) Differential housing
13.12 - E9213312 (O-11340029) Brake
13.13 - E9213313 (O-11340029) Planetary axle carrier
13.14 - E9213314 (O-11340029) Front axle wheel hub
13.15 - E9213315 (O-11340029) Steering group
13.16 - E9213316 (O-11340029) Front axle steering cylinder
299256 - rear axle
13.22 - E9213330 (O-11340028) Differential housing
13.23 - E9213331 (O-11340028) Brake
13.24 - E9213332 (O-11340028) Planetary axle carrier
13.25 - E9213333 (O-11340028) Rear axle wheel hub
13.26 - E9213334 (O-11340028) Steering group
13.27 - E9213335 (O-11340028) Rear axle steering cylinder with position measuring system
13.28 - E9213336 (O-11340028) Rear axle steering cylinder without position measuring system
630301 - intermediate belt gears
13.29 - E9213340 (O-10630028) Intermediate belt gears
14 - Pneumatic system
14.01 - E9213350 Pneumatic lines - right - air chamber
14.02 - E9213352 Connection for operator protection deflector bracket
14.03 - E9213353 Differential lock connection
14.04 - E9213354 Switch connection
14.05 - E9213355 Mirror adjustment connection with blow-out gun
15 - Hydraulic screw connections
15.01 - E9800500 Hydraulic screw connection - type_ G
15.02 - E9800501 Hydraulic screw connection - type_ W
15.03 - E9800502 Hydraulic screw connection - type_ T
15.04 - E9800503 Hydraulic screw connection - type_ K
15.05 - E9800504 Hydraulic screw connection - type_ EVW
15.06 - E9800505 Hydraulic screw connection - type_ EVT
15.07 - E9800506 Hydraulic screw connection - type_ EVL
15.08.1 - E9800507 Hydraulic screw connection - type_ EVGE - part 1 (metric)
15.08.2 - E9800508 Hydraulic screw connection - type_ EVGE - part 2 (inch)
15.09.1 - E9800509 Hydraulic screw connection - type_ GE - part 1 (metric)
15.09.2 - E9800510 Hydraulic screw connection - type_ GE - part 2 (metric)
15.09.3 - E9800511 Hydraulic screw connection - type_ GE - part 3 (metric)
15.09.4 - E9800512 Hydraulic screw connection - type_ GE - part 4 (inch)
15.09.5 - E9800513 Hydraulic screw connection - type_ GE - part 5 (inch)
15.09.6 - E9800514 Hydraulic screw connection - type_ GE - part 6 (inch)
15.10 - E9800515 Hydraulic screw connection - type_ GR
15.11 - E9800516 Hydraulic screw connection - type_ GVO
15.12.1 - E9800517 Hydraulic screw connection - type_ KOR - part 1
15.12.2 - E9800518 Hydraulic screw connection - type_ KOR - part 2
15.13 - E9800519 Hydraulic screw connection - type_ SWVE
15.14.1 - E9800520 Hydraulic screw connection - type_ VSTI - part 1 (metric)
15.14.2 - E9800521 Hydraulic screw connection - type_ VSTI - part 2 (inch)
15.15 - E9800522 Hydraulic screw connection - type_ ROV
15.16.1 - E9800523 Hydraulic screw connection - type_ RED - part 1 (metric)
15.16.2 - E9800524 Hydraulic screw connection - type_ RED - part 2 (inch)
15.17 - E9800525 Hydraulic screw connection - type_ GAI
15.18 - E9800526 Hydraulic screw connection - type_ MAV
15.19 - E9800527 Hydraulic screw connection - type_ MAV-EV
15.20 - E9800528 Hydraulic screw connection - type_ Measuring screw connection
15.21 - E9800529 Hydraulic screw connection - type_ measuring port
15.22 - E9800530 Hydraulic screw connection - type_ gauge connection
15.23 - E9800531 Hydraulic screw connection - type_ pressure gauge
15.24 - E9800532 Hydraulic screw connection - type_ pressure gauge connection
15.25 - E9800533 Hydraulic screw connection - type_ hose for pressure gauge
15.26 - E9800534 Hydraulic screw connection - type_ Bulkhead screw connection
15.27 - E9800535 - Hydraulic screw connection - type Bulkhead union elbow
15.28 - E9800536 Hydraulic screw connection - type_ Flat nut for bulkhead screw connections
15.29 - E9800537 Hydraulic screw connection - type_ screw cap
15.30 - E9800538 Hydraulic screw connection - type_ BUZ
15.31 - E9800539 Hydraulic screw connection - type_ cutting ring
15.32 - E9800540 Hydraulic screw connection - type_ reinforcing sleeve
16 - Central lubrication
- E9800491 Central lubricating pump
- E9800493 Distributor - components
- E9800494 Hose connections
- E9800495 Screw connections - central lubrication
16.01 - E9213370 Central lubricating system
16.02 - E9213371 Central lubricating pump with grease bucket
21 - Lubricants and filter lists
21.01 - E9016500 Lubricants
21.02 - E9213380 Filter for diesel engine
21.03 - E9217451 Filter for hydraulic system and gears
21.04 - E9016503 Filter for cabin
22 - Control blocks and seat valves
- E9800001 270043100 - seat valves 4-part
- E9800002 270044400 - control unit - articulation coupling
- E9800003 270044500 - control unit - elevator
- E9800004 270047000 - seat valves 1-part
- E9800005 270050300 - control unit - steering RA & articulation
- E9800006 270050600 - control unit - strainer wheel
- E9800007 270050700 - control unit - steering FA
- E9800008 270051100 - control unit - infeed conveyor PR
- E9800009 270051400 - control unit
- E9800010 270051500 - control unit - lifting rollers
- E9800011 270051600 - control unit - lifter gears and depth-control shaft
- E9800012 270051700 - control unit - elevator tightening
- E9800013 270052100 - control unit - short lifting roller and paddle
- E9800014 270053700 - control unit - shaking share and leaf-spreader
- E9800015 270064200 - control unit - additional axle
- E9800016 270066600 - check valve unit
- E9800017 270066700 - control unit conveyor II
- E9800018 270066900 - compact brake unit - 2-circuit _Safim_
- E9800019 270067700 - control unit - operating hydraulics
- E9800020 270069200 - control unit conveyor 1
- E9800021 270069510 - control unit - emergency steering
- E9800022 270043200 - seat valves 2-part
- E9800044 270054400 - control unit - leaf auger
- E9800051 2700546_ - Suction unit
- E9800054 270050900 - flush valve (flange-mounted)
- E9800073 270064000 - Leaf auger control unit
- E9800074 270068800 - control unit rubber topper
23 - Hydraulic motors and cylinders
- E9800033 2720132_ - hydraulic motor OMV 400 tapered shaft
- E9800084 272016100 - gear motor fan drive
- E9800089 272012100 - gear motor
- E9800090 272016310 - hydraulic motor wheel motor MSE05
- E9800093 272012701 - axial piston motor A2 FE 80 _ BR 61
- E9800094 272012801 - axial piston motor A2 FE 90 _ BR 61
- E9800095 272013601 - axial piston motor A2 FE 107 _ BR 61
- E9800096 272013701 - axial piston motor A2 FE 125 _ BR 61
- E9800100 272015701 - axial piston motor A6 VM 170 EP
- E9800105 272017103 - axial piston motor A10 VER 37 EZ7
- E9800107 2720135_ - hydraulic motor TMT 250 tapered shaft
- E9800110 Hydraulic motor OMV
- E9800111 Hydraulic motor OMT
- E9800112 Hydraulic motor OMS
- E9800113 Hydraulic motor OMR
- E9800116 276014901 - hydraulic cylinder(s) ø25mm x 120mm
