ROPA Tiger 5 (2014-2017) Parts Catalog PDF

Data Size: 258.06 MB
File Type: PDF
Language: English
Manufacturer: ROPA
Applicable Machine: Harvester, Harvesting Technology
Document: Spare Parts Catalog
Machine Model: ROPA Tiger 5 (2014-2017) Harvester
Year of Manufacture: 2014-2017
Page: 2447 Pages

List Contents:

ROPA Tiger 5 (2014-2017)
ROPA Tiger 5 (2014-2017)

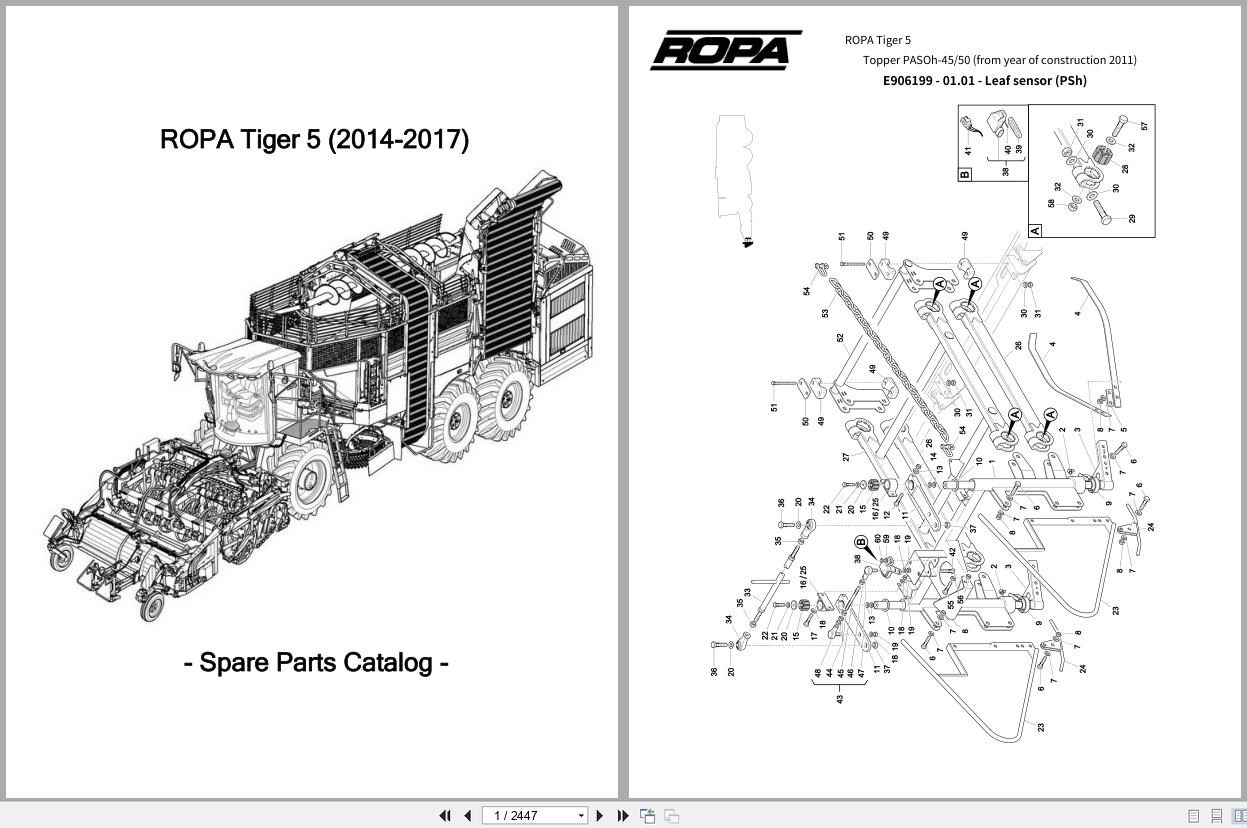

0 Cover ROPA Tiger 5 (2014-2017)
01 - Topper
01 - Topper PASOh-45_50 (from year of construction 2011)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906198 Topper wheel - internal (PSOh)
01.02.2 - E906197 Topper wheel - external (PSOh_RSO)
01.03.1 - E906690 Topper housing - left (PASOh)
01.03.2 - E906691 Topper housing - right (PASOh)
01.04.1 - E906692 Adjustment tube for changeover flap (PASOh)
01.04.2 - E906693 Topper housing - front (PASOh)
01.04.3 - E906664 Topper housing - upper rear (PASh)
01.04.4 - E906673 Topper housing - lower rear (PASh-45_50)
01.05 - E906666 Topper shaft - to year of construction 2013 (PASh)
01.05.1 - E906677 Topper shaft - from year of construction 2014 (PASh-45)
01.05.2 - E906678 Topper shaft - from year of construction 2014 (PASh-50)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906689 Central lubrication and stickers (PASOh)
Hydraulic system - topper PASOh-45_50
01.20 - E906694 Drive topper shaft and leaf auger (PASOh)
01.21 - E906695 Leak oil topper shaft and leaf auger (PASOh)
01.22 - E906696 Topper wheel (PASOh)
01.23 - E906697 Cutting depth adjustment (PASOh)
01.24 - E906698 Leaf spreader (PASOh)
01.25 - E906699 Fold leaf spreader and changeover flap (PASOh)
01 - Topper PASWh-45_50 (from year of construction 2011)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906660 Topper housing - left (PASWh)
01.03.2 - E906661 Topper housing - right (PASWh)
01.04.1 - E906662 Adjustment tube for changeover flap (PASWh)
01.04.2 - E906663 Topper housing - front (PASWh)
01.04.3 - E906664 Topper housing - upper rear (PASh)
01.04.4 - E906673 Topper housing - lower rear (PASh-45_50)
01.05 - E906666 Topper shaft - to year of construction 2013 (PASh)
01.05.1 - E906677 Topper shaft - from year of construction 2014 (PASh-45)
01.05.2 - E906678 Topper shaft - from year of construction 2014 (PASh-50)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906672 Central lubrication and stickers (PASWh)
Hydraulic system - topper PASWh-45_50
01.20 - E906680 Drive topper shaft and leaf auger (PASWh)
01.21 - E906681 Leak oil topper shaft and leaf auger (PASWh)
01.22 - E906682 Topper wheel (PASWh)
01.23 - E906683 Cutting depth adjustment (PASWh)
01.24 - E906684 Leaf spreader (PASWh)
01.25 - E906685 Fold leaf spreader and changeover flap (PASWh)
Model - leaf belt
01.30 - E906671 Leaf belt with accessories (PASWh)
01.31 - E906676 Hydraulic system_ leaf belt (PASWh)
01 - Topper PASWh-V (from year of construction 2010)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906660 Topper housing - left (PASWh)
01.03.2 - E906661 Topper housing - right (PASWh)
01.04.1 - E906662 Adjustment tube for changeover flap (PASWh)
01.04.2 - E906663 Topper housing - front (PASWh)
01.04.3 - E906664 Topper housing - upper rear (PASh)
01.04.4 - E906665 Topper housing - lower rear (PASWh)
01.05 - E906666 Topper shaft - to year of construction 2013 (PASh)
01.05 - E906679 Topper shaft - from year of construction 2014 (PASh-V)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906669 Scalper bar (PASWh-V_PB2SWh-V)
01.09 - E906670 Scalper holding frame (PASWh-V_PB2SWh-V)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906672 Central lubrication and stickers (PASWh)
Hydraulic system - PASWh-V topper
01.20 - E906680 Drive topper shaft and leaf auger (PASWh)
01.21 - E906681 Leak oil topper shaft and leaf auger (PASWh)
01.22 - E906682 Topper wheel (PASWh)
01.23 - E906683 Cutting depth adjustment (PASWh)
01.24 - E906684 Leaf spreader (PASWh)
01.25 - E906685 Fold leaf spreader and changeover flap (PASWh)
01.26 - E906686 Scalper - displacement cylinder (PASWh-V)
01.27 - E906687 Scalper - clamping cylinder (PASWh-V)
Model - leaf belt
01.30 - E906671 Leaf belt with accessories (PASWh)
01.31 - E906676 Hydraulic system_ leaf belt (PASWh)
01 - Topper PB2SOh-45 (from year of construction 2012)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906198 Topper wheel - internal (PSOh)
01.02.2 - E906197 Topper wheel - external (PSOh_RSO)
01.03.1 - E906731 Topper housing - left (PB2SOh)
01.03.2 - E906733 Topper housing - right (PB2SOh)
01.04.1 - E906739 Topper housing - front - part 1 (PB2SOh-45_RBSO-45)
01.04.2 - E906741 Topper housing - front - part 2 (PB2SOh-45_RBSO-45)
01.04.3 - E906742 Topper housing - rear (PB2Sh)
01.05 - E906737 Topper shaft (PB2SOh-45)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906744 Central lubrication and stickers (PB2SOh)
Components and Details
01.40 - E9416136 Replace topper hood (RBSO-45_PB2SOh-45)
Hydraulic system - PB2SOh-45 topper
01.20 - E906760 Drive topper shaft and leaf auger (PB2SOh-45)
01.21 - E906761 Leak oil topper shaft and leaf auger (PB2SOh-45)
01.22 - E906762 Topper wheel (PB2SOh-45)
01.23 - E906763 Cutting depth adjustment (PB2SOh-45)
01.24 - E906764 Leaf spreader (PB2SOh-45)
01.25 - E906765 Fold leaf spreader and changeover flap (PB2SOh-45)
01 - Topper PB2SWh-45_50 (from year of construction 2012)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906730 Topper housing - left (PB2SWh)
01.03.2 - E906732 Topper housing - right (PB2SWh)
01.04.1 - E906738 Topper housing - front - part 1 (PB2SWh)
01.04.2 - E906740 Topper housing - front - part 2 (PB2SWh)
01.04.3 - E906742 Topper housing - rear (PB2Sh)
01.05.1 - E906734 Topper shaft (PB2SWh-45)
01.05.2 - E906735 Topper shaft (PB2SWh-50)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906674 Scalper bar (PASh-45_50_PB2Sh-45_50)
01.09 - E906675 Scalper holding frame (PASh-45_50_PB2Sh-45_50)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906743 Central lubrication and stickers (PB2SWh)
Hydraulic system - topper PB2SWh-45_50
01.20 - E906750 Drive topper shaft and leaf auger (PB2SWh)
01.21 - E906751 Leak oil topper shaft and leaf auger (PB2SWh)
01.22 - E906752 Topper wheel (PB2SWh)
01.23 - E906753 Cutting depth adjustment (PB2SWh)
01.24 - E906754 Leaf spreader (PB2SWh)
01.25 - E906755 Fold leaf spreader (PB2SWh)
01 - Topper PB2SWh-V (from year of construction 2012)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03.1 - E906730 Topper housing - left (PB2SWh)
01.03.2 - E906732 Topper housing - right (PB2SWh)
01.04.1 - E906738 Topper housing - front - part 1 (PB2SWh)
01.04.2 - E906740 Topper housing - front - part 2 (PB2SWh)
01.04.3 - E906742 Topper housing - rear (PB2Sh)
01.05 - E906736 Topper shaft (PB2SWh-V)
01.06 - E906667 Leaf auger (PASh_PB2Sh)
01.07.1.1 - E906177 Leaf spreader - standard (PBSh_PASh)
01.07.1.2 - E906182 Leaf spreader - stone ejector (PBSh_PASh)
01.07.2 - E906668 Holding device for leaf spreader (PASh_PB2Sh)
01.08 - E906669 Scalper bar (PASWh-V_PB2SWh-V)
01.09 - E906670 Scalper holding frame (PASWh-V_PB2SWh-V)
01.10.1 - E906183 Scalper - standard (PBSh_PASh)
01.10.2 - E906184 Scalper - Micro-Topper 2 (PBSh_PASh)
01.11 - E906743 Central lubrication and stickers (PB2SWh)
Hydraulic system - PB2SWh-V topper
01.20 - E906750 Drive topper shaft and leaf auger (PB2SWh)
01.21 - E906751 Leak oil topper shaft and leaf auger (PB2SWh)
01.22 - E906752 Topper wheel (PB2SWh)
01.23 - E906753 Cutting depth adjustment (PB2SWh)
01.24 - E906754 Leaf spreader (PB2SWh)
01.25 - E906755 Fold leaf spreader (PB2SWh)
01.26 - E906756 Scalper - displacement cylinder (PB2SWh-V)
01.27 - E906757 Scalper - clamping cylinder (PB2SWh-V)
01 - Topper PESh-45 (from YOM 2015)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906864 Topper wheel-wheel arm bracket - till year of constr. 2016 (PESh)
01.02.1 - E906865 Topper wheel-wheel arm bracket - from year of constr. 2017 (PESh)
01.02.2 - E906866 Topper wheel-swivel guide - till year of constr. 2016 (PESh)
01.02.2 - E906867 Topper wheel-swivel guide - from year of constr. 2017 (PESh)
01.03.1 - E906800 Topper housing - left (PESh)
01.03.2 - E906801 Topper housing - right (PESh)
01.03.3 - E906844 Topper housing - front (PESh-45)
01.03.4 - E906845 Topper housing - rear (PESh-45)
01.04 - E906804 Support arm (PESh)
01.05 - E906805 Lifting cylinder (PESh)
01.06.1 - E906846 Topper shaft - part 1 - to year of construction 2016 (PESh-45)
01.06.1 - E906860 Topper shaft - part 1 - from year of construction 2017 (PESh-45)
01.06.2 - E906847 Topper shaft - part 2 - to year of construction 2016 (PESh-45)
01.06.2 - E906861 Topper shaft - part 2 - from year of construction 2017 (PESh-45)
01.07 - E906850 Cleaner shaft (PESh-45)
01.08 - E906810 Central lubrication and sticker (PESh)
Hydraulic system - topper PESh-45
01.10 - E906852 Topper and cleaner shaft drive - left (PESh-45)
01.11 - E906853 Topper and cleaner shaft drive - right (PESh-45)
01.12 - E906854 Leak oil topper shaft and cleaner shaft (PESh-45)
01.13 - E906855 Lifting cylinder (PESh-45)
01.14 - E906857 Topper wheel (PESh-45)
01 - Topper PESh-V (from YOM 2015)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E906864 Topper wheel-wheel arm bracket - till year of constr. 2016 (PESh)
01.02.1 - E906865 Topper wheel-wheel arm bracket - from year of constr. 2017 (PESh)
01.02.2 - E906866 Topper wheel-swivel guide - till year of constr. 2016 (PESh)
01.02.2 - E906867 Topper wheel-swivel guide - from year of constr. 2017 (PESh)
01.03.1 - E906800 Topper housing - left (PESh)
01.03.2 - E906801 Topper housing - right (PESh)
01.03.3 - E906838 Topper housing - front (PESh-V)
01.03.4 - E906839 Topper housing - rear (PESh-V)
01.04 - E906804 Support arm (PESh)
01.05 - E906805 Lifting cylinder (PESh)
01.06.1 - E906848 Topper shaft - part 1 - till year of construction 2016 (PESh-V)
01.06.1 - E906862 Topper shaft - part 1 - from year of construction 2017 (PESh-V)
01.06.2 - E906849 Topper shaft - part 2 - till year of construction 2016 (PESh-V)
01.06.2 - E906863 Topper shaft - part 2 - from year of construction 2017 (PESh-V)
01.07 - E906851 Cleaner shaft (PESh-V)
01.08 - E906810 Central lubrication and sticker (PESh)
Hydraulic system - topper PESh-V
01.10 - E906840 Topper and cleaner shaft drive - left (PESh-V)
01.11 - E906841 Topper and cleaner shaft drive - right (PESh-V)
01.12 - E906842 Leak oil topper shaft and cleaner shaft (PESh-V)
01.13 - E906856 Lifting cylinder (PESh-V)
01.14 - E906843 Topper wheel (PESh-V)
01 - Topper PIS-XL (from year of construction 2014)
01.01 - E906530 Leaf sensor (PIS-XL)
01.02.1 - E906531 Topper wheel - internal (PIS-XL)
01.02.2 - E906532 Topper wheel - external (PIS-XL)
01.03 - E906820 Topper housing - left and right (PIS-XL)
01.04 - E906539 Topper housing - front (PIS-XL)
01.05 - E906538 Topper housing - rear (PIS-XL)
01.06 - E906821 Topper shaft - with topper flails (PIS-XL)
01.06.1.1 - E906828 Topper shaft combined - with topper flails and cleaning rubber - part 1 - to year of construction 2014 (PIS-XL 8x22”)
01.06.1.1 - E906858 Topper shaft combined - with topper flails and cleaning rubber - part 1 - to year of construction 2015 (PIS-XL 8x22”)
01.06.1.2 - E906830 Topper shaft combined - with topper flails and cleaning rubber - part 2 - to year of construction 2014 (PIS-XL 8x22”)
01.06.1.2 - E906859 Topper shaft combined - with topper flails and cleaning rubber - part 2 - to year of construction 2015 (PIS-XL 8x22”)
01.06.2.1 - E906829 Topper shaft combined - with topper flails and cleaning rubber - part 1 (PIS-XL 9x20”)
01.06.2.2 - E906831 Topper shaft combined - with topper flails and cleaning rubber - part 2 (PIS-XL 9x20”)
01.07 - E906537 Scalper bar (PIS-XL)
01.08 - E906536 Adjustment tube for scalper with a height indicator (PIS-XL)
01.09 - E906533 Scalper holding frame (PIS-XL)
01.10.1 - E906534 Scalper - standard (PIS-XL)
01.10.2 - E906541 Scalper - Micro-Topper 2 (PIS-XL)
01.11.1 - E906822 Central lubrication and stickers (PIS-XL)
01.11.2 - E906543 Central lubrication and stickers - for USA_Canada (PIS-XL)
Hydraulic system - PIS-XL topper
01.20 - E906823 Topper shaft (PIS-XL)
01.21.1 - E906545 Topper wheel (PIS-XL 8x45; 8x50; 8x22_; 9x45; 9x50; 9x20_)
01.21.2 - E906824 Topper wheel (PIS-XL 6x30_)
01.22 - E906825 Scalper height adjustment (PIS-XL)
01 - Topper PISh-45_50 (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04.1 - E906173 Topper housing - front and rear (PISh-45)
01.04.2 - E906172 Topper housing - front and rear (PISh-50)
01.05 - E906170 Topper shaft - year of construction 2007 to 2009 (PISh-45_50)
01.05 - E906171 Topper shaft - to year of construction 2006 (PISh-45_50)
01.05 - E906175 Topper shaft - from year of construction 2010 (PISh-45_50)
01.06 - E905351 Scalper bar (PISh-45_50)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E906174 Scalper holding frame (PISh-45_50)
01.09.1 - E906144 Scalper - standard (PISh_RIS)
01.09.2 - E906143 Scalper - Micro-Topper 2 (PISh)
01.10 - E906360 Central lubrication and sticker (PISh)
01.11 - E906362 Additional stickers for contour marking (PISh)
Hydraulic system - PISh-45_50 topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01 - Topper PISh-V (from year of construction 2006)
01.01 - E906199 Leaf sensor (PSh)
01.02.1 - E905355 Topper wheel - wheel arm bracket (PASWh_PBSWh_PISh_RASW_RIS)
01.02.2 - E905377 Topper wheel - swivel guide (PASWh_PBSWh_PISh)
01.03 - E905350 Topper housing - left and right (PISh-45_50_V)
01.04 - E906167 Topper housing - front and rear (PISh-V)
01.05 - E906168 Topper shaft - year of construction 2007 to 2009 (PISh-V)
01.05 - E906169 Topper shaft - to year of construction 2006 (PISh-V)
01.05 - E906176 Topper shaft - from year of construction 2010 (PISh-V)
01.06 - E905361 Scalper bar - till year of constr. 2009 (PISh-V)
01.06 - E906131 Scalper bar - till year of constr. 2010 (PISh-V)
01.07 - E905349 Adjustment tube for scalper with a height indicator (PISh-45_50_V)
01.08 - E905358 Scalper holding frame - up to year of construction 2009 (PISh-V)
01.08 - E906130 Scalper holding frame - from year of construction 2010 (PISh-V)
01.09.1 - E906144 Scalper - standard (PISh_RIS)
01.09.2 - E906143 Scalper - Micro-Topper 2 (PISh)
01.10 - E906360 Central lubrication and sticker (PISh)
01.11 - E906362 Additional stickers for contour marking (PISh)
Hydraulic system - PISh-V topper
01.20 - E905497 Topper shaft (PISh-45_50_V)
01.21 - E905499 Topper wheel and scalper height adjustment (PISh-45_50_V)
01.22 - E905498 Scalper - displacement cylinder - up to year of construction 2009 (PISh-V)
01.22 - E906129 Scalper - displacement cylinder - from year of construction 2010 (PISh-V)
01.23 - E905496 Scalper - clamping cylinder (PISh-V)
02 - Lifter
02 - Lifter PR2-XL (from year of constr. 2015)
02.01.1 - E9315020 Supporting frame with lifter depth hydraulic cylinder - centre (PR2-XL 8x45; 8x50; 8x22_; 6x30_)
02.01.2 - E9315021 Supporting frame with lifter depth hydraulic cylinder - centre (PR2-XL 9x45; 9x50; 9x20_)
02.02 - E9315022 Lifter side arm - left (PR2-XL)
02.03 - E9314004 Lifter side arm - right (PR-XL)
02.04 - E9314005 Lifter depth hydraulic cylinder and topper maintenance - left (PR-XL)
02.05 - E9314006 Lifter depth hydraulic cylinder and topper maintenance - right (PR-XL)
02.06 - E9315023 Cross tube for shaking share pickup (PR2-XL)
02.07 - E9314008 Shaking share clamping brackets - reinforced (PR-XL)
02.08.1 - E9314009 Shaking share (PR-XL 8x50; 9x50)
02.08.2 - E9314010 Shaking share (PR-XL 8x22_)
02.08.3 - E9314011 Shaking share (PR-XL 8x45; 9x45)
02.08.4 - E9314012 Shaking share (PR-XL 9x20_)
02.08.5 - E9314013 Shaking share (PR-XL 6x30_)
02.09 - E9314014 Shaking share gears - reinforced (PR-XL)
02.10.1 - E9315024 Cross tube for linear guide (PR2-XL 8x45; 8x50; 8x22_; 6x30_)
02.10.2 - E9315025 Cross tube for linear guide (PR2-XL 9x45; 9x50; 9x20_)
02.11 - E9314017 Linear guide clamping brackets (PR-XL)
02.12.1 - E9314018 Lifter steering (PR-XL 8x45; 8x50)
02.12.2 - E9314019 Lifter steering (PR-XL 8x22_; 6x30_)
02.12.3 - E9314020 Lifter steering (PR-XL 9x45; 9x50)
02.12.4 - E9314021 Lifter steering (PR-XL 9x20_)
02.13.1 - E9315035 Bracket for PA rods - linear guide (PR2-XL 8x45; 8x50; 8x22_; 9x45; 9x50; 9x20_)
02.13.2 - E9315036 Bracket for PA rods - linear guide (PR2-XL 6x30_)
02.14 - E9314024 Share body with step grids (PR-XL)
02.15.1 - E9315033 Share body with lifting shares (PR2-XL)
02.15.2 - E9315034 Share guide rods (PR2-XL)
02.16.1 - E9314027 Depth-control wheel (PR-XL 8x22_; 6x30_)
02.16.2 - E9314028 Depth-control wheel (PR-XL 8x45; 8x50; 9x45; 9x50; 9x20_)
02.17 - E9315026 Supporting roller drive - left and right - with Poclain MSE08 (PR2-XL)
02.18 - E9315027 Supporting arm for supporting roller - left and right - with Poclain MSE08 (PR2-XL)
02.19 - E9315028 Depth guide with automatic depth control - left and right (PR2-XL)
02.20 - E9314034 Topper guide parallelogram - left and right (PR-XL)
02.21.1 - E9314035 Lifting rollers (PR-XL)
02.21.2 - E9314076 Lifting rollers - bearing (PR-XL)
02.22 - E9314036 Short lifting rollers (PR-XL)
02.23 - E9314037 Complete lifter gears (PR-XL)
02.24.1 - E9314038 Paddle with drive (PR-XL)
02.24.2 - E9314039 Paddle gears (PR-XL)
02.25 - E9314040 Lifter side covers (PR-XL)
02.26.1 - E9315029 Central lubrication and stickers (PR2-XL)
02.26.2 - E9315030 Central lubrication and stickers - for USA_Canada (PR2-XL)
Hydraulic system - lifting unit PR2-XL (Flange position - outside left and right)
02.40 - E9314051 Lifter and topper drive - left (PR-XL)
02.41 - E9314052 Lifter and topper drive - right (PR-XL)
02.42 - E9314053 Lifter drive and short lifting roller leak oil - left (PR-XL)
02.43 - E9314054 Short lifting roller drive - left (PR-XL)
02.44 - E9314055 Short lifting roller drive - right (PR-XL)
02.45 - E9315031 Depth-control wheel drive and leak oil - left - with Poclain MSE08 (PR2-XL)
02.46 - E9315032 Depth-control wheel drive and leak oil - right - with Poclain MSE08 (PR2-XL)
02.47 - E9314061 Shaking share drive - reinforced (PR-XL)
02.48 - E9314062 Paddle drive (PR-XL)
02.49 - E9314063 Leak oil lines - rear (PR-XL)
02.50 - E9314064 Leak oil lines - depth-control shaft and topper drive (PR-XL)
02.51 - E9314065 Supply lines - rear - left and right (PR-XL)
02.52 - E9314066 Supply lines - left and right (PR-XL)
02.53 - E9314067 Supporting frame lifter depth - centre (PR-XL)
02.54 - E9314068 Topper relief cylinder (PR-XL)
02.55 - E9314069 Topper maintenance cylinder (PR-XL)
02.56 - E9314070 Supporting roller and lifting roller height adjustment (PR-XL)
02.57 - E9314071 Stone protection (PR-XL)
02.58.1 - E9314072 Multi-coupler with quick coupler - left (PR-XL)
02.58.2 - E9314073 Multi-coupler without quick coupler - left (PR-XL)
02.59.1 - E9314074 Distribution block with quick coupler - right (PR-XL)
02.59.2 - E9314075 Distribution block without quick coupler - right (PR-XL)
Special equipment
02.30.1 - E9314043 Model - transporter with accessories - part 1
02.30.2 - E9314044 Model - transporter with accessories - part 2
02.30.3 - E9314045 Model - transporter with accessories - part 3
02.30.4 - E9314046 Model - transporter with accessories - part 4
02.31.1 - E9314047 Model - transporter - brake system - part 1
02.31.2 - E9314048 Model - transporter - brake system - part 2
02.32 - E9314049 Model - transporter warning sign
02.33 - E9314050 Model - stickers transporter
Components and Details
02 - Lifter PR2h-V
02.01 - E9314101 Cross tube for shaking share pickup (PR2h-V)
02.02 - E9314103 Shaking share clamping brackets - reinforced (PR2h-V)
02.03 - E9314099 Shaking share drive (PR2h-V)
02.04 - E9314105 Shaking share gears - reinforced (PR2h-45_50_V)
02.05 - E9314106 Linear guide cross tube (PR2h-45_50_V)
02.06 - E9314108 Linear guide (PR2h-V)
02.07 - E9314110 Bracket for linear guide PA rods - to year of construction 2014 (PR2h-V)
02.07 - E9314159 Bracket for linear guide PA rods - from year of construction 2015 (PR2h-V)
02.08 - E9314111 Share body with linear guide (PR2h-45_50_V)
02.09.1 - E9314112 Share body with lifter shares - to year of construction 2014 (PR2h-45_50_V)
02.09.1 - E9314160 Share body with lifter shares - from year of construction 2015 (PR2h-45_50_V)
02.09.2 - E9314113 Share guide rods - from year of construction 2014 (PR2h-45_50_V)
02.09.2 - E9314161 Share guide rods - from year of construction 2015 (PR2h-45_50_V)
02.10 - E9314114 Lifter steering (PR2h-45_50_V)
02.11 - E9314116 Depth-control wheel (PR2h-V)
02.12.1 - E9314118 Supporting roller gears - left (PR2h-V)
02.12.2 - E9314119 Supporting roller gears - right (PR2h-V)
02.13 - E9314121 Supporting roller supporting arm - left and right (PR2h-V)
02.14 - E9314123 Depth guide (PR2h-V)
02.15 - E9314125 Lifting rollers (PR2h-V)
02.16 - E9314127 Short lifting rollers (PR2h-50_V)
02.17.1 - E9314128 Paddle (PR2h-45_50_V)
02.17.2 - E9314129 Paddle gears (PR2h-45_50_V)
02.18 - E9314130 Complete lifter gears - left-rear (PR2h-45_50_V)
02.19 - E9314131 Complete lifter gears - right-rear (PR2h-45_50_V)
02.20 - E9314132 Complete lifter gears - left-front (PR2h-45_50_V)
02.21 - E9314134 Supporting frame and lifter side arm (PR2h-V)
02.22 - E9314135 Topper guide parallelogram - left and right (PR2h-45_50_V)
02.23 - E9314136 Supporting arm - centre (PR2h-45_50_V)
02.24 - E9314137 Lifting roller side shift - left (PR2h-50_V)
02.25 - E9314138 Lifting roller side shift - right (PR2h-50_V)
02.26 - E9314140 Lifter side covers (PR2h-50_V)
02.27 - E9314142 Supporting frame lifter covers - left (PR2h-50_V)
02.28 - E9314144 Supporting frame lifter covers - right (PR2h-50_V)
02.29 - E9314146 Central lubrication and stickers (PR2h-50_V)
02.30 - E9314157 Electrical control cabinet, working lights and accessories (PR2h-50_V)
Hydraulic system - lifting unit PR2h-V
02.50 - E9314170 Topper drive (PR2h-45_50_V)
02.51.1 - E9314171 Topper - supply line and leak oil (PR2h-45_50_V)
02.51.2 - E9314172 Topper - supply line and leak oil with shaking share fast speed - only till YOM 2013 (PR2h-45_50_V)
02.52 - E9314173 Return line - topper drive with PBSh_PASh (PR2h-45_50_V)
02.53 - E9314174 Return line - topper drive with PISh_PESh (PR2h-45_50_V)
02.54 - E9314175 Return line - lifting roller drive and leak oil (PR2h-45_50_V)
02.55 - E9314176 Short lifting roller drive (PR2h-45_50_V)
02.56 - E9314177 Shaking share drive - reinforced with PBSh_PASh (PR2h-45_50_V)
02.57 - E9314178 Shaking share drive - reinforced with PISh_PESh (PR2h-45_50_V)
02.58 - E9314179 Paddle drive and shift lifting unit (PR2h-45_50_V)
02.59 - E9314181 Supply lines - left and right (PR2h-V)
02.60 - E9314182 Topper relief cylinder (PR2h-45_50_V)
02.61 - E9314183 Topper maintenance cylinder (PR2h-45_50_V)
02.62 - E9314184 Stone protection (PR2h-45_50_V)
02.63 - E9314185 Supporting roller supply and return lines (PR2h-45_50_V)
02.64 - E9314187 Supporting roller drive - right (PR2h-V)
02.65 - E9314189 Supporting roller drive - left (PR2h-V)
02.66 - E9314190 Supporting roller and lifting roller height adjustment (PR2h-45_50_V)
02.67 - E9314191 Shift roller position (PR2h-50_V)
02.68 - E9314192 Shift supporting roller (PR2h-V)
02.69 - E9314193 Shift share body (PR2h-V)
02.70 - E9314194 Clamp share body - till year of construction 2014 (PR2h-V)
02.70 - E9314197 Clamp share body - from year of construction 2015 (PR2h-V)
02.71 - E9314195 Shift shaking share (PR2h-V)
02.72 - E9314196 Clamp shaking share (PR2h-V)
Special equipment
02.40 - E9314147 Variant - additional chassis - frame with components (PR2h-45_50_V)
02.41 - E9314148 Variant - additional chassis - support foot (PR2h-45_50_V)
02.42 - E9314149 Variant - additional chassis - wheel suspension (PR2h-45_50_V)
02 - Lifting unit PR2h-45
02.01 - E9314100 Cross tube for shaking share pickup (PR2h-45)
02.02 - E9314102 Shaking share clamping brackets - reinforced (PR2h-45)
02.03 - E9314104 Shaking share drive (PR2h-45)
02.04 - E9314105 Shaking share gears - reinforced (PR2h-45_50_V)
02.05 - E9314106 Linear guide cross tube (PR2h-45_50_V)
02.06 - E9314107 Linear guide (PR2h-45)
02.07 - E9314109 Bracket for linear guide PA rods - to year of construction 2014 (PR2h-45_50)
02.07 - E9314158 Bracket for linear guide PA rods - from year of construction 2015 (PR2h-45_50)
02.08 - E9314111 Share body with linear guide (PR2h-45_50_V)

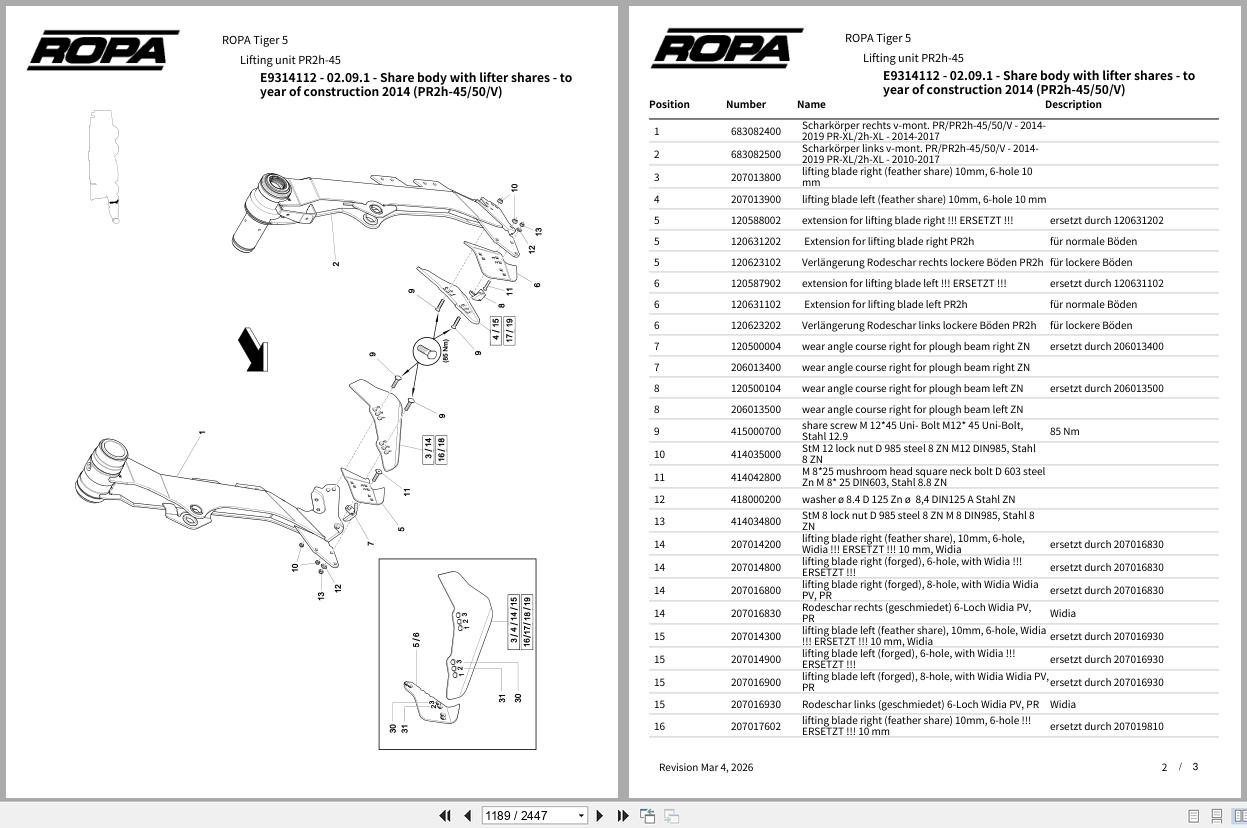

02.09.1 - E9314112 Share body with lifter shares - to year of construction 2014 (PR2h-45_50_V)
02.09.1 - E9314160 Share body with lifter shares - from year of construction 2015 (PR2h-45_50_V)
02.09.2 - E9314113 Share guide rods - from year of construction 2014 (PR2h-45_50_V)
02.09.2 - E9314161 Share guide rods - from year of construction 2015 (PR2h-45_50_V)
02.10 - E9314114 Lifter steering (PR2h-45_50_V)
02.11 - E9314115 Depth-control wheel (PR2h-45_50)
02.12 - E9314117 Supporting roller drive - left and right (PR2h-45_50)
02.13 - E9314120 Supporting roller supporting arm - left and right (PR2h-45_50)
02.14 - E9314122 Depth guide (PR2h-45_50)
02.15 - E9314124 Lifting rollers (PR2h-45)
02.16 - E9314126 Short lifting rollers (PR2h-45)
02.17.1 - E9314128 Paddle (PR2h-45_50_V)
02.17.2 - E9314129 Paddle gears (PR2h-45_50_V)
02.18 - E9314130 Complete lifter gears - left-rear (PR2h-45_50_V)
02.19 - E9314131 Complete lifter gears - right-rear (PR2h-45_50_V)
02.20 - E9314132 Complete lifter gears - left-front (PR2h-45_50_V)
02.21 - E9314133 Supporting frame and lifter side arm (PR2h-45)
02.22 - E9314135 Topper guide parallelogram - left and right (PR2h-45_50_V)
02.23 - E9314136 Supporting arm - centre (PR2h-45_50_V)
02.24 - E9314139 Lifter side covers (PR2h-45)
02.25 - E9314141 Supporting frame lifter covers - left (PR2h-45)
02.26 - E9314143 Supporting frame lifter covers - right (PR2h-45)
02.27 - E9314145 Central lubrication and stickers (PR2h-45)
02.28 - E9314156 Electrical control cabinet, working lights and accessories (PR2h-45)
Hydraulic system - lifting unit PR2h-45
02.50 - E9314170 Topper drive (PR2h-45_50_V)
02.51.1 - E9314171 Topper - supply line and leak oil (PR2h-45_50_V)
02.51.2 - E9314172 Topper - supply line and leak oil with shaking share fast speed - only till YOM 2013 (PR2h-45_50_V)
02.52 - E9314173 Return line - topper drive with PBSh_PASh (PR2h-45_50_V)
02.53 - E9314174 Return line - topper drive with PISh_PESh (PR2h-45_50_V)
02.54 - E9314175 Return line - lifting roller drive and leak oil (PR2h-45_50_V)
02.55 - E9314176 Short lifting roller drive (PR2h-45_50_V)
02.56 - E9314177 Shaking share drive - reinforced with PBSh_PASh (PR2h-45_50_V)
02.57 - E9314178 Shaking share drive - reinforced with PISh_PESh (PR2h-45_50_V)
02.58 - E9314179 Paddle drive and shift lifting unit (PR2h-45_50_V)
02.59 - E9314180 Supply lines - left and right (PR2h-45_50)
02.60 - E9314182 Topper relief cylinder (PR2h-45_50_V)
02.61 - E9314183 Topper maintenance cylinder (PR2h-45_50_V)
02.62 - E9314184 Stone protection (PR2h-45_50_V)
02.63 - E9314185 Supporting roller supply and return lines (PR2h-45_50_V)
02.64 - E9314186 Supporting roller drive - right (PR2h-45_50)
02.65 - E9314188 Supporting roller drive - left (PR2h-45_50)
02.66 - E9314190 Supporting roller and lifting roller height adjustment (PR2h-45_50_V)
Special equipment
02.40 - E9314147 Variant - additional chassis - frame with components (PR2h-45_50_V)
02.41 - E9314148 Variant - additional chassis - support foot (PR2h-45_50_V)
02.42 - E9314149 Variant - additional chassis - wheel suspension (PR2h-45_50_V)
02.43 - E9314150 Share body - divided
02.44.1 - E9314152 Share body - divided - attachments sugar beet
02.44.2 - E9314151 Share body - divided - attachments chicory
02.45 - E9314153 Tilting frame - linear guide for chicory
02.46.1 - E9314154 Row sensor for chicory - part 1
02.46.2 - E9314155 Row sensor for chicory - part 2
02 - Lifting unit PR2h-50
02.01 - E9314200 Cross tube for shaking share pickup (PR2h-50)
02.02 - E9314201 Shaking share clamping brackets - reinforced (PR2h-50)
02.03 - E9314202 Shaking share drive (PR2h-50)
02.04 - E9314105 Shaking share gears - reinforced (PR2h-45_50_V)
02.05 - E9314106 Linear guide cross tube (PR2h-45_50_V)
02.06 - E9314203 Linear guide (PR2h-50)
02.07 - E9314109 Bracket for linear guide PA rods - to year of construction 2014 (PR2h-45_50)
02.07 - E9314158 Bracket for linear guide PA rods - from year of construction 2015 (PR2h-45_50)
02.08 - E9314111 Share body with linear guide (PR2h-45_50_V)
02.09.1 - E9314112 Share body with lifter shares - to year of construction 2014 (PR2h-45_50_V)
02.09.1 - E9314160 Share body with lifter shares - from year of construction 2015 (PR2h-45_50_V)
02.09.2 - E9314113 Share guide rods - from year of construction 2014 (PR2h-45_50_V)
02.09.2 - E9314161 Share guide rods - from year of construction 2015 (PR2h-45_50_V)
02.10 - E9314114 Lifter steering (PR2h-45_50_V)
02.11 - E9314115 Depth-control wheel (PR2h-45_50)
02.12 - E9314117 Supporting roller drive - left and right (PR2h-45_50)
02.13 - E9314120 Supporting roller supporting arm - left and right (PR2h-45_50)
02.14 - E9314122 Depth guide (PR2h-45_50)
02.15 - E9314204 Lifting rollers (PR2h-50)
02.16 - E9314127 Short lifting rollers (PR2h-50_V)
02.17.1 - E9314128 Paddle (PR2h-45_50_V)
02.17.2 - E9314129 Paddle gears (PR2h-45_50_V)
02.18 - E9314130 Complete lifter gears - left-rear (PR2h-45_50_V)
02.19 - E9314131 Complete lifter gears - right-rear (PR2h-45_50_V)
02.20 - E9314132 Complete lifter gears - left-front (PR2h-45_50_V)
02.21 - E9314205 Supporting frame and lifter side arm (PR2h-50)
02.22 - E9314135 Topper guide parallelogram - left and right (PR2h-45_50_V)
02.23 - E9314136 Supporting arm - centre (PR2h-45_50_V)
02.24 - E9314137 Lifting roller side shift - left (PR2h-50_V)
02.25 - E9314138 Lifting roller side shift - right (PR2h-50_V)
02.26 - E9314140 Lifter side covers (PR2h-50_V)
02.27 - E9314142 Supporting frame lifter covers - left (PR2h-50_V)
02.28 - E9314144 Supporting frame lifter covers - right (PR2h-50_V)
02.29 - E9314146 Central lubrication and stickers (PR2h-50_V)
02.30 - E9314157 Electrical control cabinet, working lights and accessories (PR2h-50_V)
Hydraulic system - lifting unit PR2h-50
02.50 - E9314170 Topper drive (PR2h-45_50_V)
02.51.1 - E9314171 Topper - supply line and leak oil (PR2h-45_50_V)
02.51.2 - E9314172 Topper - supply line and leak oil with shaking share fast speed - only till YOM 2013 (PR2h-45_50_V)
02.52 - E9314173 Return line - topper drive with PBSh_PASh (PR2h-45_50_V)
02.53 - E9314174 Return line - topper drive with PISh_PESh (PR2h-45_50_V)
02.54 - E9314175 Return line - lifting roller drive and leak oil (PR2h-45_50_V)
02.55 - E9314176 Short lifting roller drive (PR2h-45_50_V)
02.56 - E9314177 Shaking share drive - reinforced with PBSh_PASh (PR2h-45_50_V)
02.57 - E9314178 Shaking share drive - reinforced with PISh_PESh (PR2h-45_50_V)
02.58 - E9314179 Paddle drive and shift lifting unit (PR2h-45_50_V)
02.59 - E9314180 Supply lines - left and right (PR2h-45_50)
02.60 - E9314182 Topper relief cylinder (PR2h-45_50_V)
02.61 - E9314183 Topper maintenance cylinder (PR2h-45_50_V)
02.62 - E9314184 Stone protection (PR2h-45_50_V)
02.63 - E9314185 Supporting roller supply and return lines (PR2h-45_50_V)
02.64 - E9314186 Supporting roller drive - right (PR2h-45_50)
02.65 - E9314188 Supporting roller drive - left (PR2h-45_50)
02.66 - E9314190 Supporting roller and lifting roller height adjustment (PR2h-45_50_V)
02.67 - E9314191 Shift roller position (PR2h-50_V)
Special equipment
02.40 - E9314147 Variant - additional chassis - frame with components (PR2h-45_50_V)
02.41 - E9314148 Variant - additional chassis - support foot (PR2h-45_50_V)
02.42 - E9314149 Variant - additional chassis - wheel suspension (PR2h-45_50_V)
03 - Intermediate belt
03.01 - E9014001 Intermediate belt frame and accessories - PR2h
03.02 - E9014002 Intermediate belt transfer pipe and supporting rollers - PR2h
03.03 - E9014003 Intermediate belt suspension - PR2h
03.04 - E9014004 Sieve conveyor for intermediate belt - PR2h
04 - Strainer wheel
04.01 - E9014011 Strainer wheel 1
04.02 - E9014012 Strainer wheel 2 (to year of construction 2014)
04.02 - E9014020 Strainer wheel 2 (from year of construction 2015)
04.03 - E9014013 Strainer wheel 3
04.04 - E9014014 Bearing arm guide grids 1
04.05 - E9014015 Bearing arm guide grids 2
04.06 - E9014016 Bearing arm guide grids 3
04.07.1 - E9014017 Strainer wheel guide grids without spring tines (till year of constr. 2014)
04.07.1 - E9014021 Strainer wheel guide grids without spring tines (year of construction 2015)
04.07.1 - E9014023 Strainer wheel guide grids without spring tines (from year of constr. 2016)
04.07.2 - E9014018 Strainer wheel guide grids with spring tines (till year of construction 2014)
04.07.2 - E9014022 Strainer wheel guide grids with spring tines (year of constr. 2015)
04.07.2 - E9014024 Strainer wheel guide grids with spring tines (from YOM 2016)
Special equipment
04.10 - E9014019 Model - 1st strainer wheel agitator
04.30 - E906287 Strainer wheel tines, round - chicory
04.32 - E9014025 Sliding plates - chicory (from year of constr. 2016)
04.32 - E9014026 Sliding plates - chicory (till year of constr. 2015)
05 - Elevator
05.01 - E9014031 Elevator drive
05.02 - E9014032 Elevator arm - right
05.03 - E9014033 Elevator arm - left
05.04 - E9014034 Elevator duct - right top
05.05 - E9014035 Elevator duct - right bottom
05.06 - E9014036 Elevator duct - left
05.07 - E9014037 Elevator - left bottom
05.08 - E9014038 Elevator bottom
05.09 - E9014039 Angular gear
05.10 - E9014040 Sieve conveyor for elevator
05.10 - E9014041 Sieve conveyor for elevator (from ch. no. 6G1483)
05.10 - E9014042 Modification of sieve conveyor for elevator
06 - Bunker
- E9800498 Frame tubes on conveyor drive
06.01 - E9014051 Bunker auger
06.02 - E9014052 Bunker bar
06.03 - E9014053 Longitudinal conveyor - sheet metal and rubber (till year of construction 2015)
06.03 - E9014065 Longitudinal conveyor - sheet metal and rubber (from year of constr. 2016)
06.04 - E9014054 Longitudinal conveyor - guide bars
06.05 - E9014055 Longitudinal conveyor - drive
06.06 - E9014056 Cross conveyor - sheet metal and rubber (till year of construction 2015)
06.06 - E9014066 Cross conveyor - sheet metal and rubber (from year of constr. 2016)
06.07 - E9014057 Cross conveyor - guide bars
06.08 - E9014058 Cross conveyor - drive
06.09 - E9014059 Cleaning roller
06.10 - E9014060 Movable walls - left and right
06.11 - E9014061 Movable walls - front and rear, ultrasound
06.12 - E9014062 Storage compartment, belt limiter
06.13 - E9014063 Bunker rear wall and door
06.14 - E9014064 Bunker panels bolted (from year of constr. 2016)
07 - Unload conveyor
07.01 - E9014081 Unload conveyor frame
07.02 - E9014082 Articulated unloading conveyor frame 1
07.03 - E9014083 Articulated unload conveyor frame 2 with drive
07.04 - E9014084 Unload conveyor support rollers
07.05 - E9014085 Potentiometer unload conveyor
07.06 - E9014086 Sieve conveyor for unloading conveyor
08 - Chassis
- E9800487 Overview of lacquers and paints
08.01 - E9014091 Three-point suspension
08.02 - E9014092 Hydraulic cylinders - 1st axle and articulation
08.03 - E9014093 1st axle - axle mounting_potentiometer
08.04.1 - E9014094 Articulated joint - suspension_potentiometer
08.04.2 - E9014124 Chassis
08.05 - E9014095 2nd axle with gears
08.06 - E9014096 Suspension axle 2
08.07 - E9014097 Suspension axle 3
08.08 - E9014098 Cardan shafts
08.09 - E9014099 Traction drive
08.10 - E9014100 Tyres
08.11 - E9014101 Forward frame component - attachments
08.12 - E9014102 Cabin ladder
08.13 - E9014103 Bunker ladder
08.14 - E9014104 Covers under the cross conveyor
08.15 - E9014105 Cover for axle 2
08.16 - E9014106 Cover for axle 3
08.17 - E9014107 Cover for splash guard
08.18 - E9014108 Operator protection safety bar
08.19 - E9014109 Protective cover and components on the bunker - left
08.20 - E9014110 Protective cover and components on the bunker - front
08.21 - E9014111 Protective cover and components on the bunker - right middle
08.22 - E9014112 Protective cover and components on the bunker - right rear
08.23 - E9014113 Engine compartment underride guard
08.24 - E9014114 Engine compartment - frame
08.25 - E9014115 Engine compartment - rear cover
08.26 - E9014116 Engine compartment - side cover
08.27 - E9014117 Engine cover - top left
08.28 - E9014118 Engine compartment - radiator grill
08.29.1 - E9014119 Stickers - front and left
08.29.2 - E9014121 Stickers - front and left - for USA_Canada
08.30.1 - E9014120 Stickers - rear and right
08.30.2 - E9014122 Stickers - rear and right - for USA_Canada
08.31 - E9014123 Vehicle tools and accessories
Special equipment
08.40 - E9014125 Model - platform extension
09 - Cabin
09.01 - E9014131 Cabin mounting
09.02 - E9014132 Accelerator and brake pedals and cleaning flap
09.03 - E9014133 Cabin roof and accessories
09.04 - E9014134 Fresh air filter, air jets and covers (till year of construction 2015)
09.04 - E9014149 Fresh air filter and air jets (from YOM 2016)
09.05 - E9014135 Air conditioner with accessories (till year of constr. 2015)
09.05 - E9014150 Air conditioner with accessories (from year of constr. 2016)
09.06 - E9014136 Driver's seat and passenger's seat and accessories (till year of construction 2015)
09.06 - E9014151 Driver's seat and passenger's seat and accessories (from model year 2016)
09.07 - E9014137 Steering column
09.08 - E9014138 Roof console - front (till year of construction 2015)
09.08 - E9014152 Roof console - front (from year of construction 2016)
09.09 - E9014139 Roof console - right
09.10.1 - E9014140 Terminal console - part 1
09.10.2 - E9014141 Terminal console - part 2 (till year of construction 2015)
09.10.2 - E9014153 Terminal console - part 2 (from 2016 YOM)
09.10.3 - E9014142 Terminal console - part 3
09.11 - E9014143 Mirror bracket and working floodlight
09.12 - E9014144 Front window, side window and cabin door
09.13 - E9014145 Window wipers
09.14 - E9014146 Windscreen washer system
09.15 - E9014147 Cabin linings (till year of construction 2015)
09.15.1 - E9014154 Cabin cover - part 1 (from 2016 YOM)
09.15.2 - E9014155 Cabin cover - part 2 (from 2016 YOM)
09.16 - E9014148 Stickers - cabin and central electrical system
Components and Details
- E9800483 352044400 - driver's seat
10 - Engine
10.01 - E9014161 Diesel tank
10.02.1 - E9014162 Pump distributor gears with pumps - part 1
10.02.2 - E9014163 Pump distributor gears with pumps - part 2
10.03.1 - E9014164 Diesel engine radiator - part 1
10.03.2 - E9014165 Diesel engine radiator - part 2
10.03.3 - E9014166 Diesel engine radiator - part 3
10.04 - E9014167 Air filter and charge air cooler
10.05 - E9014172 Exhaust system - version 1
10.05 - E9014173 Exhaust system - version 2
10.06 - E9014174 Diesel engine with engine bracket (from year of construction 2015)
10.06 - E9014175 Diesel engine with engine bracket (till year of construction 2014)
10.07 - E9014168 Oil cooler
10.08 - E9014169 Fuel system with filter
10.09 - E9014170 AdBlue® tank
10.10 - E9014171 AdBlue system
10.11 - E9014176 Connecting battery, starter and generator
10.12 - E9014177 Diesel engine OM473
10.13 - E9014178 Heating system
10.14 - E9014179 Air conditioning system
Components and Details
- E9800486 303026800 - Fuel filter with water separator and e-pump
11 - Hydraulic system
11.01.1 - E9014201 Three-point suspension with lifting unit lift cylinder
11.01.2 - E9014199 Three-point suspension - relief with additional chassis
11.02 - E9014202 Operating hydraulics - articulation front part supply line
11.03 - E9014203 Operating hydraulics - supply to articulation front part
11.04 - E9014204 Operating hydraulics - pressure line and return
11.05 - E9014205 Pressure lines - steering working hydraulics
11.06 - E9014206 Pressure line - pump steering
11.07 - E9014207 Operating hydraulics - Load Sensing
11.08 - E9014208 Pressure line - steering, shaking share and paddle
11.09 - E9014209 Pressure line - shaking share and front axle steering
11.10 - E9014210 Steering front axle - Load Sensing
11.11 - E9014211 Steering - steering wheel connection
11.12 - E9014212 Steering - axle 1 (front axle)
11.13 - E9014213 Steering - articulation cylinder
11.14 - E9014214 Steering - synchronized steering
11.15 - E9014215 Steering - axle 2
11.16 - E9014216 Steering - axle 3 - part 1
11.17 - E9014217 Steering - axle 3 - part 2
11.18 - E9014218 Steering - emergency steering pump
11.19 - E9014219 Chassis - axle support 1st axle - part 1
11.20 - E9014220 Chassis - axle support 1st axle - part 2
11.21 - E9014221 Chassis - axle support 2nd + 3rd axle
11.22 - E9014222 Chassis - inclination
11.23 - E9014223 Chassis - prestress
11.24 - E9014224 Sieving conveyor - drive and tension
11.25 - E9014225 Strainer wheel - pressure line
11.26 - E9014226 Strainer wheel - return
11.27 - E9014227 Strainer wheel 1 - drive; feed for strainer wheel 2 + 3
11.28 - E9014228 Strainer wheel 2 + 3 - drive
11.29 - E9014229 Strainer wheel 1 - guide grid height adjustment
11.30 - E9014230 Strainer wheel 2 + 3 - guide grid height adjustment
11.31 - E9014231 Elevator - drive left
11.32.1 - E9014232 Elevator - drive right
11.32.2 - E9014233 Elevator - drive roller bottom
11.33 - E9014234 Elevator - support cylinders
11.34 - E9014235 Elevator up_down - left
11.35 - E9014236 Elevator up_down - right
11.36 - E9014237 Bunker auger - drive
11.37 - E9014238 Bunker auger up_down - front
11.38 - E9014239 Bunker auger up_down - rear
11.39 - E9014240 Bunker bar folding
11.40 - E9014241 Fold partition - front
11.41 - E9014242 Fold partition - rear
11.42 - E9014243 Longitudinal conveyor - drive
11.43 - E9014244 Cross conveyor - drive
11.44 - E9014245 Cross conveyor - pressure sender
11.45 - E9014246 Unload conveyor - drive
11.46 - E9014247 Unloading conveyor up_down - supply
11.47 - E9014248 Unload conveyor up_down - front
11.48 - E9014249 Unloading conveyor up_down - rear
11.49 - E9014250 Unloading conveyor - supply articulation
11.50 - E9014251 Unload conveyor - articulation 1
11.51 - E9014252 Unload conveyor - articulation 2
11.52.1 - E9014253 Lifter drive - pressure line and return
11.52.2 - E9014273 Lifting unit drive - additional pump at PR2-XL
11.53 - E9014254 Traction drive - pressure line
11.54 - E9014255 Traction drive - CVR transmission lubrication - part 1
11.55 - E9014256 Traction drive - CVR transmission lubrication - part 2
11.56 - E9014257 Traction drive - CVR gear shift
11.57 - E9014258 Traction drive - transmission lubrication axle 2
11.58 - E9014259 Brake - pressure line, return and Load Sensing
11.59 - E9014260 Brake - 1st axle (front axle)
11.60 - E9014261 Brake - axle 2
11.61 - E9014262 Fan drive for water cooler charge air
11.62 - E9014263 Oil cooler
11.63 - E9014264 PDG lubrication - part 1
11.64 - E9014200 PDG lubrication - part 2
11.65 - E9014265 Collective return pipe on the frame - left
11.66 - E9014266 Collective return pipe on the frame - right
11.67 - E9014267 Accumulative return unit
11.68 - E9014268 Intake lines - part 1
11.69 - E9014269 Intake lines - part 2
11.70 - E9014270 Intake lines - part 3
11.71 - E9014271 Hydraulic oil tank
11.72 - E9014272 Hydraulic return filter
Special equipment
11.81 - E9014274 Model - three-point suspension with lifting unit lift cylinder (only PR2-XL lifter with quick coupler)
11.82 - E9014275 Model - PR2-XL lifting unit with quick coupler - right
11.83 - E9014276 Model - PR2-XL lifting unit with quick coupler - left - part 1
11.84 - E9014277 Model - PR2-XL lifting unit with quick coupler - left - part 2
11.85 - E9014278 Model - PR2-XL lifting unit with quick coupler - left - part 3
12 - Central electrical system
- E9800477 Übersicht Stecker - Teil 2
- E9800478 018079700 - Electrical assortment box
- E9800499 Overview of plugs
12.01 - E9014301 Switching cabinet for central electrics and diesel engine (till year of construction 2015)
12.01 - E9014306 Switching cabinet for central electrical system and diesel engine (from year of constr. 2016)
12.02 - E9014302 Video system - distance control (to 2015 YOM)
12.02 - E9014304 Video system - distance control (from year of construction 2016)
12.03 - E9014303 Video system - R-View (till year of construction 2015)
12.03 - E9014305 Video system - R-View (from year of construction 2016)
12.04.1 - E9014307 Wiring harness overview - part 1
12.04.2 - E9014308 Wiring harness overview - part 2
13 - Gears & axles
299026601 - CVR gearbox traction drive
13.34 - E9014364 (O-11730002) Housing
13.36 - E9014366 (O-11730002) Intermediate shaft
13.38 - E9014368 (O-11730002) Output drive shaft
13.39 - E9014369 (O-11730002) Filter
299026701 - pump distributor gears
13.01 - E9014311 (O-10620043) Pump distributor gears compartment
13.02 - E9014312 (O-10620043) Pump drive shaft
13.03 - E9014313 (O-10620043) Pump distributor gears drive shaft
13.04 - E9014314 (O-10620043) Pump distributor gears side shaft
13.05 - E9014315 (O-10620043) Pump distributor gears intermediate shaft above
13.06 - E9014316 (O-10620043) Pump distributor gears side shaft
13.07 - E9014317 (O-10620043) Pump distributor gears intermediate shaft central
13.08 - E9014318 (O-10620043) Pump distributor gears intermediate shaft below
13.09 - E9014319 (O-10620043) Pump distributor gears drive shaft below
13.10 - E9014320 (O-10620043) Pump distributor gears filter
299026801 - front axle
13.11 - E9014331 (O-11340030) Differential housing
13.12 - E9014332 (O-11340030) Brake
13.13 - E9014333 (O-11340030) Planetary axle carrier
13.14 - E9014334 (O-11340030) Front axle wheel hub
13.15 - E9014335 (O-11340030) Steering group
13.16 - E9014336 (O-11340030) Front axle steering cylinder
299026901 - rear axle 1
13.17 - E9014340 (O-11350045) Differential housing
13.18 - E9014341 (O-11350045) rear axle
13.19 - E9014342 (O-11350045) Brake
13.20 - E9014343 (O-11350045) Steering group
13.21 - E9014344 (O-11350045) Wheel hub
13.22 - E9014345 (O-11350045) Housing
13.23 - E9014346 (O-11350045) Output drive shaft
13.24 - E9014347 (O-11350045) Intermediate shaft
13.25 - E9014348 (O-11350045) Drive shaft
13.26 - E9014349 (O-11350045) Lubrication oil pump
299027001 - rear axle 2
13.27 - E9014355 (O-11350046) Differential housing
13.28 - E9014356 (O-11350046) rear axle
13.29 - E9014357 (O-11350046) Steering group
13.30 - E9014358 (O-11350046) Wheel hub
299027601 - cardan shaft
13.33 - E9014362 (O-10730007) Articulated intermed. shaft
630030101 - intermediate belt gears
13.31 - E9014360 (O-10630028) Intermediate belt gears for PRh lifter
14 - Pneumatic system
14.01 - E9014370 Pneumatic lines - right - air chamber
14.02 - E9014371 Connection for operator protection deflector bracket
14.03 - E9014372 Differential lock connection and all-wheel switching
14.04 - E9014373 Mirror adjustment connection with blow-out gun
Special equipment
14.10 - E9014374 Model - pneumatic system - blow-out gun for lifting unit PR2-XL with quick coupler
15 - Hydraulic screw connections
15.01 - E9800500 Hydraulic screw connection - type_ G
15.02 - E9800501 Hydraulic screw connection - type_ W
15.03 - E9800502 Hydraulic screw connection - type_ T
15.04 - E9800503 Hydraulic screw connection - type_ K
15.05 - E9800504 Hydraulic screw connection - type_ EVW
15.06 - E9800505 Hydraulic screw connection - type_ EVT
15.07 - E9800506 Hydraulic screw connection - type_ EVL
15.08.1 - E9800507 Hydraulic screw connection - type_ EVGE - part 1 (metric)
15.08.2 - E9800508 Hydraulic screw connection - type_ EVGE - part 2 (inch)
15.09.1 - E9800509 Hydraulic screw connection - type_ GE - part 1 (metric)
15.09.2 - E9800510 Hydraulic screw connection - type_ GE - part 2 (metric)
15.09.3 - E9800511 Hydraulic screw connection - type_ GE - part 3 (metric)
15.09.4 - E9800512 Hydraulic screw connection - type_ GE - part 4 (inch)
15.09.5 - E9800513 Hydraulic screw connection - type_ GE - part 5 (inch)
15.09.6 - E9800514 Hydraulic screw connection - type_ GE - part 6 (inch)
15.10 - E9800515 Hydraulic screw connection - type_ GR
15.11 - E9800516 Hydraulic screw connection - type_ GVO
15.12.1 - E9800517 Hydraulic screw connection - type_ KOR - part 1
15.12.2 - E9800518 Hydraulic screw connection - type_ KOR - part 2
15.13 - E9800519 Hydraulic screw connection - type_ SWVE
15.14.1 - E9800520 Hydraulic screw connection - type_ VSTI - part 1 (metric)
15.14.2 - E9800521 Hydraulic screw connection - type_ VSTI - part 2 (inch)
15.15 - E9800522 Hydraulic screw connection - type_ ROV
15.16.1 - E9800523 Hydraulic screw connection - type_ RED - part 1 (metric)
15.16.2 - E9800524 Hydraulic screw connection - type_ RED - part 2 (inch)
15.17 - E9800525 Hydraulic screw connection - type_ GAI
15.18 - E9800526 Hydraulic screw connection - type_ MAV
15.19 - E9800527 Hydraulic screw connection - type_ MAV-EV
15.20 - E9800528 Hydraulic screw connection - type_ Measuring screw connection
15.21 - E9800529 Hydraulic screw connection - type_ measuring port
15.22 - E9800530 Hydraulic screw connection - type_ gauge connection
15.23 - E9800531 Hydraulic screw connection - type_ pressure gauge
15.24 - E9800532 Hydraulic screw connection - type_ pressure gauge connection
15.25 - E9800533 Hydraulic screw connection - type_ hose for pressure gauge
15.26 - E9800534 Hydraulic screw connection - type_ Bulkhead screw connection
15.27 - E9800535 Hydraulic screw connection - type_ Bulkhead union elbow
15.28 - E9800536 Hydraulic screw connection - type_ Flat nut for bulkhead screw connections
15.29 - E9800537 Hydraulic screw connection - type_ screw cap
15.30 - E9800538 Hydraulic screw connection - type_ BUZ
15.31 - E9800539 Hydraulic screw connection - type_ cutting ring
15.32 - E9800540 Hydraulic screw connection - type_ reinforcing sleeve
16 - Central lubrication
- E9800491 Central lubricating pump
- E9800493 Distributor - components
- E9800494 Hose connections
- E9800495 Screw connections - central lubrication
16.01 - E9014400 Central lubricating system
16.02 - E9014401 Central lubricating pump with grease bucket
21 - Lubricants and filter lists
21.01 - E9016500 Lubricants
21.02 - E9014420 Filter for diesel engine
21.03 - E9016502 Filter for hydraulic system and gears
21.04 - E9016503 Filter for cabin
22 - Control blocks and seat valves
- E9800001 270043100 - seat valves 4-part
- E9800002 270044400 - control unit - articulation coupling
- E9800003 270044500 - control unit - elevator
- E9800004 270047000 - seat valves 1-part
- E9800006 270050600 - control unit - strainer wheel
- E9800007 270050700 - control unit - steering FA
- E9800008 270051100 - control unit - infeed conveyor PR
- E9800009 270051400 - control unit
- E9800010 270051500 - control unit - lifting rollers
- E9800011 270051600 - control unit - lifter gears and depth-control shaft
- E9800012 270051700 - control unit - elevator tightening
- E9800013 270052100 - control unit - short lifting roller and paddle
- E9800014 270053700 - control unit - shaking share and leaf-spreader
- E9800016 270066600 - check valve unit
- E9800018 270066900 - compact brake unit - 2-circuit _Safim_
- E9800020 270069200 - control unit conveyor 1
- E9800022 270043200 - seat valves 2-part
- E9800034 270063700 - control unit - operating hydraulics 1
- E9800035 270072300 - control unit - operating hydraulics 2
- E9800036 270072400 - control unit - steering RA & articulation
- E9800037 270076800 - seat valves 1-part
- E9800038 270074100 - Control unit - chassis
- E9800039 270076000 - Control unit - bunker auger
- E9800040 270072500 - control unit conveyor 2
- E9800041 270071100 - control unit coupling CVR
- E9800042 270076810 - seat valves 1-part
- E9800043 270044600 - seat valves 1-part
- E9800044 270054400 - control unit - leaf auger
- E9800051 2700546_ - Suction unit
- E9800073 270064000 - Leaf auger control unit
- E9800074 270068800 - control unit rubber topper
23 - Hydraulic motors and cylinders
- E9800032 272015400 - gear motor
- E9800033 2720132_ - hydraulic motor OMV 400 tapered shaft
- E9800061 272015410 - gear motor
- E9800084 272016100 - gear motor fan drive
- E9800090 272016310 - hydraulic motor wheel motor MSE05
- E9800091 272016900 - hydraulic motor wheel motor MSE08
- E9800093 272012701 - axial piston motor A2 FE 80 _ BR 61
- E9800094 272012801 - axial piston motor A2 FE 90 _ BR 61
- E9800095 272013601 - axial piston motor A2 FE 107 _ BR 61
- E9800096 272013701 - axial piston motor A2 FE 125 _ BR 61
- E9800103 2720177_ - axial piston motor A6 VM 215 EP
- E9800105 272017103 - axial piston motor A10 VER 37 EZ7
- E9800107 2720135_ - hydraulic motor TMT 250 tapered shaft
- E9800110 Hydraulic motor OMV
- E9800111 Hydraulic motor OMT
- E9800112 Hydraulic motor OMS
- E9800113 Hydraulic motor OMR
- E9800116 276014901 - hydraulic cylinder(s) ø25mm x 120mm
