Sany SY16C Parts Manual SY0012CC08038

Data Size: 11.35 MB
File Type: PDF
Language: English
Manufacturer: Sany
Applicable Machine: Hydraulic Excavator
Document: Parts Manual
Machine Model: Sany SY16C SY16C3Y3W Excavator
Equipment Number: SY0012CC08038
Book Number: SY0012CC08038
Page: 303 Pages

List Contents:

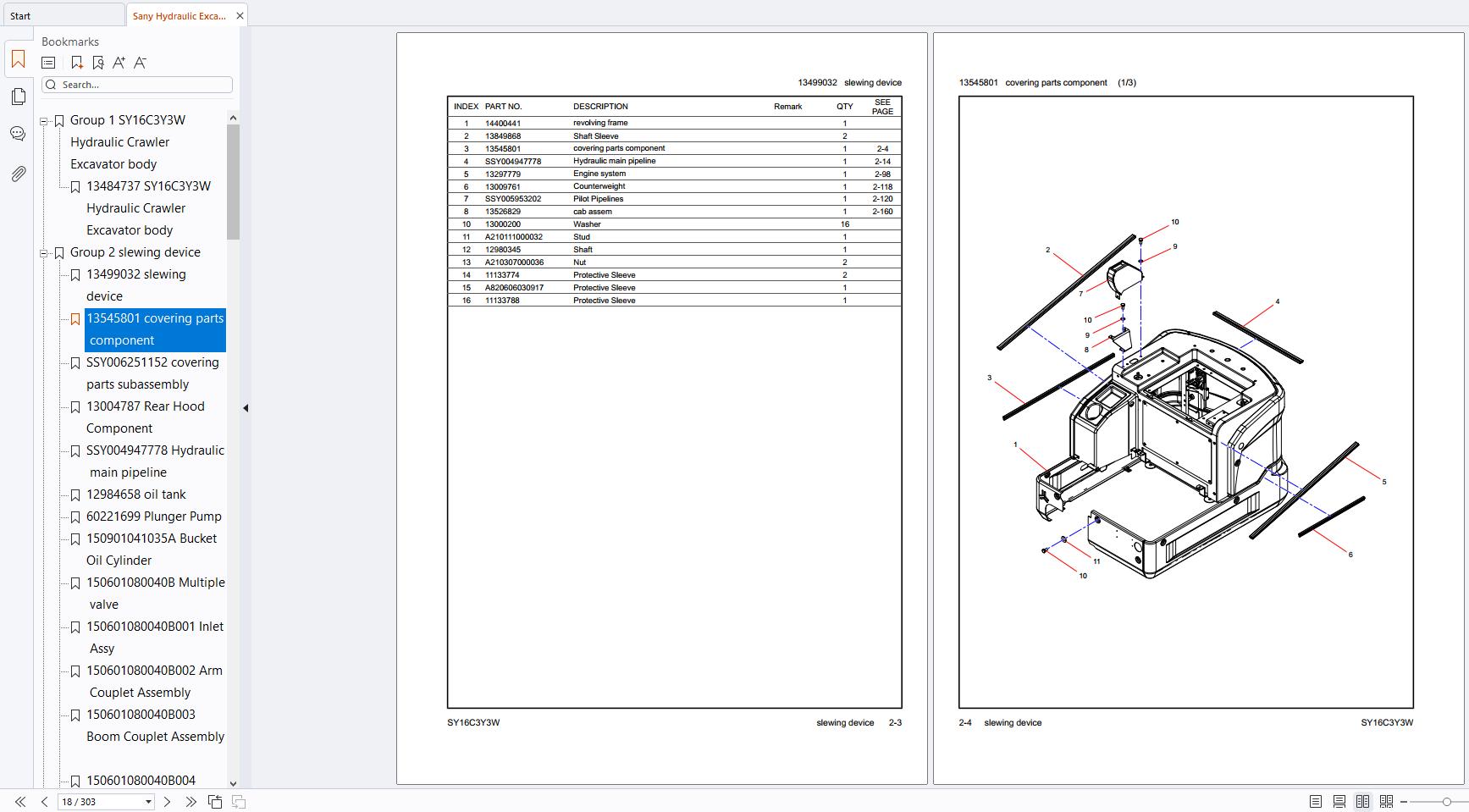

Group 1 SY16C3Y3W Hydraulic Crawler Excavator body
13484737 SY16C3Y3W Hydraulic Crawler Excavator body
Group 2 slewing device
13499032 slewing device
13545801 covering parts component
SSY006251152 covering parts subassembly
13004787 Rear Hood Component
SSY004947778 Hydraulic main pipeline
12984658 oil tank
60221699 Plunger Pump
150901041035A Bucket Oil Cylinder
150601080040B Multiple valve
150601080040B001 Inlet Assy
150601080040B002 Arm Couplet Assembly
150601080040B003 Boom Couplet Assembly
150601080040B004 Bucket Couplet Assembly
150601080040B005 Broken Assembly
150601080040B006 Boom Deviation Assembly
150601080040B007 Swing Couplet Assembly
150601080040B008 Left Travel Assembly
150601080040B009 Right Travel Assembly
150601080040B010 Bulldozer Assembly
150601080040B011 END ASSY
60267183 Electromagnetic Directional
130101010228B Reducer assembly
13297779 Engine system
13015535 Cooling system
60225037 Radiator
13016440 Fuel system
14293595 Fuel Tank Assembly
160603010052A Fuel Water Separator
SSY006006649 Transmission & shock mitigation system
13014918 Exhaust system
13016040 Intake System
160602010108A Air Filter
13009761 Counterweight
SSY005953202 Pilot Pipelines
60342181 Electromagnetic Reversal Valve
150502010008B Left Pilot Control Valve Assembly
60343358 Oil Source Control Valve
150502010011B Right Pilot Control Valve Assembly
60247936 Pilot Valve
60281974 Pilot Valve
13526829 cab assem
13004845 Seat Assembly
130903000041A Driver Seat
13545024 bottom board component
13967294 Running Control Mechanism
13603236 Pedal Assembly
13603240 Pedal Assembly
13603246 Pendulum Pedal Assembly
60223376 Armrest Box
60282631 Right Armrest Box Assembly
14291740 Cab Frame
13824274 Top Plaque Component
13298793 Toolbox
Group 3 Travel Device
SSY005961338 Travel Device
SSY005912218 Underpan hydraulic pipe
60022417 Center Swivel Joint
13011010 Bulldozing Shovel Oil Cylinder
60022060 Reducer Assembly
60305404 Hydraulic Motor
60305393 Reducer
150901041013A Expansion Oil Cylinder
14544545 Bulldozing Shovel
60022091 Tensioning Equipment
14260493 Crawler Assembly
13559406 Slewing Bearing
Group 4 Attachment
SSY007111069 Attachment
SSY005838128 Bucket Assy
SSY004694297 Connecting Rod Assembly
SSY006897968 hydraulic auxiliary pipeline
150902030220A Boom Cylinder
150902030138A Bucket Oil Cylinder
150902030139A Bucket Oil Cylinder
Group 5 Electrical System
13479892 Electrical System
SSY006690869 Electric standard part
SSY006691247 Chinese open cab part
SSY006691113 Electric adjunct assembly
SSY006691282 Chinese 3rd harness
SSY006699815 Battery Assembly
Group 6 Accessories
SSY005582292 Accessories
Group 7 Coating
13234682 Coating
