Toyota 7FGU15 to 7FGU32, 7FDU15 to 7FDU32, 7FGCU20 to 7FGCU32 Wiring Diagram

Toyota 7FGU15 to 7FGU32, 7FDU15 to 7FDU32, 7FGCU20 to 7FGCU32 Wiring Diagram

Size: 1.11 MB
Machine: Forklift
Machine Model: 7FGU15 to 7FGU32, 7FDU15 to 7FDU32, 7FGCU20 to 7FGCU32
Pages: 24 Pages

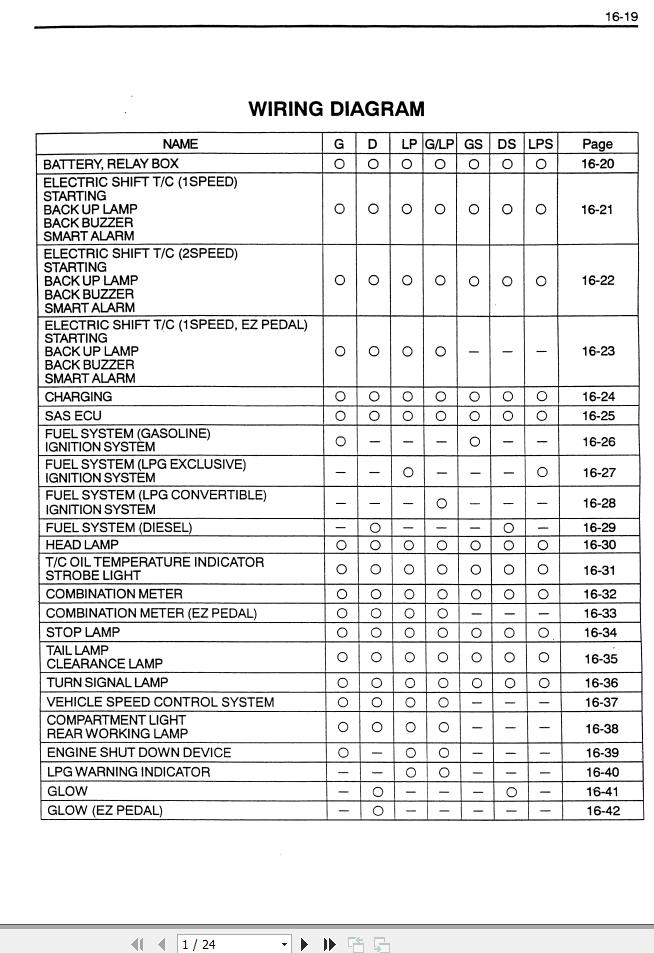

The Bookmarks of Toyota 7FGU15 to 7FGU32, 7FDU15 to 7FDU32, 7FGCU20 to 7FGCU32 Wiring Diagram:
BATTERY, RELAY BOX
ELECTRIC SHIFT TIC (1SPEED), STARTING, BACK UP LAMP, BACK BUZZER, SMART ALARM
ELECTRIC SHIFT TIC (2SPEED), STARTING, BACK UP LAMP, BACK BUZZER, SMART ALARM
ELECTRIC SHIFT TIC (1 SPEED, EZ PEDAL), STARTING, BACK UP LAMP, BACK BUZZER, SMART ALARM
CHARGING
SAS ECU
FUEL SYSTEM (GASOLINE), IGNITION SYSTEM

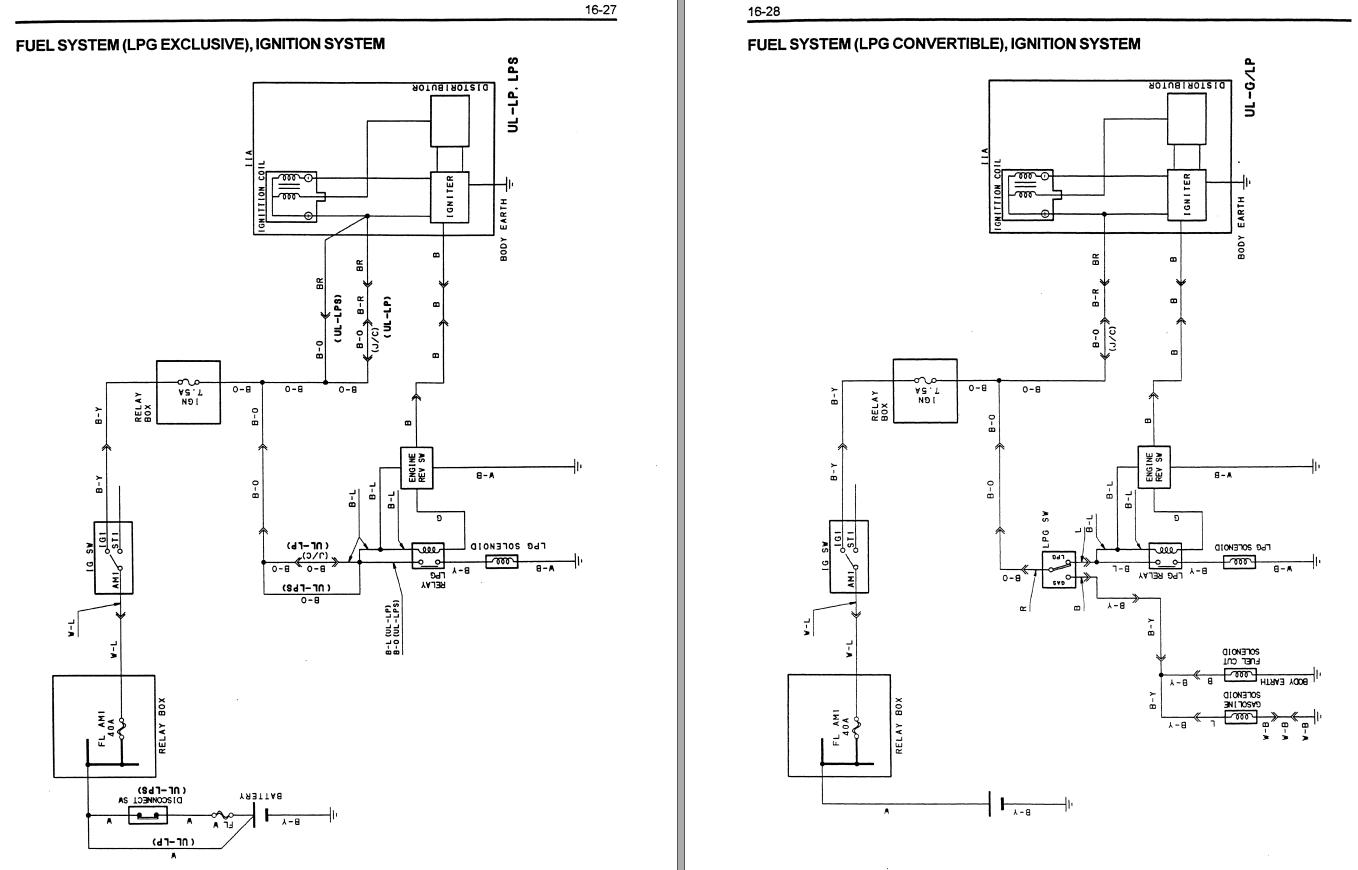

FUEL SYSTEM (LPG EXCLUSIVE), IGNITION SYSTEM
FUEL SYSTEM (LPG CONVERTIBLE), IGNITION SYSTEM
FUEL SYSTEM (DIESEL)
HEAD LAMP
TIC OIL TEMPERATURE INDICATOR, STROBE LIGHT
COMBINATION  METER
COMBINATION  METER (EZ PEDAL)
STOP LAMP
TAIL LAMP, CLEARANCE LAMP
TURN SIGNAL  LAMP
VEHICLE SPEED CONTROL SYSTEM
COMPARTMENT LIGHT, REAR WORKING LAMP
ENGINE SHUT DOWN DEVICE
LPG WARNING INDICATOR
GLOW
GLOW (EZ PEDAL)
