UniCarriers 1F5 Series Service Manual

Data Size: 21.50 MB
File Type: PDF
Language: English
Manufacturer: UniCarriers
Applicable Machine: Lift Trucks
Document: Service Manual, Electrical Schematic
Machine Model: UniCarriers Lift Trucks
D1F5M35U D1F5F35U B1F5F35U D1F5M40U D1F5F40U B1F5F40U D1F5F50U B1F5F50U
Engine:
Mitsubishi S6S-31TFL Engine
Nissan TB42KA4GR60 Engine
Publication Date: 2013
Page: 425 Pages

List Contents:

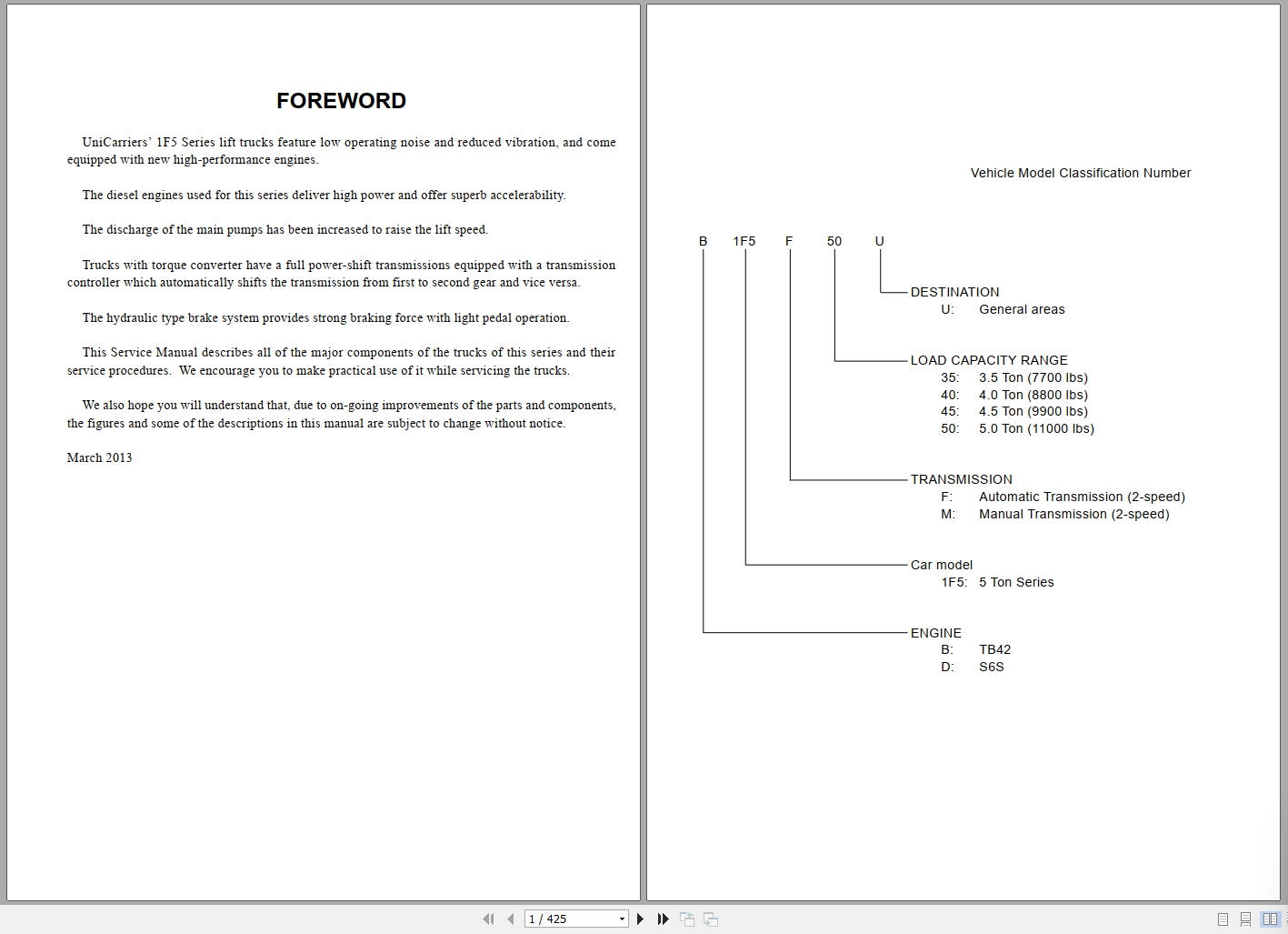

Foreword
Specifications (1)
Table Of Contents
1. Engine
2. Clutch System

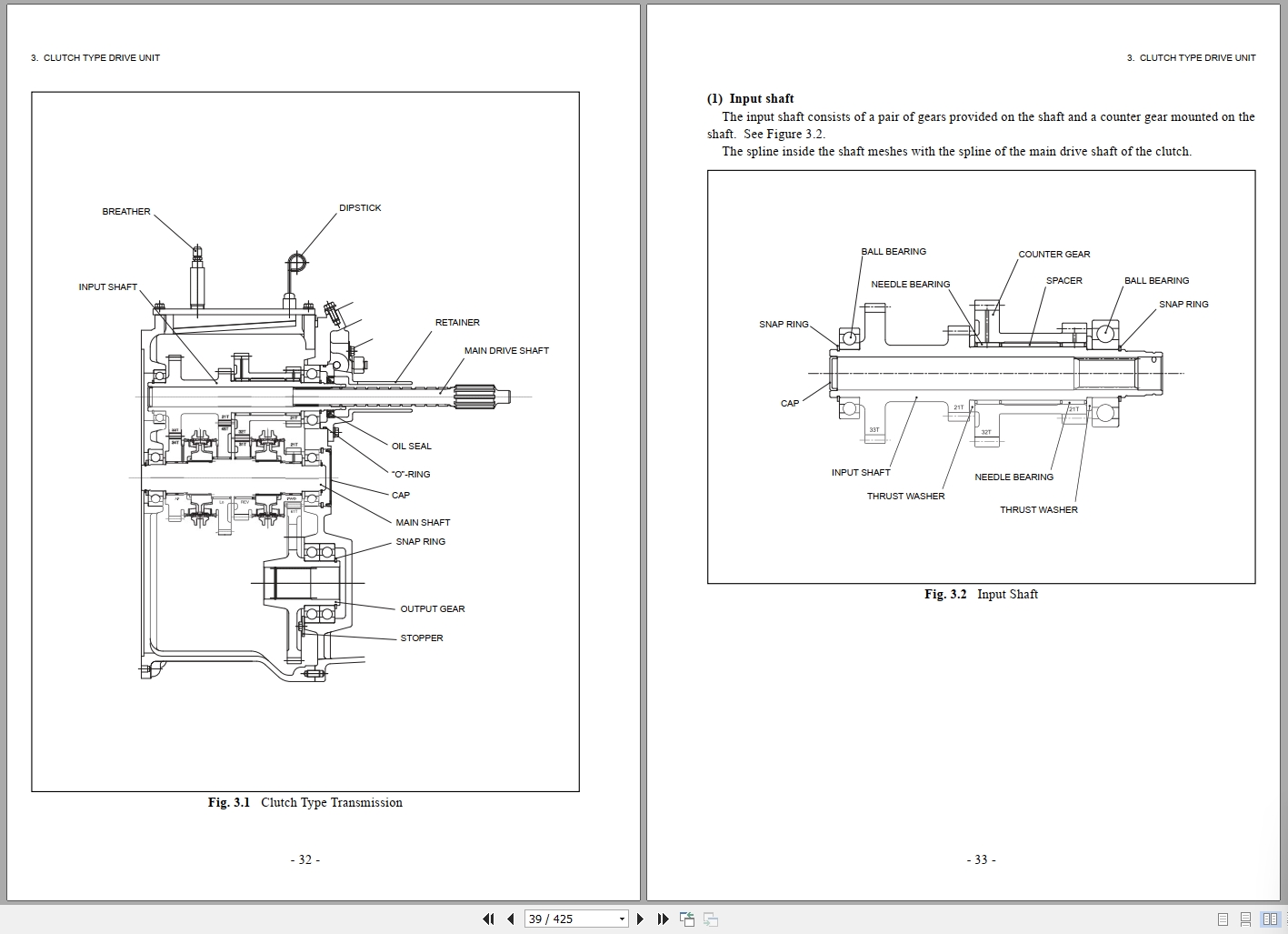

3. Clutch Type Drive Unit
4. Torque Converter Type Drive Unit
5. Drive Axle
6. Brake System
7. Steering System (Orbitrol Type)
8. Hydraulic System
9. Load Handling System
10. Steering System (Semi-Integral Type)
11. Electric Wiring
