Vogele AB 315 Hydraulic Diagrams

Data Size: 1.47 MB
File Type: tif
Language: German, English
Manufacturer: Vogele
Applicable Machine: Screeds
Type Of Manual: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Vogele AB 315 Screeds

List Contents:

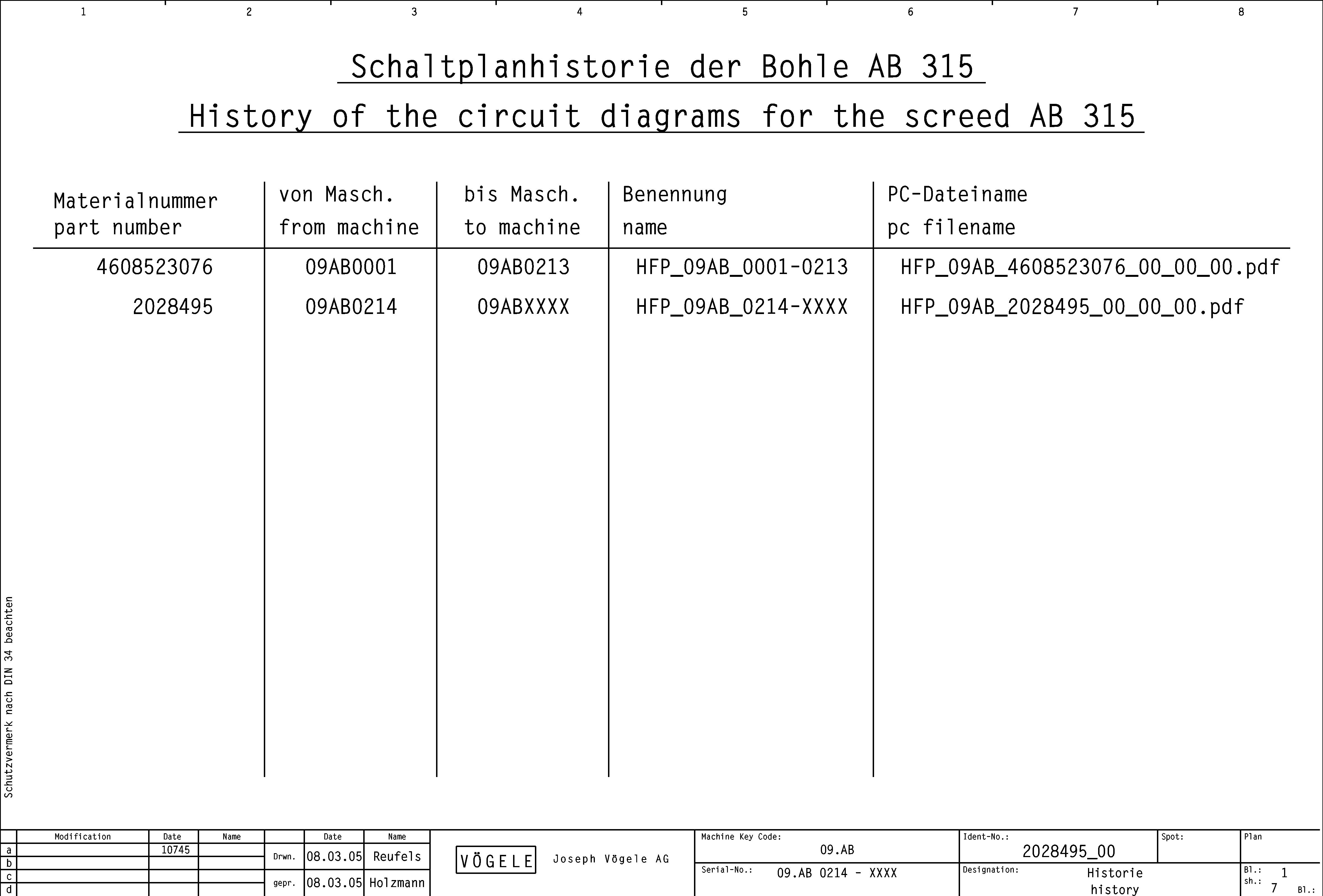

Vogele Screeds AB 315 Hydraulic Diagrams

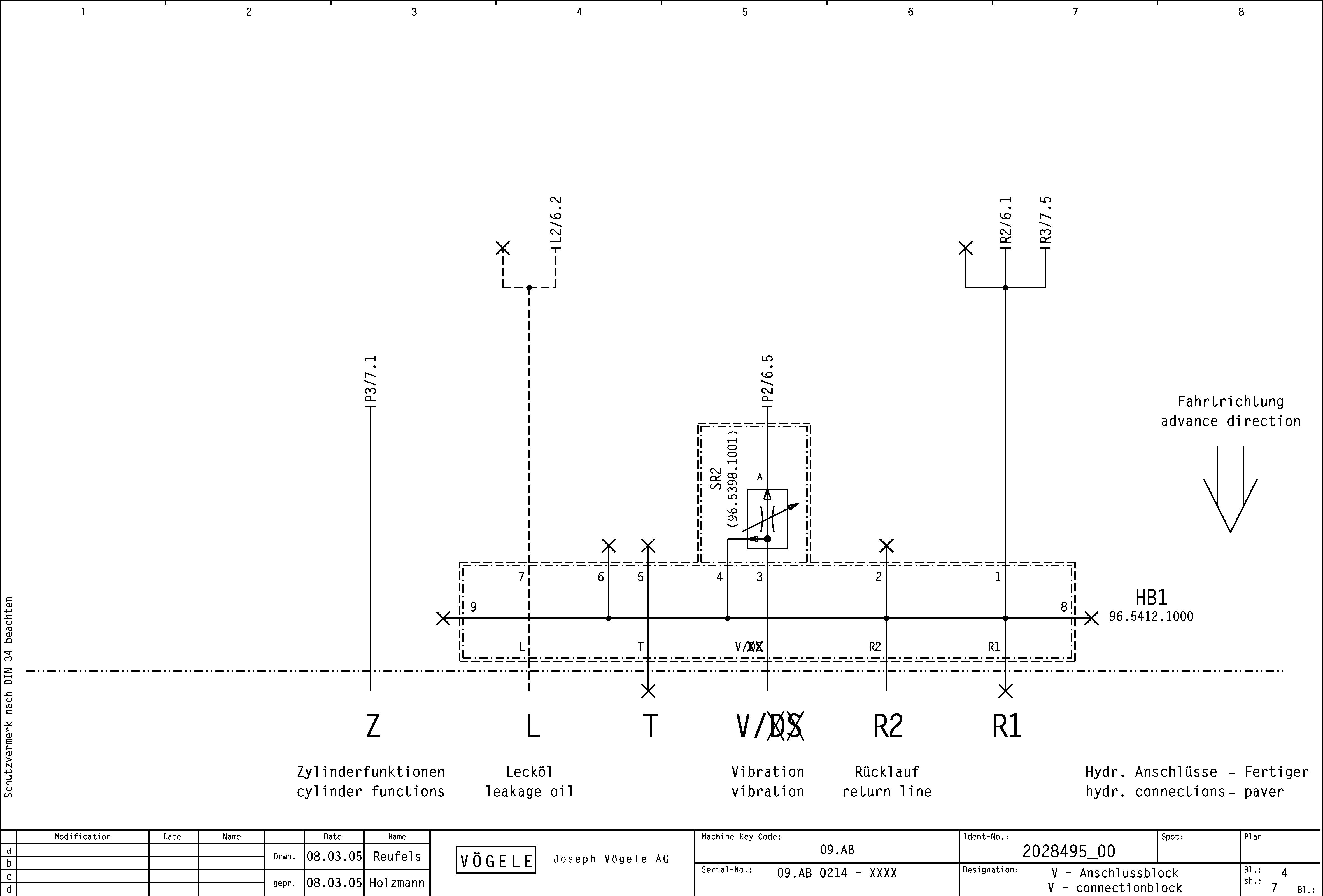

AB 315 Hydraulic Hose Diagrams 2028495_00
AB 315 Hydraulic Hose Diagrams 4608523076_00
Vogele Screeds AB 315 Hydraulic Hose Diagrams
AB 315 Hydraulic Hose Diagrams 2028644_00
AB 315 Hydraulic Hose Diagrams 4608523077_01
