Vogele AB 375T Hydraulic Diagrams

Data Size: 1.44 MB
File Type: tif
Language: German, English
Manufacturer: Vogele
Applicable Machine: Screeds
Type Of Manual: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Vogele AB 375T Screeds

List Contents:

Vogele Screeds AB 375T Hydraulic Diagrams

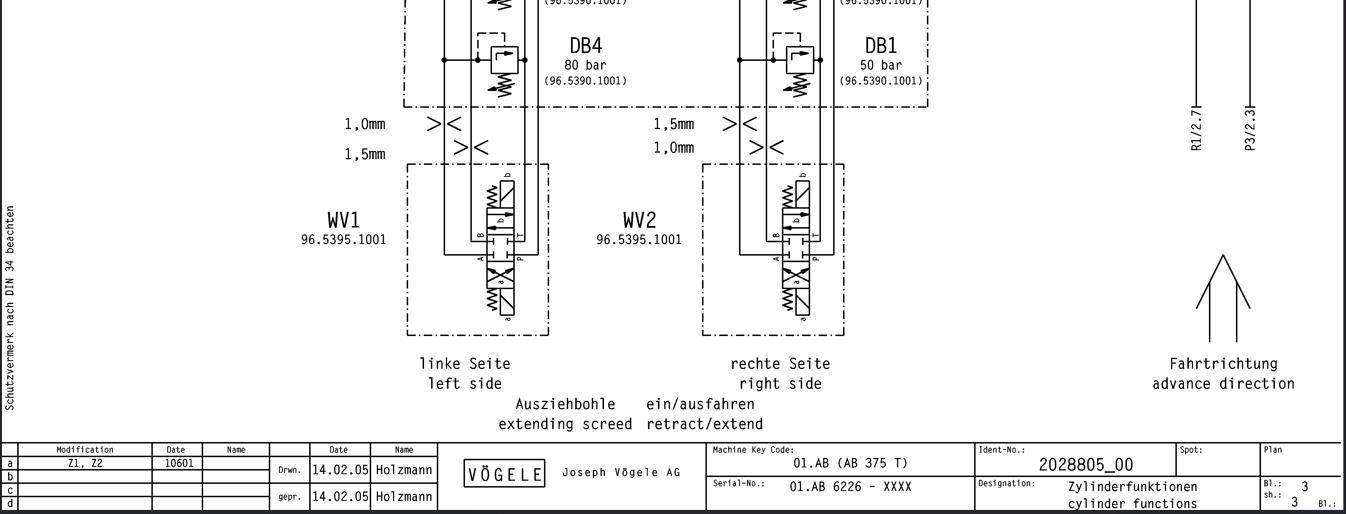

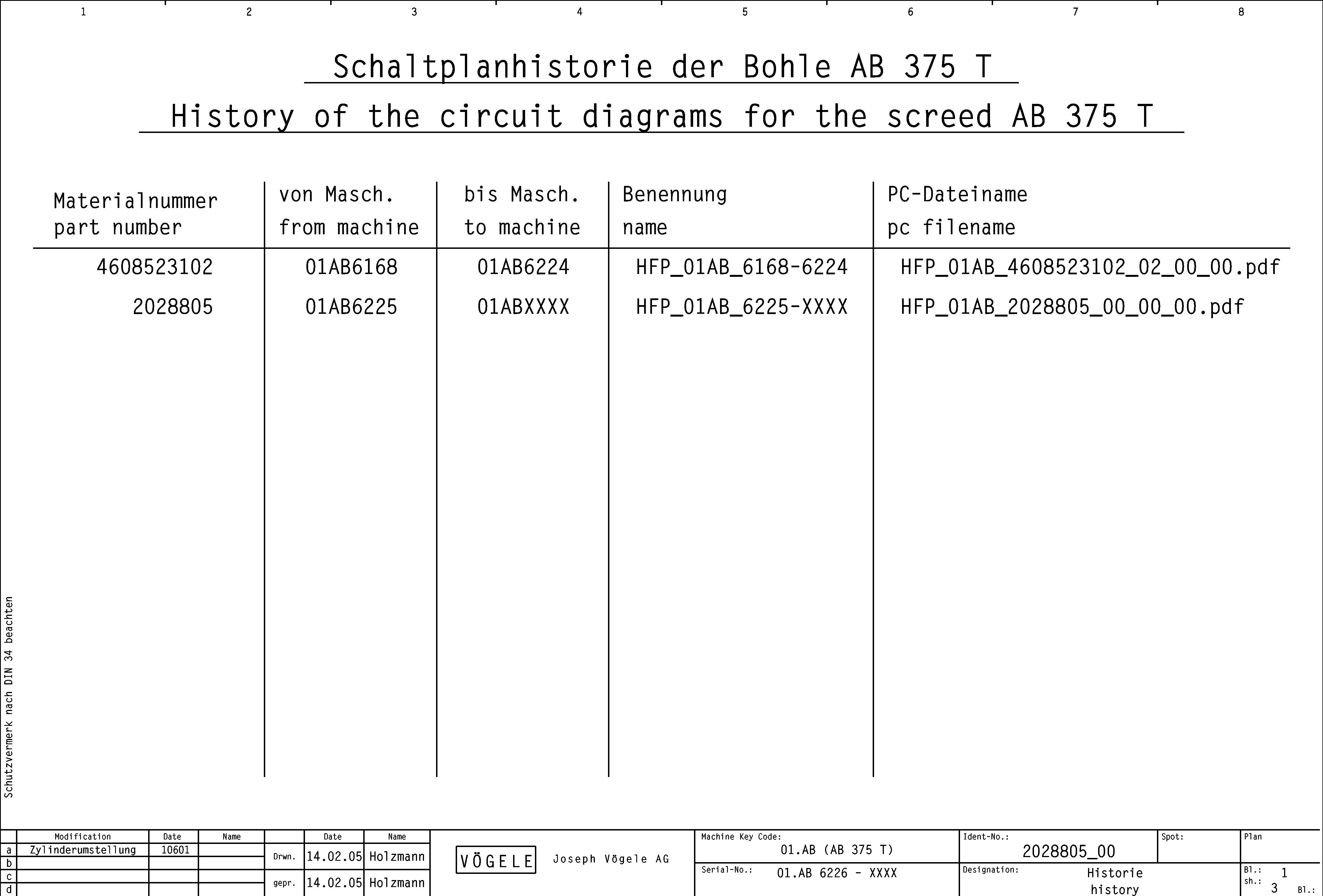

AB 375T Hydraulic Diagrams 2028805_00
AB 375T Hydraulic Diagrams 2142197_01
AB 375T Hydraulic Diagrams 2187503_00
AB 375T Hydraulic Diagrams 4608523102_02
Vogele Screeds AB 375T Hydraulic Hose Diagrams
AB 375T Hydraulic Hose Diagrams 2028806_00
AB 375T Hydraulic Hose Diagrams 2142215_02
AB 375T Hydraulic Hose Diagrams 2187509_00
AB 375T Hydraulic Hose Diagrams 4608523103_02
