Vogele AB 500-2 TV Hydraulic Diagrams

Data Size: 1.62 MB
File Type: tif
Language: German, English
Manufacturer: Vogele
Applicable Machine: Screeds
Type Of Manual: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Vogele AB 500-2 TV Screeds

List Contents:

Vogele Screeds AB 500-2 TV Hydraulic Diagrams

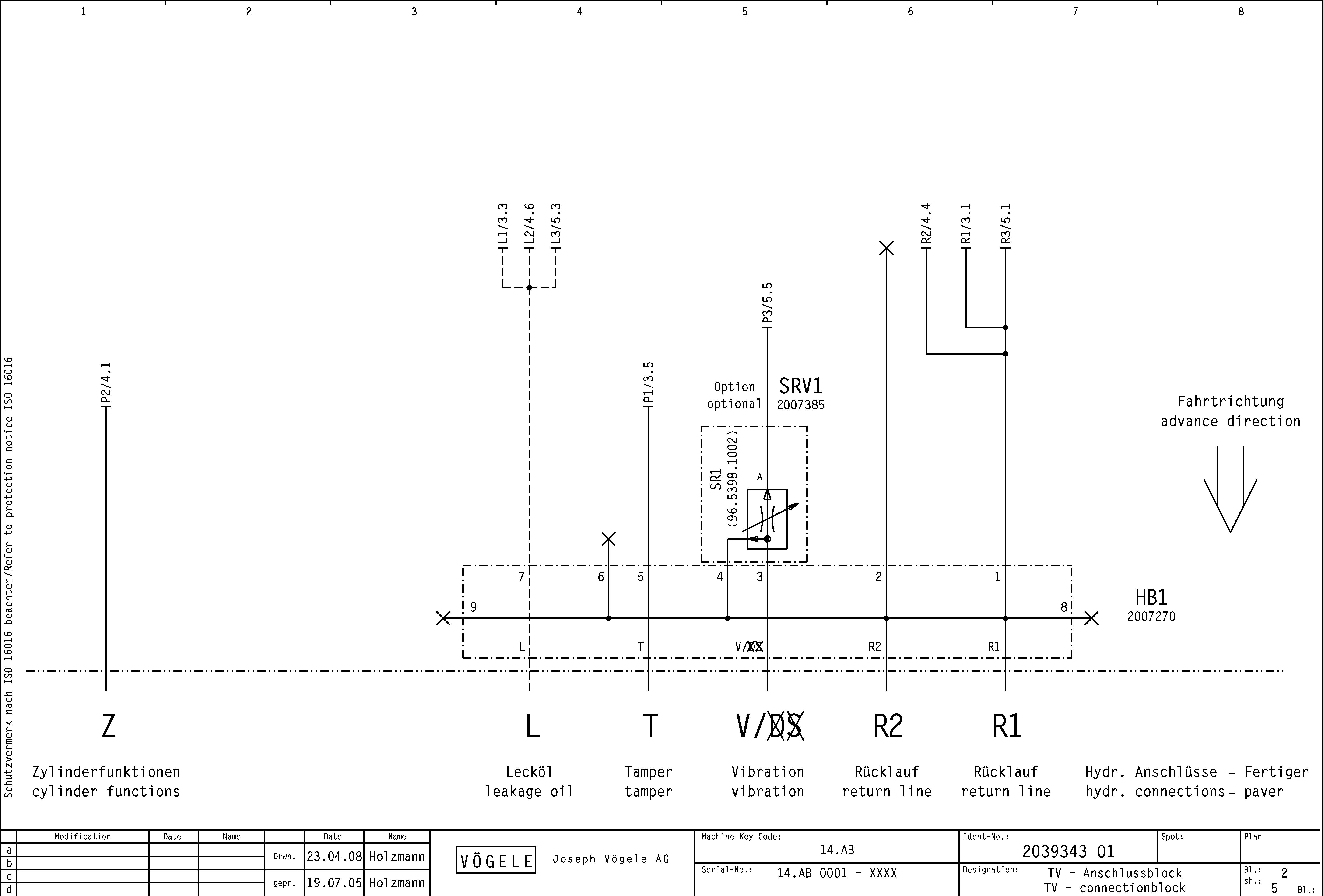

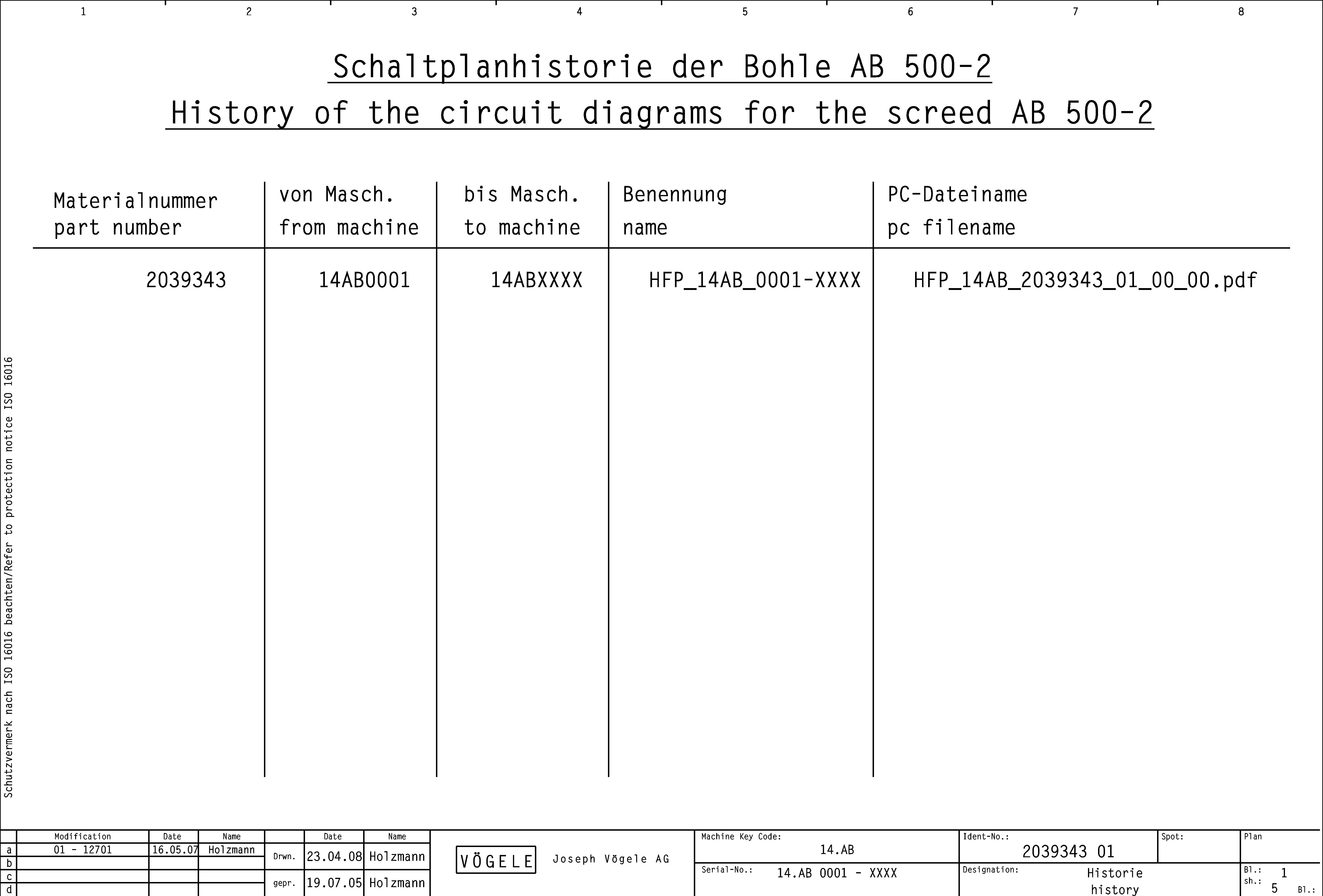

AB 500-2 TV Hydraulic Diagrams 2039343_01
AB 500-2 TV Hydraulic Diagrams 2142192_00
AB 500-2 TV Hydraulic Diagrams 2158751_00
Vogele Screeds AB 500-2 TV Hydraulic Hose Diagrams
AB 500-2 TV Hydraulic Hose Diagrams 2039344_01
AB 500-2 TV Hydraulic Hose Diagrams 2142210_00
AB 500-2 TV Hydraulic Hose Diagrams 2158752_01
